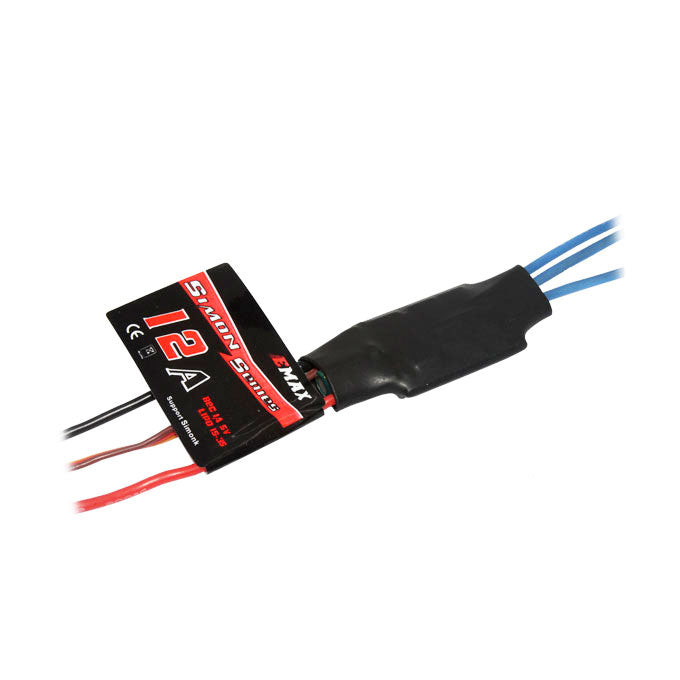

    ESC Emax Simon 12A

    ESC Emax Simon 12A

    Brand: Emax

    €13,92
    €13,92 €13,92
    -0% View Product

    sku: 111005006

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    Emax Simon 12A ESC

    Emax Simon Series 12A electronic speed controller for multicopters.

    Function: - Based on Simon K firmware, further optimized for perfect disk performance. - Low voltage protection, overheating protection and self-check function. - Separate power supply for MCU and BEC, increasing ESC's ability to eliminate magnetic interference. - ESC parameters can be set using a program card or transmitter. - Throttle range can be adjusted to be compatible with different receivers. - Equipped with built-in linear BEC - Maximum speed: 210,000 rpm for 2-pole; 70,000 rpm for 6-pole; 35,000 rpm for 12 poles.

    Specifications: Subject: Simon Series 12A Continuous current: 12A Breaking current: 15A Lipo: 1-3S Programmable: Yes BEC type: Linear 1A/5V Weight with wire: 8g Dimensions: 22 x 17 x 7 mm
