    ESC Diatone MAMBA F40_128K BL32 MINI 4IN1 40A 6S

    ESC Diatone MAMBA F40_128K BL32 MINI 4IN1 40A 6S

    Brand: Diatone Mamba System

    €56,87
    €56,87 €56,87
    -0% View Product

    sku: JH60790

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

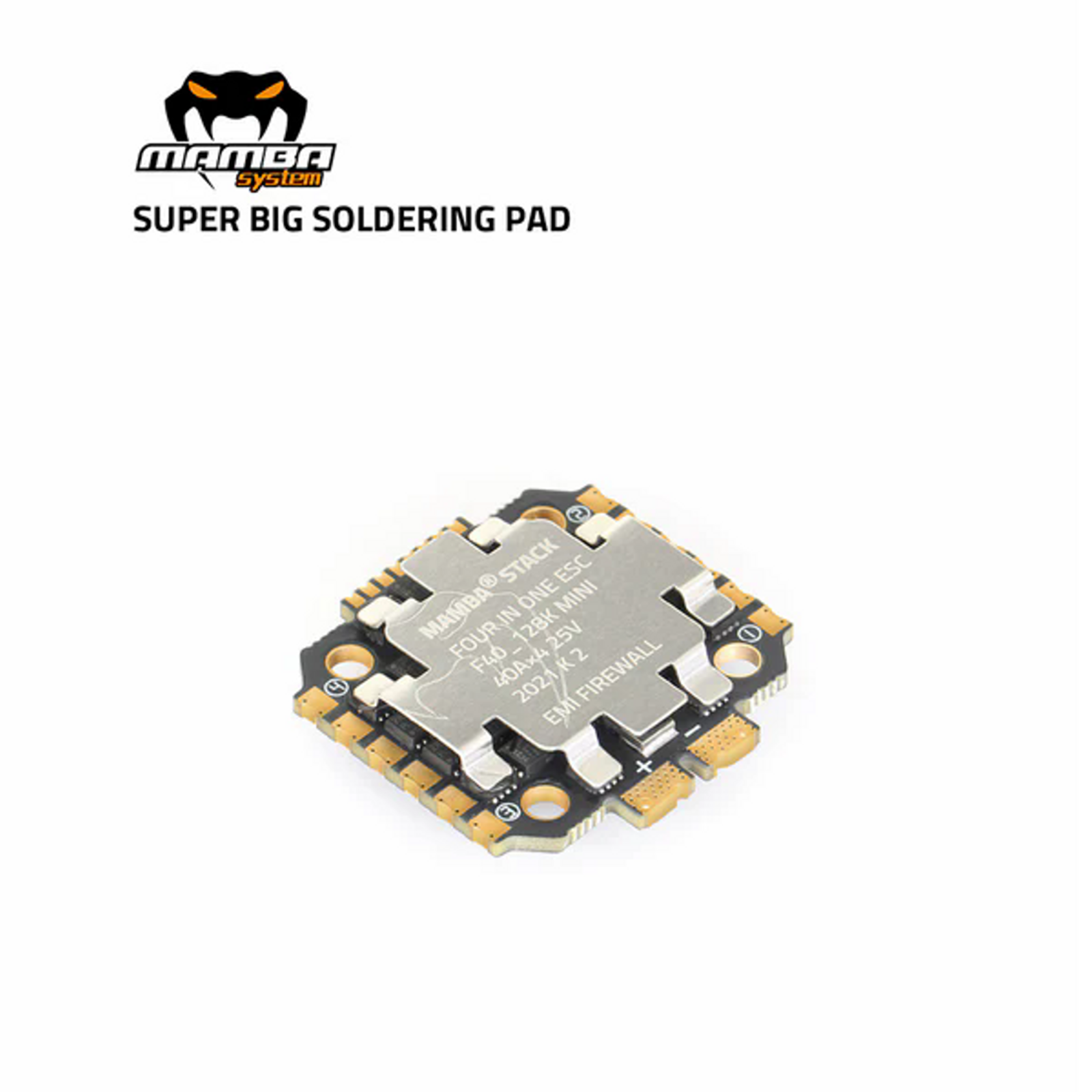

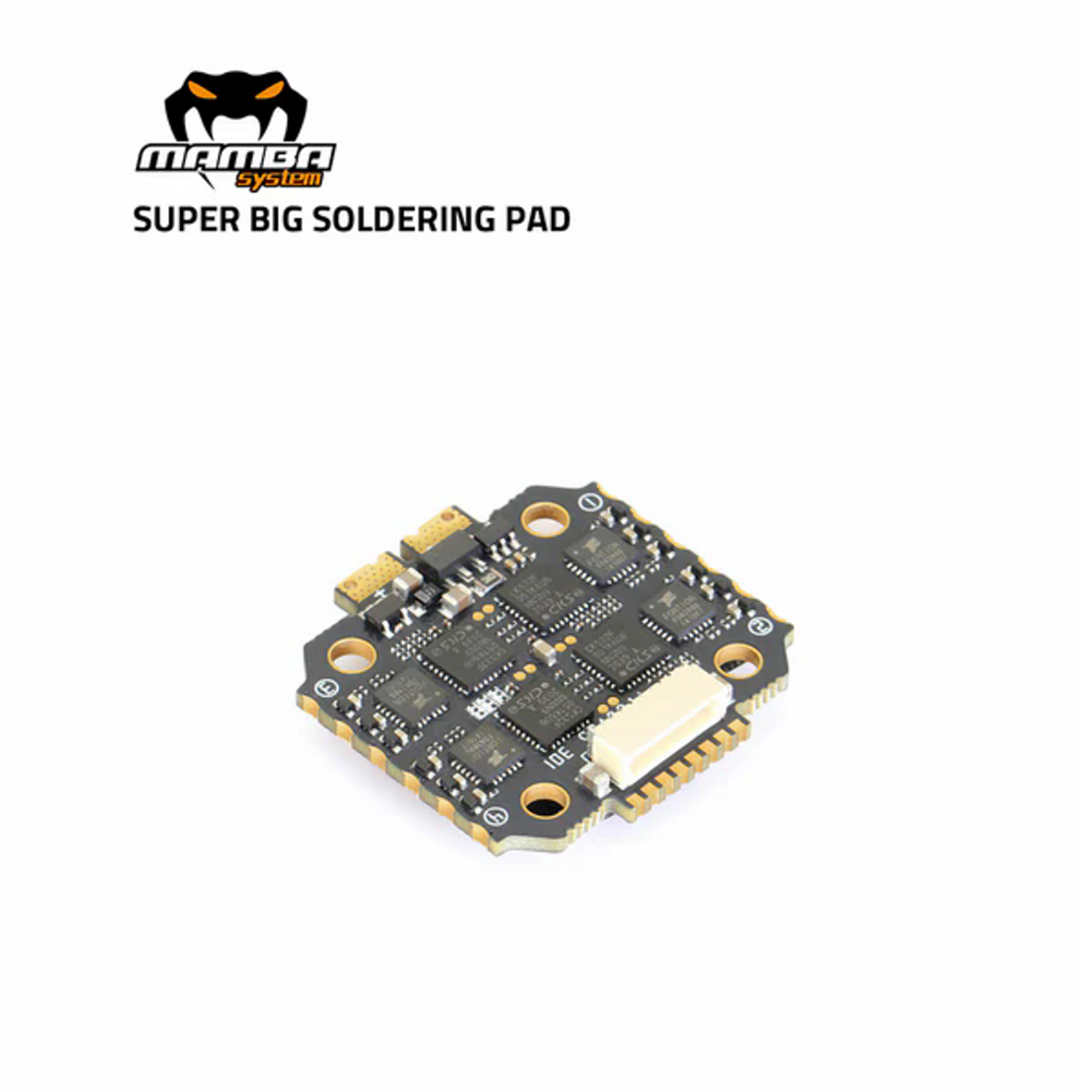

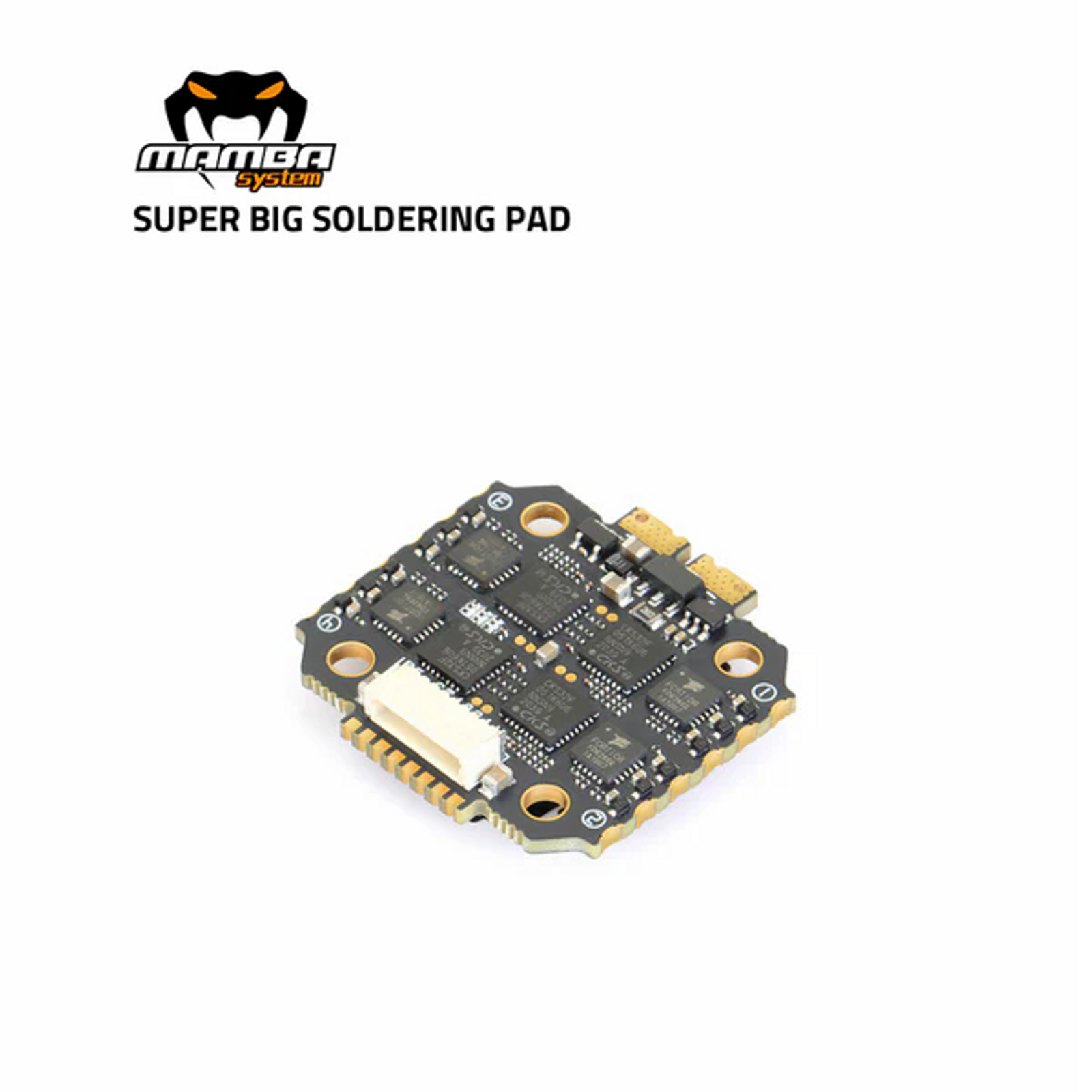

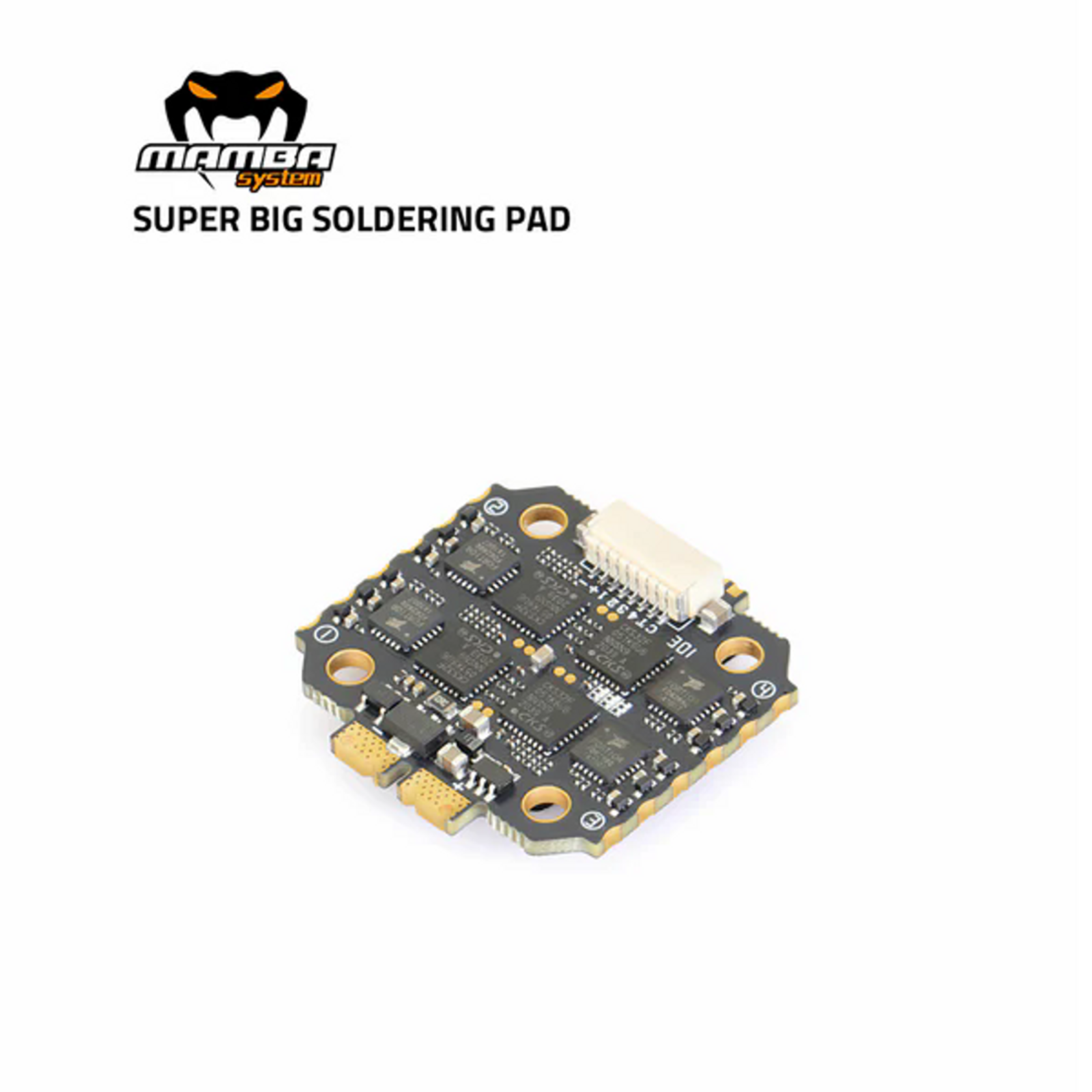

    MAMBA F40_128K BL32 MINI 4V1 ESC 40A 6S
Recommended for: 3" / 4" / Ultralight 5" < 250g

INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
CONTINUOUS CURRENT: 40A×4
EXPLOSIVE CURRENT: 45A (10S)
BEC: No
Target: BLHeli_32 MAMBA F40_128K_MINI
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 20mm/M2-M3

DELIVERIES ONLY:
8pin sh1.0×2
AMASS Original XT60
High frequency 470uF/35V
