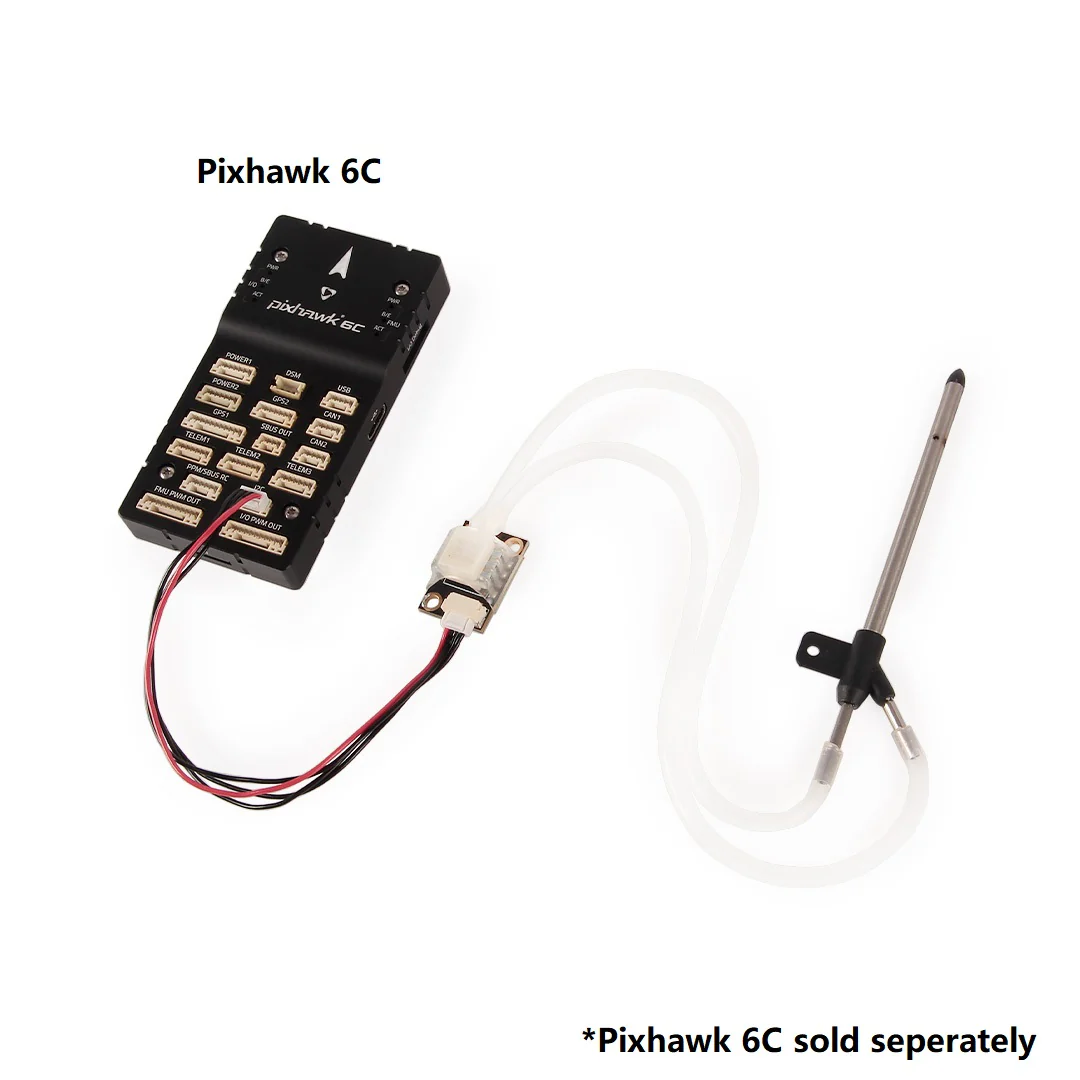

Holybro Digital Airspeed Sensor (MS4525DO) - PT40 Pitot Tube Sensor
The Holybro digital airspeed sensor has very low offset, high resolution and, best of all, does not suffer from long cable noise and ratio output offsets like other airspeed sensors. Supported on all Holybro autopilot control boards with Ardupilot and PX4.
Incorporates a Measurement Specialties 4525DO sensor, with a measurement range of 1 psi (up to approximately 100 m/s or 360 km/h or 223 mp/h), enabling 0.84 Pa resolution with data delivered at 14 bits from a 24-bit delta-sigma ADC. It also measures the temperature so that the actual airspeed can be calculated from the indicated airspeed using the static pressure sensor on the control unit. It is not affected by the heat of nearby processor components and is therefore much closer to air temperature than previous analog solutions. Supported on all Pixhawk control boards, this kit includes M3 / 6-32 mounting holes.
The package contains:
- 1x Digital air speed sensor
- 1x PT40 Pitot tube
- 1x Rubber hose 40 cm
- 1x GH 4P cable
