Diatone MAMBA Ultra Tiny 5.8G VTX 25–400mW Compact FPV Transmitter
Diatone MAMBA Ultra Tiny 5.8G VTX 25–400mW Compact FPV Transmitter
Brand: Diatone Mamba System
sku: SKU:JH60289
Out of stockCouldn't load pickup availability
- Description
The Diatone MAMBA Ultra Tiny 5.8G VTX is a lightweight and ultra-compact video transmitter for micro FPV drones. With adjustable output power levels from 25 mW to 400 mW, it delivers stable and clear video transmission suitable for both indoor and short-range outdoor flights.
This VTX operates on 5.8 GHz with IRC protocol support, allowing quick OSD parameter tuning via your flight controller. It supports NTSC and PAL video formats, and its IPEX antenna connector ensures reliable signal connection.

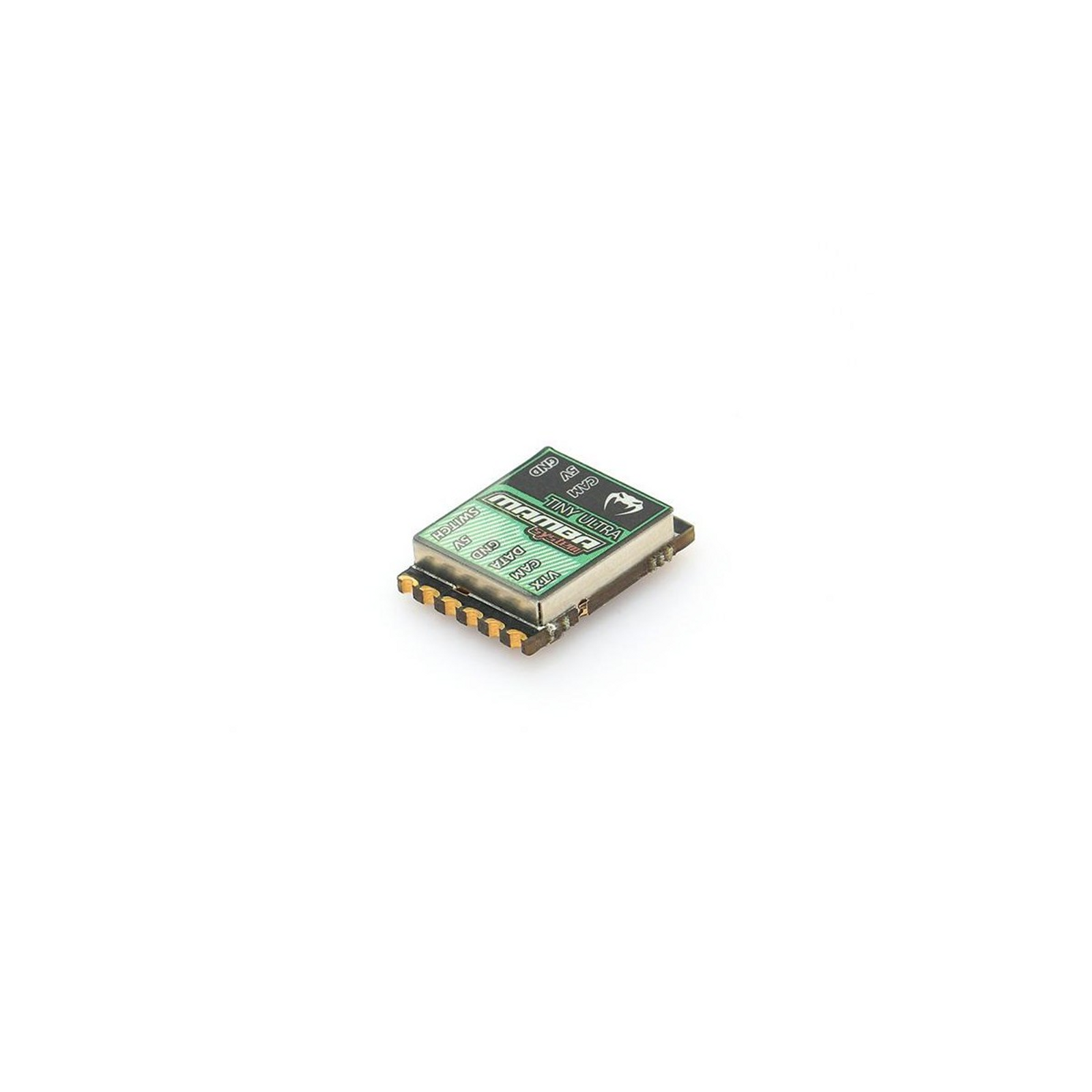

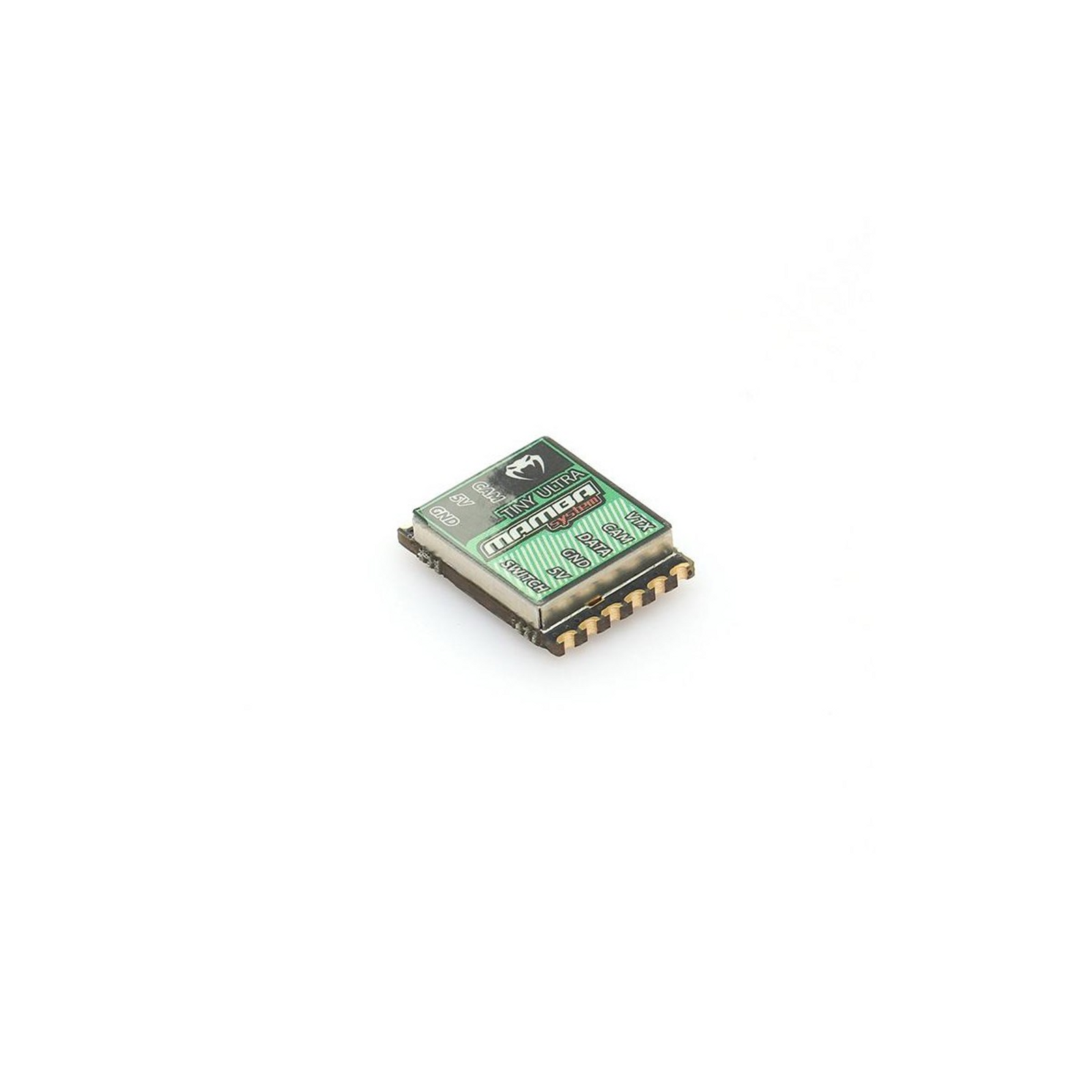

Housed in a tiny 12.2 × 17 × 4.5 mm frame, the MAMBA Ultra Tiny VTX is designed for minimal weight and footprint, making it ideal for micro drones with limited space.
Key Features
- Adjustable Output Power: 25 / 100 / 200 / 400 mW
- Operating Voltage: 4.5-5.5V
- Operating Current: 380 mA @ 5V (400 mW)
- Video Format: NTSC / PAL
- Protocol: IRC
- Antenna Connector: IPEX
- Dimensions: 12.2 × 17 × 4.5 mm
- Working Temperature: Up to 80°C
Included in Package
- 1× IPEX Antenna
- 2× 4-pin Wires

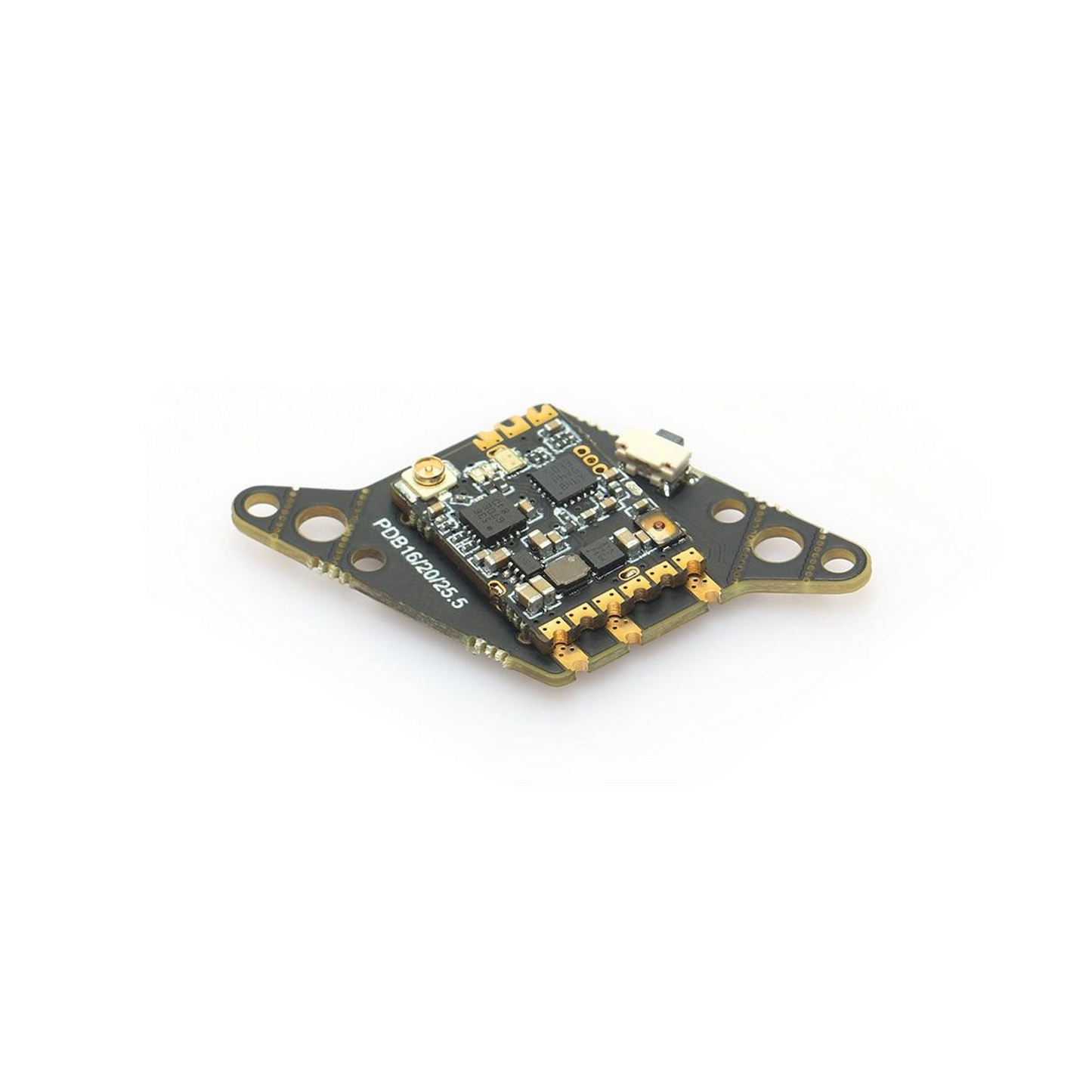

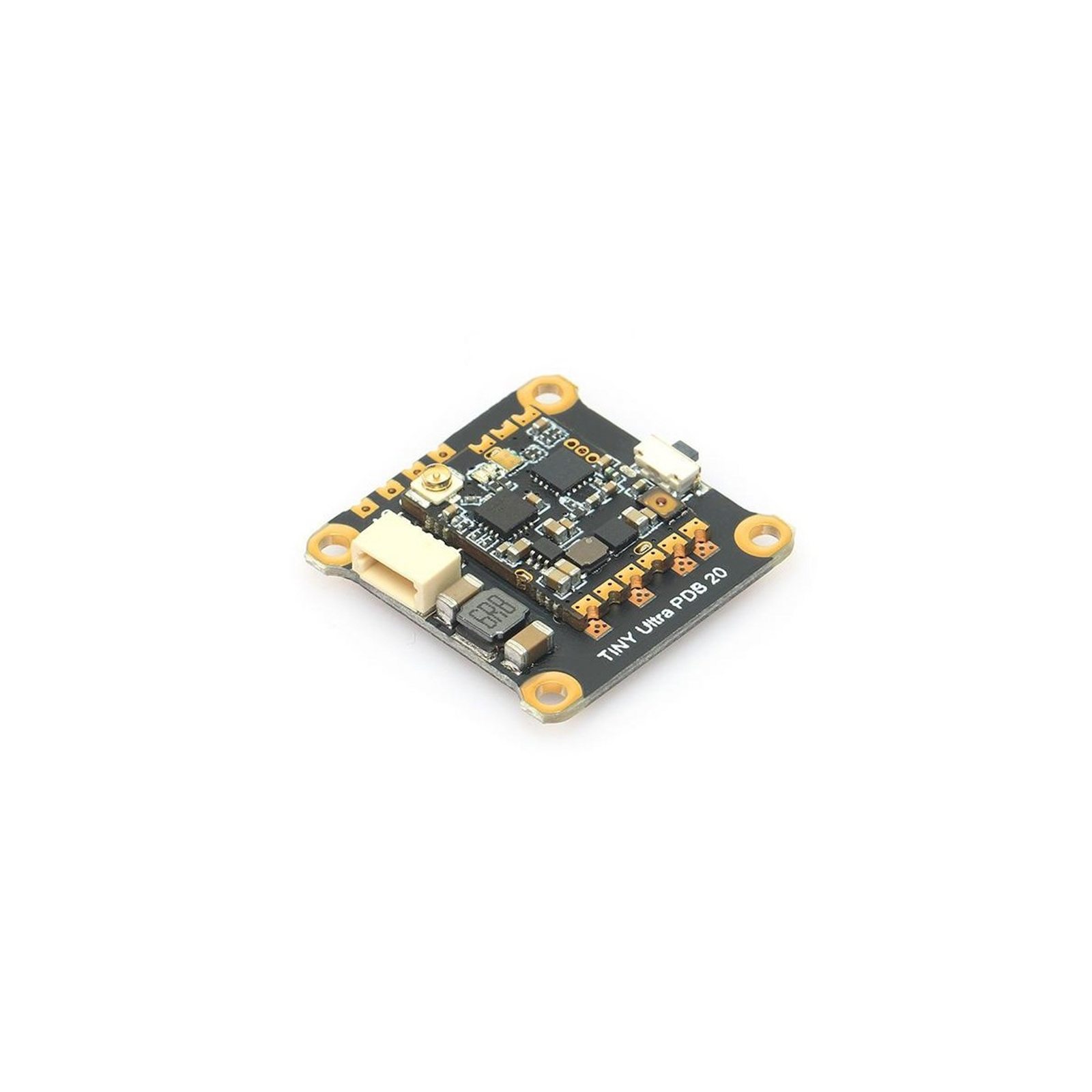

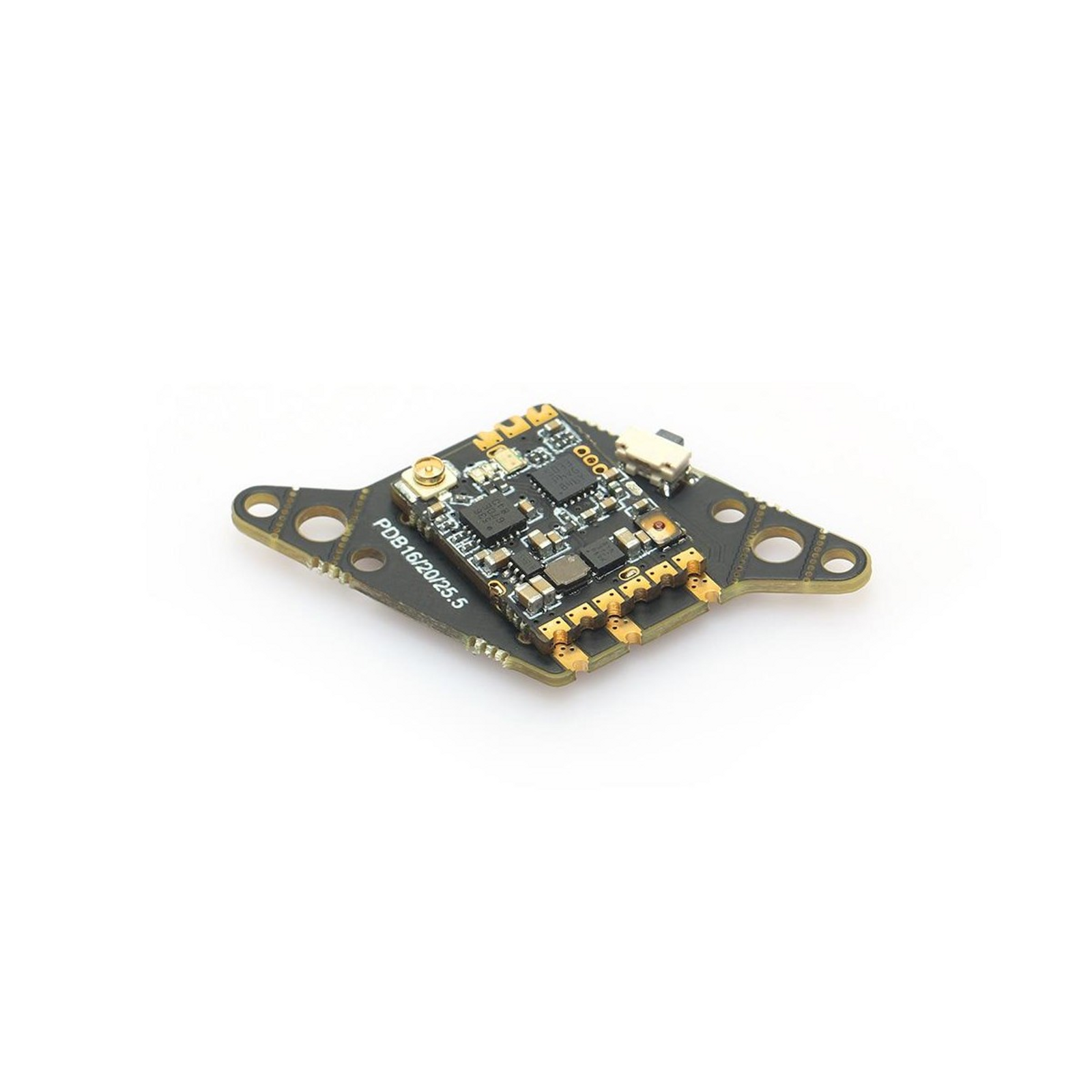

- 1× Ultra Tiny Board PDB 20mm
- 1× Ultra Tiny PDB 16/20/25.5mm Board
Ideal For
- Micro FPV drones with limited space
- Indoor and short-range outdoor flights
- Pilots who need a lightweight, adjustable-power VTX
