Diatone Mamba Ultra 5.8GHz LHCP FPV Antenna (U.FL, 90/45mm)
Diatone Mamba Ultra 5.8GHz LHCP FPV Antenna (U.FL, 90/45mm)
Brand: Diatone Mamba System
sku: SKU:JH60163-4
Out of stockCouldn't load pickup availability
- Description

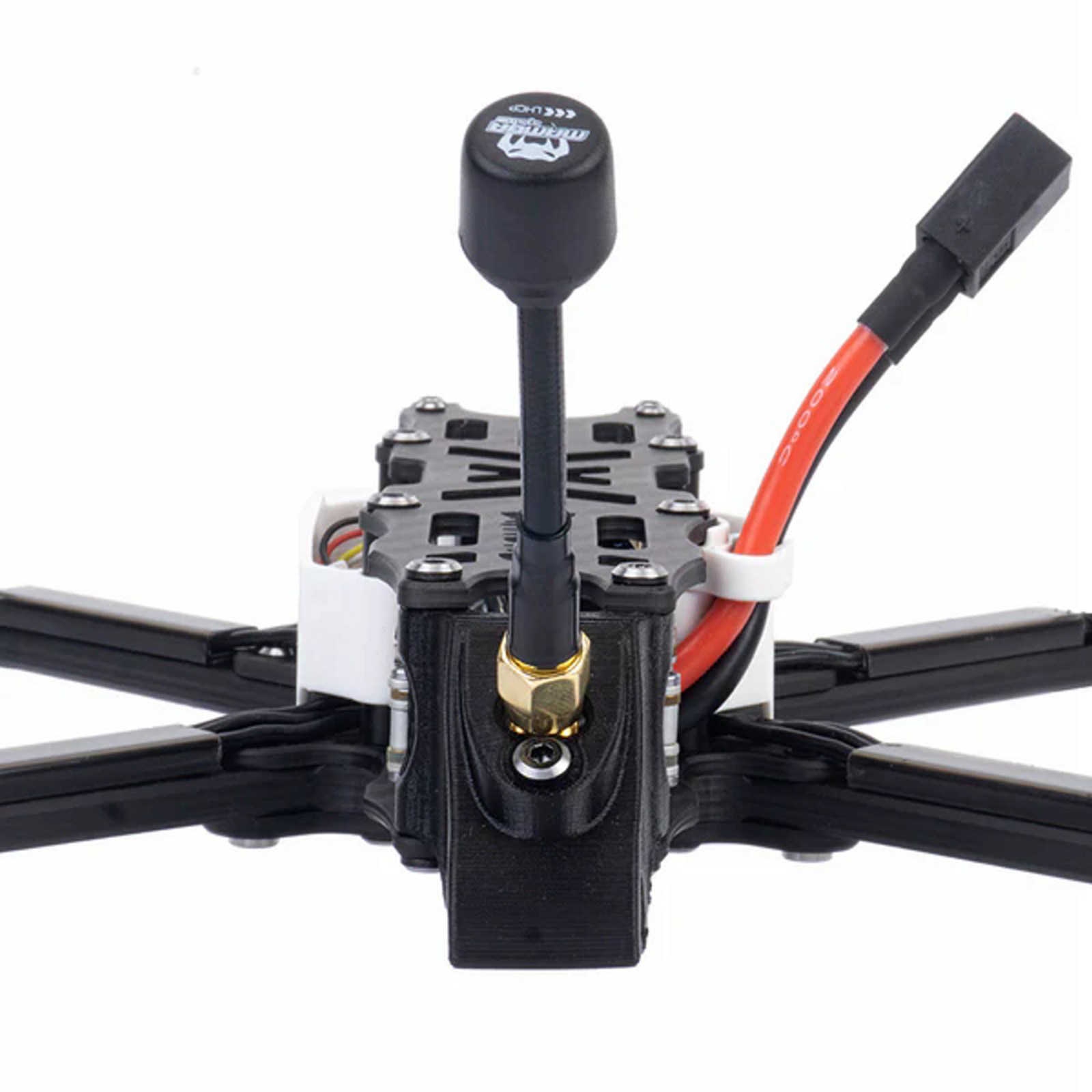

The Diatone Mamba Ultra 5.8GHz LHCP antenna is a compact and durable FPV antenna designed for stable video transmission on the 5.8GHz band. Built for performance-focused FPV systems, it combines efficient circular polarization with a rugged ABS radome for reliable use in demanding flight conditions.
With a tuned 2.5 dBi gain and low VSWR, the Mamba Ultra ensures clean signal reception and improved range stability. Its dual-section cable design (90mm tube + 45mm outer wire) offers flexible mounting options while maintaining optimal signal performance.
Ideal for FPV pilots looking for a lightweight, durable antenna solution for freestyle, racing, or cinematic drones.
Key Features:
- Optimized for 5.8GHz FPV video systems
- LHCP polarization for improved signal clarity
- Compact dual-length design for flexible mounting
- Low VSWR for stable signal transmission
- Durable ABS protective housing
- Suitable for freestyle, racing, and cinematic drones
Specifications:
- Frequency Range: 5500 – 6000 MHz
- Gain: 2.5 dBi
- Polarization: LHCP
- VSWR (5800 MHz): < 1.5
- Connector: U.FL (IPEX)
- Cable Length: 90 mm tube + 45 mm outer wire
- Radome Material: ABS
- Operating Temperature: -40°C to 60°C
- Wind Resistance: up to 60 m/s
Included:
- 1x Diatone Mamba Ultra 5.8GHz LHCP Antenna (U.FL, 90/45mm)
