Diatone MAMBA Ultra 1000 5.8G VTX 1W Adjustable FPV Transmitter
Diatone MAMBA Ultra 1000 5.8G VTX 1W Adjustable FPV Transmitter
Brand: Diatone Mamba System
sku: SKU:JH60301
Out of stockCouldn't load pickup availability
- Description

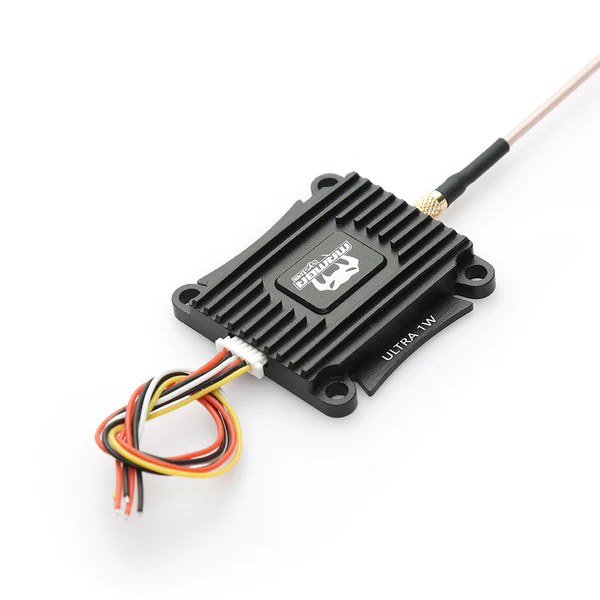

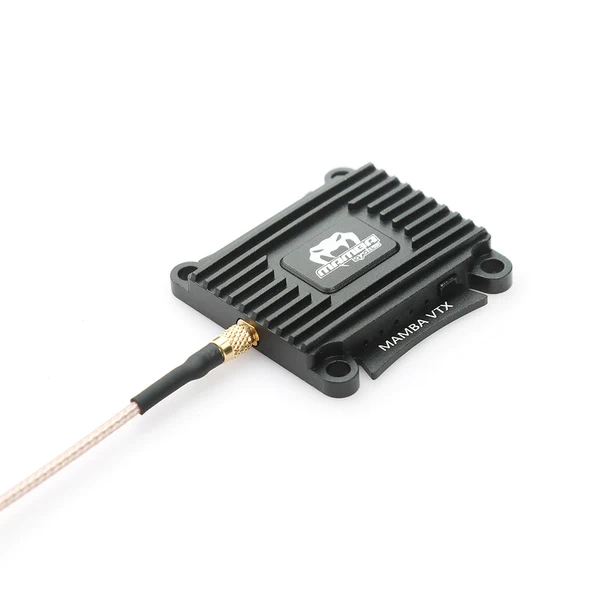

The Diatone MAMBA Ultra 1000 5.8G VTX is a high-power video transmitter designed for FPV drones requiring long-range and stable signal transmission. With adjustable output power from 25 mW up to 1000 mW, it delivers crisp video quality in both indoor and outdoor environments.
Supporting IRC protocol, the MAMBA Ultra 1000 allows easy OSD tuning via your flight controller. It operates on NTSC/PAL video formats and features a reliable MMCX antenna connector for stable signal performance.
Housed in a compact 36 × 36 × 6.5 mm case, this VTX is built to balance durability and lightweight design, handling working temperatures from -10°C to 60°C.
Key Features
- Adjustable Output Power: 25 / 200 / 400 / 800 / 1000 mW
- Operating Voltage: 7-36V
- Operating Current: 450 mA @ 12V (1000 mW)
- Video Format: NTSC / PAL
- Protocol: IRC
- Antenna Connector: MMCX
- Dimensions: 36 × 36 × 6.5 mm
- Working Temperature: -10°C to 60°C

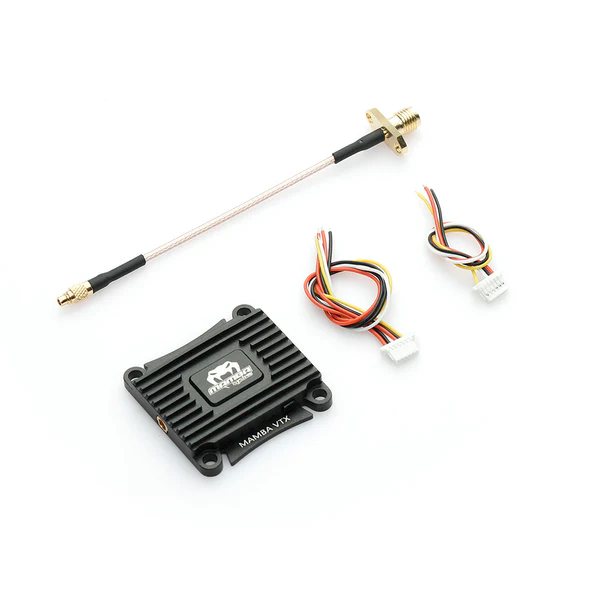

Included in Package
- 1× MMCX Antenna 120 mm
- 1× Feeder MMCX-SMA
- 2× 6-pin Wires
Ideal For
- Micro and mini FPV drones needing high-power transmission
- Long-range flights with reliable video signal
- Pilots looking for adjustable power and IRC protocol support
