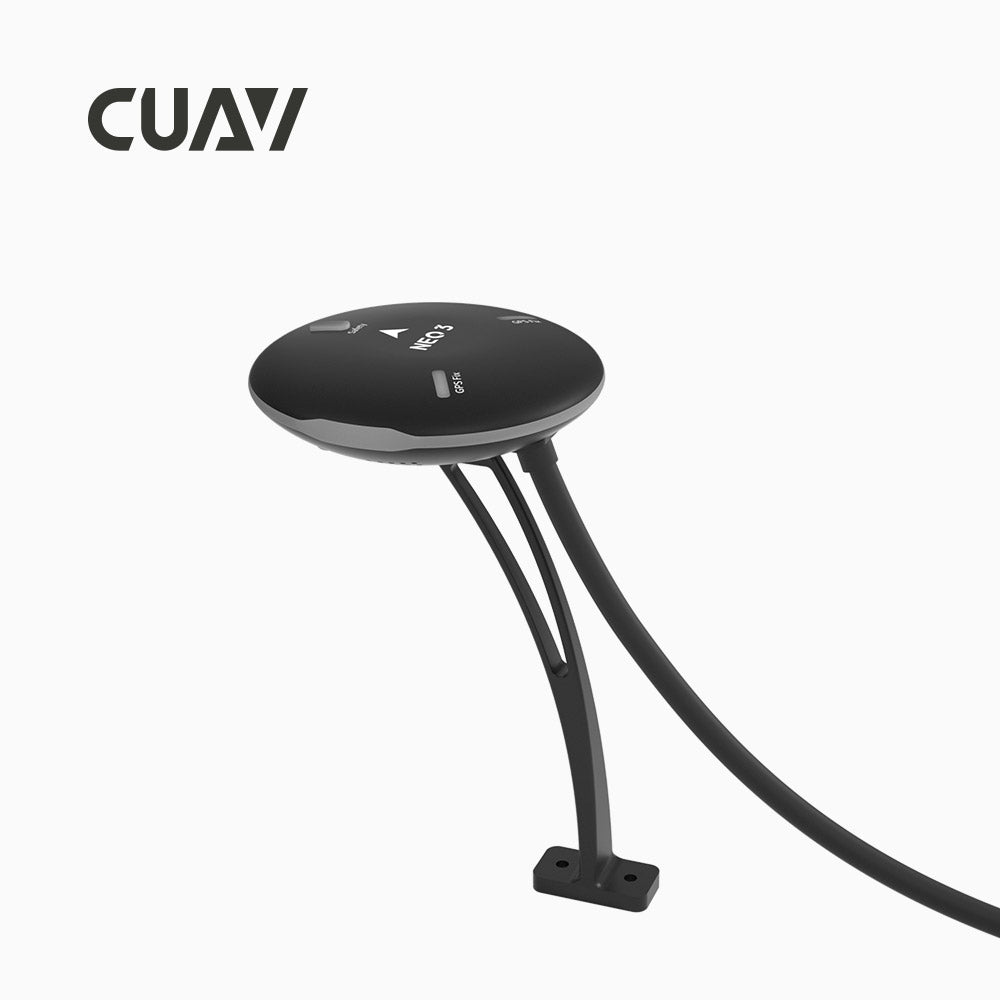

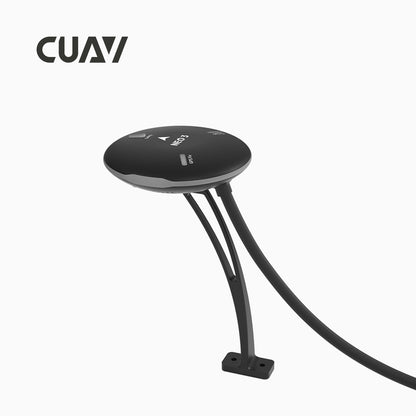

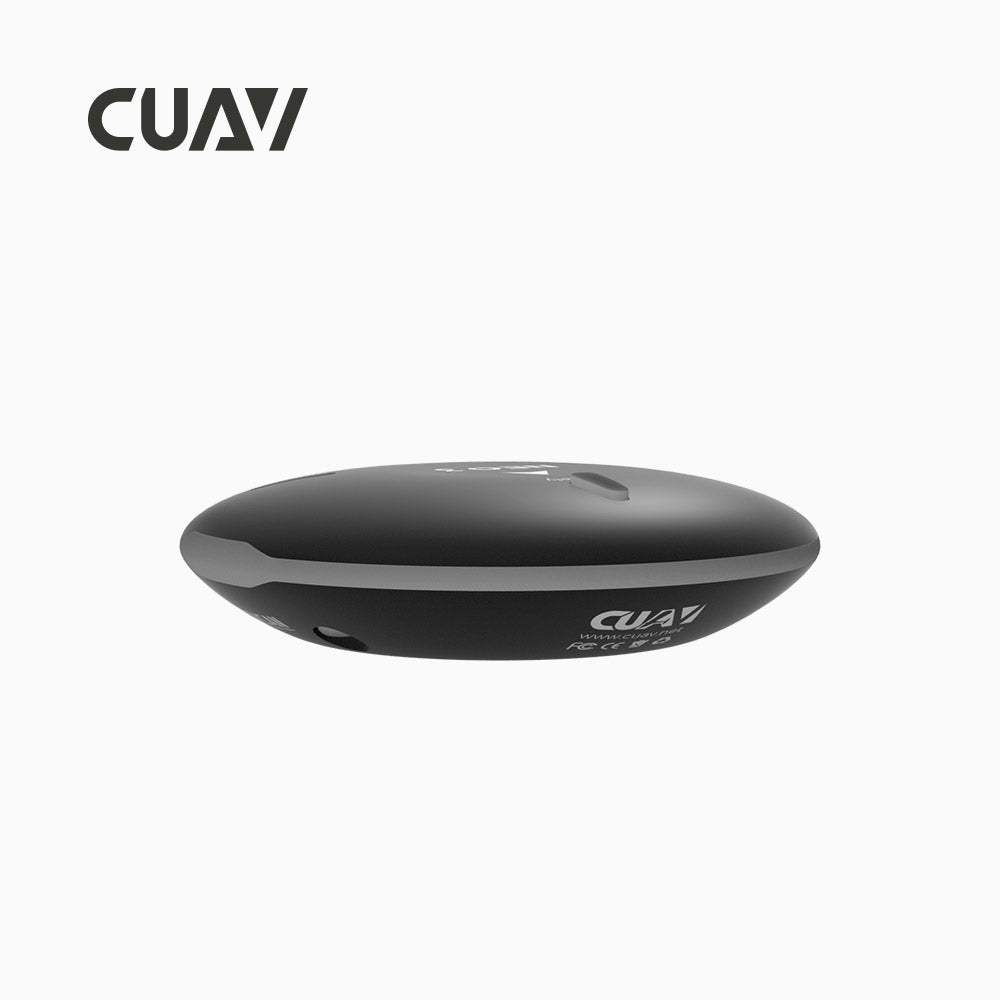

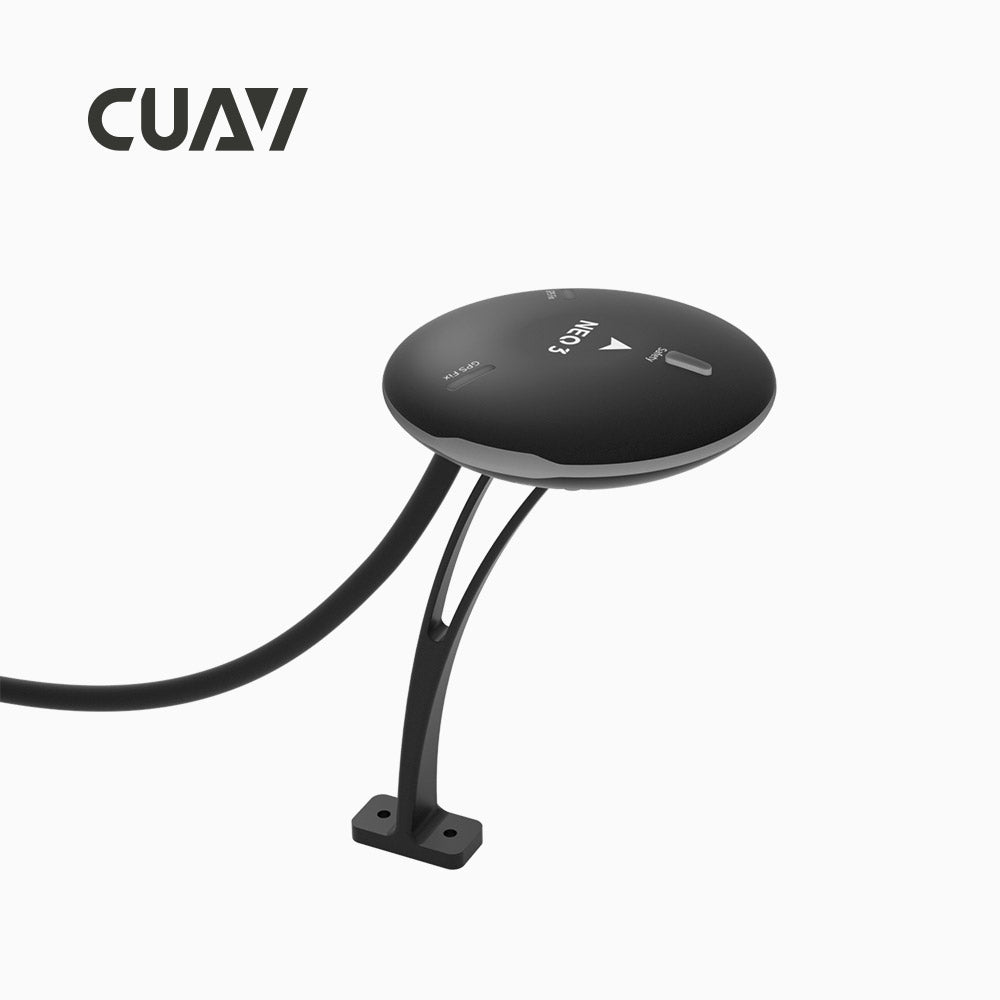

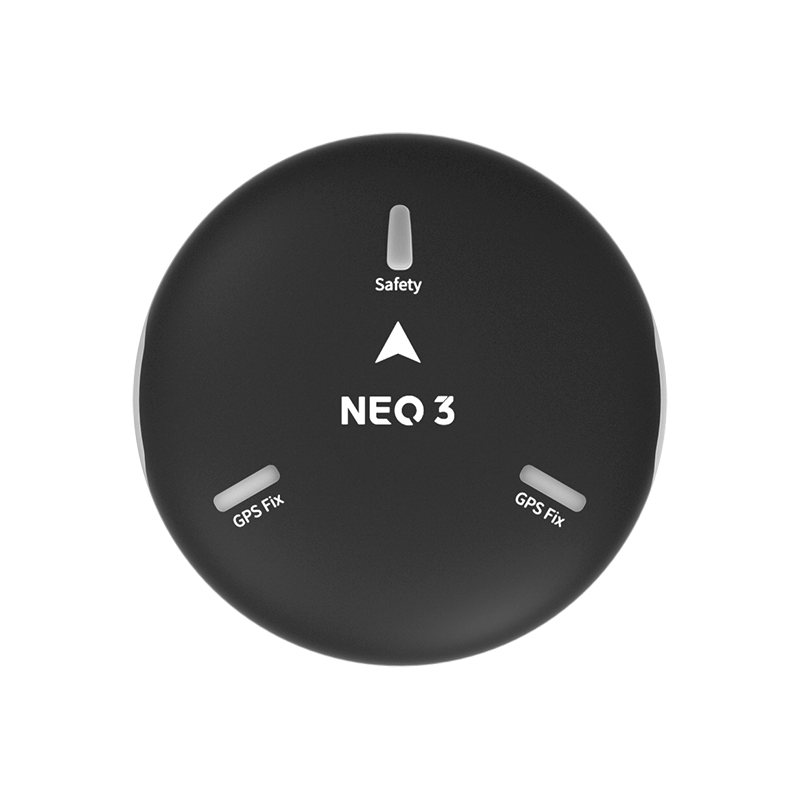

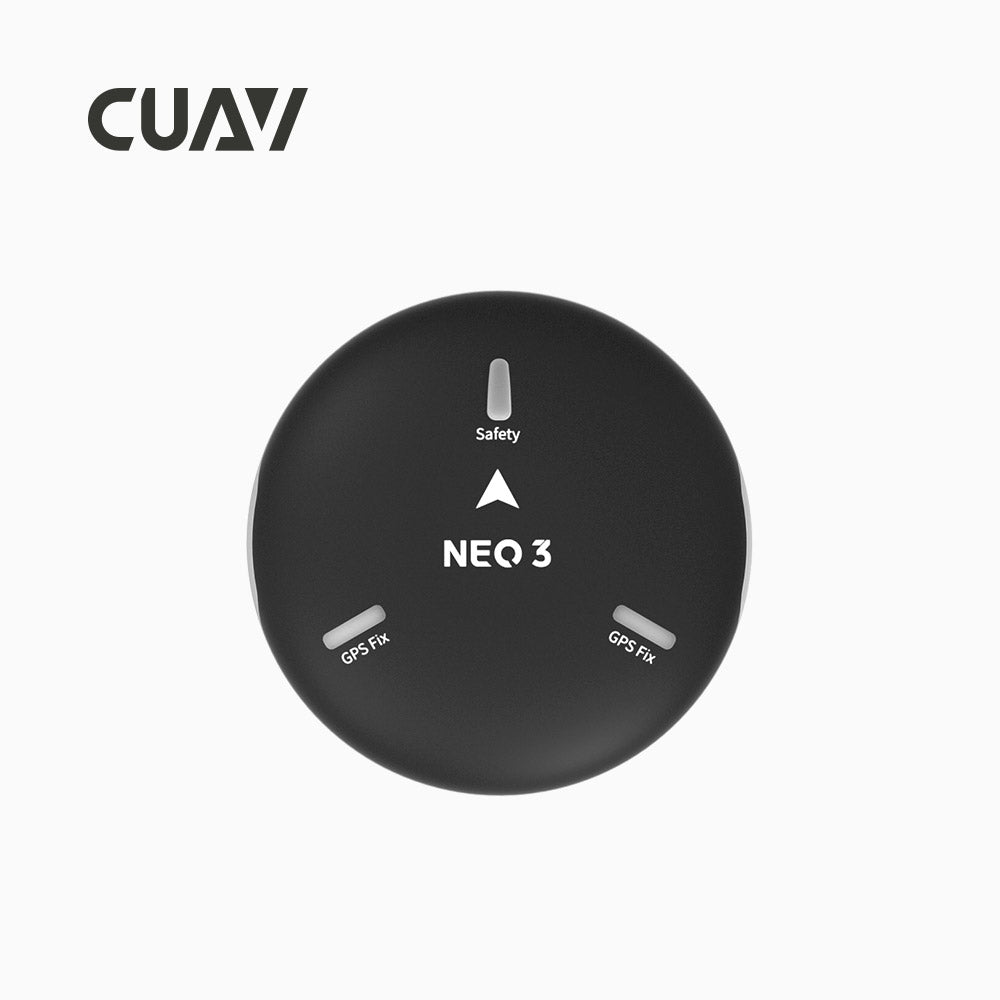

CUAV NEO 3 GPS Module with IST8310 Compass
CUAV NEO 3 GPS Module with IST8310 Compass
Brand: CUAV
Regular price
€107,69
Regular price
€107,69
Sale price
€107,69
Unit price
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:G1002
Couldn't load pickup availability
- Description

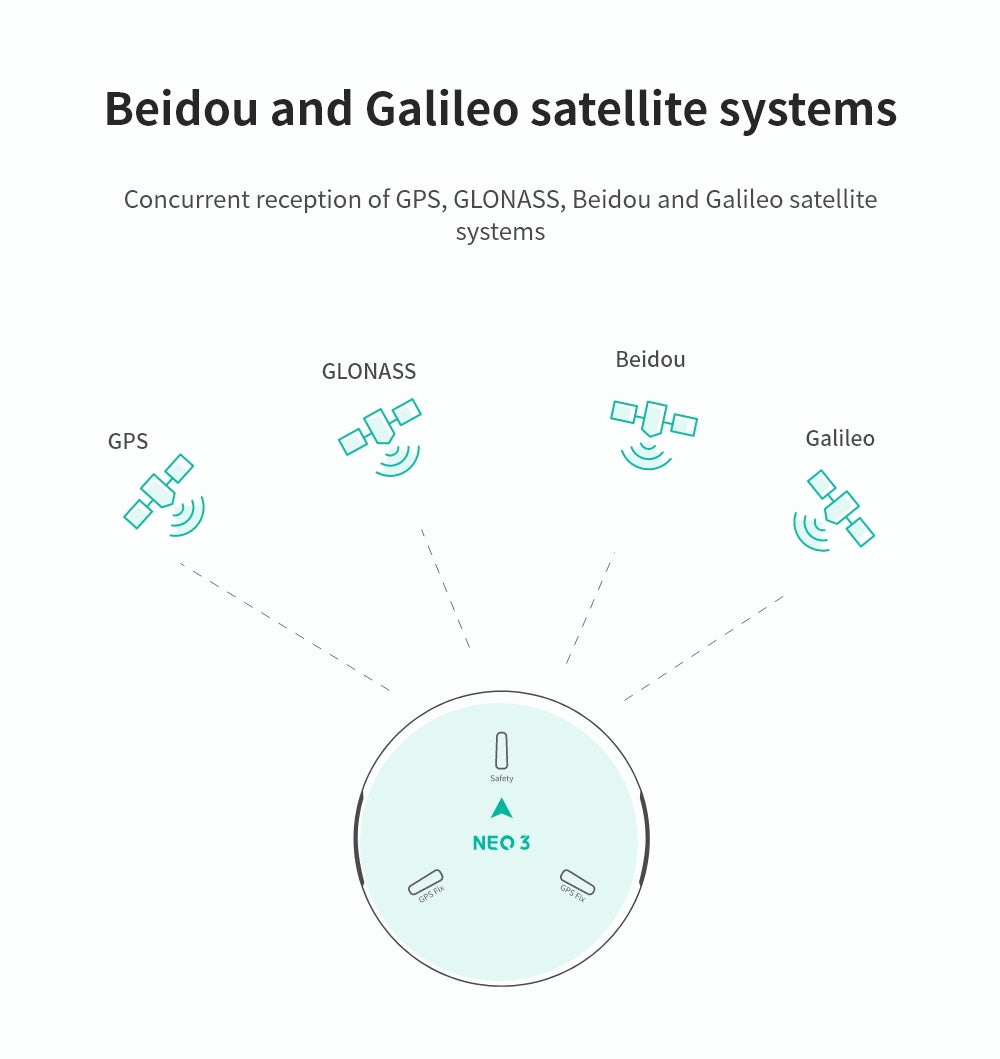

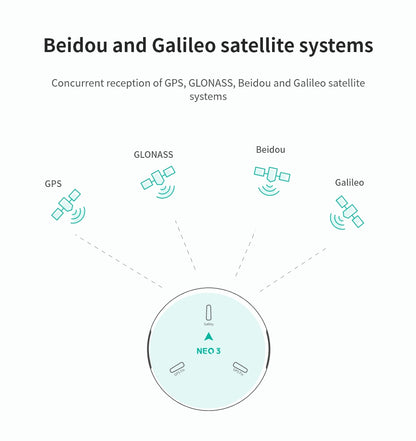

The CUAV NEO 3 GPS Module is a high-precision GNSS solution designed for UAVs, drones, and autonomous platforms. Featuring the u-blox M9N GNSS receiver, it supports simultaneous reception of GPS, GLONASS, BeiDou, Galileo, and SBAS systems, providing reliable positioning even in challenging environments.

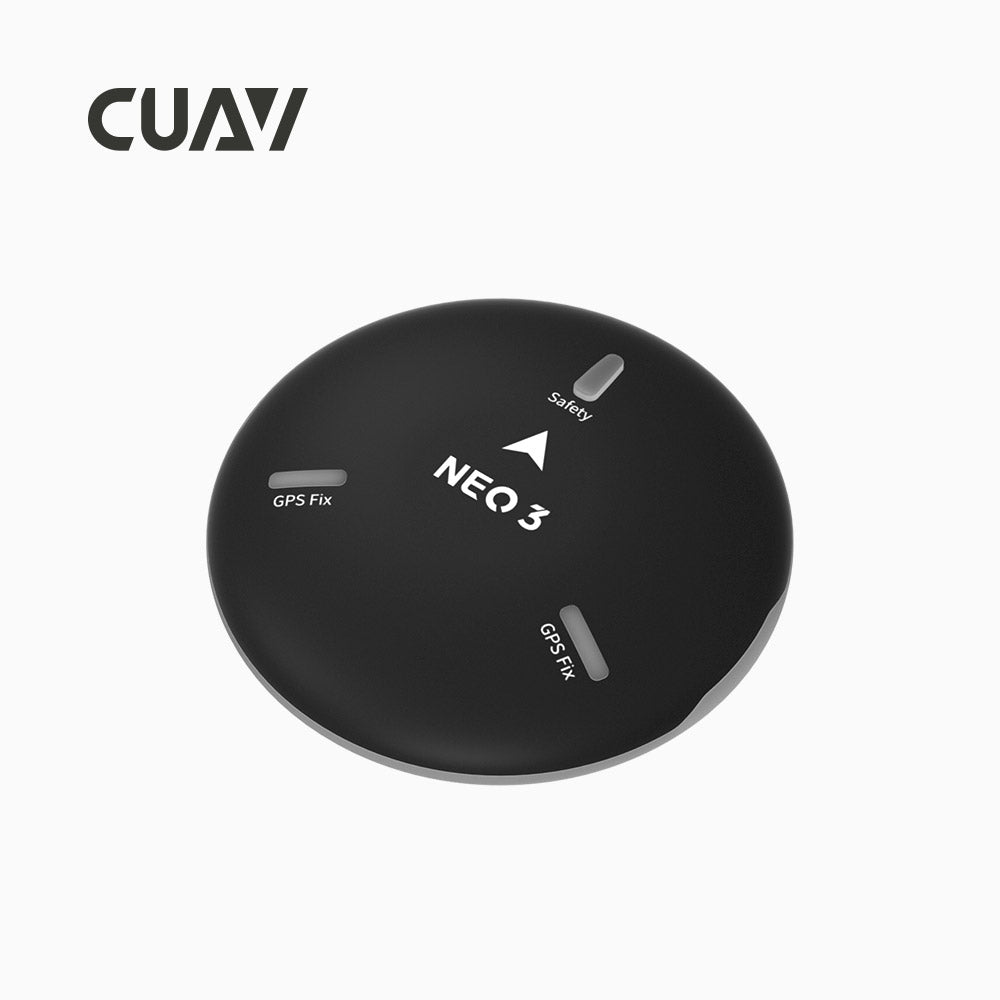

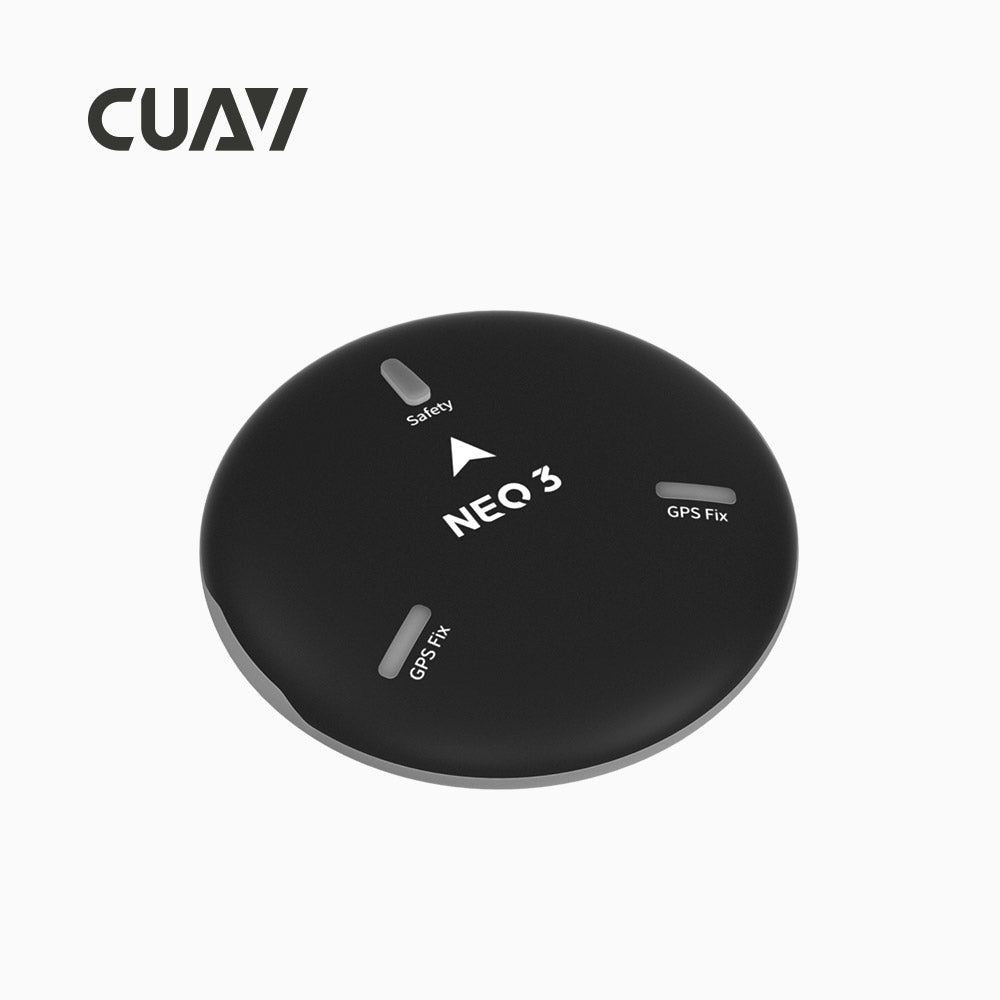

The module integrates the IST8310 compass, MS5611 barometer, and a safety switch with RGB indicator and buzzer, making it an all-in-one navigation and safety solution. Compatible with Pixhawk, ArduPilot, and PX4, the NEO 3 is ideal for open-source UAV systems requiring centimeter-level navigation and accurate orientation.
Key Features
- GNSS Receiver: u-blox M9N, supports GPS, GLONASS, BeiDou, Galileo, SBAS
- Compass: IST8310 3-axis magnetometer
- Barometer: MS5611 for precise altitude detection
- RTK Receiver: Supports high-precision updates up to 25 Hz
- Positioning Accuracy: Up to 1.5 m
- Satellite Capacity: Up to 32 simultaneous satellites
- Cold Start: 24 s | Auxiliary Start: 2 s | Recovery: 2 s
- Navigation Sensitivity: Tracking -167 dBm | Cold start -148 dBm | Recovery -160 dBm
- Communication Protocols: UART, I2C, IO
- Interface Type: GHR-10V-S
- Input Voltage: 5 V
- Operating Temperature: -10°C to +70°C

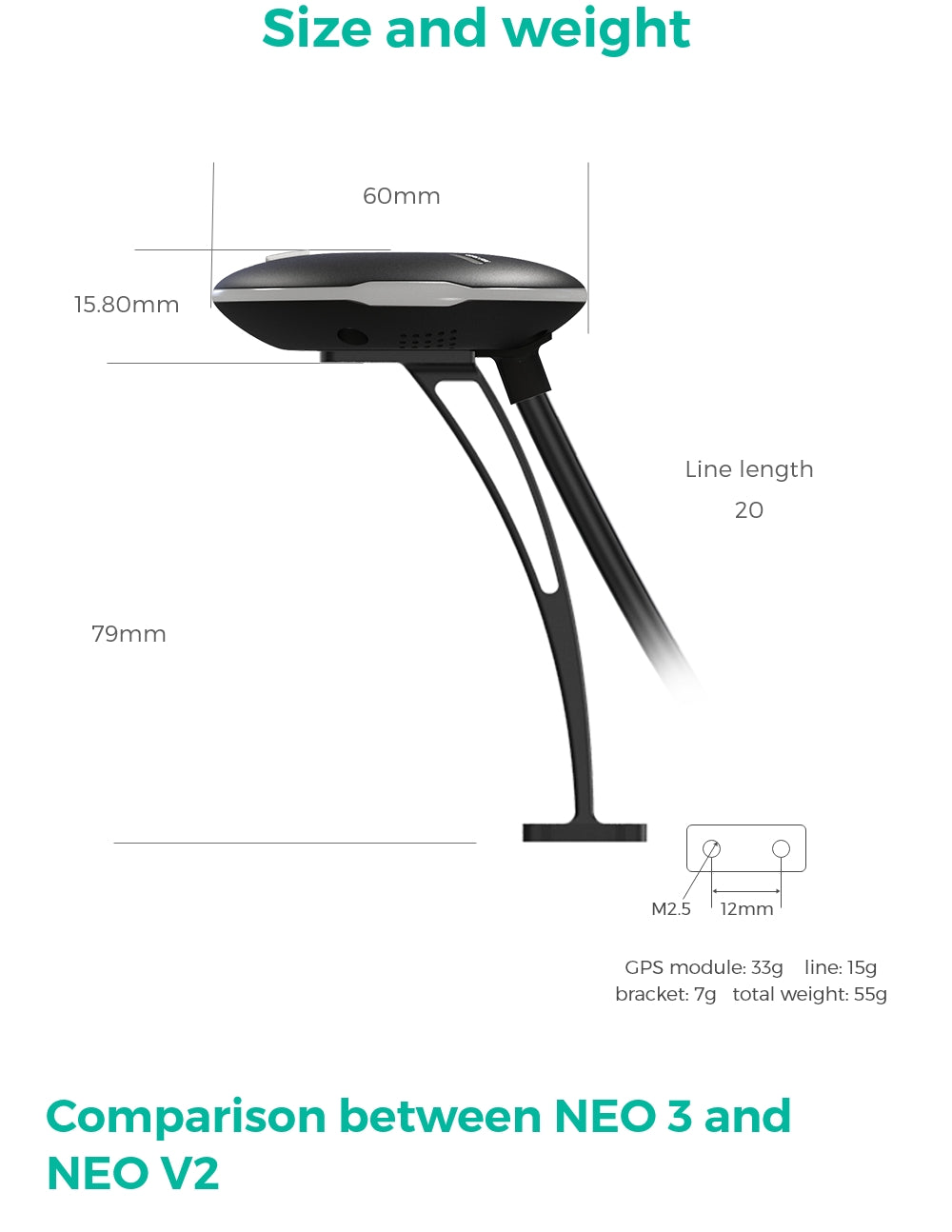

- Compact & Lightweight: 60 × 60 × 16 mm, 33 g
Package Includes
- 1 × CUAV NEO 3 GPS Module
