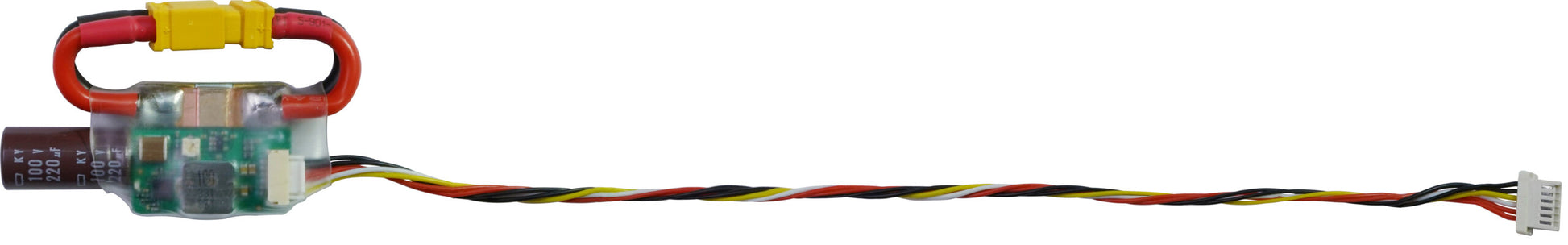

    CUAV High voltage HV-PM power module V5+version

    The V5 series autopilot kit includes the HV PM module. The following describes how to set up and use HV_PM (High Voltage Module).

    Overview: The CUAV HV_PM module is a new high voltage module independently developed by CUAV and has the following features:

    • Higher input voltage: 10V-60V (3s~14s battery)
    • More accurate battery monitor: voltage measurement accuracy: ?0.1V; current measurement accuracy: ?0.2A
    • BEC (5V) maximum current: 5A
    • Maximum (measured) current: 60A
    • Maximum output current (ESC/MOTOR PORT): 60A
    • Settings via Mission Planner

    Settings via Mission Planner:

    • Monitor: Analog voltage and current
    • Sensor: CUAV HV PM
    • APM Ver: CUAV v5 or APM1 (V5 flight control series select CUAV v5)
    • Click another interface to write parameters
    • Restart mp ground station and flight control

    Settings via QGroundcontrol:

    • HV PM
    • Number of cells: Set according to your battery.
    • Full voltage: The voltage of each cell, lithium-ion batteries are generally 4.2V
    • No-load voltage: LiPo batteries are generally 3.7V, depending on the battery.
    • Voltage divider: 18
    • A/V: 24
