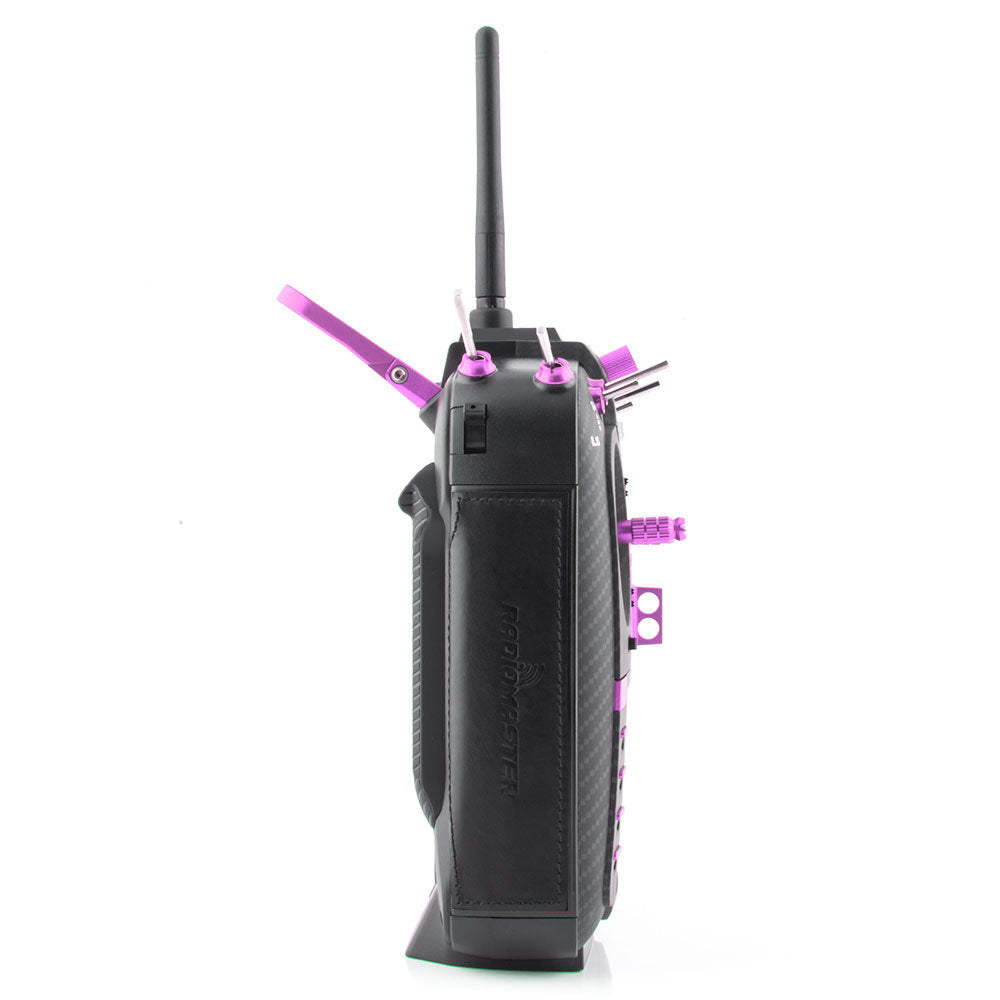

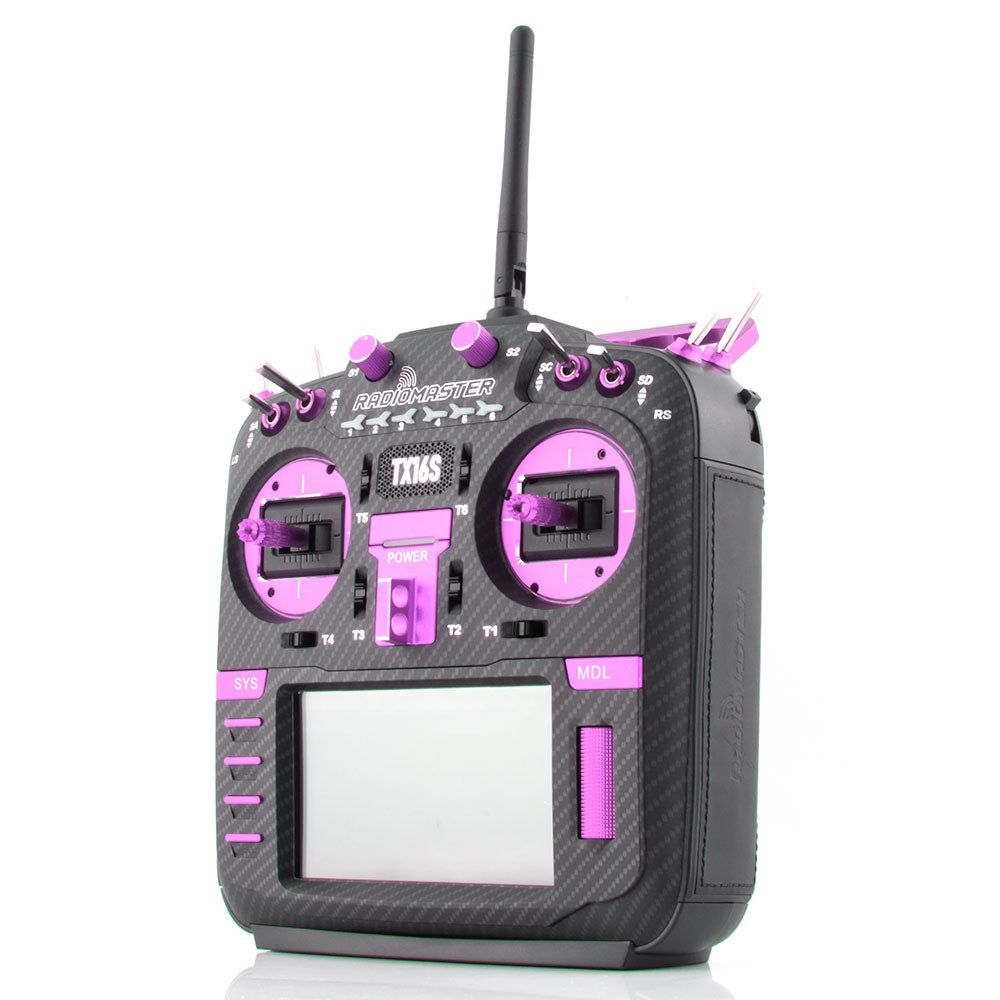

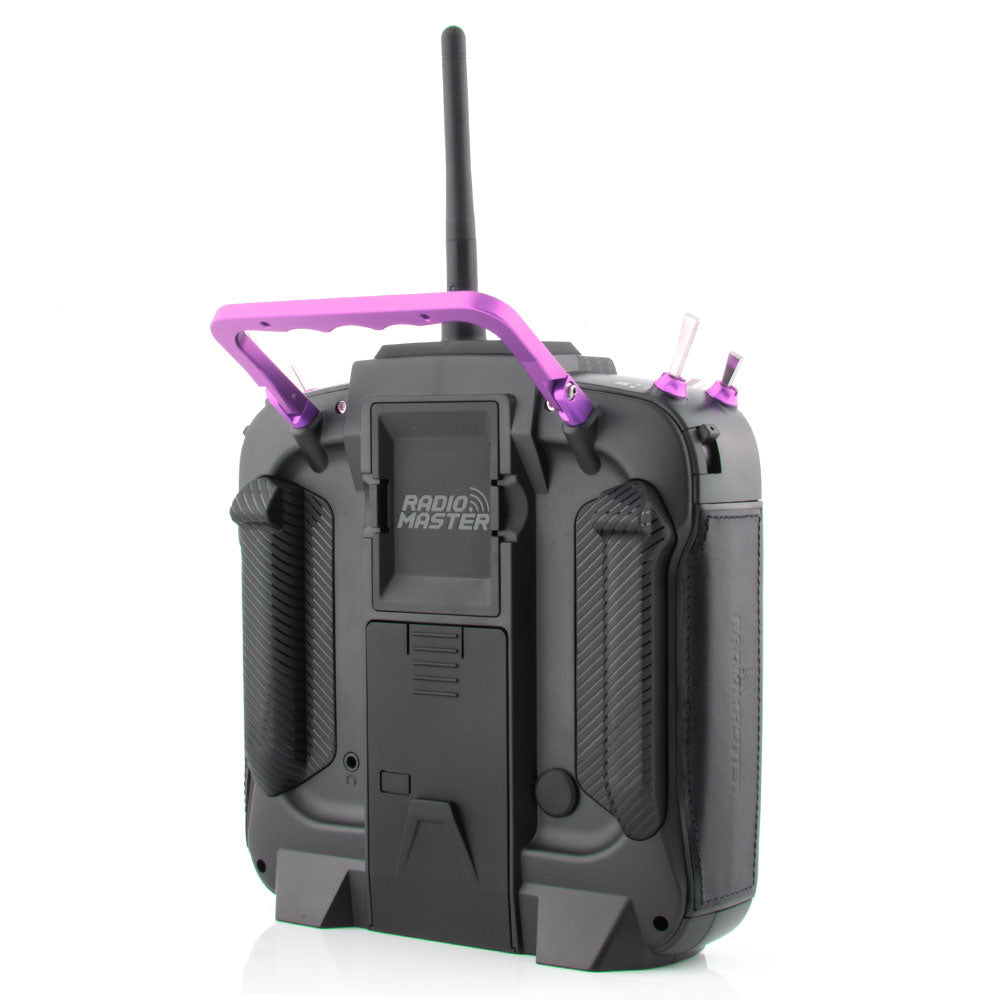

    Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT

    Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT

    Brand: RadioMaster

    €280,12
    €280,12 €280,12
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.

    sku: HP0157.0027-LBT
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    TX16S MKII MAX Joshua Bardwell Edition

Special edition JB in Carbon and Purple JB color scheme with pre-installed JB sound pack and V4.0 Hall gimbals. It comes with an internal ExpressLRS module.

-Improved internal circuits and optimized power supply.
-New charging circuits with integrated reverse polarity protection.
-Optimized charging circuit now allows up to 2.2A of internal USB-C charging current.
-Rear audio jack provides headphone output.
-V4.0 Gimbal improved centering and temperature stability (same circuits as AG01).
-Including optional high/low rear handle for better ergonomics.
-Improved S1/S2 buttons with clear center stops.
-Improved LS/RS gliders with smoother feel and better center stops.
- Redesigned battery cover for better access to the battery.
- Redesigned body shell with improved fit and finish.
-Coach socket changed to standard 3.5mm TRS socket.
-Added rear DIY drawer for customized mods.
-Improved internal plastics for longer life.

Item: TX16S Mark II Max Radio Controller (Joshua Bardwell Edition)
Version: ELRS (LBT)
Gimbal: V4.0 Hall Gimbal
Mode: Mode 2
Note: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power)

Specifications:
Dimensions: 287 x 129 x 184 mm
Weight: 750 g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal ELRS (SX1280)
Transmit power: Internal ELRS: Max 250 mw (transmit power is adjustable)
SD card: standard 256 MB, maximum 8 GB
Antenna gain: 2db (transmission power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance: > 2 km @ 22 dbm
Radio Firmware: EdgeTX
Module Firmware: ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3 inch TFT full color touch screen with 480*272 resolution
Suspension: Hall sensor V4.0 with aluminum cover
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / offline upgrade to SD card
