    Controller RadioMaster TX16S MKII MAX AG01 Gimbal 4-in-1 Black LBT

    Controller RadioMaster TX16S MKII MAX AG01 Gimbal 4-in-1 Black LBT

    Brand: RadioMaster

    €425,74
    €425,74 €425,74
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.

    sku: HP0157.0025-BLK-LBT
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

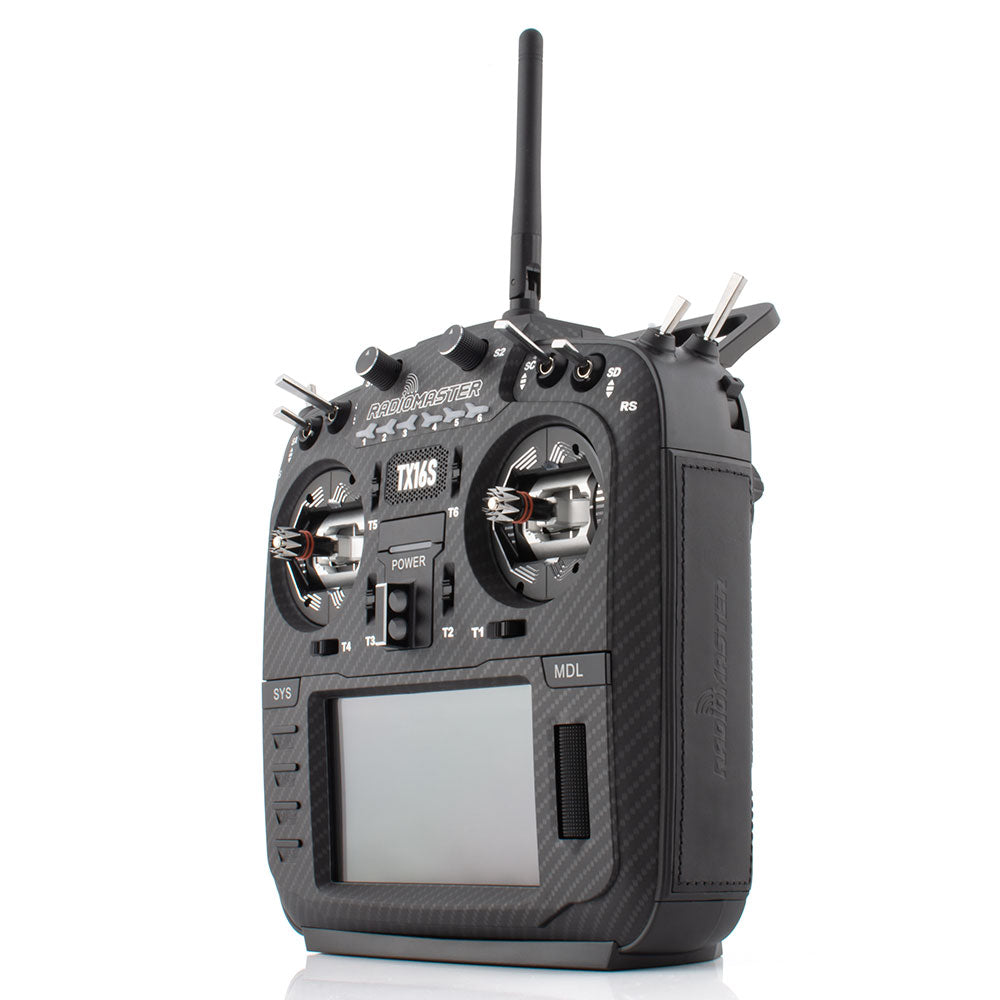

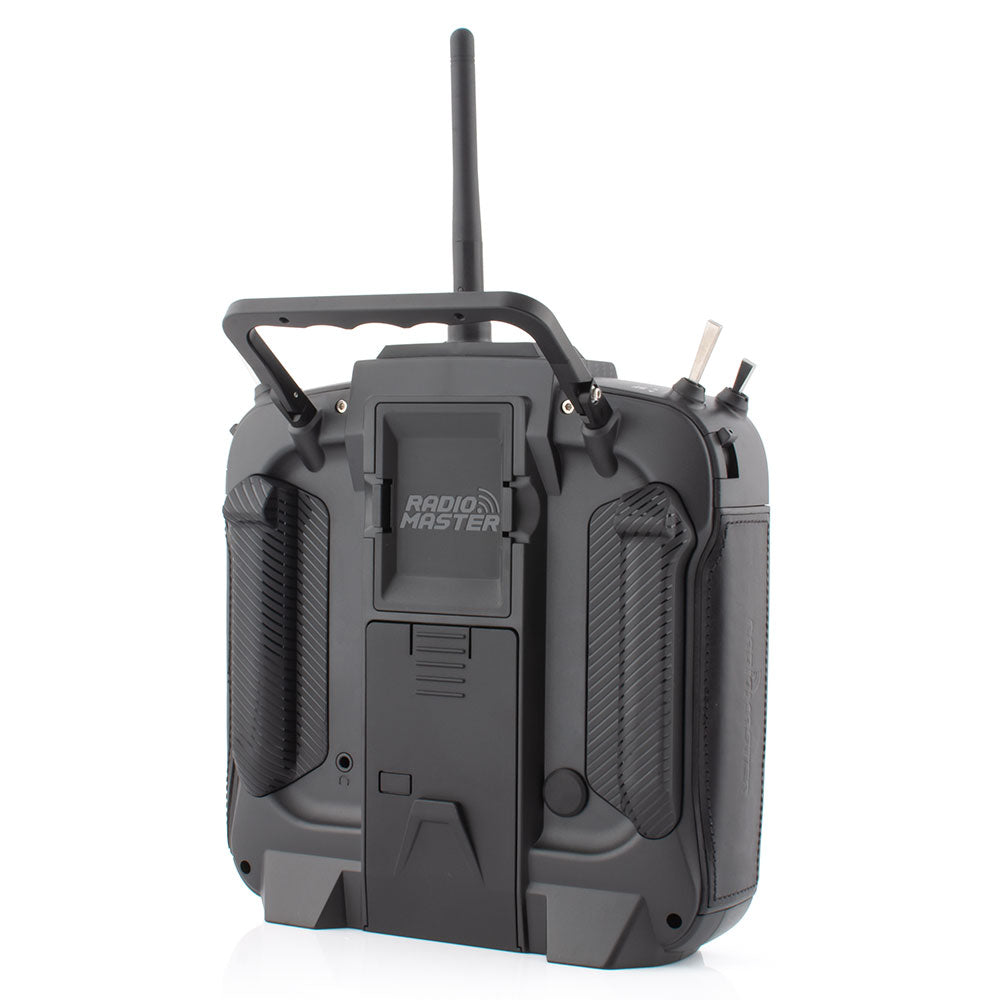

    TX16S MKII MAX AG01 4-in-1 Gimbal

The best just got better! Introducing the TX16S Mark II Max radio - the ultimate open source radio.

- Improved internal circuits and optimized power supply.
- New charging circuits with integrated reverse polarity protection.
- Optimized charging circuit now allows up to 2.2A of internal USB-C charging current.
- Rear audio jack provides headphone output.
- V4.0 Gimbal improved centering and temperature stability (same circuits as AG01).
- Optional high/low back handles available for improved ergonomics.
- Improved S1/S2 buttons with clear center stops.
- Improved LS/RS gliders with smoother feel and better center stops.
- Redesigned battery cover for better access to the battery.
- Redesigned body shell with improved fit and finish.
- Trainer replaced with a standard TRS 3.5mm socket.
- Added rear DIY drawer for customized mods.
- Improved internal plastics for longer life.
- ELRS and 4in1 versions available.
- MAX units have carbon look faceplates and CNC finishing components and buttons.

Item: TX16S Mark II Max Radio Controller
Version: 4 in 1 (LBT)
Gimbal: AG01 Hall Gimbal
Color: black carbon fiber
Note: 4v1 LBT (Europe) version is limited to LBT compatible protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

Specifications:
Dimensions: 287 x 129 x 184 mm
Weight: 750 g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter Module: Option 1: Internal 4 in 1 Multi-Protocol Module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
Transmit power: Internal 4-in-1 multi-protocol module: Max 100 mw (protocol dependent); Internal ELRS: Max 250mw (transmit power is adjustable)
SD card: standard 256 MB, maximum 8 GB
Antenna gain: 2db (transmission power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance: > 2 km @ 22 dbm
Radio Firmware: EdgeTX
Module firmware: Multiprotocol module (4IN1) -OR ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3 inch TFT full color touch screen with 480*272 resolution
Gimbal: Option 1: Hall sensor V4.0 with aluminum housing; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / offline upgrade to SD card
