    Charger SkyRC D200neo AC 2*100W DC 2*400W

    Charger SkyRC D200neo AC 2*100W DC 2*400W

    Brand: SkyRC

    €136,13
    €136,13 €136,13
    -0% View Product

    sku: SK-100196-01

    In stock (23)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    SkyRC D200neo Charger is a high-performance charging system designed for RC enthusiasts, featuring advanced technology and a dual-port system for efficient charging. Below is a detailed overview of its specifications and features:

    Key Features:

    • Processor:
      • Powered by an ARM Cortex-M4 microprocessor that includes a built-in DSP instruction for enhanced processing.
      • The floating-point unit (FPU) speeds up operations with floating-point numbers.
    • Proprietary HyperBoost technology:
      • 200 MHz ARM microprocessor improves ADC resolution to 16 bits using oversampling technology.
      • An efficient PID mechanism finely tunes the current to increase response speed and accuracy.
    • Dual input modes:
      • AC mode: Up to 200W charging power per port.
      • DC mode: Up to 800W charging power per port.
    • Current charging:
      • Charge two battery packs independently at the same time, with power intelligently distributed.
    • Parallel charging:
      • Fast charging current up to 35A, allowing fast charging while users are engaged in other activities.
    • Intelligent energy distribution:
      • Dynamically adjusts the power distribution between the two ports, which ensures efficient use of the total power.

    Specifications:

    • Case material: Plastic

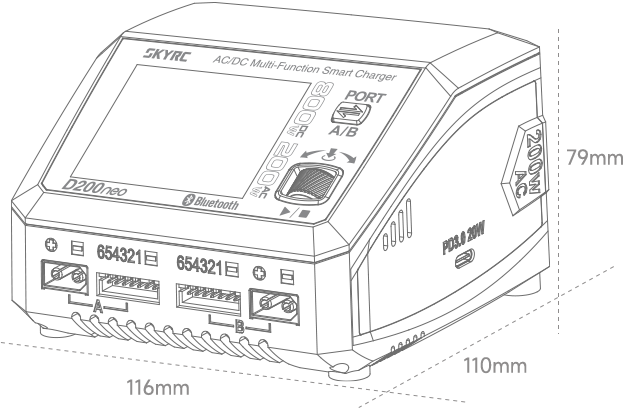

    • Dimensions: 116mm x 110mm x 79mm
    • Weight: 602g

    Display:

    • Type: TN display
    • Size: 2.8 inches
    • Active area: 43.20 mm x 57.60 mm
    • Resolution: 240 x 320 pixels
    • Primary color: 262K colors

    Power Specifications:

    • DC input voltage: 10-30V
    • AC input voltage: 100-240V
    • Charging power:
      • AC: 100W max per port (200W total)
      • DC: 400W max per port (800W total)

    Discharge power:

    • Main port: 10W
    • Balance port: max 37W
    • External discharge: max 350W

    USB-C Power Delivery:

    • QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W)
    • PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A (20W)

    Supported battery types:

    • LiPo/LiHV/LiFe/LiIon: 1-6 cells
    • NiMH/NiCd: 4-15 cells
    • Lead accumulators (Pb): 3S/6S/12S

    Charging and discharging specifications:

    • Charging current:
      • 0.1 - 20.0A for all types
      • Parallel: 20.0 - 35.0A
    • Discharge current:
      • 0.1 - 2.0A for all types
      • External discharge: 0.1 - 40.0A
    • Balance current:
      • max 1.5A for LiPo/LiFe/LiIon/LiHV

    Operating modes:

    • LiPo/LiFe/LiIon/LiHV: Balancing, Charging, Discharging, Storage, Parallel
    • NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
    • Pb: Normal, AGM charge, Cold charge, Discharge
