Caddx Polar Vista Kit Silver Digital FPV Camera System for DJI FPV
Caddx Polar Vista Kit Silver Digital FPV Camera System for DJI FPV
Brand: CaddxFPV
sku: SKU:SZ07-K012S
Out of stockCouldn't load pickup availability
- Description

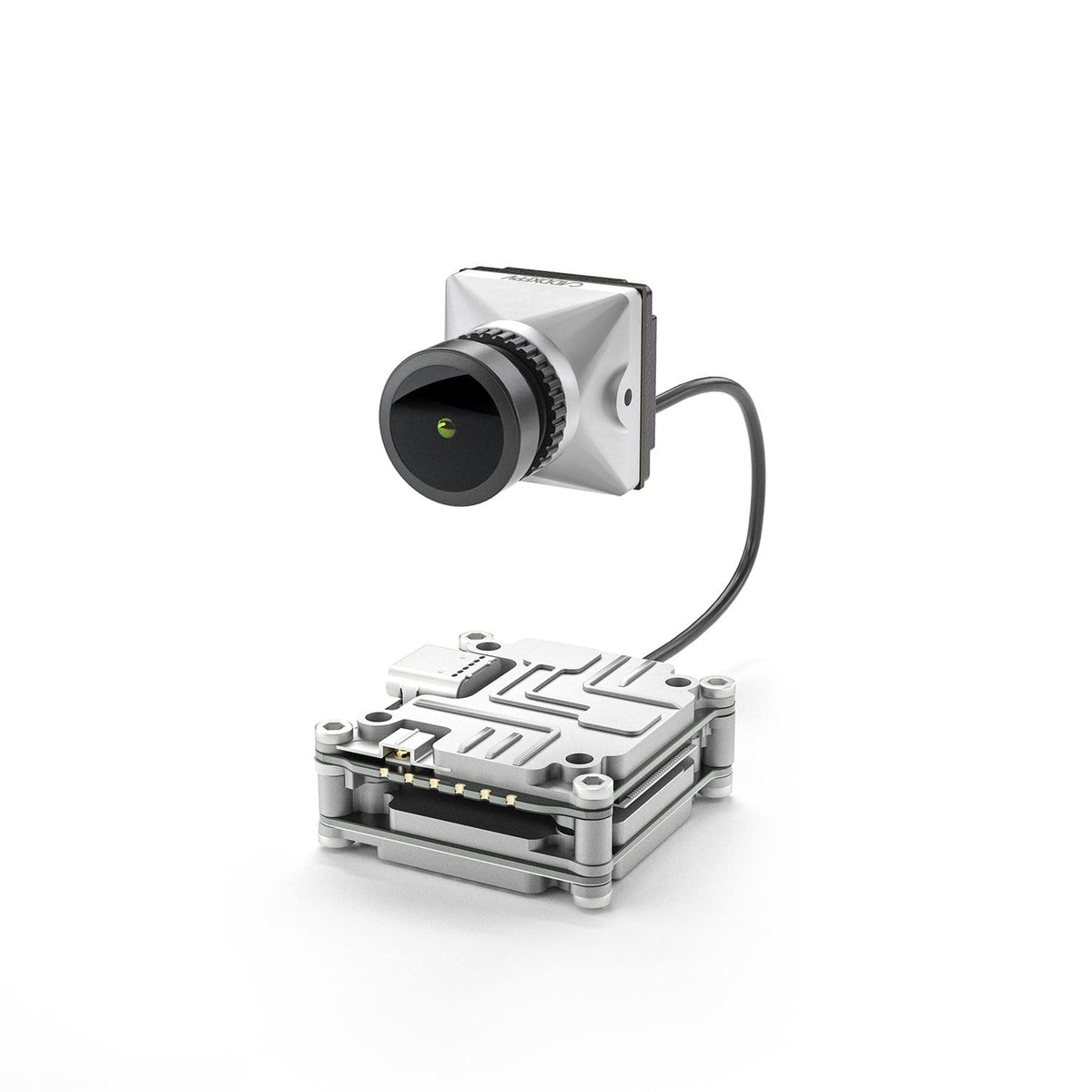

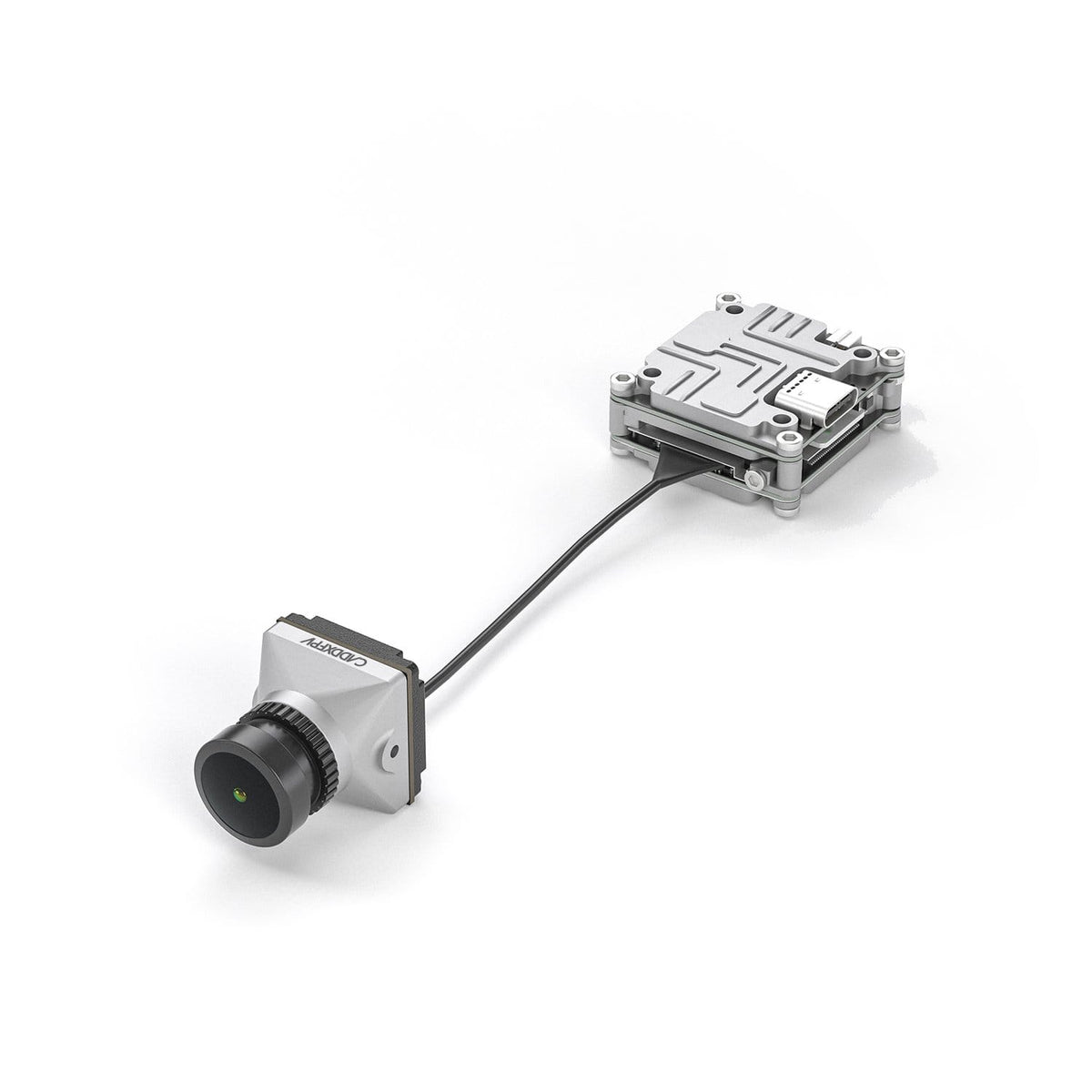

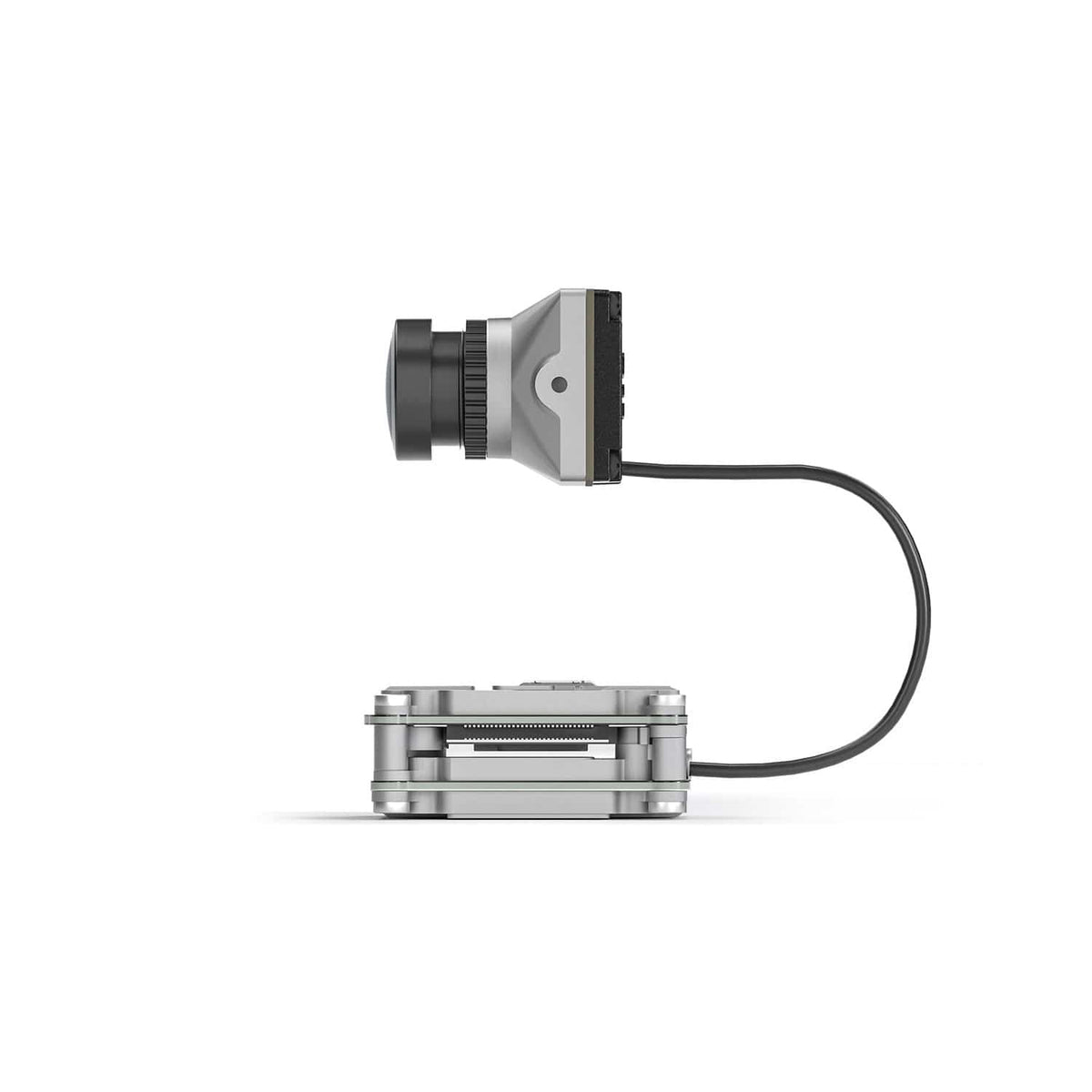

The Caddx Polar Vista Kit (Silver) is a compact digital FPV camera and video transmitter system designed for FPV drones using the DJI Digital FPV ecosystem. The system combines the Caddx Polar starlight camera with the Vista digital VTX, delivering stable HD video transmission with low latency and excellent performance in low-light environments.
Equipped with a 1/1.8" starlight sensor, the Polar camera provides outstanding image clarity even in extremely dark conditions. With a minimum illumination of just 0.00003 Lux, this camera is ideal for night flying, indoor FPV and challenging lighting environments.
The Vista unit transmits digital 720p video at 60fps with an end-to-end latency as low as 32 ms, offering a smooth and responsive FPV experience. With a maximum transmission range of up to 4 km (FCC), pilots can enjoy reliable HD video links when flying freestyle, racing or cinematic FPV drones.
The lightweight and compact design makes the Polar Vista Kit perfect for both 3–5 inch FPV builds and lightweight freestyle drones.
Key Features
- Digital 720p60 HD FPV transmission
- Starlight camera sensor for extreme low-light performance
- Compatible with DJI FPV Goggles
- Low latency (~32 ms)
- Transmission range up to 4 km (FCC)
- Compact Vista VTX unit
- 162° wide field of view
- Designed for Betaflight-based FPV drones
Camera Specifications
- Model: Caddx Polar Camera
- Sensor: 1/1.8" 2.3MP Starlight Sensor
- Resolution: 720p / 60fps
- Lens: F/1.6
-
Field of View:
- 162° (Diagonal)
- 138° (Horizontal)
- 75° (Vertical)
- Minimum Illumination: 0.00003 Lux
- Dimensions: 24 × 19 × 19 mm
- Cable Length: 120 mm
- Aspect Ratio: 16:9
Vista VTX Specifications
- Model: Caddx Vista Unit
- Frequency: 5.725 – 5.850 GHz
- Transmission Power:
- FCC / SRRC: <30 dBm
- CE: <14 dBm
- Maximum Transmission Distance:
- FCC / SRRC: Up to 4 km
- CE: Up to 0.7 km
- Latency: <32 ms (720p60)
- Input Voltage: 7.4 – 26.4 V
- Dimensions: 30 × 29 × 13.5 mm
- Weight (with camera): 28 g
- Operating Temperature: 0°C – 40°C
- Interfaces: USB-C, IPEX antenna, 3-in-1 cable
- Supported FC: Betaflight
Antenna
- Connector: IPEX
- Length: 105 mm
- Weight: 1.5 g

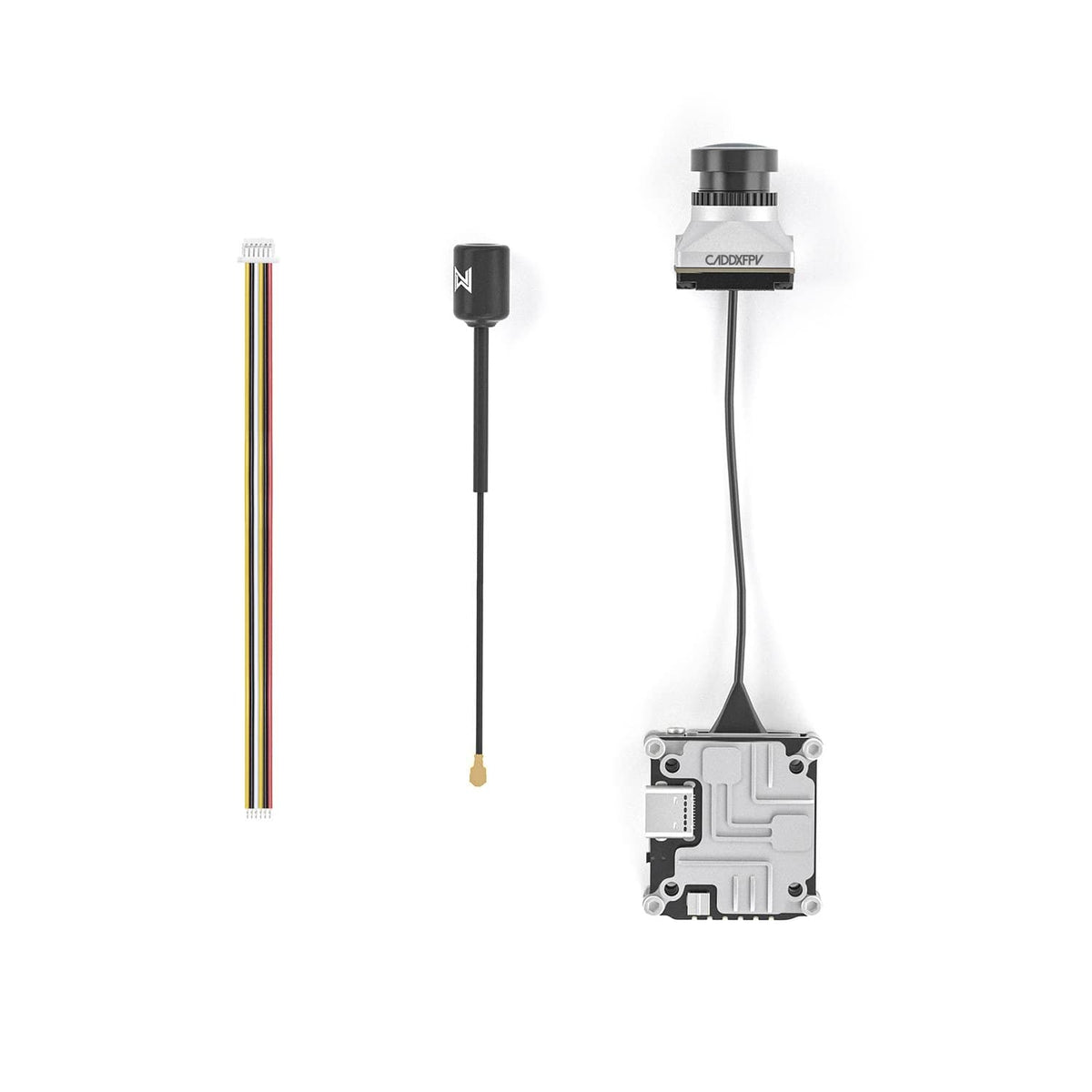

Included in the Package
- 1× Caddx Polar Vista Camera Kit (Silver)
- 6× M2 Screws (3 / 4 / 5 mm)
- 4× Sealing Rings
- 1× 3-in-1 Connection Cable
