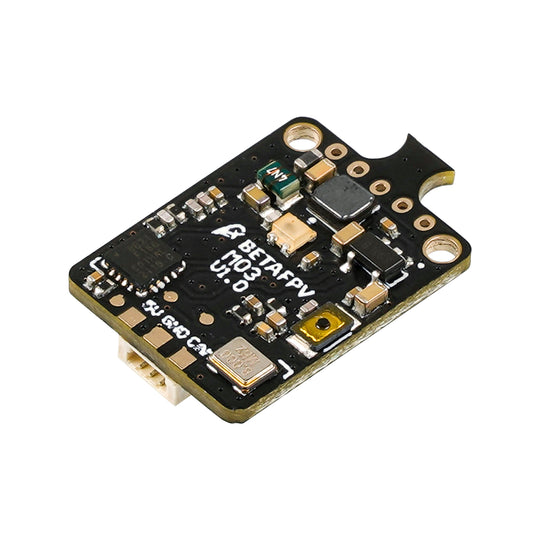

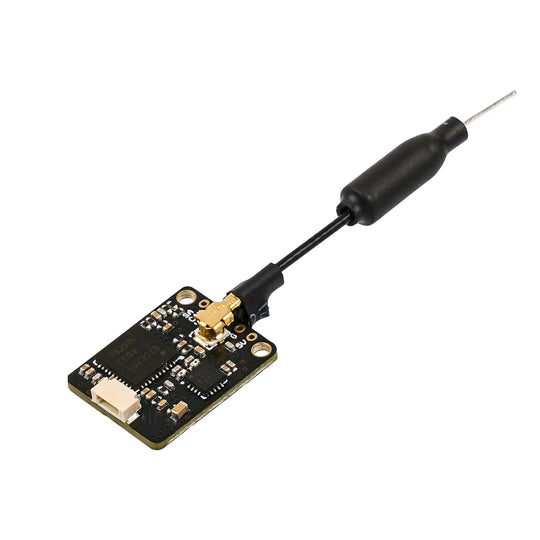

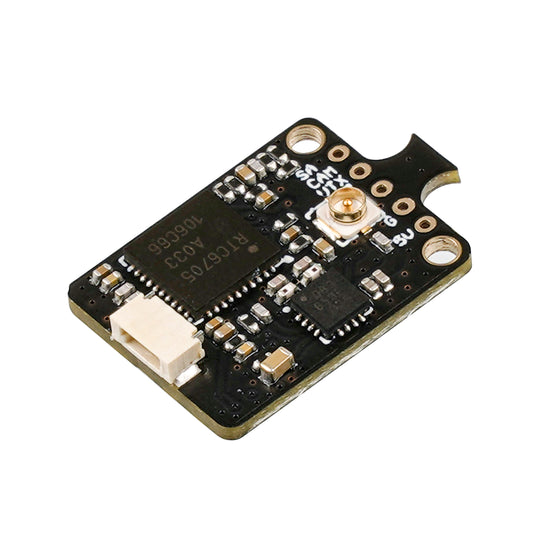

BETAFPV M03 5.8G VTX 25–350mW Ultra-Light Analog Video Transmitter
BETAFPV M03 5.8G VTX 25–350mW Ultra-Light Analog Video Transmitter
Brand: BETAFPV
sku: SKU:01060003
Out of stockCouldn't load pickup availability
- Description
The BETAFPV M03 5.8G VTX is an ultra-light analog video transmitter designed for 65-85mm long-range micro FPV drones. With adjustable output power from 25mW up to 350mW, this VTX allows pilots to tailor transmission strength for indoor testing, short-range flights, or extended long-range adventures.
Combined with the ExpressLRS 2.4G radio link, the M03 enables longer flight distances with stable video, making it ideal for exploration, freestyle, and racing in compact builds. Its SmartAudio support allows seamless communication with your flight controller for easy channel and power adjustments.
Despite its small size, the M03 maintains high performance with PLL frequency control, FM modulation, and excellent harmonic suppression, ensuring stable and clear analog video transmission. Its lightweight design (1.1 g, antenna excluded) ensures minimal impact on drone performance.
Key Features
- Adjustable output power: PIT / 25 / 100 / 200 / 400 mW
- SmartAudio for easy FC communication
- Frequency: 5.8 GHz, 48 channels with racing band: 5658-5917 MHz
- Ultra-lightweight: 1.1 g (antenna not included)
- Compatible with BETAFPV C01, C02, and NewBeeDrone BeeEye cameras
- PLL frequency control with FM modulation
- Operating temperature: −10°C to +80°C
Specifications
- VTX Dimensions: 18 × 14 mm
- Supply Voltage: 4.5-5.5 V
- Carrier Channel Accuracy: ±1.5 dB
- Frequency Accuracy: ±200 kHz (typ.)
- All Harmonics: Max −50 dBm
- Antenna Port: 50 Ω
- Camera Connector: JST-0.8
Ideal For
- 65-85 mm long-range micro FPV drones
- ExpressLRS 2.4G radio systems
- Racing, freestyle, and extended-flight micro FPV builds
