BETAFPV A03 5.8G VTX 25–400mW Analog FPV Video Transmitter for Micro Drones
BETAFPV A03 5.8G VTX 25–400mW Analog FPV Video Transmitter for Micro Drones
Brand: BETAFPV
sku: SKU:01060004
Out of stockCouldn't load pickup availability
- Description

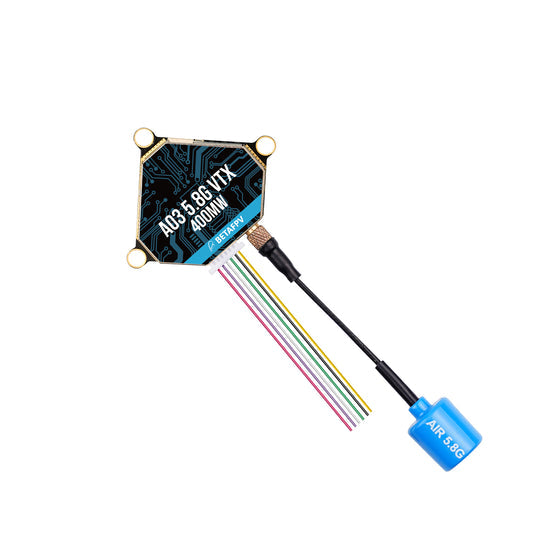

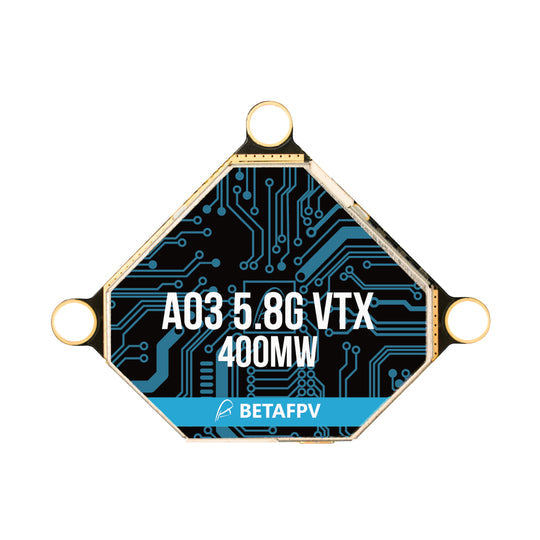

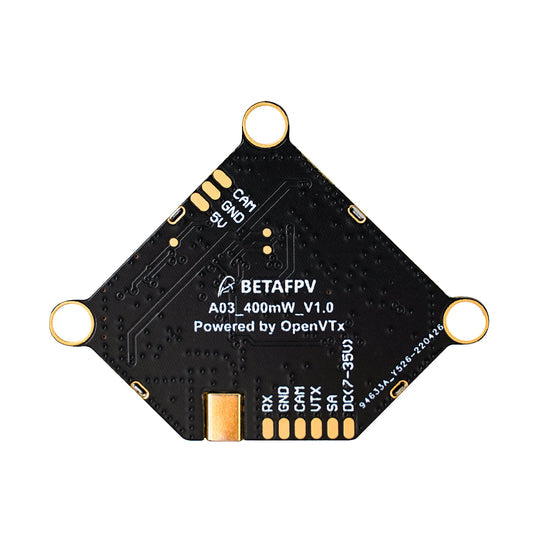

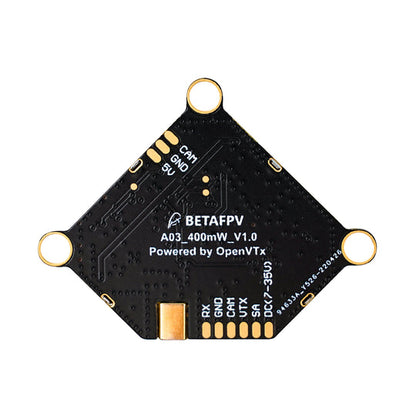

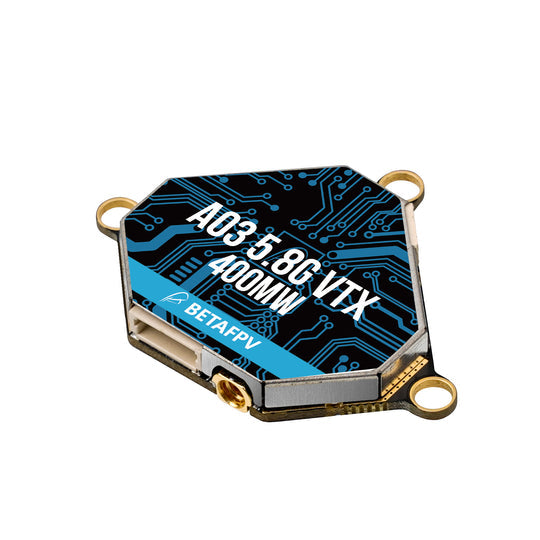

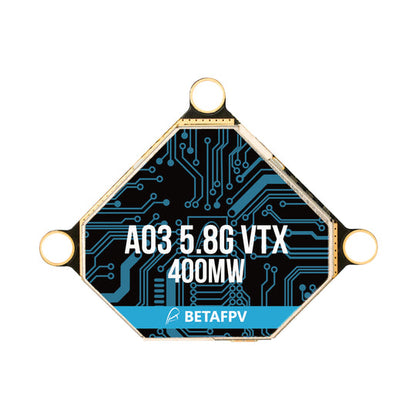

The BETAFPV A03 5.8G VTX is a compact, high-power analog video transmitter designed for WOP and Toothpick micro drones. With adjustable output power from PIT/RCE/25/100/400 mW, the A03 allows pilots to optimize video transmission for indoor testing, short-range flights, or extended outdoor flying.
Equipped with SmartAudio V2.0 and Tramp protocols, the A03 enables easy communication with flight controllers for channel and power adjustments. Its 26×26 mm mounting holes make it compatible with drones such as X-Knight series, Beta85X/95X series, TWIG series, and Pavo series.
Despite its high output, the A03 is lightweight (4.9 g, without antenna) and compact (30.34 × 30.34 × 4.6 mm), providing stable analog video on 5.8 GHz across 48 channels with FM modulation. Its antenna connection uses 50Ω MMCX, ensuring a secure and reliable signal.
Key Features
- Adjustable output power: PIT / RCE / 25 / 100 / 400 mW
- Supports SmartAudio V2.0 and Tramp protocols
- Mounting hole size: 26 × 26 mm
- Compact and lightweight: 4.9 g (without antenna)
- Frequency: 5.8 GHz, 48 channels
- Racing band: 5658-5917 MHz
- FM modulation for stable analog video
- Antenna port: 50Ω MMCX
- Operating temperature: −10°C to +60°C
Specifications
- Supply Voltage: 7-35 V
- Current at 8V: <300 mA (400 mW)
- Dimensions: 30.34 × 30.34 × 4.6 mm
- Compatible Drones: X-Knight series, Beta85X/95X, TWIG series, Pavo series
Ideal For
- WOP and Toothpick micro drones
- Racing, freestyle, and long-range micro FPV builds
- Pilots needing adjustable power and SmartAudio/Tramp support
