BETAFPV A01 5.8G VTX 25–200mW Digital Video Transmitter for Micro Drones
BETAFPV A01 5.8G VTX 25–200mW Digital Video Transmitter for Micro Drones
Brand: BETAFPV
sku: SKU:00313576
Out of stockCouldn't load pickup availability
- Description

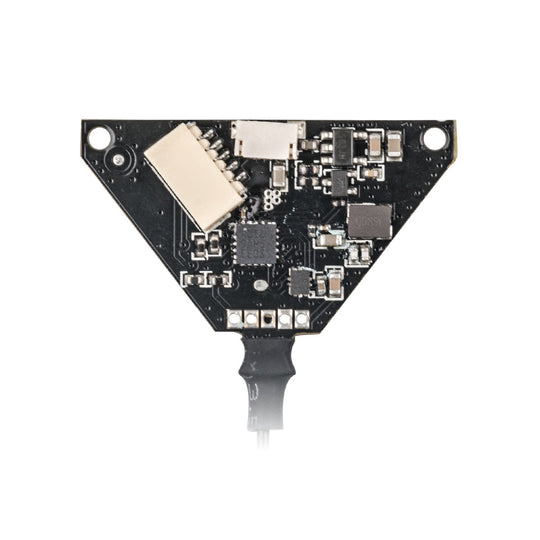

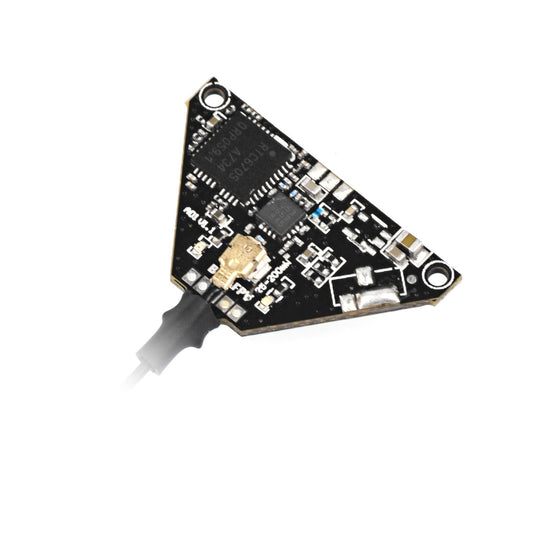

The BETAFPV A01 5.8G VTX is a compact, lightweight, and durable video transmitter designed for micro FPV drones including Beta75X, Beta75X HD, Beta85X FPV, Beta85X 4K, and HX100. Its adjustable output power (0 / 25 / 200 mW) allows pilots to customize transmission strength for racing, freestyle, or testing.
Equipped with SmartAudio functionality, the A01 VTX communicates directly with your flight controller via the audio line for easy channel and power adjustments. PitMode support provides a low-power mode for safe indoor testing or tuning without broadcasting high-power signals.
The VTX also features a high-sensitivity dipole whip antenna and improved camera and antenna pins, making installation quick and reliable. Its ultra-lightweight 2 g design ensures minimal impact on drone performance.
Key Features
- Adjustable output power: 0 / 25 / 200 mW
- SmartAudio: Communication between FC and VTX for easy control
- PitMode support: Low-power testing mode

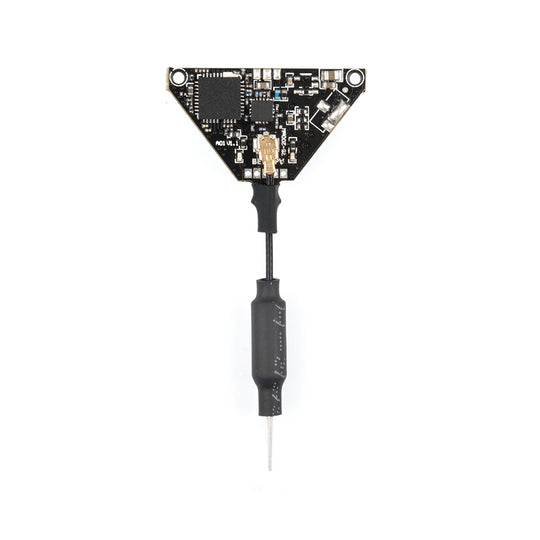

- High-sensitivity dipole whip antenna
- Improved camera and antenna pins for easier installation

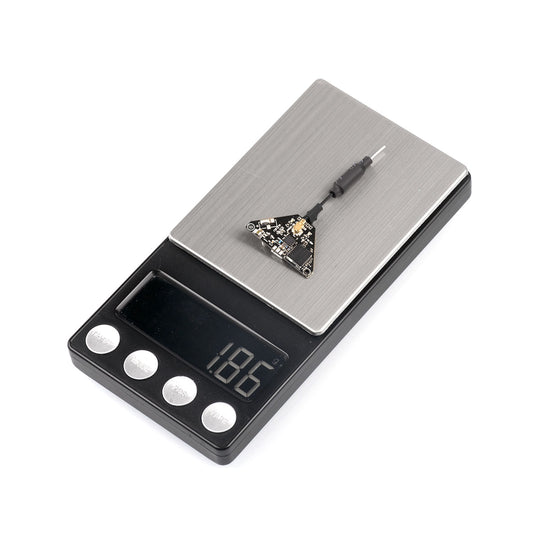

- Compact and lightweight: 2 g
Specifications
- Output Power: 0 / 25 / 200 mW (adjustable)
- Supply Voltage: 5V (not compatible with 1S direct connection)
- Frequency: 5.8 GHz, 6 bands, 48 channels
- Racing Band Range: 5362-5945 MHz
- Weight: 2.0 g
Compatible Drones
- Beta75X FPV (3S)
- Beta75X HD (3S)
- Beta85X FPV (4S)
- Beta85X 4K
- HX100
