    BEC Module iFlight BLITZ

    BEC Module iFlight BLITZ

    Brand: iFlight

    €8,20
    €8,20 €8,20
    -0% View Product

    sku: B012912

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

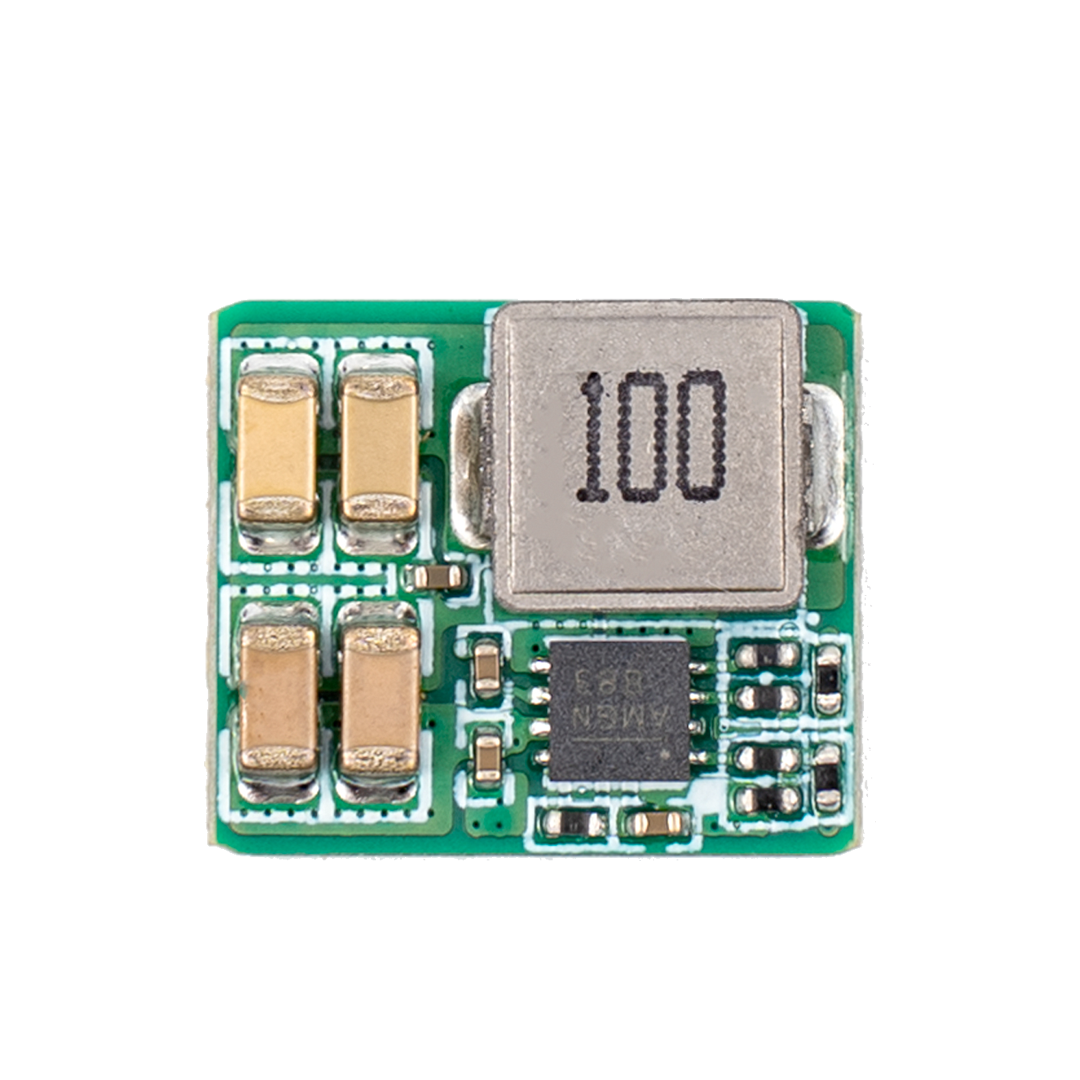

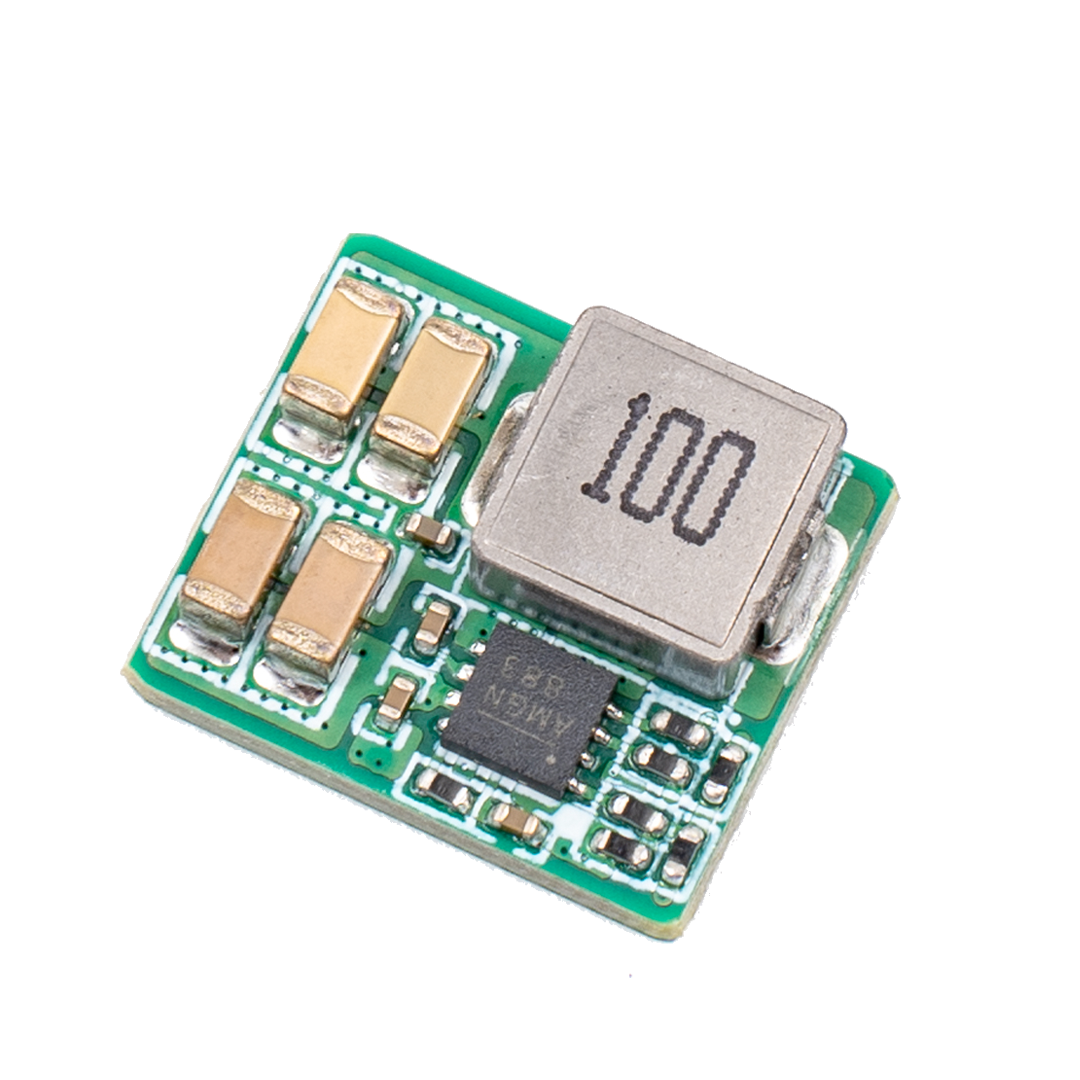

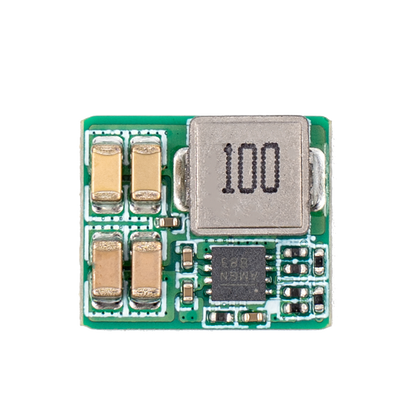

    BLITZ BEC module

    The BLITZ BEC features step-down switch mode, highly efficient synchronous rectification, and the ability to step down input voltages of up to 35V to a low stable output voltage, making it ideal for step-down applications.

    It offers a compact solution for achieving an output current of 2A/3A at a wide input supply voltage (6 to 35V).

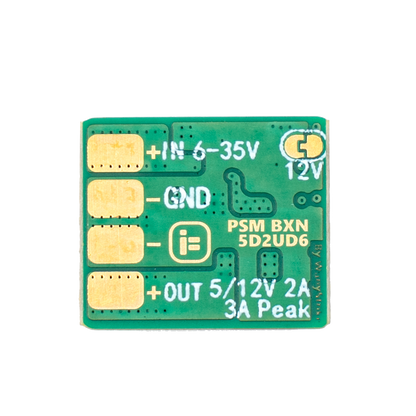

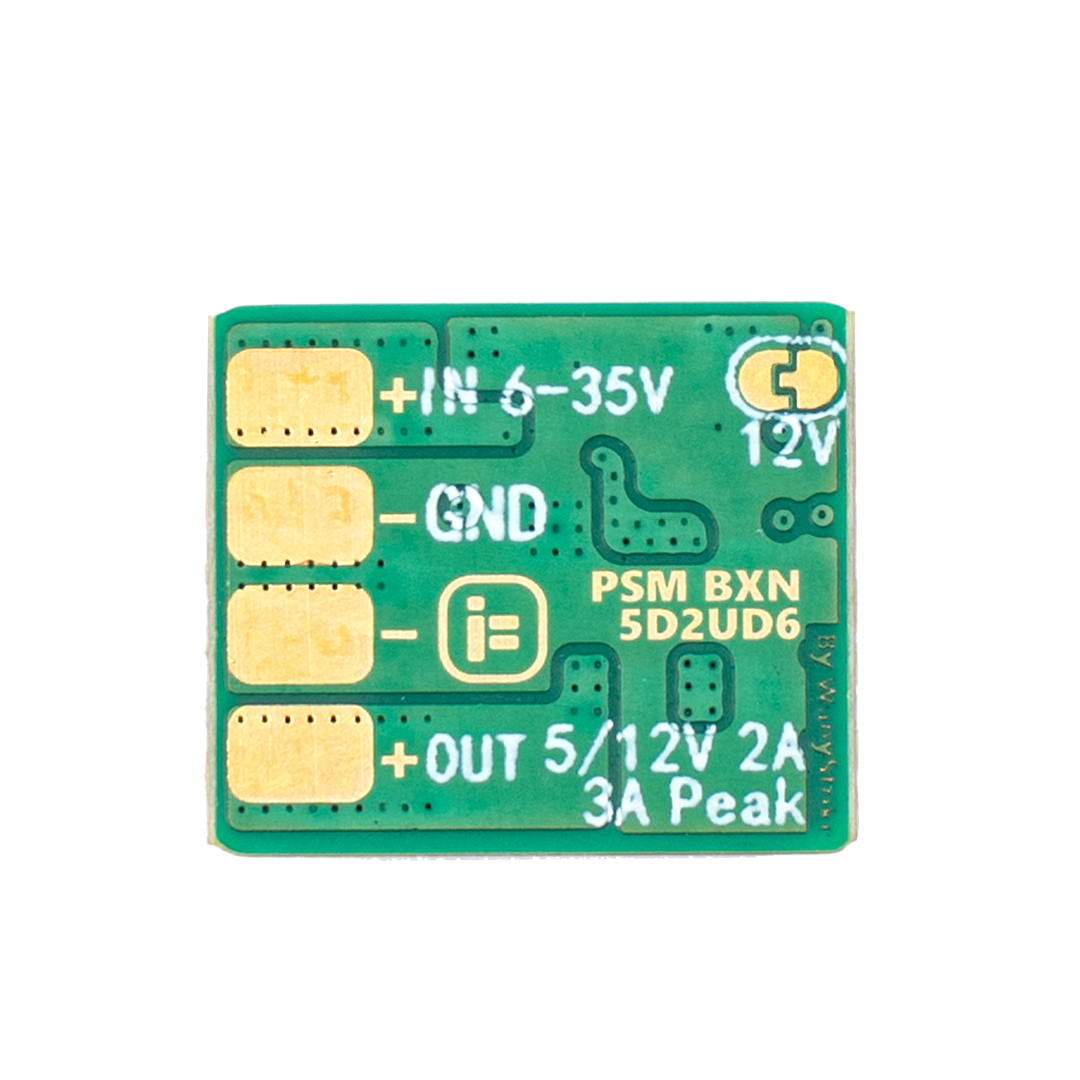

    Function: - Reduction switching mode - Highly efficient synchronous - Wide range of input voltage 6V to 35V - Voltage output can be 5V or 12V adjustable. (default 5V)

    Specifications: Input voltage: 6-35V Output voltage/current: 5V or 12V. Average 2A / Peak 3A Conversion efficiency: the average efficiency of 12V output is higher than 92% and the average efficiency of 5V output is higher than 88%. Size: 12*14*4.5mm Pin spacing: 2.55mm Weight: 1.8g

    Packing List: 1 x BLITZ PSM BXN 5D2UD6 BEC 1 x connection cable
