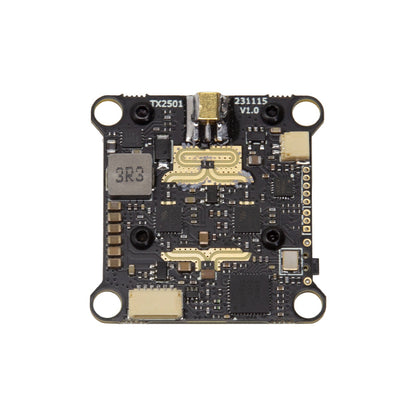

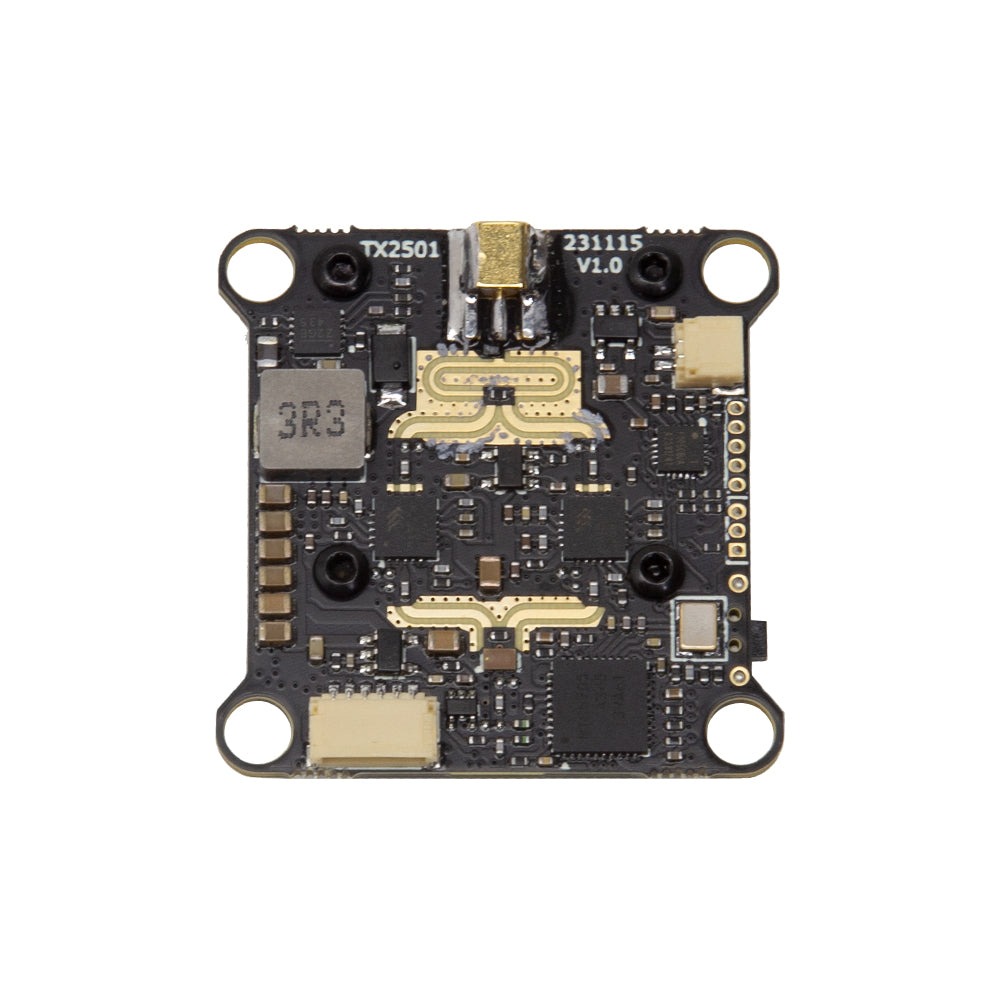

    ATOMRC TX2501 5.8GHz 2.5W VTX

    ATOMRC TX2501 5.8GHz 2.5W VTX

    Brand: ATOMRC

    €77,44
    €77,44 €77,44
    -0% View Product

    sku: 4099

    Only (3) left in stock - order soon
    Limited stock available. Order soon!
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The ATOMRC TX2501 5.8GHz 2.5W VTX is a high-performance FPV video transmitter with adjustable power levels, supporting both X-band (5GHz) and low-band frequencies. It’s designed for easy channel and power management via button control or IRC Tramp protocol, making it suitable for both racing and long-range FPV setups.

    Key Features

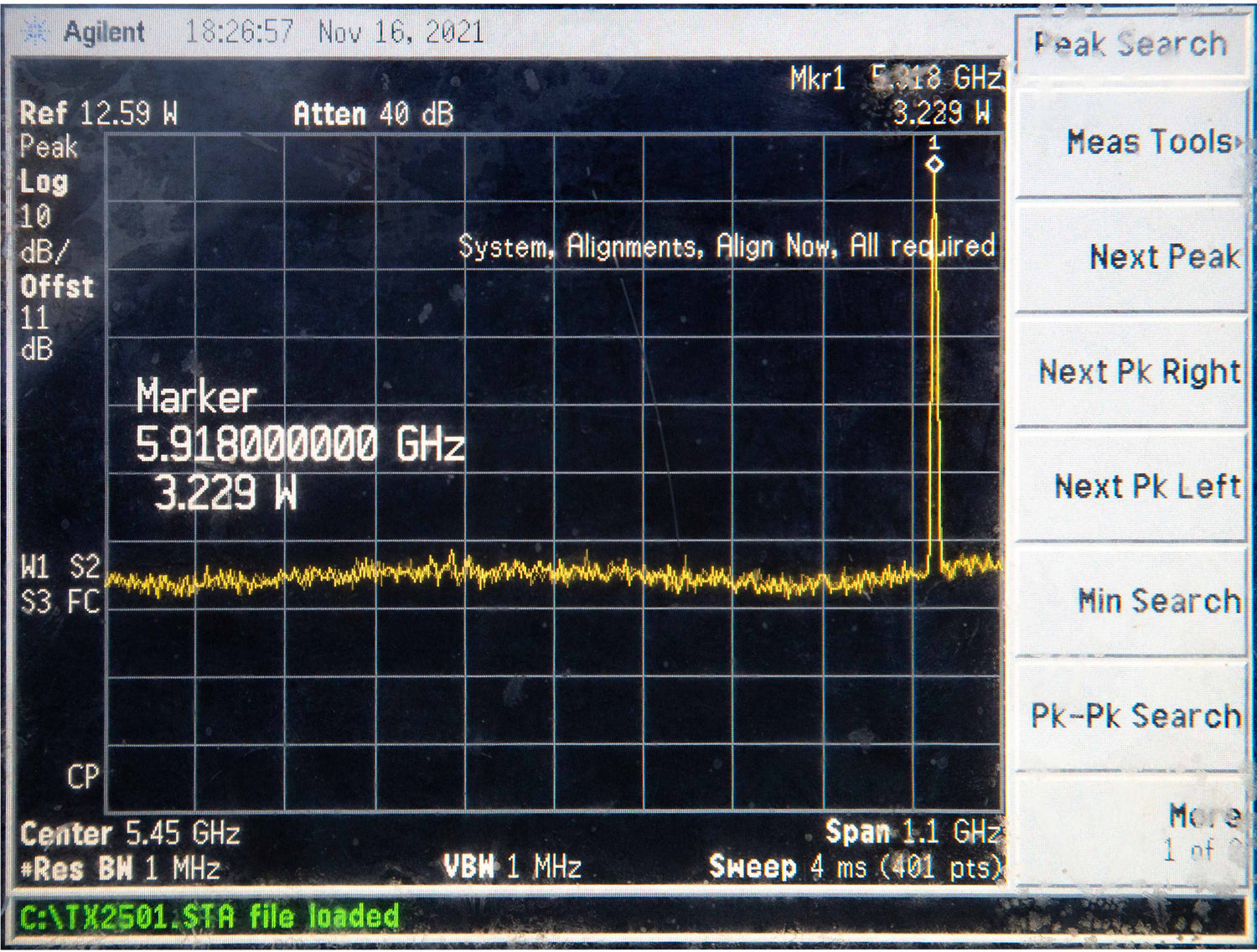

    • Output Power: 25mW / 800mW / 1600mW / 2500mW
    • Frequency Range: 4.9-5.8GHz
    • Channels: 48CH including L and X bands
    • Input Voltage: 7-26V
    • Control Options: Button mode or IRC Tramp (choose one; disable the other in Betaflight)

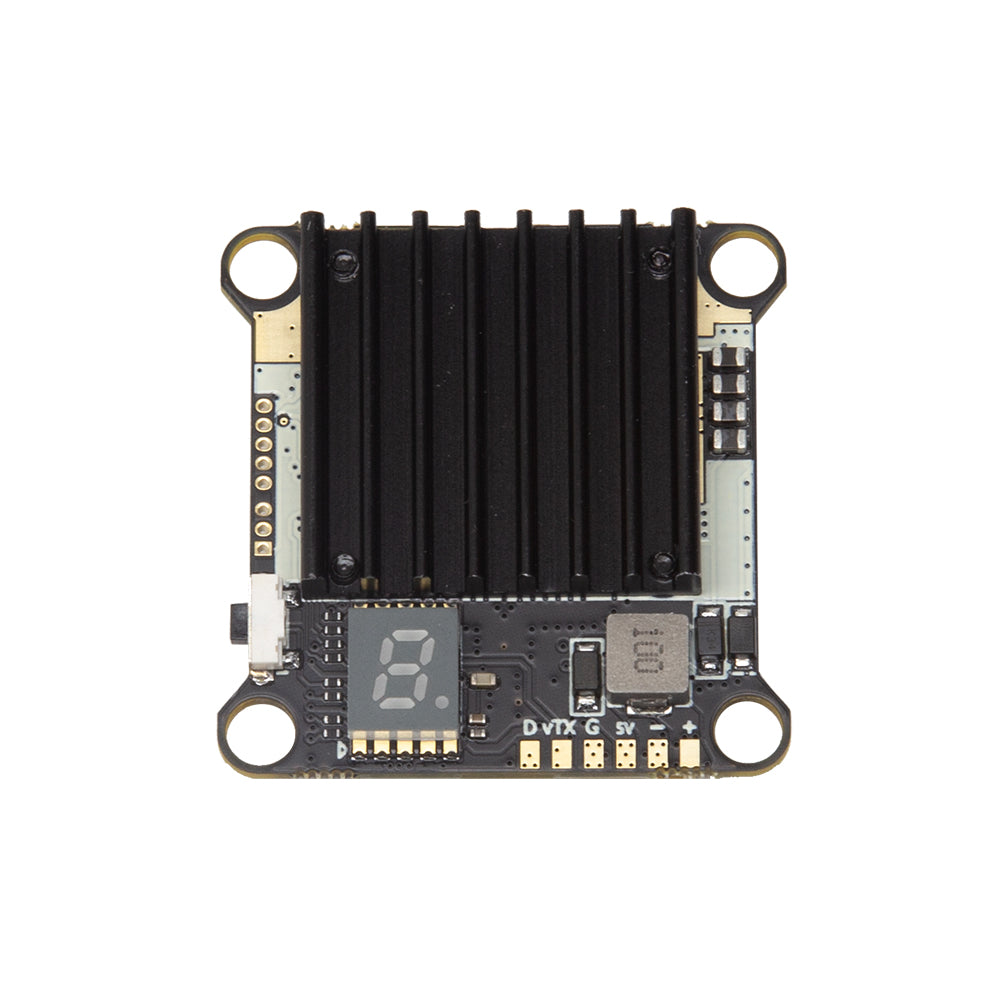

    • LED Segment Display: Shows BAND/CH/Power status for easy monitoring
    • Compact and Lightweight: Easy integration into racing or freestyle drones

    Operation Notes

    • Only one control mode (Button or IRC) can be active at a time.
    • Button mode displays BAND, CH, and Power sequentially on the LED display.
    • IRC mode allows control via your Betaflight OSD for channel and power selection.
    • Always connect an antenna before powering on to prevent damage.

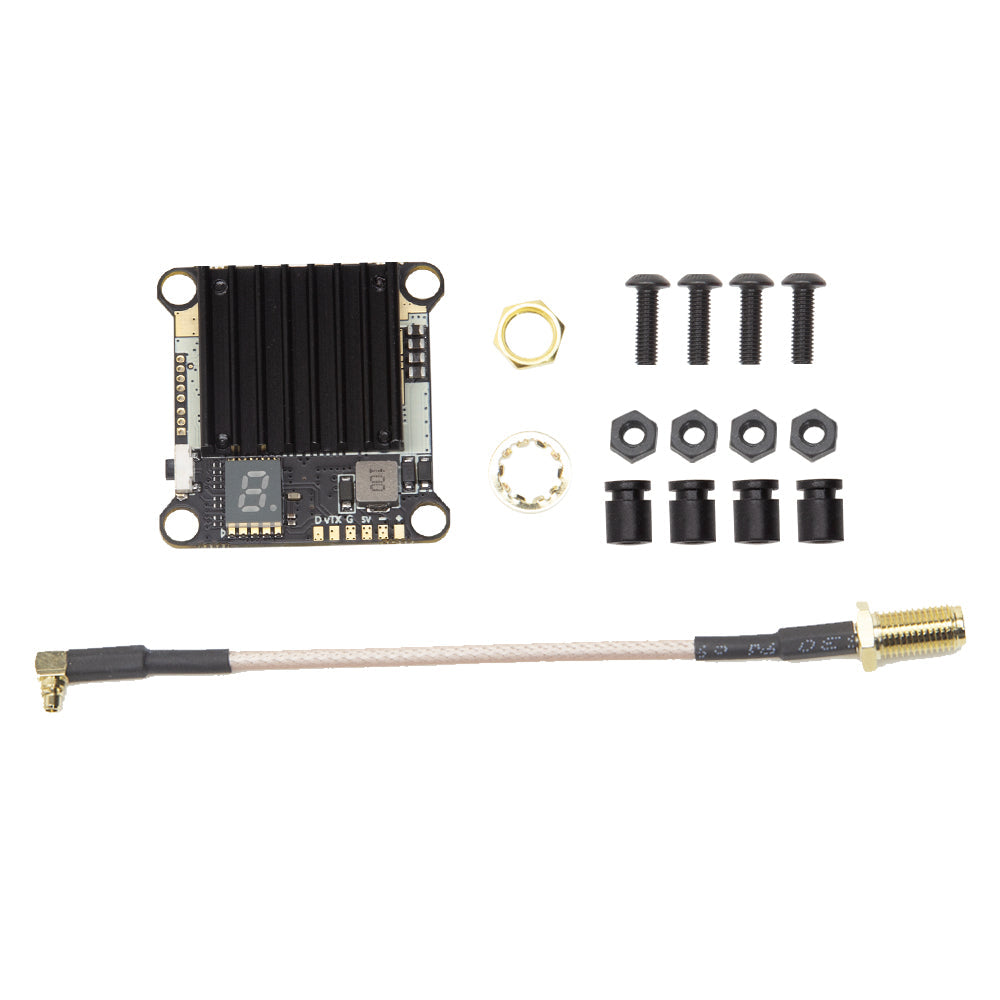

    Package Includes

    • 1 × ATOMRC TX2501 5.8GHz 48CH VTX
    • 1 × Mounting kit
    • 1 × MMCX to SMA adapter
