Antenna TrueRC X2-AIR 5.8 MK II RHCP SMA
Antenna TrueRC X2-AIR 5.8 MK II RHCP SMA
Brand: TrueRC
sku: SKU:0608597255782
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Upgrade your FPV system with the TrueRC X2-AIR 5.8 MK II RHCP SMA antenna. This antenna offers a high-gain directional beam for extended range and a cleaner signal. Perfect for both beginners and experienced pilots, this antenna ensures reliable performance for all your flights.
Key features:
- Improved design: Improved signal strength and durability.
- High gain: Extended range and cleaner video.
- RHCP: Reduces interference with right-handed circular polarization.
- SMA connector: Easy compatibility with FPV equipment.
Specifications:

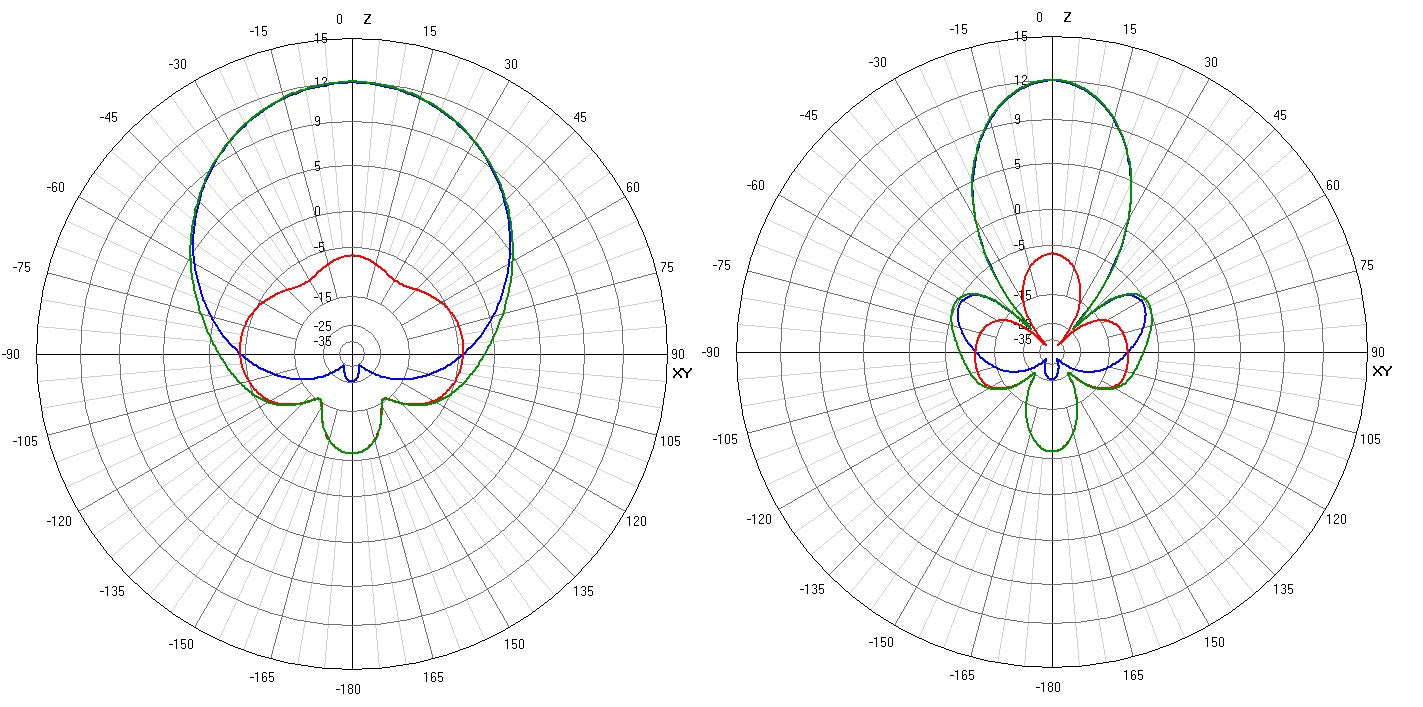

Polarization: RHCP Bandwidth: 5.1GHz-7.0GHz Gain: 13 dBic Beam width horizontal*: 150° Beam width vertical*: 62° Hor. beam @-3dB**: 74° Vert. beam @-3dB**: 34° Connector: SMA Dimensions: 72mm x 34mm x 22mm
*Coverage where income is at least equivalent to omni. **Coverage where at least 70% of the maximum range is achieved.
Package includes: 1x TrueRC X2-AIR 5.8 MK II RHCP SMA antenna
