Antenna TrueRC X-AIR 5.8 MK II pair for HDzero goggles RHCP, Combo CORE
TrueRC X-AIR 5.8 MK II Combo CORE is a premium antenna system, designed specifically for HDzero goggles, that offers a combination of directional and omnidirectional antennas for better signal coverage and range. This combo set combines the high-performance X-AIR MK II antennas with the versatile CORE omnidirectional antennas, providing a complete solution for full 360° coverage and excellent long-range performance.
Key features:
- High Gain and Wide Beam Angle (X-AIR MK II): The X-AIR MK II antennas provide 9.5-10.5dBic gain with a 120° wide beam angle, ensuring excellent long-range performance and good signal penetration even in challenging conditions.
- Omnidirectional coverage (CORE antennas): CORE omnidirectional antennas provide full 360° coverage, which complements the directional X-AIR antennas and provides more comprehensive signal reception, especially in close range and omnidirectional scenarios.
- Circular Polarization (RHCP): Both types of antennas (X-AIR and CORE) use right-handed circular polarization (RHCP), which reduces interference and improves signal quality.
- Slim and compact design: The X-AIR MK II antennas have a low profile and are only 15mm thick, making them easy to carry and store, while the CORE antennas are just as compact.
- Easy Installation: The kit includes push-in brackets that attach directly to the rails of the HDzero glasses, ensuring a safe and easy installation. Special knurled SMA connectors enable optimal RF energy transmission and a solid connection.
- Wide Frequency Range: The antennas operate in a wide frequency band of 5.1 GHz to 6.7 GHz, which ensures high performance beyond the standard frequency of 5.8 GHz, providing flexibility in various environments.
- Durability and reliability: Designed for long-term use, this combo antenna system is able to withstand the harsh conditions of frequent drone flights without losing performance.
Specifications (X-AIR MK II antennas):
- Bandwidth: 5.1 GHz - 6.7 GHz
- Gain: 9.5-10.5 dBic
- Polarization: RHCP
- Beam width: 120° (for each antenna)
- Beam width at -3 dB: 68°
- Connector: SMA male
- Dimensions: 32 x 32 x 15 mm

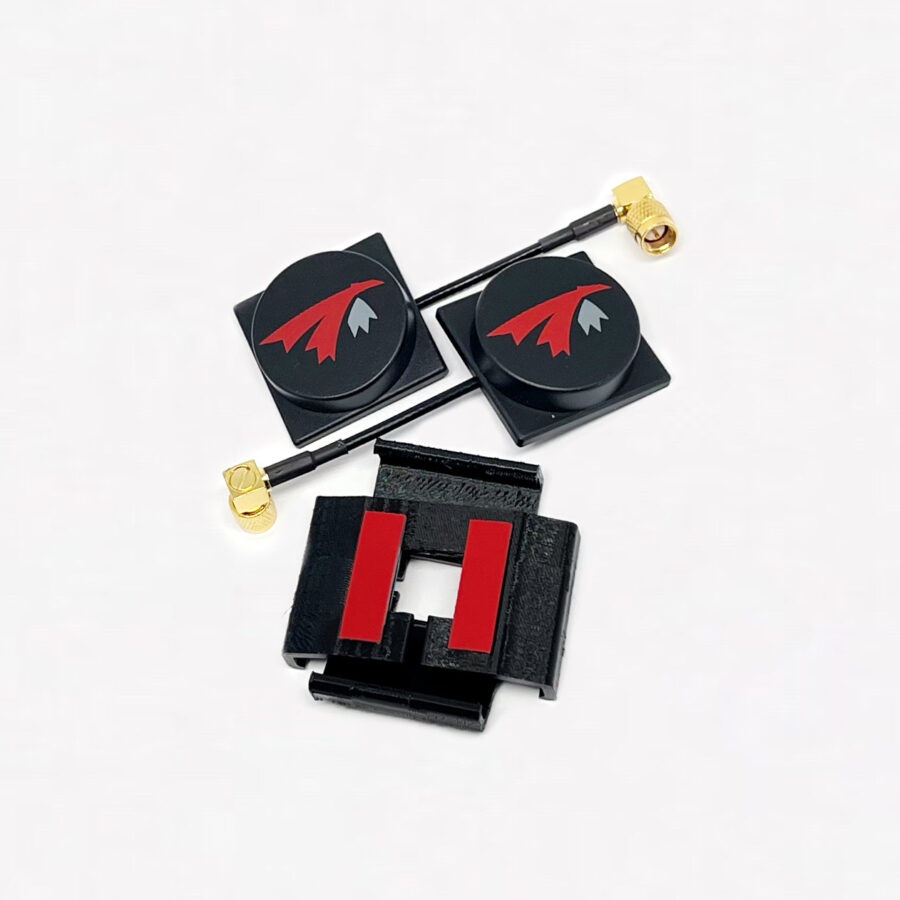

The package contains:
- 2x X-AIR MK II antennas (one for each side)
- 2x CORE omnidirectional antennas
- 2x push-in holders for HDzero glasses
