    Antenna TrueRC True-MoX 2.4 RP-SMA

    Antenna TrueRC True-MoX 2.4 RP-SMA

    Brand: TrueRC

    €19,08
    €19,08 €19,08
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: 0608597253375
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

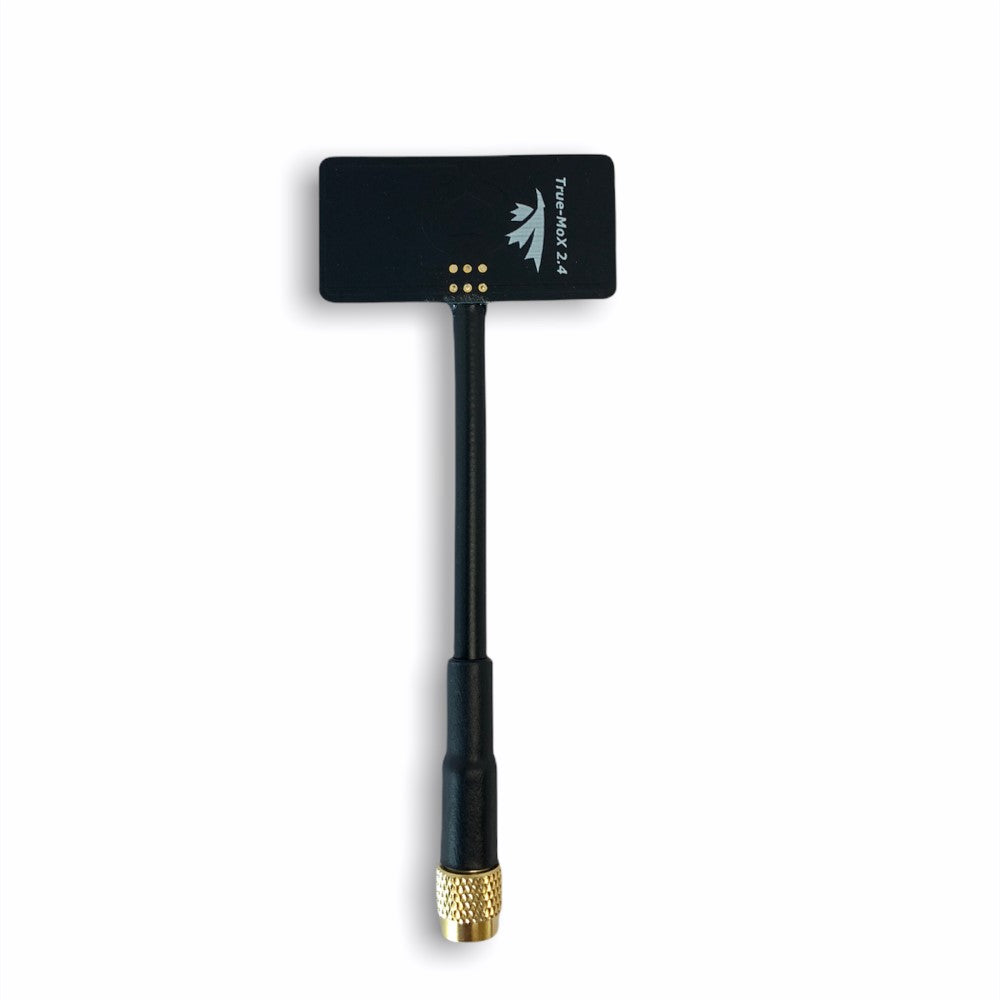

    True-MoX 2.4 RP-SMA

True-MoX 2.4 is a revision of Moxon using the latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with the radio or the pilot's body are kept to almost zero thanks to our patented design. Great for IRC Ghost, TBS tracer (RP-SMA) or express LRS (SMA). Note that this is not a patch, do not point the flat part towards the target. Point the long edge of the panel toward the intended flight area. A vertical long edge creates vertical polarization.

Specifications:
Frequency: 2400-2510MHz
Gain: 5.9 dBi
Beam width*: 156deg
Beamwidth @-3dB**: 133deg

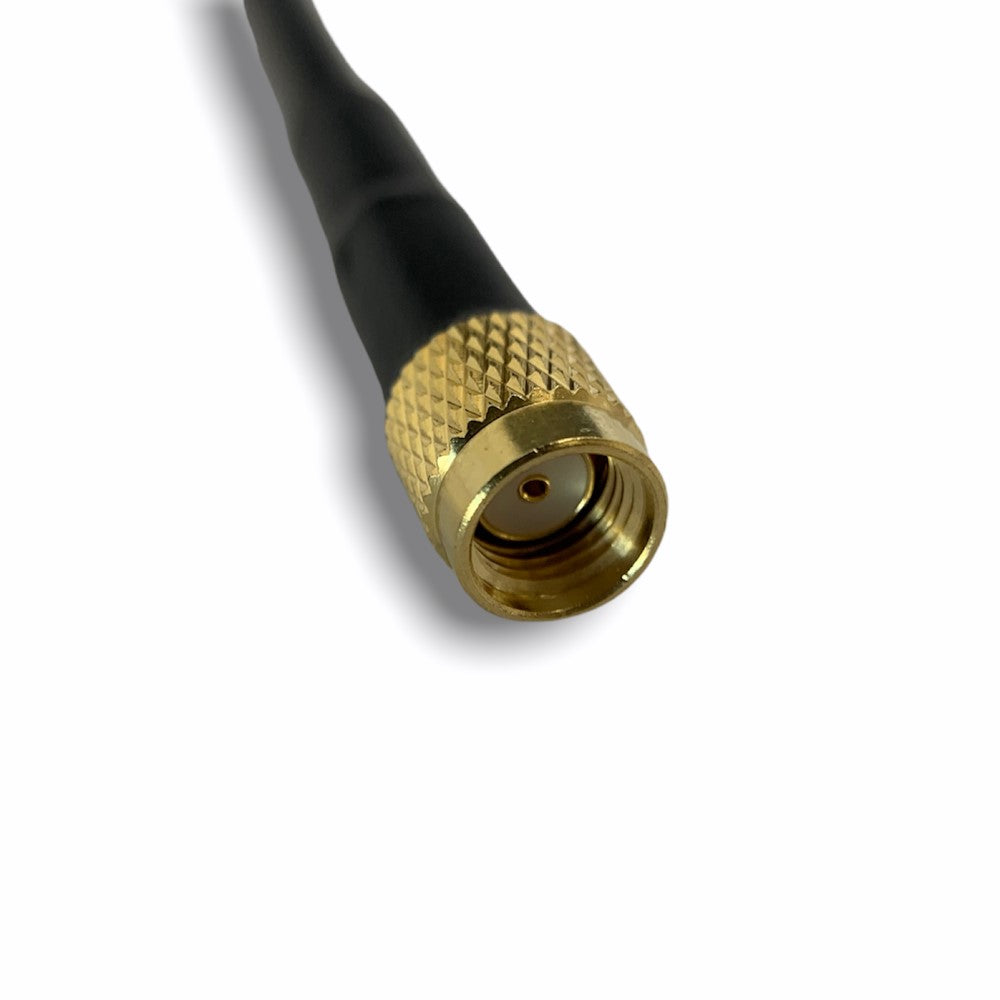

Connector: RP-SMA
Dimensions: 39.5mm x 100mm

*Coverage where income is at least equivalent to omni.
**Coverage where at least 70% of the maximum range is achieved.
