    Antenna TrueRC STUBBY Singularity RP-SMA RHCP RED

    Antenna TrueRC STUBBY Singularity RP-SMA RHCP RED

    Brand: TrueRC

    €25,41
    €25,41 €25,41
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: 0608597252118
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

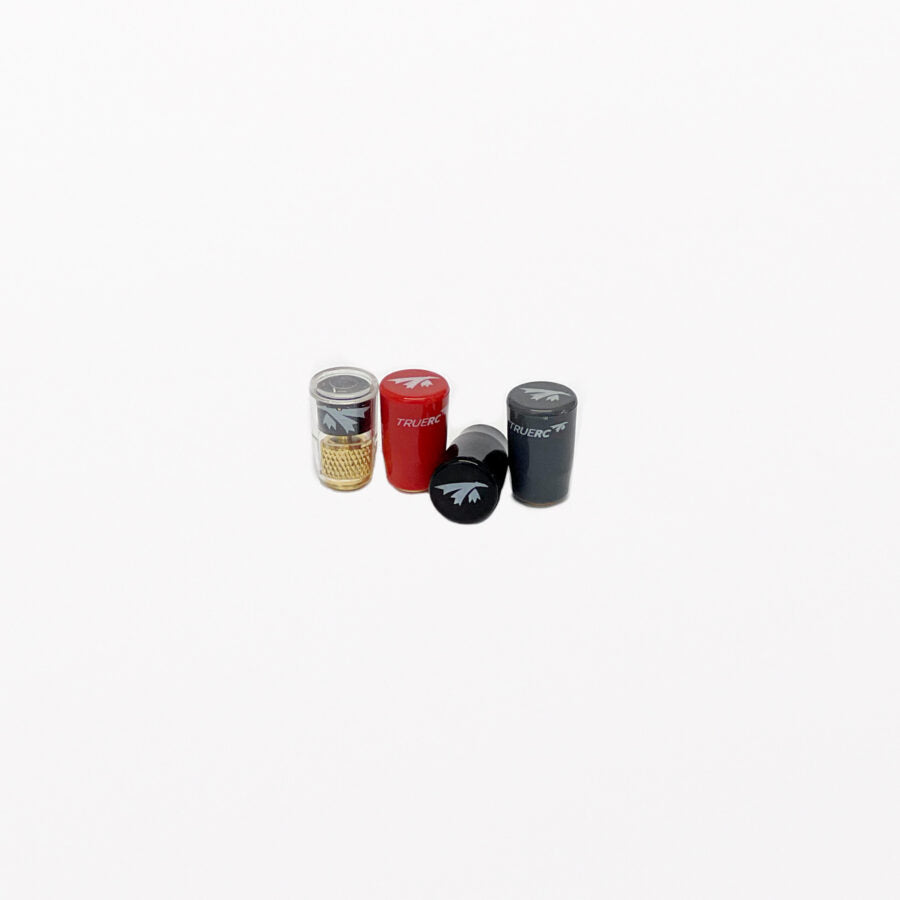

    STUBBY Singularity RP-SMA RHCP RED

The Singularity 5.8 stubby was made specifically for the DJI FPV system goggles. The antenna is a direct fit with a much lower profile than standard and over 50% more range. Available in two variants: RHCP or LHCP (Stock DJI is LHCP).

Specifications:
Red

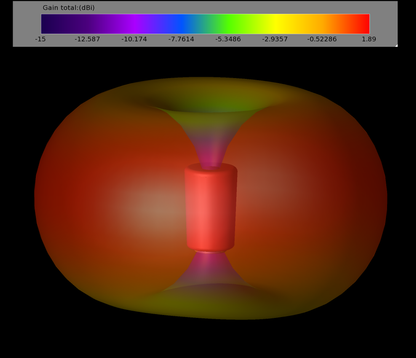

Gain: 1.9 dB
Polarization: RHCP
Cross-Polar Rejection: -15 to -30 dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation efficiency: 99%
SWR: <=1.5:1
Weight: 3.7 g
Size: 12.7mm x 20mm (PDF)
Connector: RP-SMA

Includes:
1x stubby Singularity 5.8 (RP-SMA)
