Maple 5.8G 17dB High-Gain Directional Antenna - SMA-AAT
Maple 5.8G 17dB High-Gain Directional Antenna - SMA-AAT
Brand: Maple Wireless
Regular price
€25,41
Regular price
€25,41
Sale price
€25,41
Unit price
per
sku: SKU:5565
Out of stock We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
- Description
Achieve long-range, precision FPV performance with the Maple 5.8G 17dB Directional Antenna (SMA-AAT). This high-gain, vertically polarized antenna is designed for applications requiring focused signal coverage, such as long-distance flights or supporting AAT closed-loop systems. With a narrow 16° horizontal beamwidth, it ensures maximum signal strength over extended ranges, making it ideal for professional pilots and long-range FPV setups.
Key Features:
- High Gain: 17dBi directional antenna for superior long-range performance.
- Narrow Beamwidth: 16° horizontal coverage focuses signal for precision reception.
- Vertical Polarization: Optimized for maximum signal efficiency when parallel to the ground.
- Wide Frequency Range: Operates from 5180-5950 MHz, covering all 5.8G FPV channels.

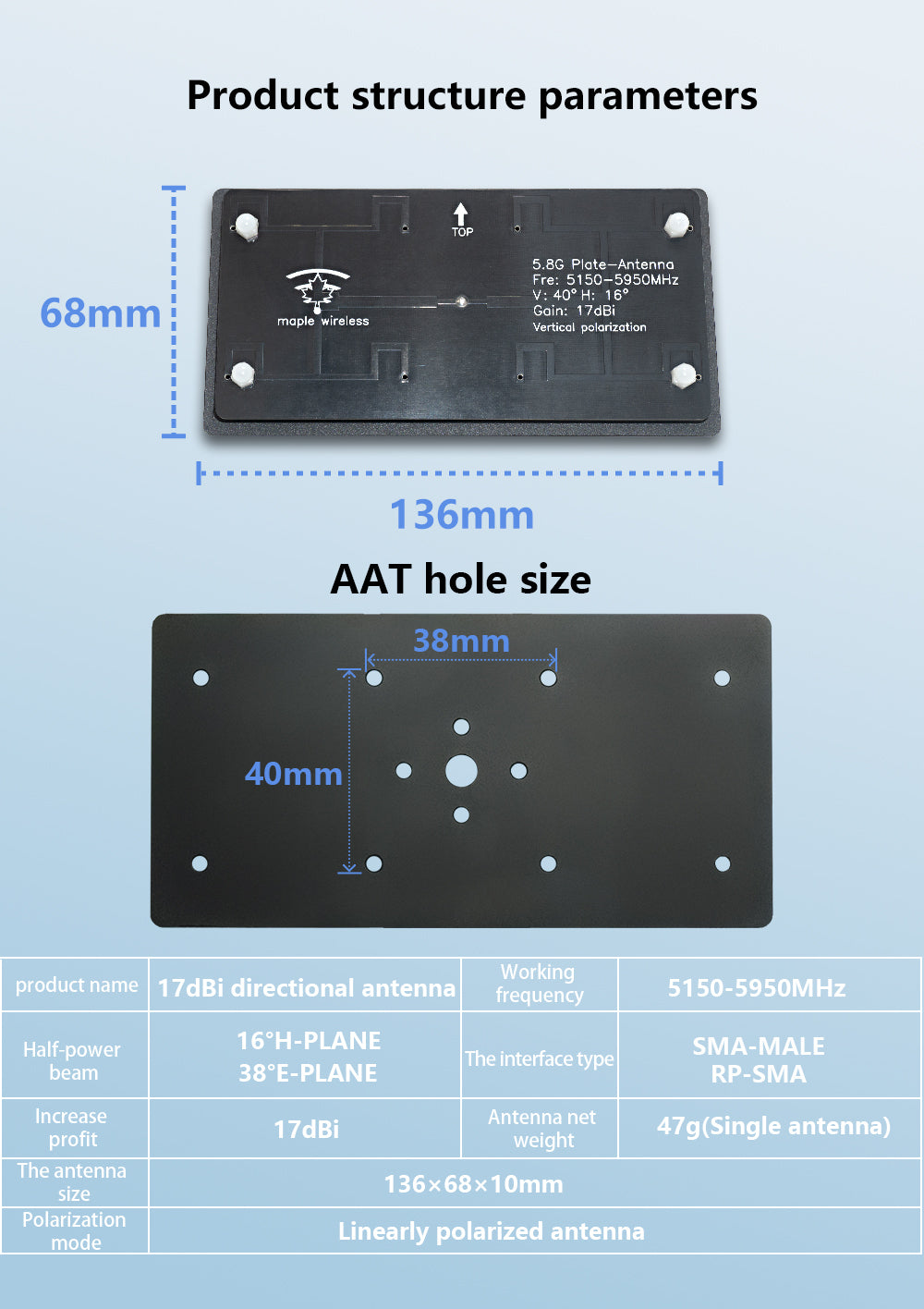

- Compact Design: Measures 136 × 68 × 10 mm, lightweight and easy to mount.
- SMA-AAT Connector: Compatible with most FPV transmitters and receivers using AAT systems.
Specifications:
- Frequency: 5.8 GHz
- Gain: 17dBi
- Bandwidth: 5180-5950 MHz
- Horizontal Beamwidth: ~16°
- Polarization: Vertical
- Dimensions: 136 × 68 × 10 mm
Package Includes:
- 1 × Maple 5.8G 17dB Directional Antenna (SMA-AAT)
