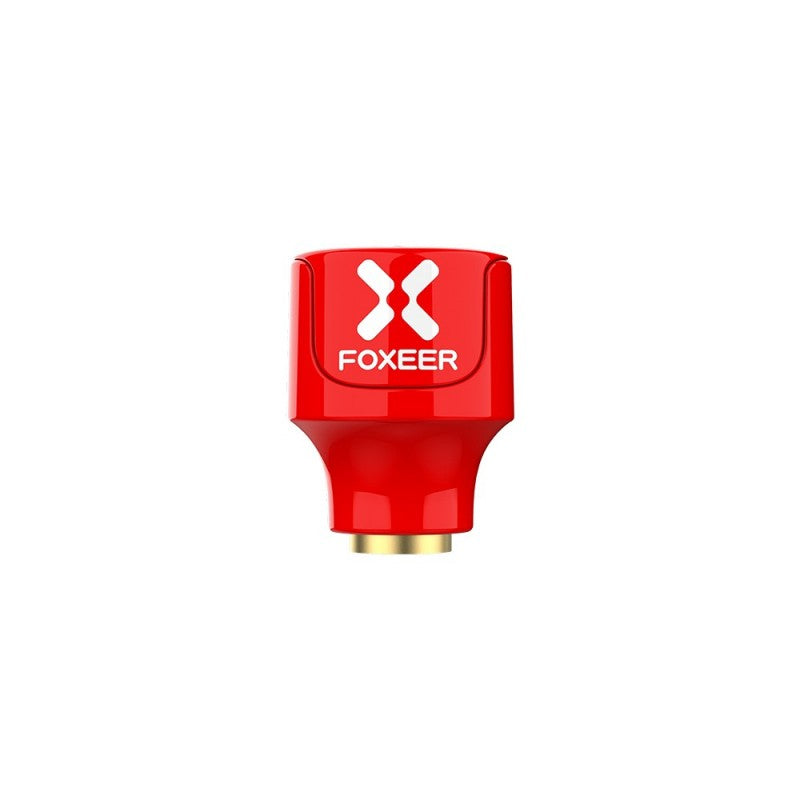

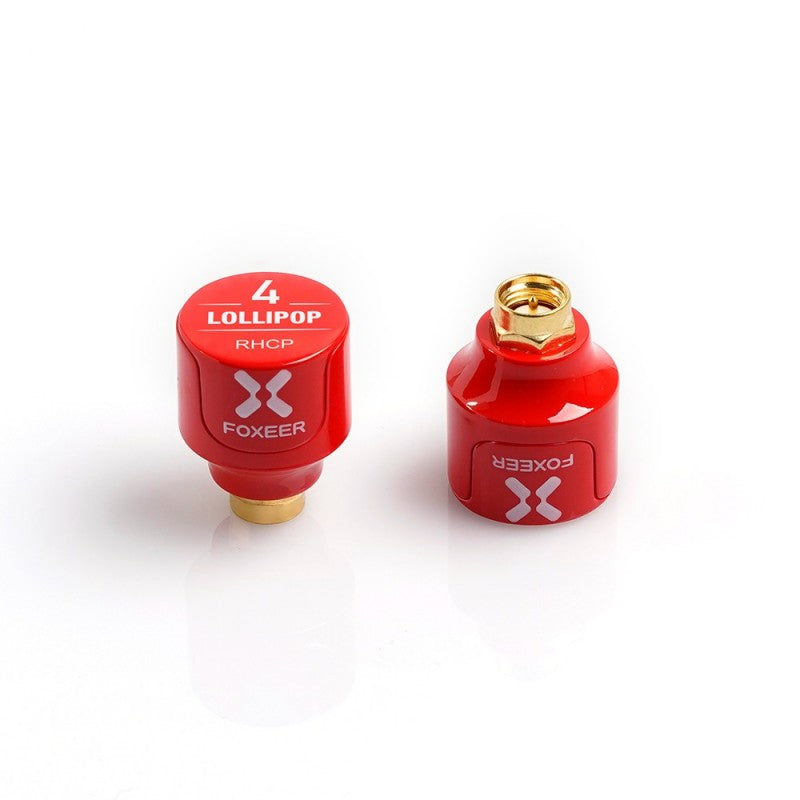

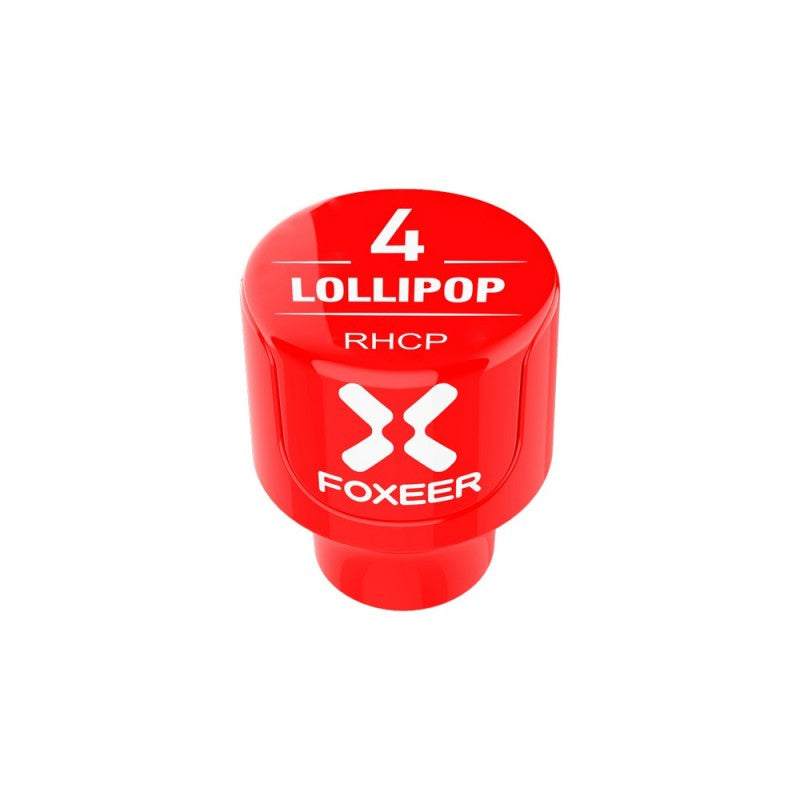

    Foxeer Lollipop 4 Stubby RHCP SMA Antenna 5.8GHz - Red (2pcs)

    Foxeer Lollipop 4 Stubby RHCP SMA Antenna 5.8GHz - Red (2pcs)

    Brand: Foxeer

    €22,93
    €22,93 €22,93
    -0% View Product

    sku: PA1476RHCPSMA

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The Foxeer Lollipop 4 Stubby RHCP Antennas provide compact, high-performance FPV signal transmission in a small form factor. With right-hand circular polarization (RHCP) and 2.6 dBi gain, these antennas deliver clear, interference-resistant video for racing and freestyle drones.

    Their durable PC+ABS casing protects the antennas during crashes, while the SMA connector ensures easy installation on most FPV systems. At just 17 × 23 mm, the stubby design is ideal when space is limited, without compromising signal quality. Each package includes two antennas, perfect for dual-antenna setups.

    Key Features:

    • Compact stubby design (17 × 23 mm) for tight spaces
    • RHCP polarization for stable, interference-resistant FPV signal
    • Durable PC+ABS construction
    • SMA connector for easy installation
    • 2 antennas included per package

    Specifications:

    • Center Frequency: 5.75 GHz
    • Gain: 2.6 dBi
    • Axial Ratio: Close to 1
    • Bandwidth: 5.5–6 GHz
    • Radiation Efficiency: 98%
    • SWR: <1.07 at mid frequency
    • Connector: SMA
    • Polarization: RHCP
    • Material: PC+ABS
    • Size: 17 × 23 mm
    • Weight: 7.2 g
    • Package: 2x Lollipop 4 Stubby antennas
