Antenna 4Hawks Raptor XR for Smart Controller
Antenna 4Hawks Raptor XR for Smart Controller
Brand: 4Hawks
sku: SKU:A121X
Out of stockCouldn't load pickup availability
- Description

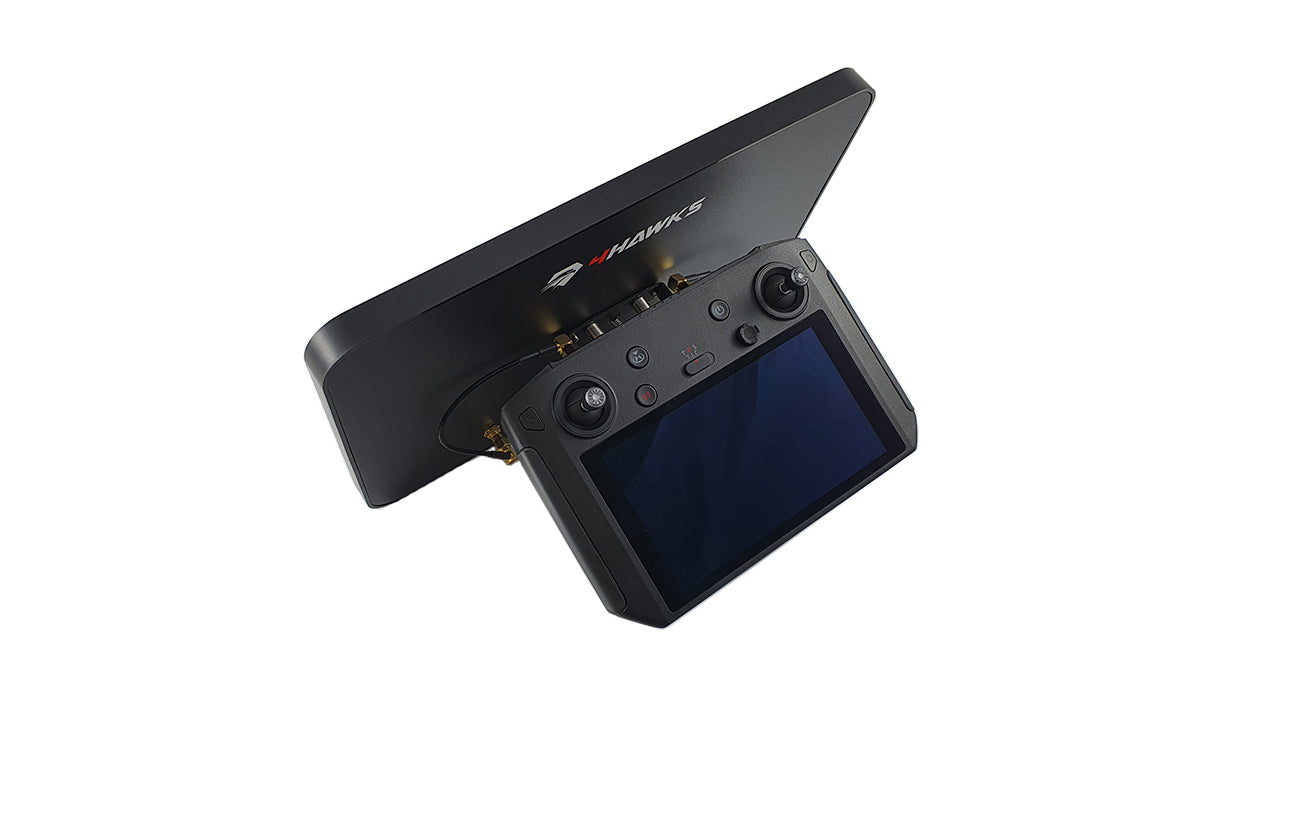

Raptor XR for DJI Smart Controller
The 4Hawks antenna for DJI Smart Controller is highly advanced and works in both 2.4 GHz and 5 GHz frequencies. The entire structure is 100% protected against UV radiation to ensure a long life of the device. The holder is made of stainless steel for solid stability. Changing the direction of the antenna does not cause any difficulties, as the system has been designed to allow a quick change of position with a single click. So you can be sure that you won't lose connection with your drone.
Function:
- Simultaneous dual-band 2.4 and 5 GHz - Long range extension without external amplifiers - Complete solution - Driver NOT included - Compatible with Mavic 3 series, Mavic 2 series, Mavic Air 2S, Mavic Air 2, Mini 2, Phantom 4 Pro v2.0, Matrix series (300)
Specifications:
Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz Gain Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) VSWR Port 1: < 1.50 (max < 2.00) Port 2: < 1.50 (max. < 2.00) Beam width Port 1: 70?/40? & 40?/25? Port 2: 70?/40? & 40?/25? Polarization Port 1: Vertical Port 2: Vertical Impedance Port 1: 50 ? Port 2: 50 ?
Mechanical parameters: Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB Material Assembly: Stainless steel + paint Weight: 520g (450g Antenna + 70g Mounting) Dimensions: 29.2 x 18.2 x 2.1 cm Connection: RP-SMA female Tilt adjustment: 5 tilt positions, OnClick system Mounting type: For SMA connectors (Permanent)
