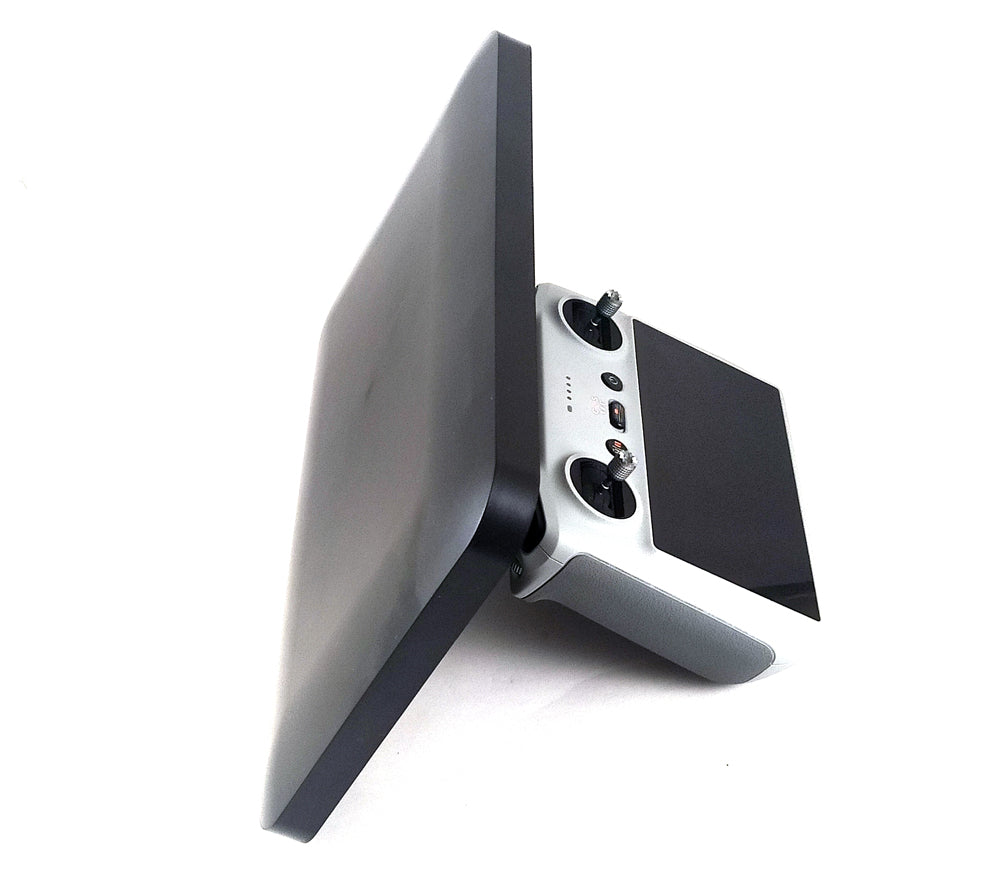

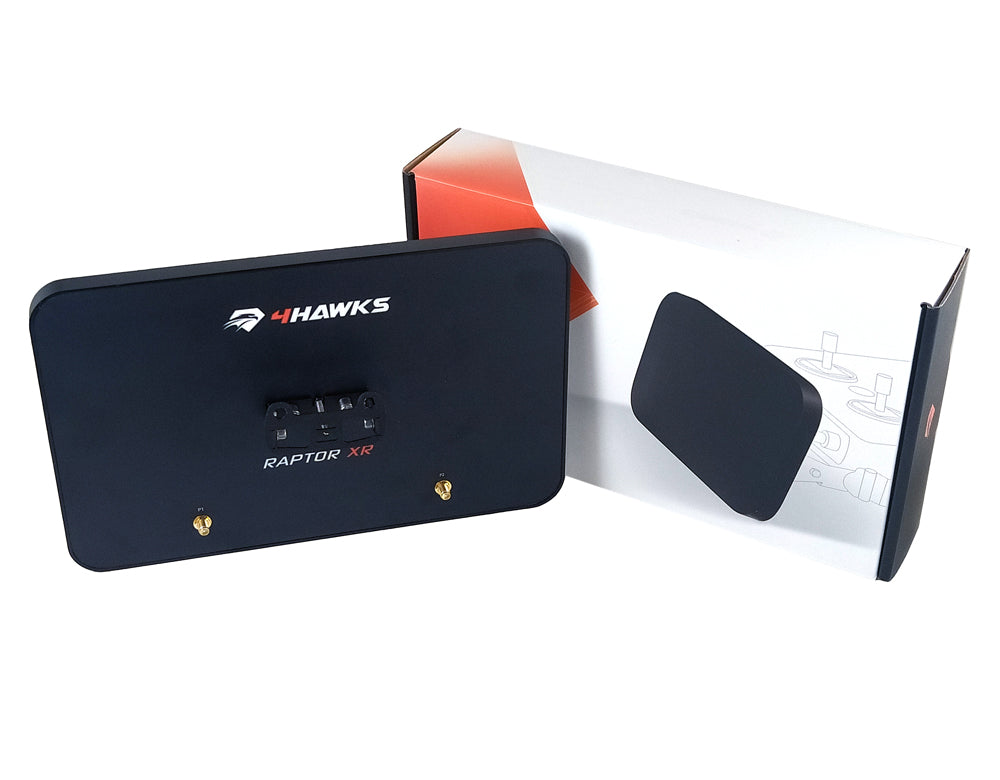

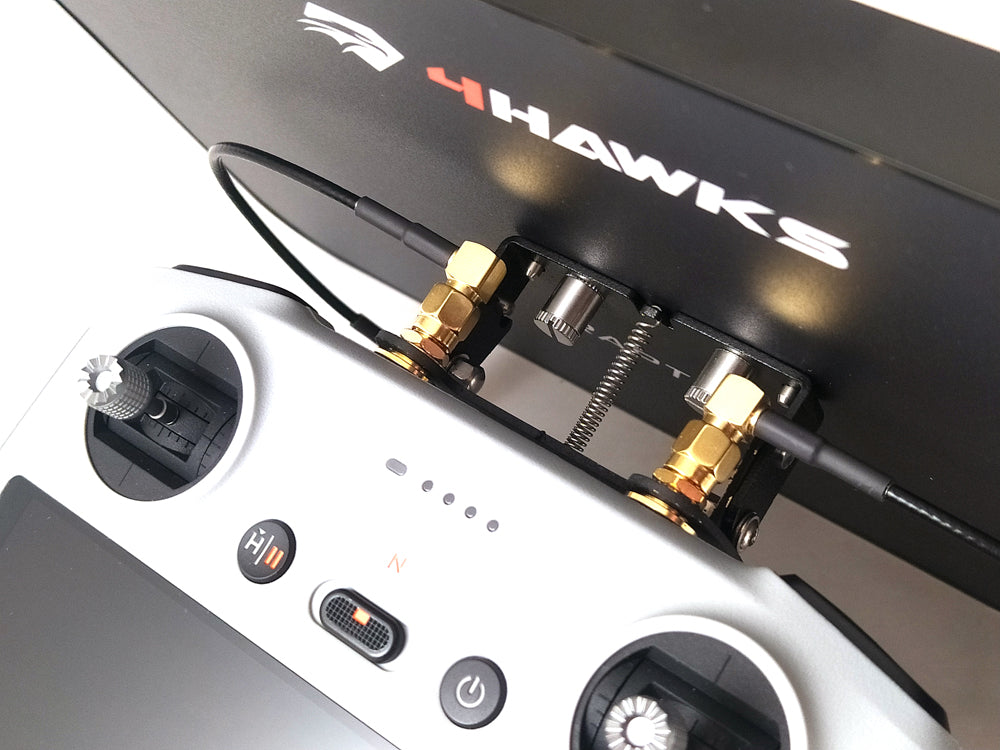

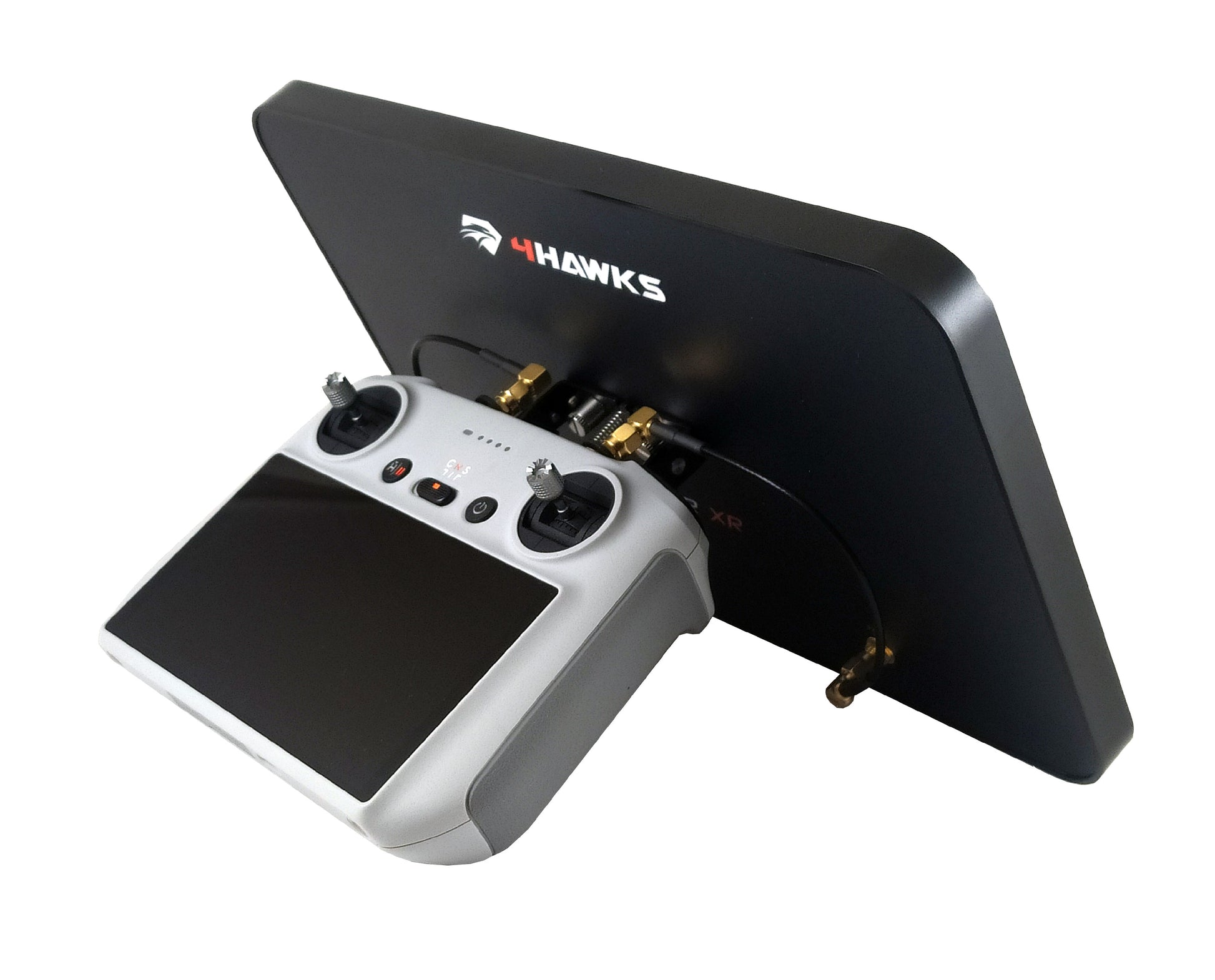

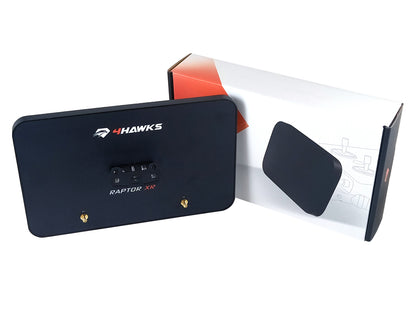

Antenna 4Hawks Raptor XR for DJI RC Controller
Antenna 4Hawks Raptor XR for DJI RC Controller
Brand: 4Hawks
sku: SKU:A138X
Limited Available - order soonCouldn't load pickup availability
- Description
Raptor XR for DJI RC Controller
Function:
- Simultaneous dual-band 2.4 and 5 GHz - Long range extension without external amplifiers - Complete solution - Driver NOT included
Specifications:
Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz Gain Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) VSWR Port 1: < 1.50 (max < 2.00) Port 2: < 1.50 (max. < 2.00) Beam width Port 1: 70°/40° & 40°/25° Port 2: 70°/40° & 40°/25° Polarization Port 1: Vertical Port 2: Vertical Impedance Port 1: 50 ? Port 2: 50 ?
Mechanical parameters: Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB Material Assembly: Stainless steel + paint Weight: 520g (450g Antenna + 70g Mounting) Dimensions: 29.2 x 18.2 x 2.1 cm Connection: RP-SMA female Tilt adjustment: 3 tilt positions, OnClick system Mounting type: For SMA connectors (Permanent)
