Antenna 4Hawks Raptor XR Dual band 2.4G/5.8G for DJI Mavic 3 (10m cables)
Antenna 4Hawks Raptor XR Dual band 2.4G/5.8G for DJI Mavic 3 (10m cables)
Brand: 4Hawks
sku: SKU:A133X-10M
Limited Available - order soonCouldn't load pickup availability
- Description

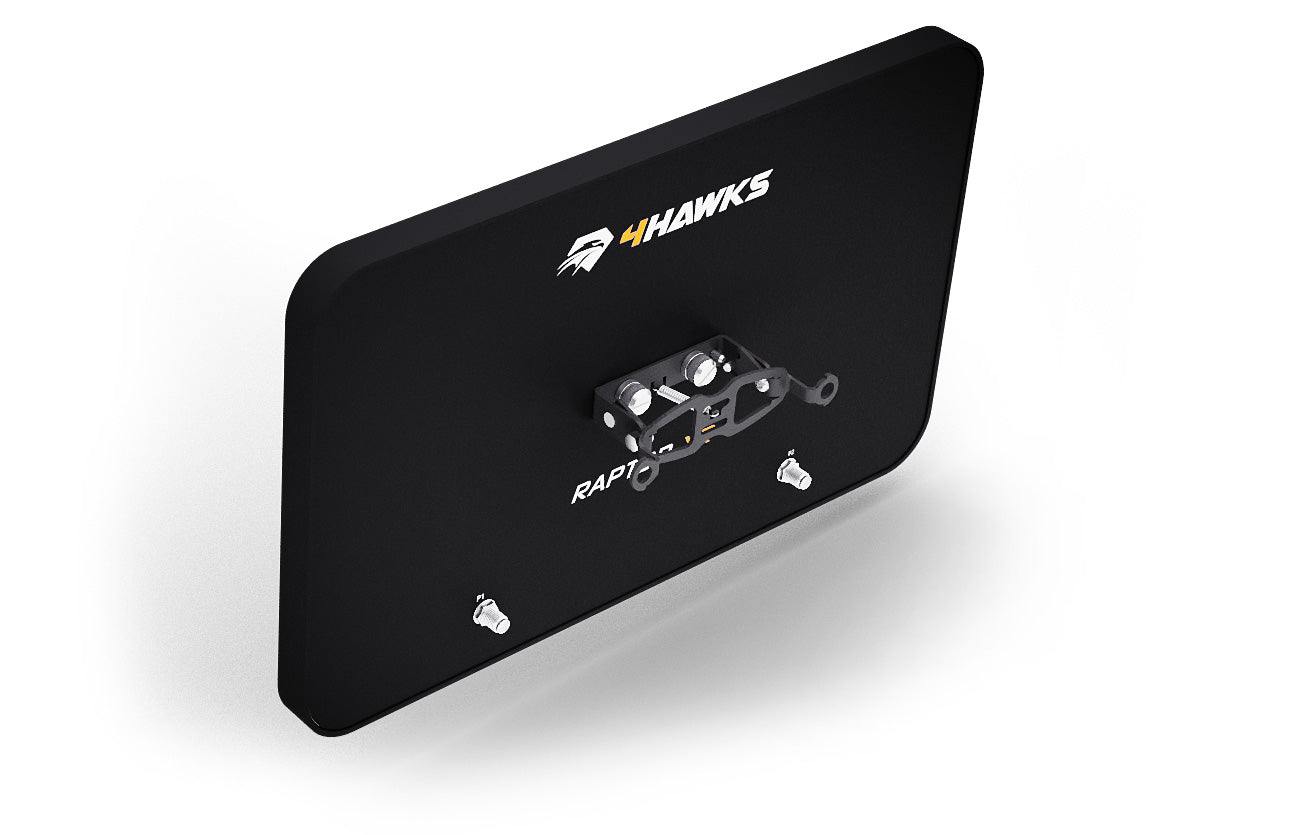

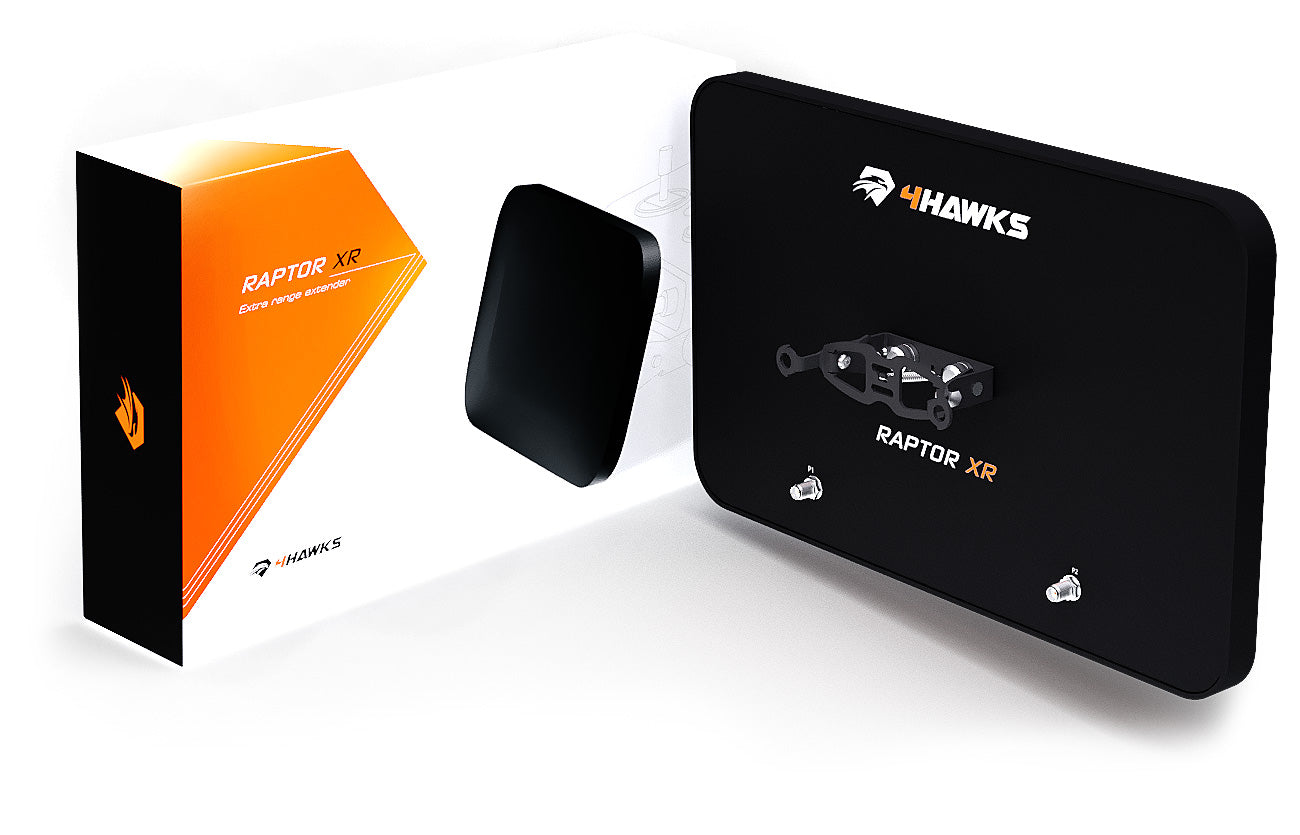

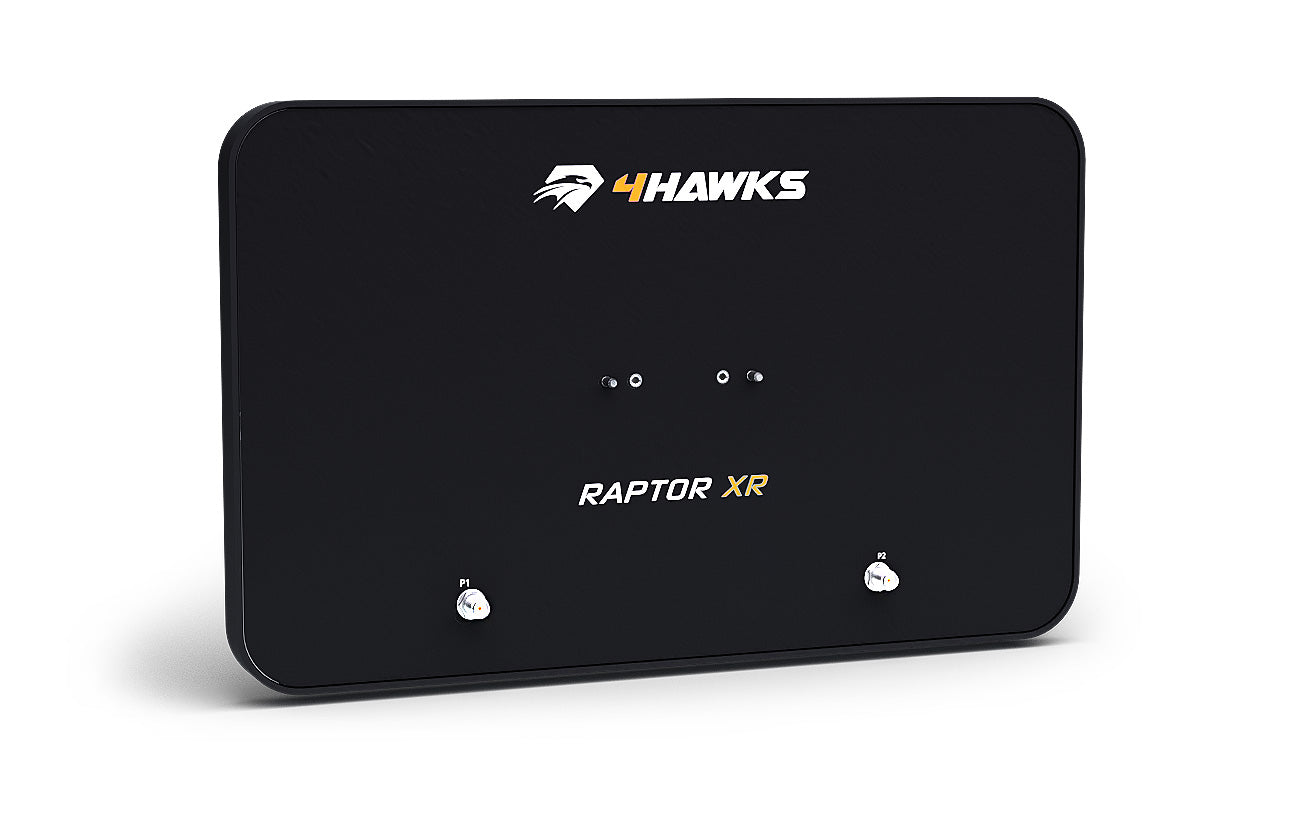

4Hawks Raptor XR Dual band 2.4G/5.8G antenna for DJI Mavic 3 (10m cables)
The 4Hawks Raptor XR antenna for DJI Mavic boasts advanced features that work seamlessly on both 2.4GHz and 5GHz frequencies. Its construction is fully UV protected, ensuring a long life for your equipment. The antenna features aluminum components and is designed to be lightweight without compromising durability. With a design that allows you to quickly adjust the direction of the antenna with a single "click", you can maintain a continuous connection with your drone.
Function:
- Extreme range extender, dual-band 2.4 + 5.8 GHz - No modifications to the drone itself - Long range extension without external amplifiers - The design does not contain any removable parts - Complete solution - Designed for DJI Mavic 3 series - Driver NOT included
Specifications:
Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz
Gain Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR Port 1: < 1.50 (max < 2.00) Port 2: < 1.50 (max. < 2.00)
Beam width Port 1: 70°/40° & 40°/25° Port 1: 70°/40° & 40°/25°
Polarization Port 1: Vertical Port 2: Vertical
Impedance Port 1: 50 ? Port 2: 50 ?
Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB Assembly: Stainless steel + paint Weight: 520g (450g Antenna + 70g Mounting) Dimensions: 29.2 x 18.2 x 2.1 cm Connection: RP-SMA female Tilt adjustment: 3 tilt positions, OnClick system Mounting type: For SMA connectors (Permanent)

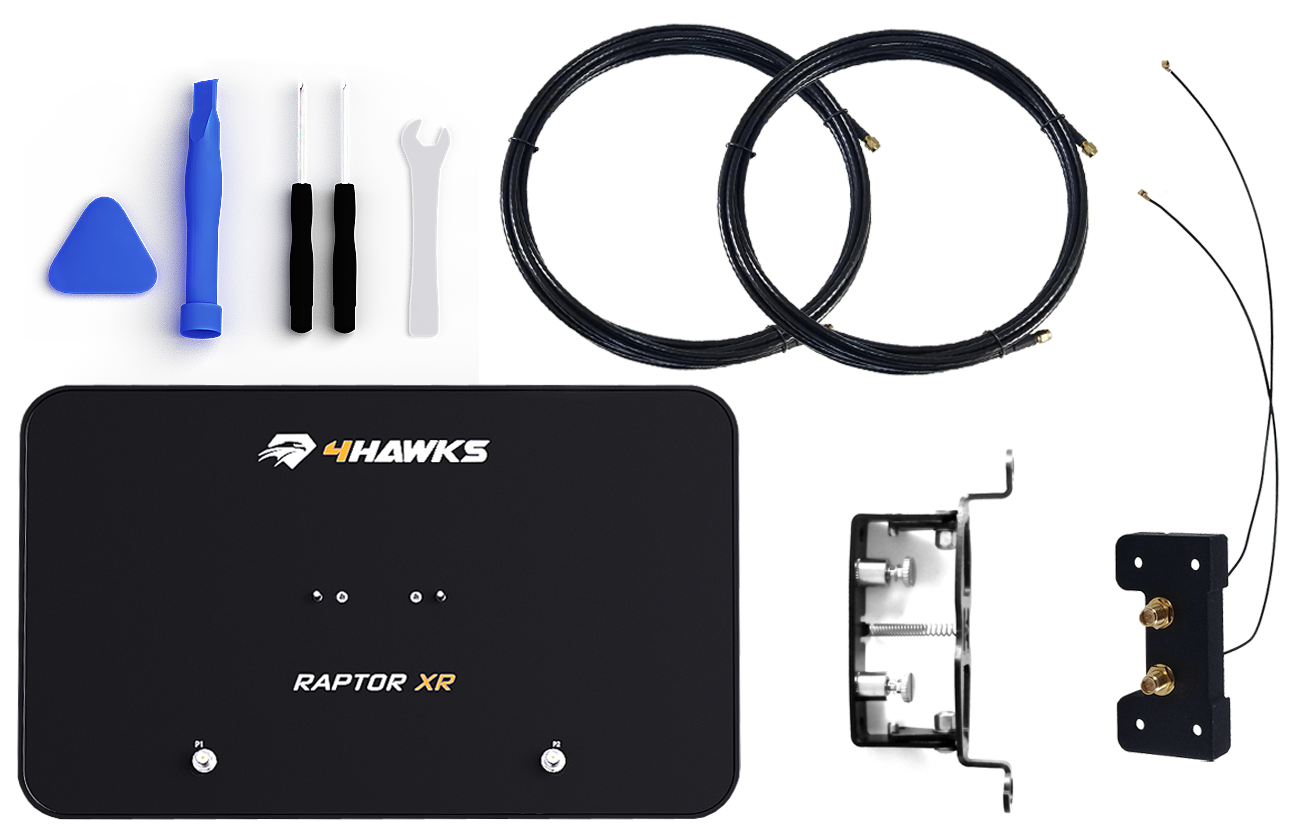

The package includes: 1x antenna with extended range 1x stainless steel mounting kit 2 x 10 meter extension cables with low reflection 1x 3D printed antenna module top panel with SMA expansion ports 2x screwdriver (Torx T6 & Philips) + 8mm wrench 1x additional Mavic tools
