Antenna 4Hawks Raptor SR for DJI Mavic Air 2S
Antenna 4Hawks Raptor SR for DJI Mavic Air 2S
Brand: 4Hawks
sku: SKU:A122S
Limited Available - order soonCouldn't load pickup availability
- Description
Raptor SR for DJI Mavic Air 2S

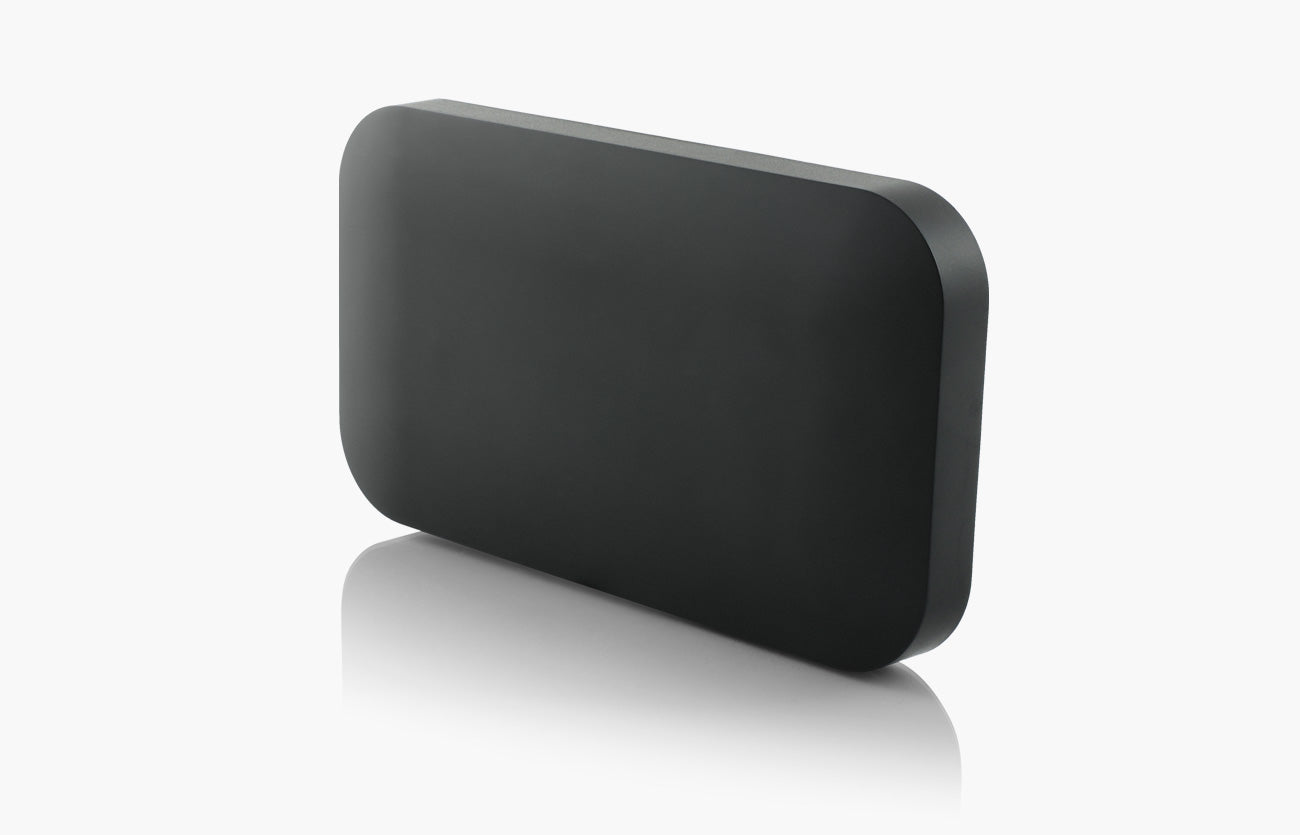

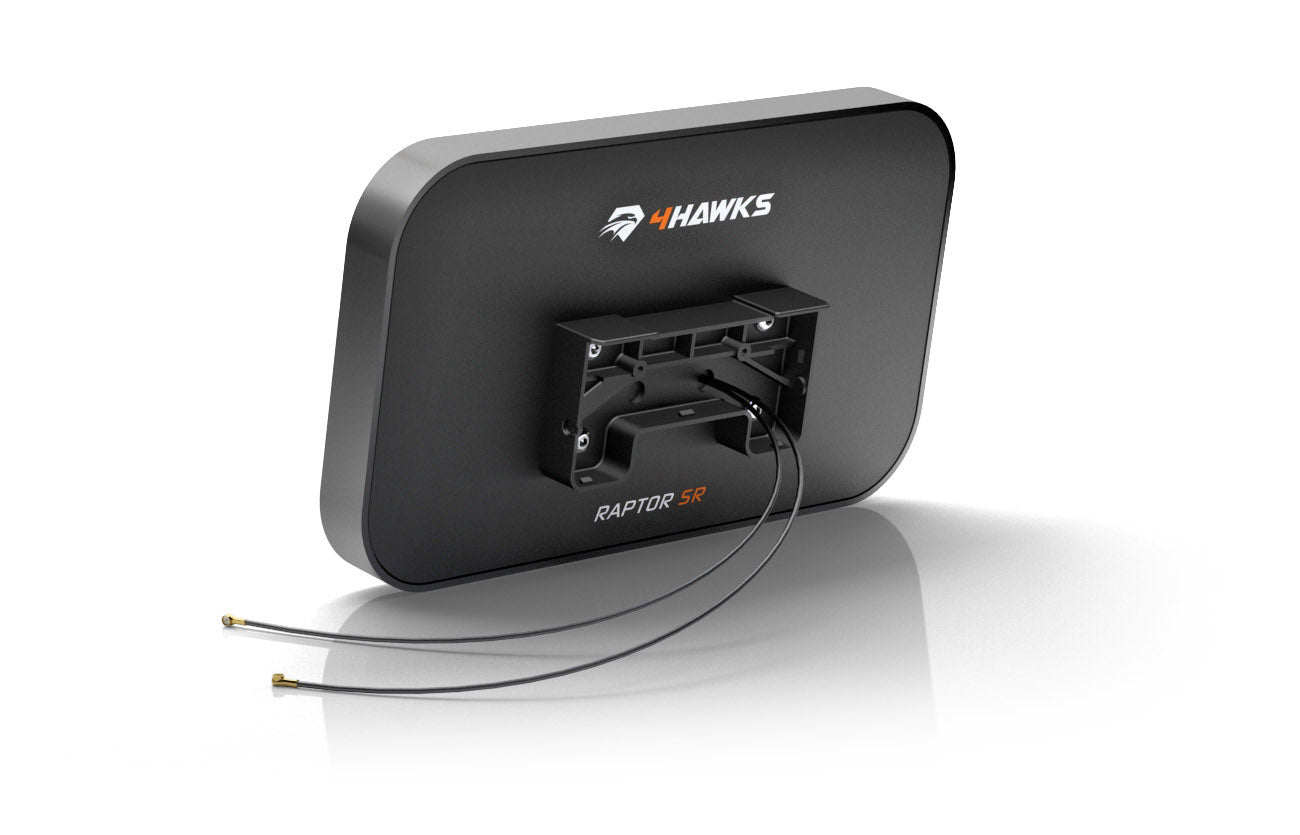

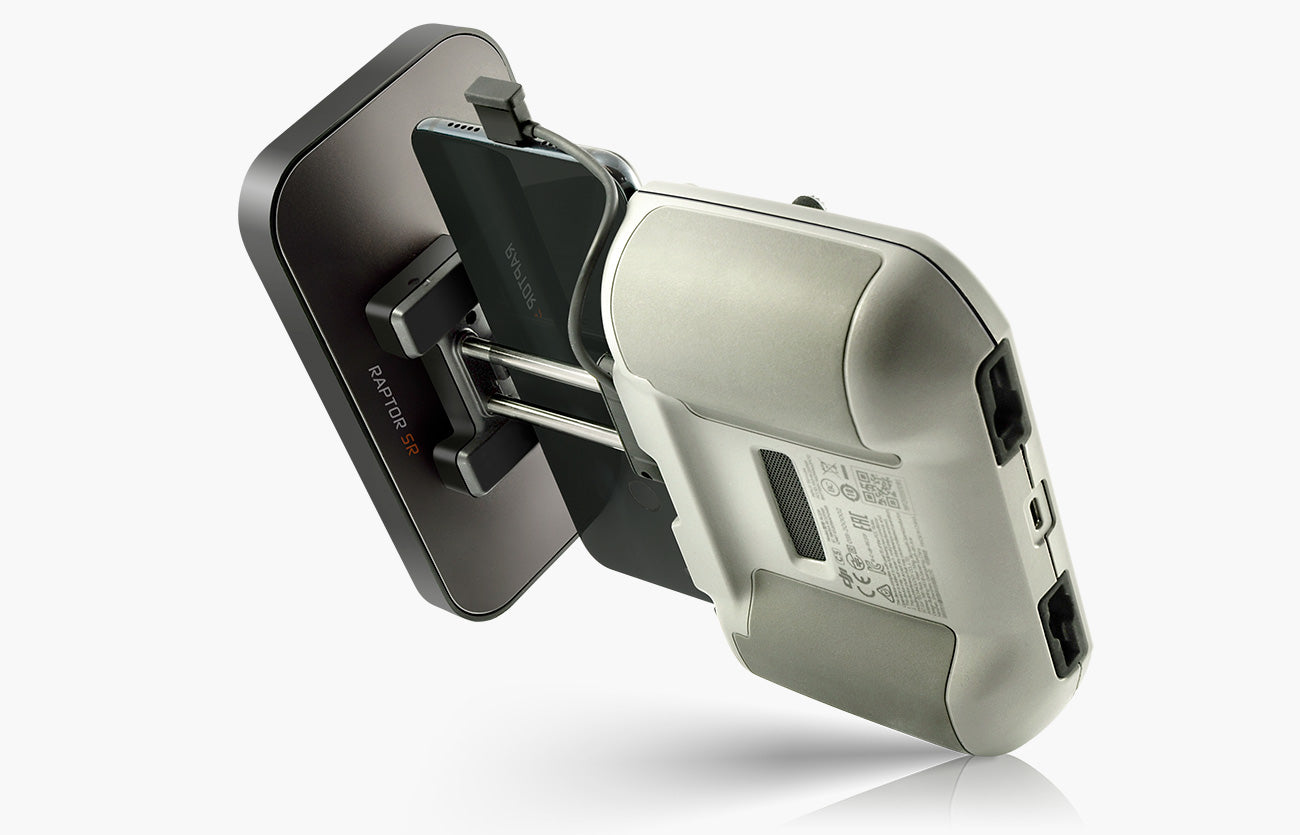

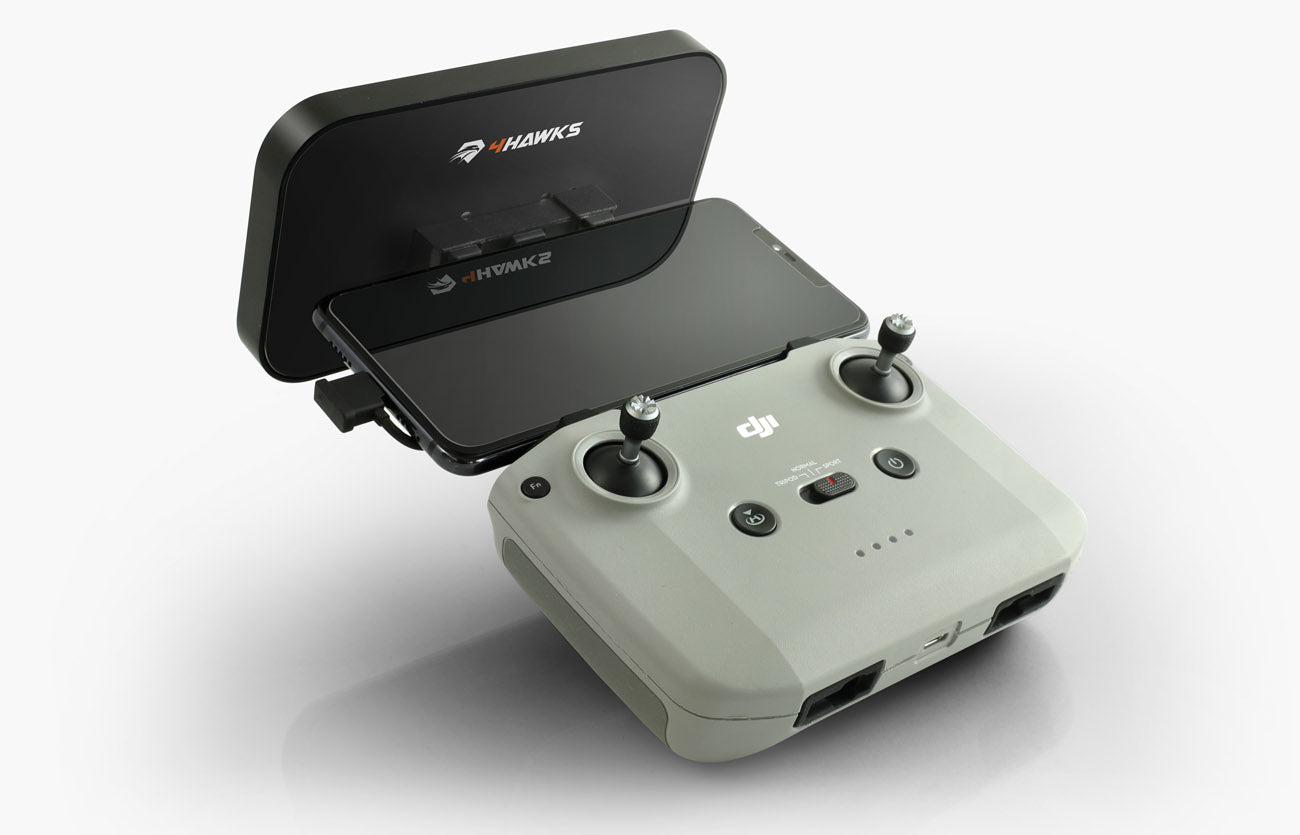

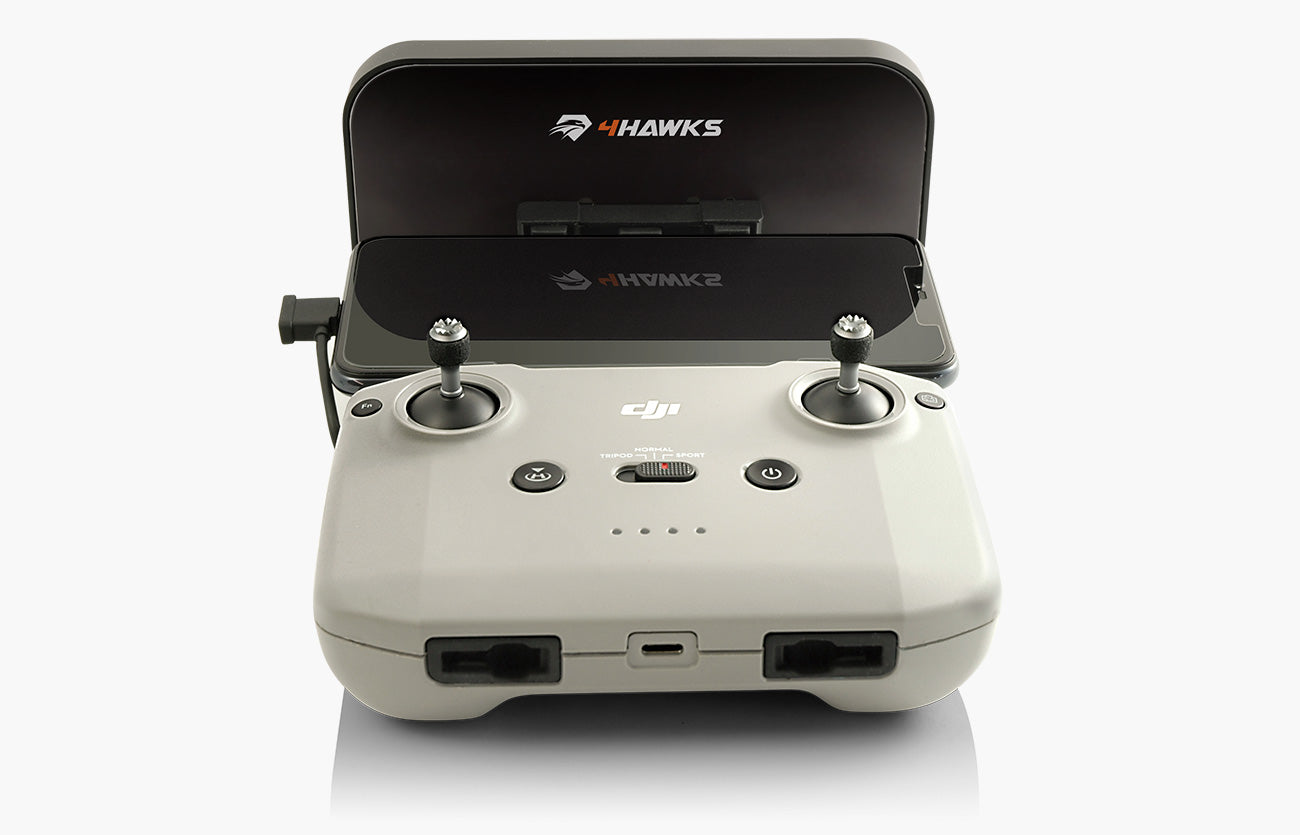

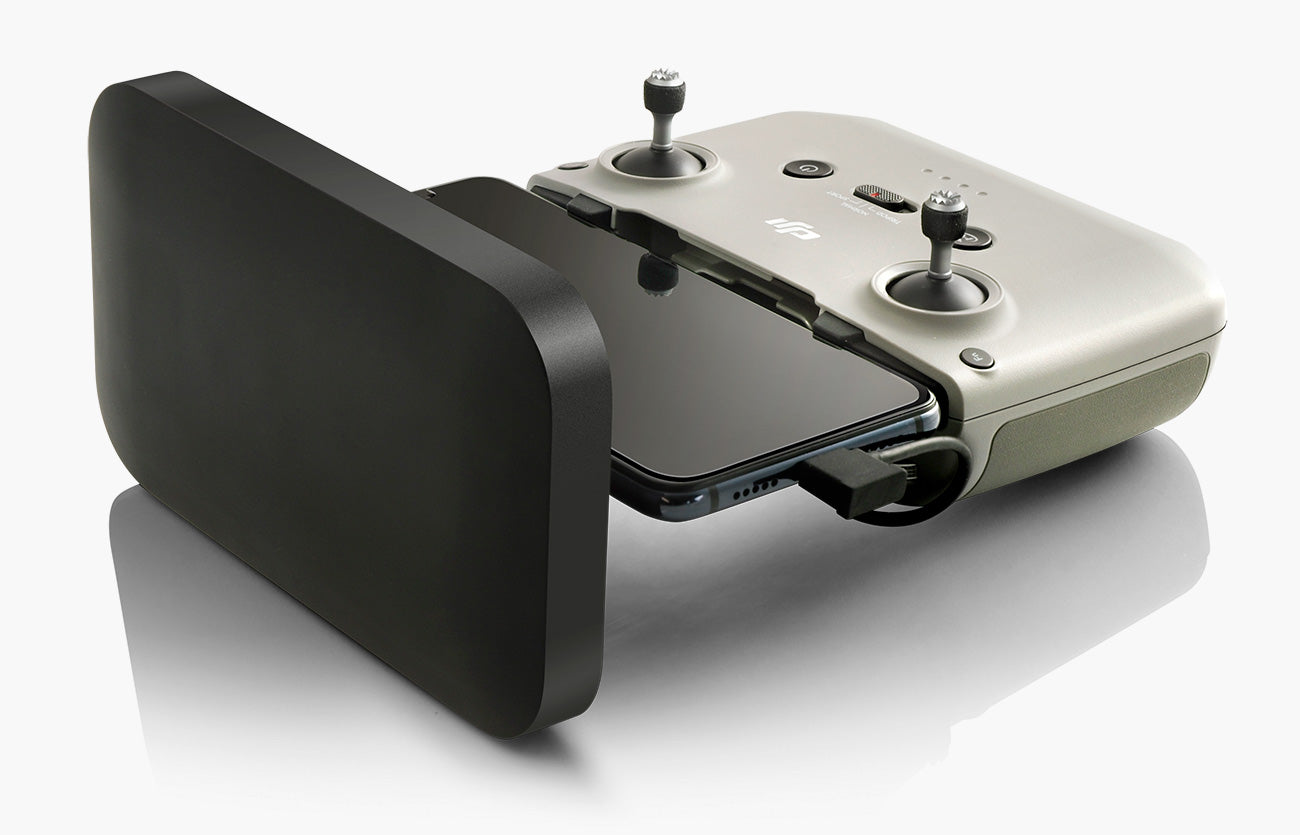

The 4Hawks antenna for the DJI Mavic model is highly advanced, working on both 2.4 GHz and 5 GHz frequencies. The entire structure is 100% protected against UV radiation to ensure a long life of the device. In addition, part of the structure is made of aluminum to make the entire structure as light as possible. Changing the direction of the antenna should not cause any problems, as the system has been designed to allow a quick change of position with a single click. So you can be sure that you won't lose connection with your drone.
Specifications
Electrical parameters: Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz Gain Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi) Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi) VSWR Port 1: < 1.50 (max. < 2.15) Port 2: < 1.50 (max. < 2.15) Beam width Port 1: 90°/65° & 55°/55° Port 1: 90°/65° & 55°/55° Polarization Port 1: Vertical Port 2: Vertical Impedance Port 1: 50 ? Port 2: 50 ?
Mechanical parameters: Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, FR4 PCB Material Assembly: Stainless steel + paint Weight: 180g (110g Antenna + 70g Mounting) Dimensions: 16.1 x 9.1 x 1.7 cm Connection: RP-SMA female Tilt adjustment: fixed OnClick system Mounting type: For SMA connectors (Permanent)
