    AIO FC HDZero AIO5

    AIO FC HDZero AIO5

    Brand: HDZero

    €120,99
    €120,99 €120,99
    -0% View Product

    sku: HDZ5000

    Limited Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    HDZero AIO5 All-in-One Board

    HDZero AIO5 is a breakthrough innovation in FPV technology and represents the world's first digital video AIO . It allows 65mm bind-and-fly drones to weigh under 19.4g while providing crystal clear HD quality digital video. This all-in-one board integrates a number of high-performance components, including F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT-ready 4-in-1 ESC and 5V/1A BEC.

    Key Features

    • Improved Durability and Simplicity: Construction on one strong PCB board instead of the traditional stacked design increases durability and eases installation.
    • Improved voltage interface: Minimum voltage reduced to 2.5V, which guarantees uninterrupted video transmission even when the battery voltage drops.
    • Peak performance: Integrated components are optimized for ultra-light drones on 1S battery, setting a new standard for small drones.
    • Worldwide Availability: Developed in collaboration with Happymodel and HDZero, the AIO5 is available worldwide through leading FPV retailers and official online stores.

    Specifications

    • MCU: STM32F411 (100MHz, 512K Flash)
    • Gyro: BMI270
    • ESC: Integrated 5A BLHeli_S 4-in-1 ESC (5A continuous, 6A peak for 3 seconds)
    • Factory ESC firmware: O_H_5_48_V0.19.2.HEX
    • Supported protocols: DShot600 ready
    • VTX: Integrated HDZero 5.8GHz transmitter
      • RF output: 25mW/200mW
      • Supported channels: R1-R8, F2/F4, L1-L8

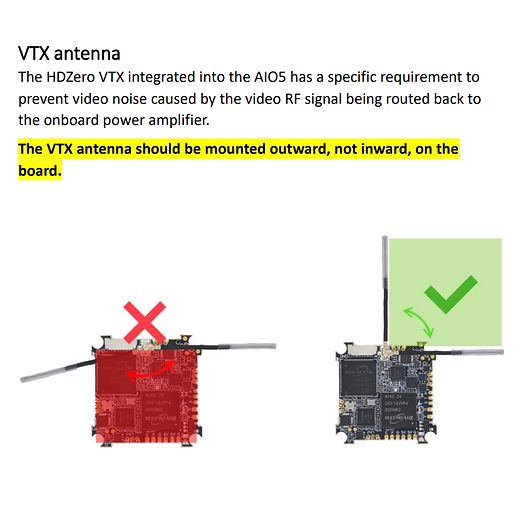

      • Connector: UFL with ultra-light linear antenna (included in the package)
    • Receiver: Integrated SPI ExpressLRS 2.4GHz
      • Packet rate options: 25Hz/50Hz/150Hz/250Hz/500Hz
      • Telemetry power: <12dBm
      • Overset enameled wire antenna
    • Power supply: Battery 1S (2.5V - 4.35V)
    • BEC: Integrated 5V 1A
    • Firmware target flight controller: CRAZYBEEF4SX1280
    • Board size: 28.5 x 28.5mm, mounting holes 25.5 x 25.5mm
    • Weight: 5.7g (without motor connectors), 6.3g (with motor connectors)
    • Compatibility: Compatible with popular whoop frames

    Package contents

    • 1x HDZero AIO5 board
    • 1x Power cable (with angled A30 connector)
    • 4x Screws
    • 4x Rubber grommets
    • 1x Ultra light linear VTX antenna
