    AIO FC GEPRC TAKER F411 8Bit 12A Built-in ELRS

    AIO FC GEPRC TAKER F411 8Bit 12A Built-in ELRS

    Brand: GEPRC

    €87,20
    €85,64 €87,20
    --2% View Product

    sku: GP105847

    Limited Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    TAKER F411 8Bit 12A AIO Built-in ELRS

    The TAKER F411 8Bit 12A AIO is designed to provide an efficient and lightweight solution for mini FPV drones, making it suitable for a variety of flying styles, including racing and freestyle. It features an ICM-42688-P gyro for precise and responsive flying, supports 2-4S batteries, and includes a built-in SPI ELRS 2.4G receiver version for convenient control. The AIO board also comes with a 16MB integrated black box for setting parameters.

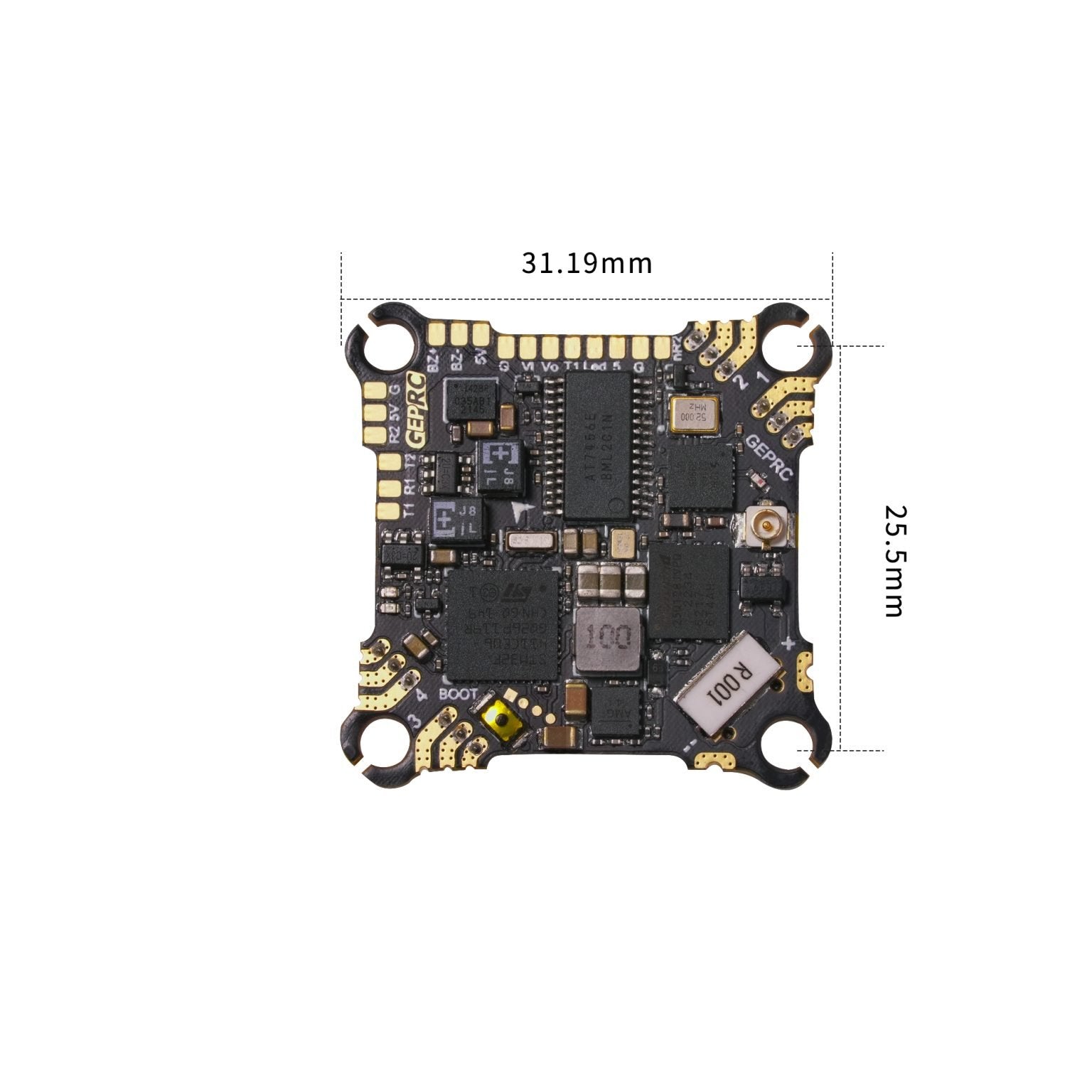

    Specifications: Model: TAKER F411 8Bit 12A AIO (built-in ELRS receiver) MCU: STM32F411 IMU: ICM42688P Firmware target: GEPRC_F411_SX1280 OSD: BetaFlight OSD with AT7456E chip UART ports: R1 T1R2 T2 Reverse port: NR2 Buzzer: YES LED: YES USB port: micro USB ESC MCU: BB21F16G Black Box: 16Mb built-in flash memory Continuous current: 12A Peak current: 13A Entry: 2-4S ESC protocol: Dshot300, Oneshot, Multishot Current meter: 210 ESC Firmware: G-H-30 - Bluejay, 0.16, 48kHz Plate size: 31.2 x 31.2 mm Mounting holes: 25.5mm x 25.5mm hole, M2 hole Weight: 7g
