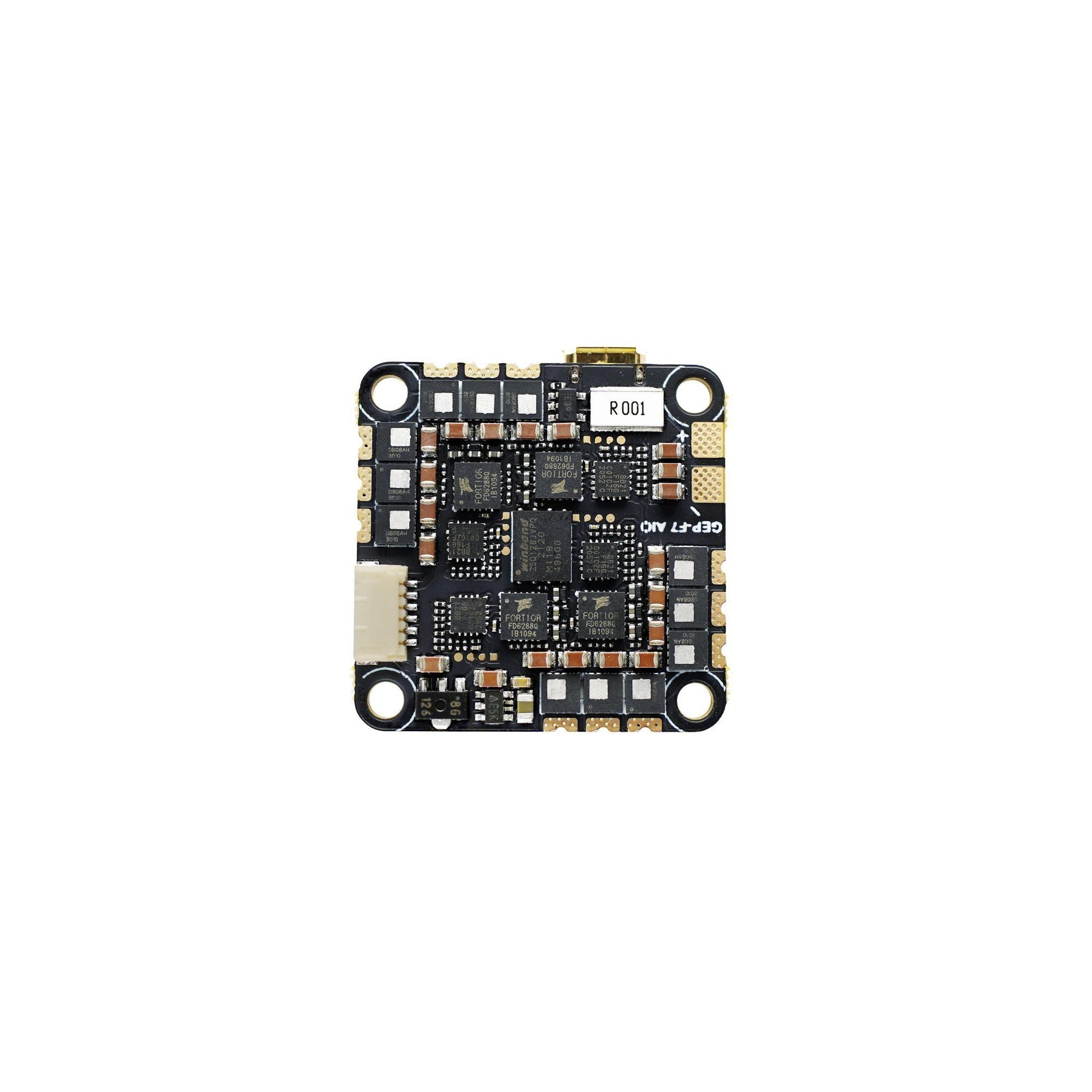

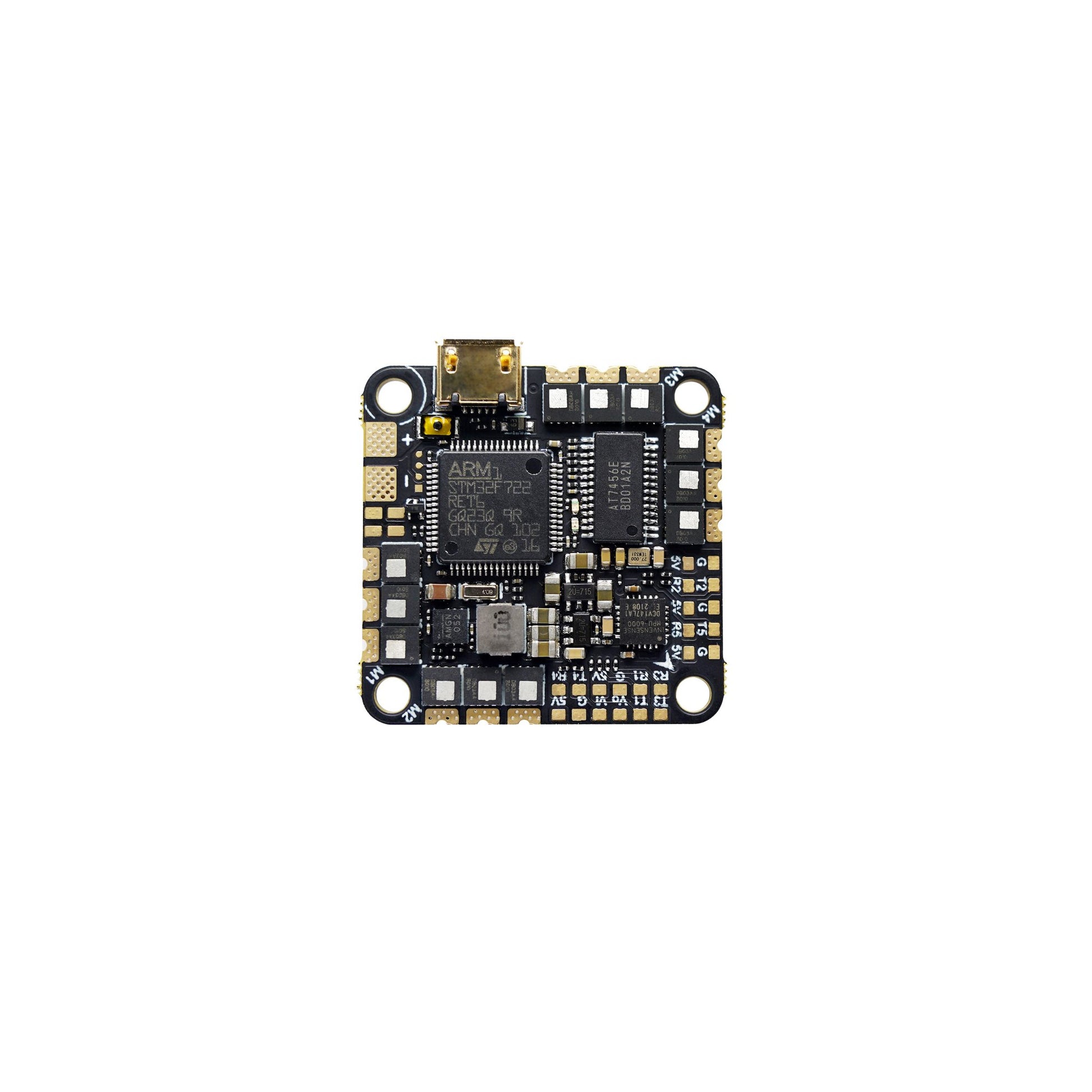

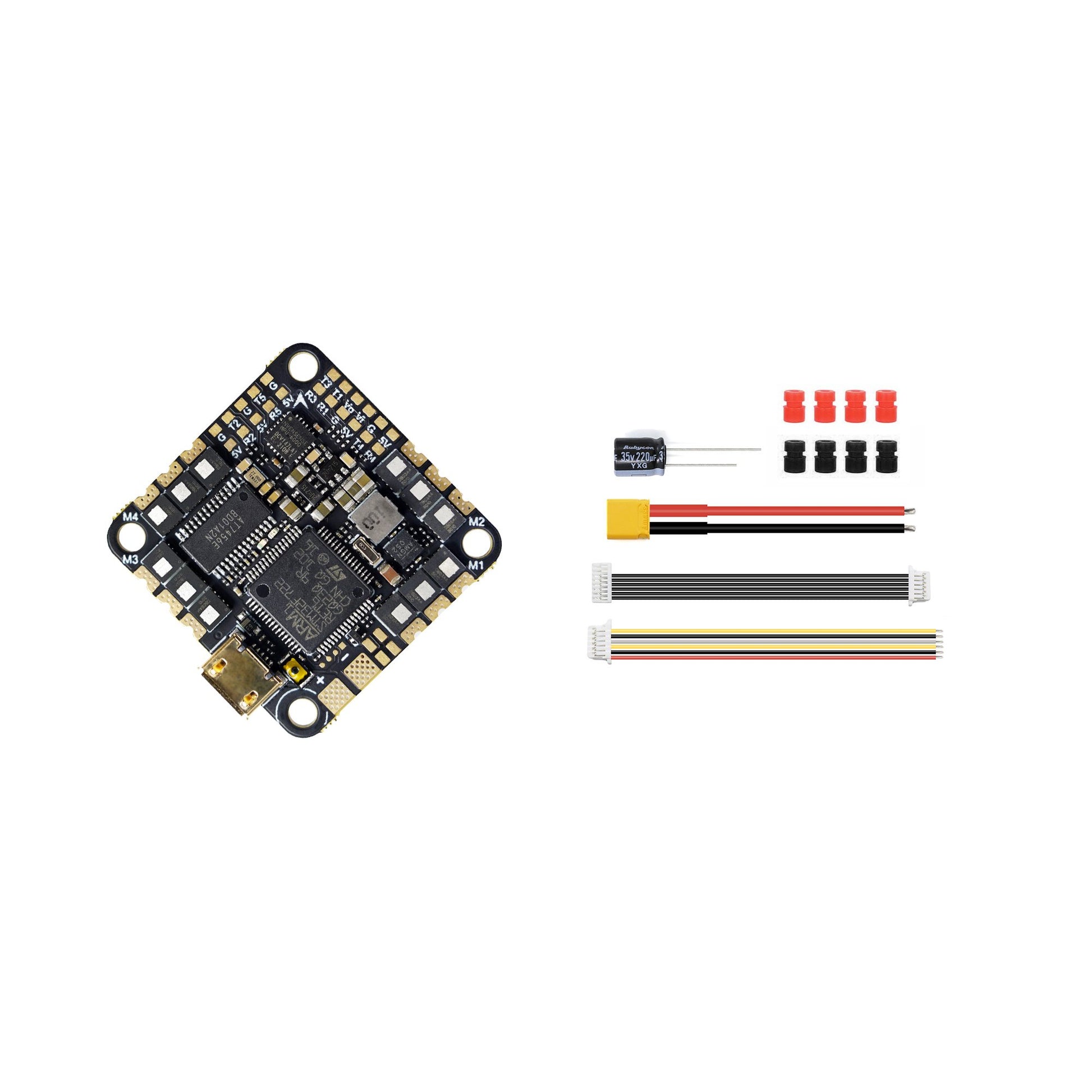

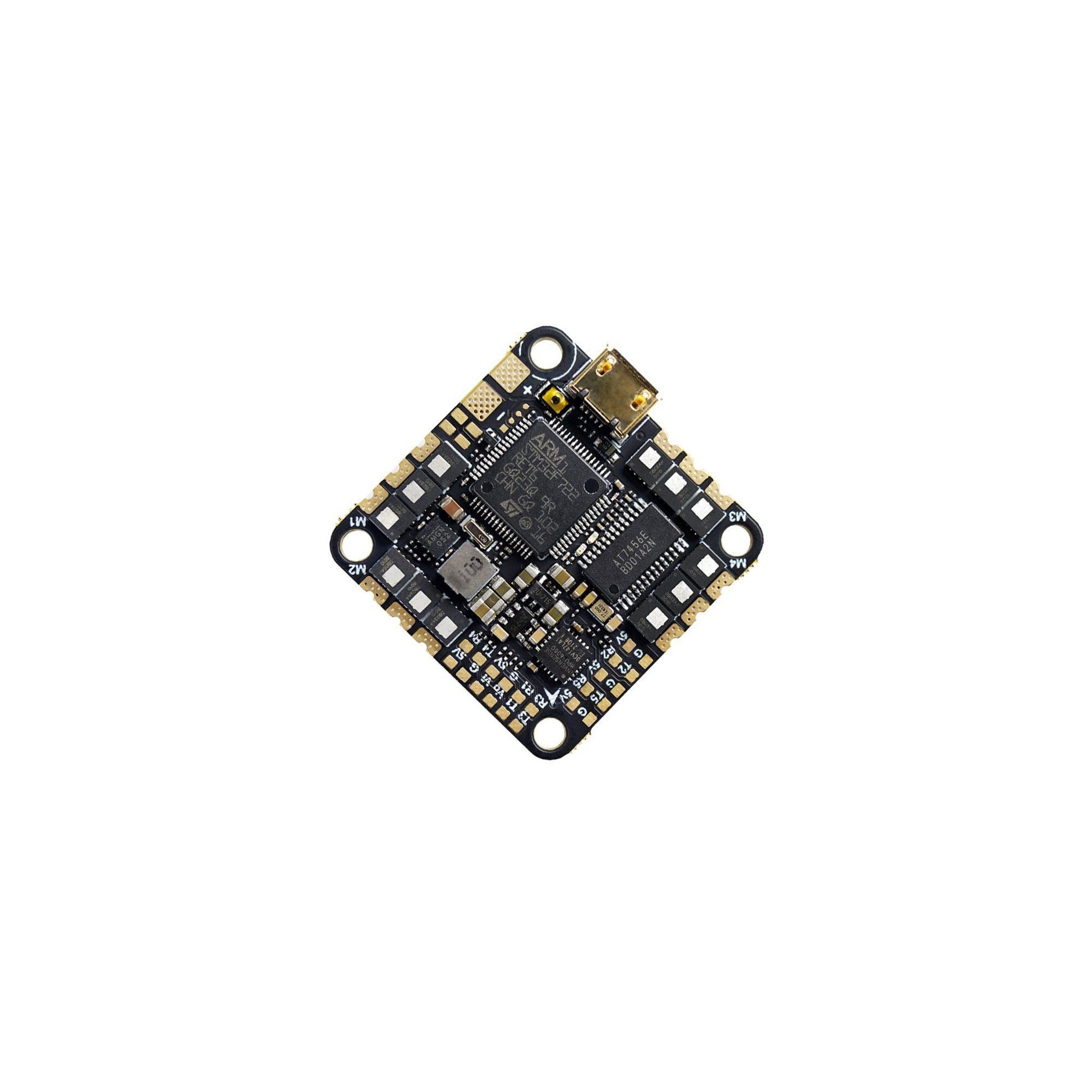

    AIO FC GEPRC GEP-F722-45A

    AIO FC GEPRC GEP-F722-45A

    Brand: GEPRC

    €117,77
    €117,77 €117,77
    -0% View Product

    sku: GP104944

    In stock (6)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    GEP-F722-45A AIO

    The GEP-F722-45A AIO V2 is a combination flight controller and ESC designed for drones. The MCU is STM32F722, which offers high performance and high computing speed. It provides five full UART ports for connecting external devices and a 6-pin connector for easy plug-and-play compatibility with the DJI AIR UNIT MODULE.

    The BLheili_S 45A ESC is capable of handling 45A continuous current (55A surge) and supports 2-6S LiPo batteries, which improves the drone's flight performance. It also supports setting OSD parameters, buzzer, LED and other functions. This AIO is light 8.8g and has a mounting hole of 25.5mm * 25.5mm, so it is suitable for most frames available in the market.

    Specifications:

    Model Name: GEP-F722-45A AIO V2 MCU: STM32F722 IMU: 42688 Gyroscope/Accelerometer (SPI) Firmware Target: GEPRC_F722_AIO OSD: Betaflight OSD with AT7456E UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5 Buzzer: YES LED: YES USB: Micro USB BEC output: 5V @ 1A Integrated LC filter ESC MCU: 8BB21F16G Continuous current: 45A MAX current: 55A (10s) Entry: 2-6S Supports: Dshot600, Oneshot, Multishot BlackBox: 16 Mb Target: G_H_30 Plate size: 32 x 32 mm Mounting hole: 25.5 x 25.5 mm Weight: 8.8g
