    AIO FC GEPRC GEP-F411-35A

    AIO FC GEPRC GEP-F411-35A

    Brand: GEPRC

    €80,30
    €80,30 €80,30
    -0% View Product

    sku: GP104683

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

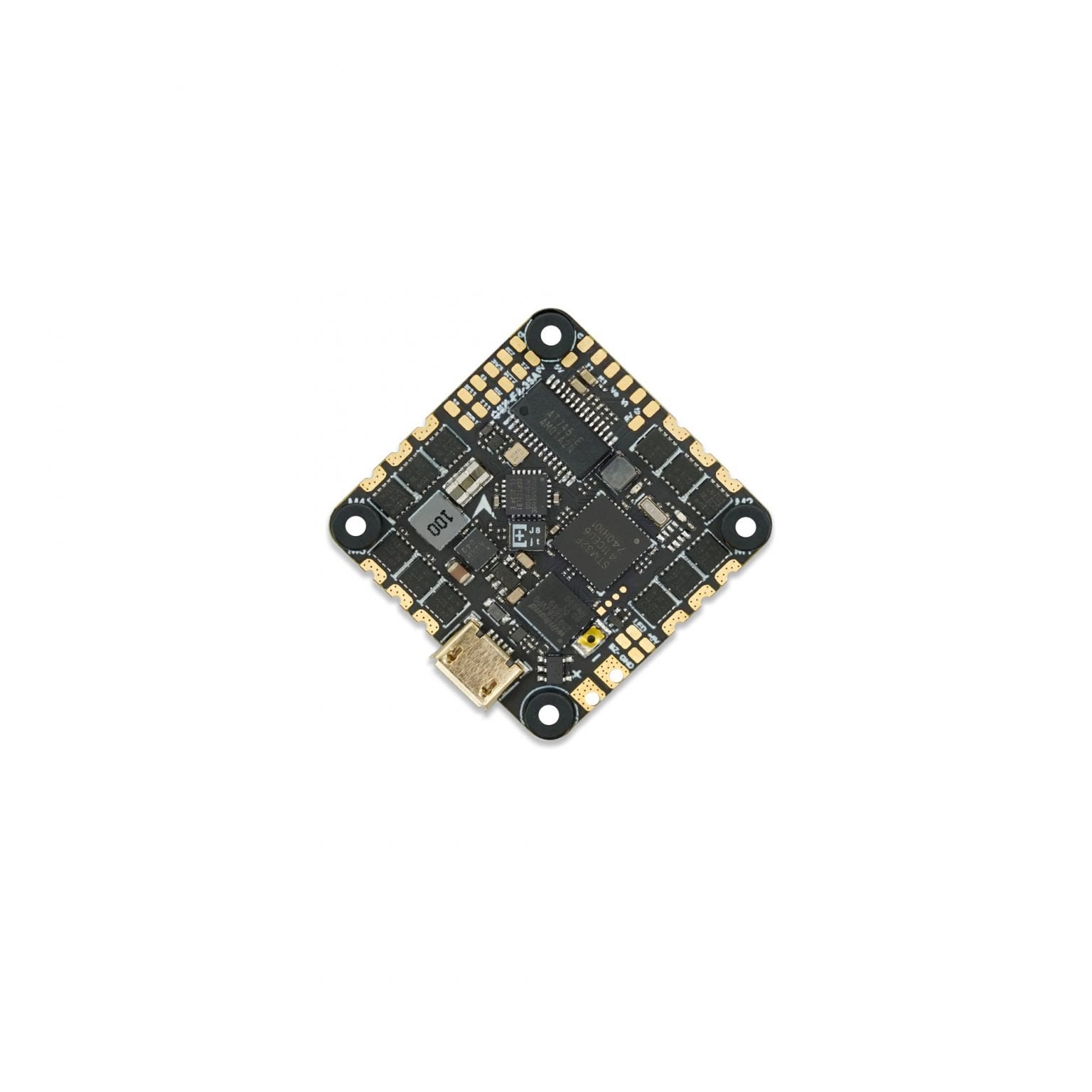

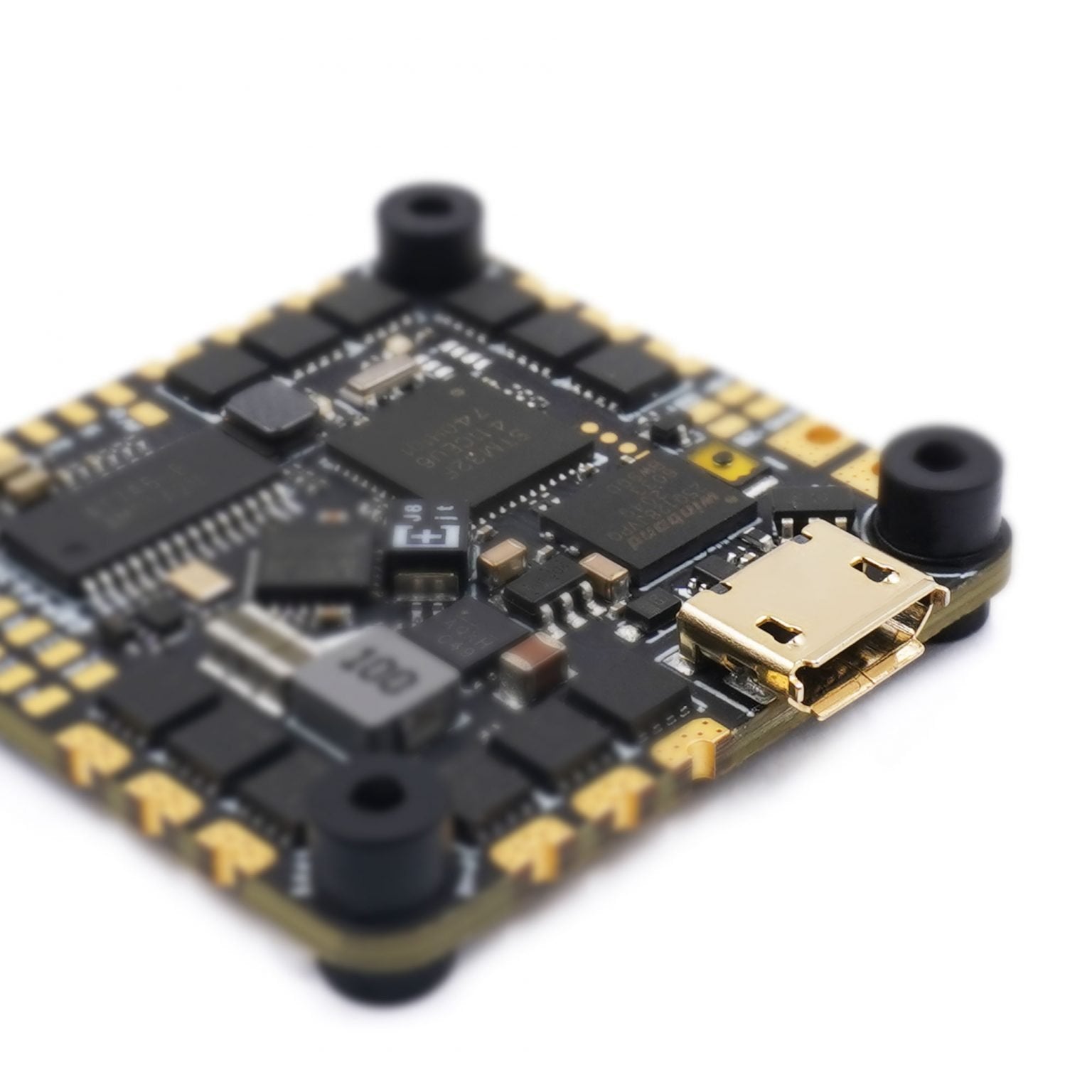

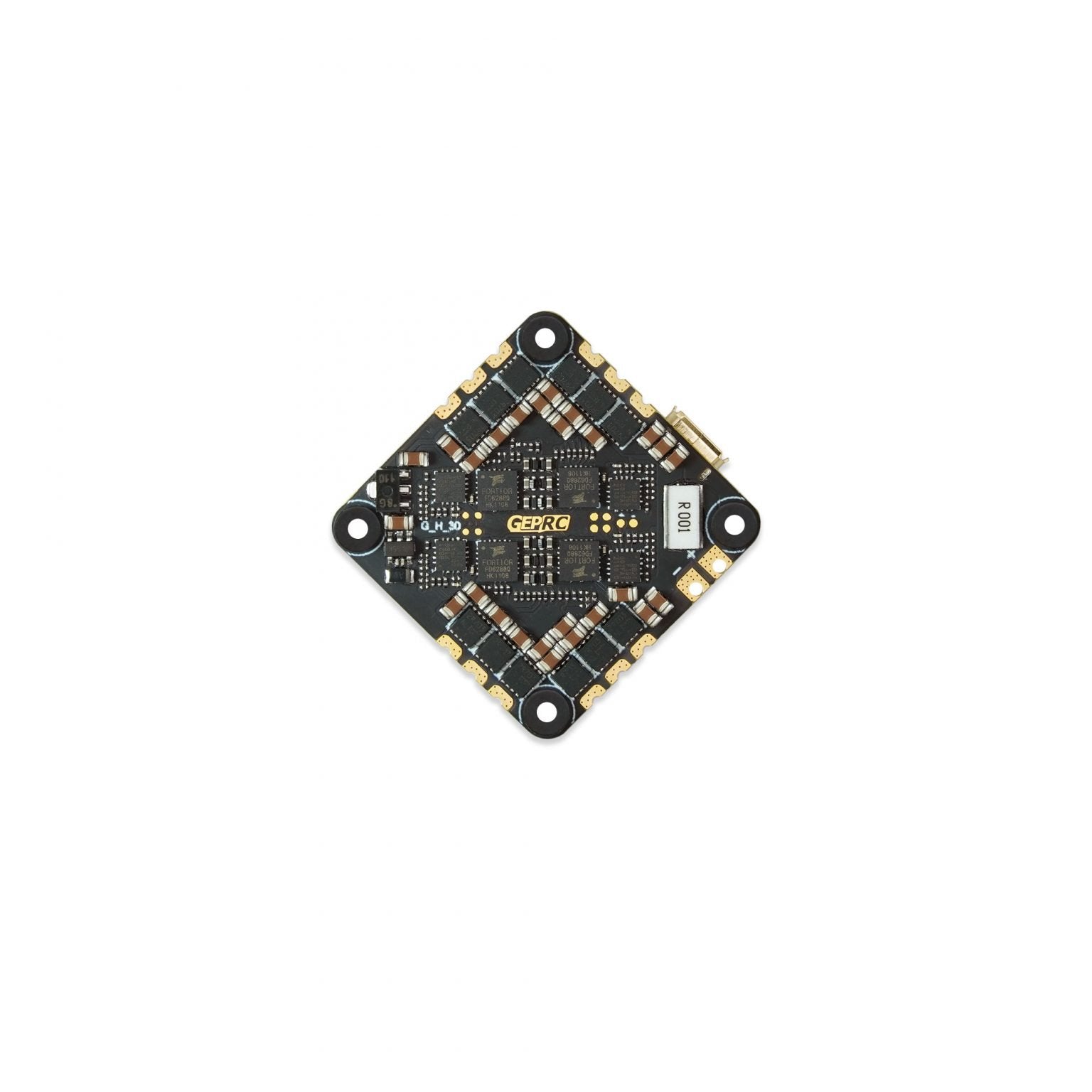

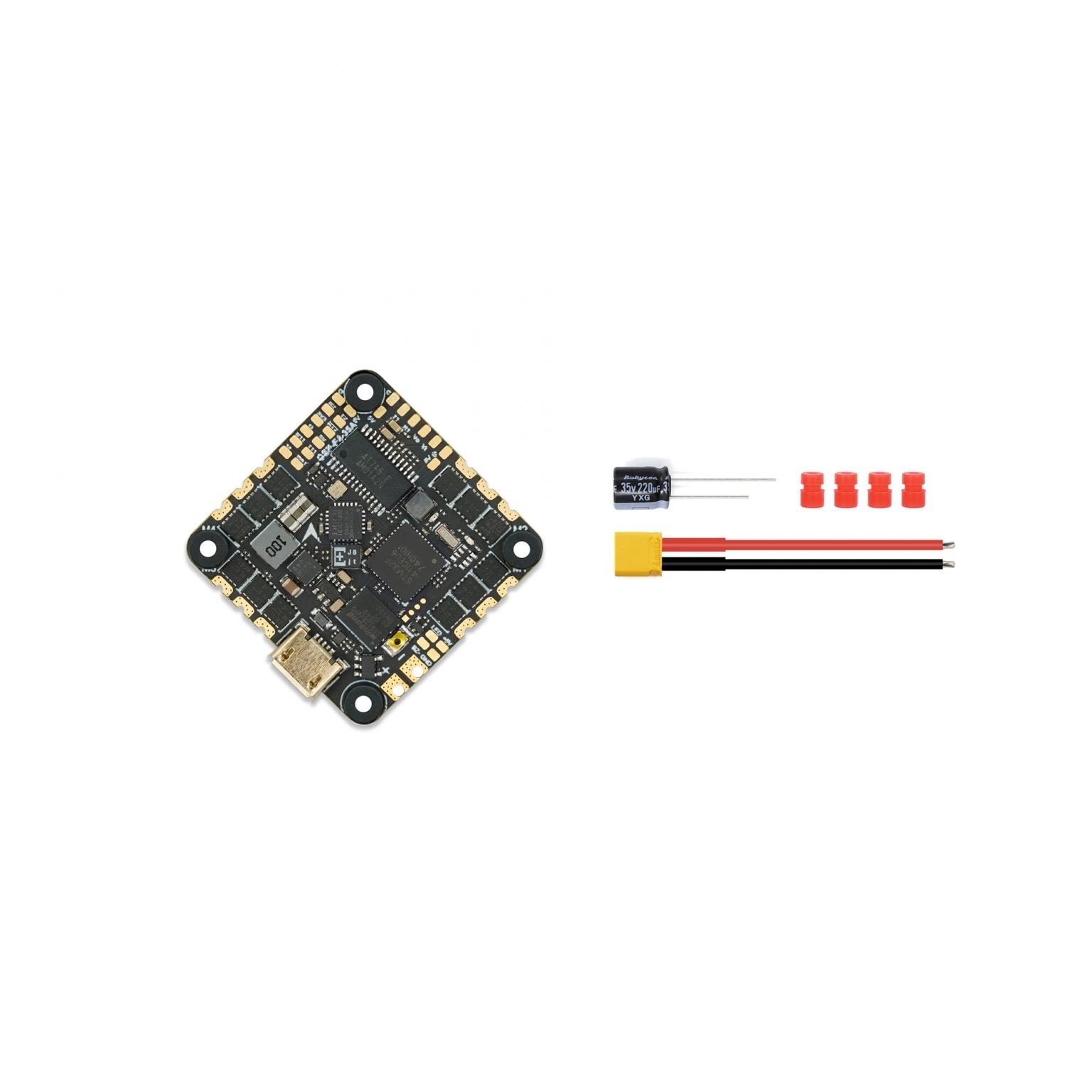

    GEP-F411-35A AIO

    The GEP-F4-35A is an upgraded version of the GEP-F4-20A designed to handle 35A continuous current (40A surge) and fully supports 2-6S LiPo batteries. It is compatible with a variety of motors and propellers, making it versatile for a variety of drone configurations. The AIO board offers OSD parameter settings, is 8.8g light and has 25.5mm * 25.5mm mounting holes suitable for most frames.

    Specifications:

    Model: GEP-F411-35A AIO MCU: STM32F411 IMU: BMI270/Accelerometer (SPI) Target: GEPRC_F411_AIO OSD: Betaflight OSD with AT7456E chip UART ports: T1 R1 / T2 R2 Beep: YES LED: YES USB connector: micro USB ESC MCU: 8BB21F16G Integrated LC filter Continuous current: 35A Merge current: 40A (10s) Input voltage: 2-6S (LiPo battery) ESC protocol: Dshot300/600, Oneshot, Multishot Blackbox: 16 Mb ESC target: G_H_30 BLS Plate size: 32 x 32 mm Mounting holes: 25.5 x 25.5 mm Weight: 8.8g
