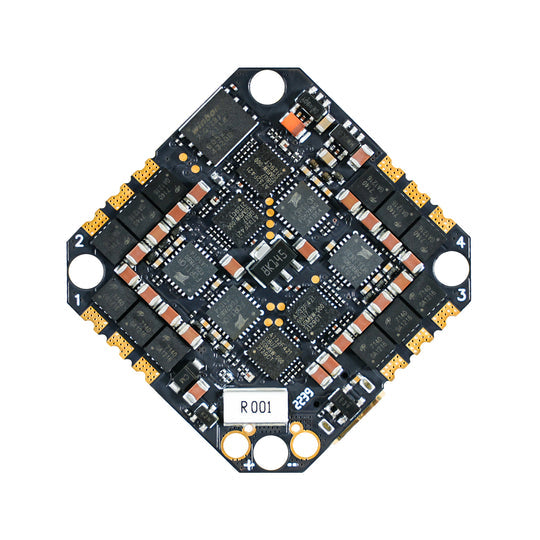

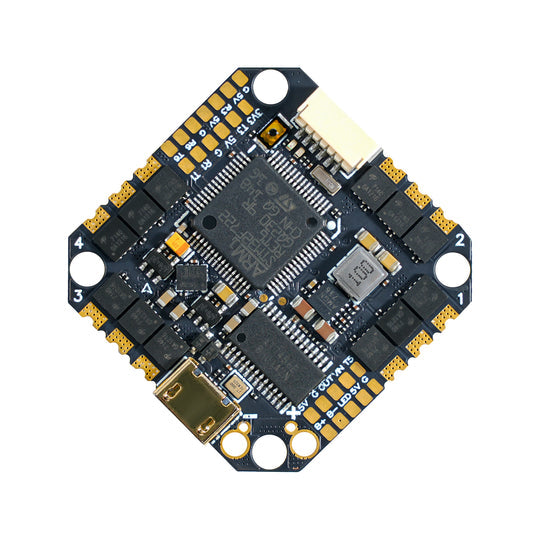

AIO FC BETAFPV F722 35A Toothpick ICM42688 V2 with BLHeli_32 ESC
AIO FC BETAFPV F722 35A Toothpick ICM42688 V2 with BLHeli_32 ESC
Brand: BETAFPV
sku: SKU:01040007_4
Out of stockCouldn't load pickup availability
- Description
F722 35A AIOToothpick Brushles FC (ICM42688 V2 with BLHeli_32 ESC)
F722 35A AIO Brushless Flight Controller is equipped with F722 chip, brings exceptional performance and high processing speed, which ensures a stable and smooth flight experience for 4"-5" drones. With a convenient plug&play port for HD Digital VTX and support for input voltage up to 6S, this FC is designed to maximize the potential of FPV racers.
- Powerful STM32F722RET6 processor for higher processing speed and stability. - Plug & play 6-pin connector for seamless integration with HD Digital VTX, minimizing soldering work. - Six full UARTs provide flexibility to connect various external components such as VTX, GPS and receivers. - Capable of handling 35A continuous current (40A surge) and support 2-6S lipo batteries for robust flight performance. - Compatible with 6S batteries, unlocking new possibilities for 4-5'' drones. - Built-in BLHeli_32 ESC version with 16MB flash memory chip for Blackbox logging, offering powerful debugging and troubleshooting capabilities with higher processing speed and up to 128k PWM frequency.
V2 with BLHeli_32 ESC PWM frequency: 24k-128k ESC firmware: BLHeli_32.9, 32-bit Blackbox: 16MB Weight: 9.00g Plate thickness: 1.6 mm
FC Specifications: Item: F722 35A AIO Brushless Flight Controller Weight: 9.00g (BLHeli_32) CPU: STM32F722RET6 Six-axis: ICM42688 Mounting hole size: 26x26mm Firmware version: betaflight_4.3.0_STM32F7X2 OSD: Built-in BetaFlight OSD (OSD chip: AT7456E) Support programmable LEDs like WS2812 etc Built-in current sensor Blackbox: 16MB (V2 including BLHeli_32 ESC)
ESC specification Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection) Input Voltage: 2S-6S Lipo Continuous current: 35A Peak current: 40A ESC Firmware: BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32) Indicators: Power Indicator (Red) / FC Indicator (Blue) Capacity: CS/5x10x13mm/470?F/35V Connector: 80mm 14AWG silicone cable with XT60 Recommended engines: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
