    AIO FC BETAFPV F405 2-4S Toothpick 20A BLHELI_32 V4-BMI270

    AIO FC BETAFPV F405 2-4S Toothpick 20A BLHELI_32 V4-BMI270

    Brand: BETAFPV

    €82,27
    €82,27 €82,27
    -0% View Product

    sku: 01040008_2

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

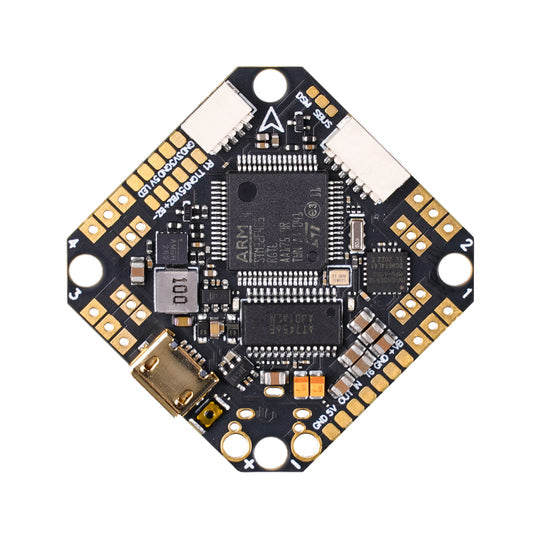

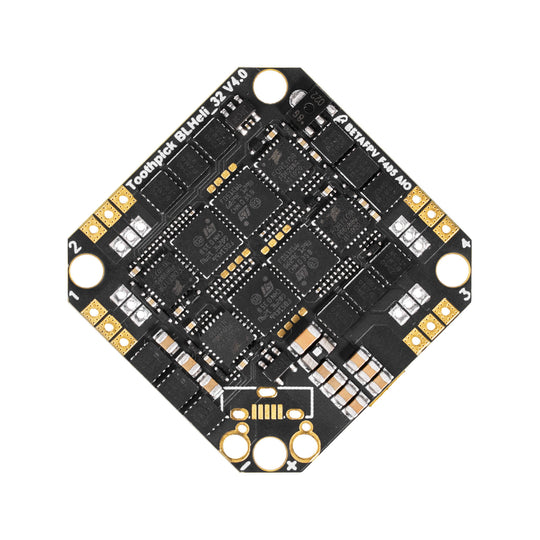

    Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4-BMI270

    Compared to the V3 version, the new FC board updates the F411 chip to F405. It can handle 20A continuous current and up to 4S. The F405 2-4S AIO toothpick brushless flight controller also has a BMI270 gyroscope. Suitable for Beta95X V3 and Beta95X V3 HD Digital VTX.

    FC Specifications: CPU: STM32F405RGT6 Six-axis: BMI270 Size: 26x26mm, attachment pattern Firmware version: Batefight-BETAFPV405-4.2.X OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode) Receiver: Support Frsky XM/XM+ receiver/Futaba receiver/Flysky receiver/TBS Crossfire receiver/DSMX receiver Connector: XT30, it can also be changed to XT60 if pilots need it. Weight: 5.76g

    ESC Specifications: Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input voltage: 2S-4S Lipo Continuous current: 20A Peak current: 22A Firmware: BLHELI-32
