AIO FC BETAFPV F4 1S 12A SPI Frsky V1.2
AIO FC BETAFPV F4 1S 12A SPI Frsky V1.2
Brand: BETAFPV
sku: SKU:01040001_1
Out of stockCouldn't load pickup availability
- Description

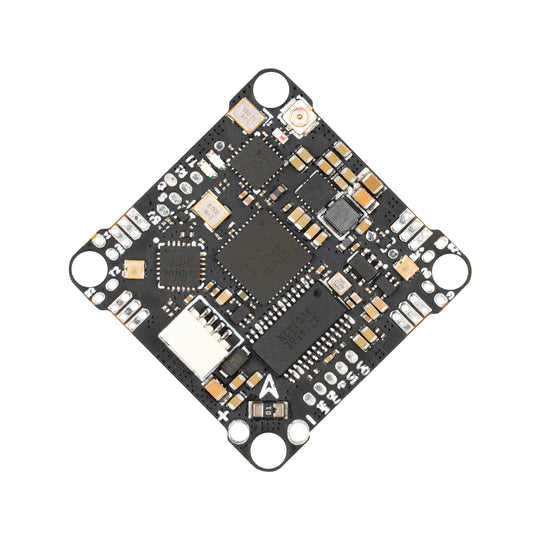

F4 1S AIO Brushless Flight Controller 12A (SPI Frsky V1.2)
F4 1S 12A AIO Flight Controller – A 1S 12A FC for building lightweight 3" lightweight drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. If you want to try a larger FPV drone than 65mm/75mm with 1S power and still want smooth and smooth powerful flight actions, this FC which integrates 1S 12A ESC is definitely the best choice.

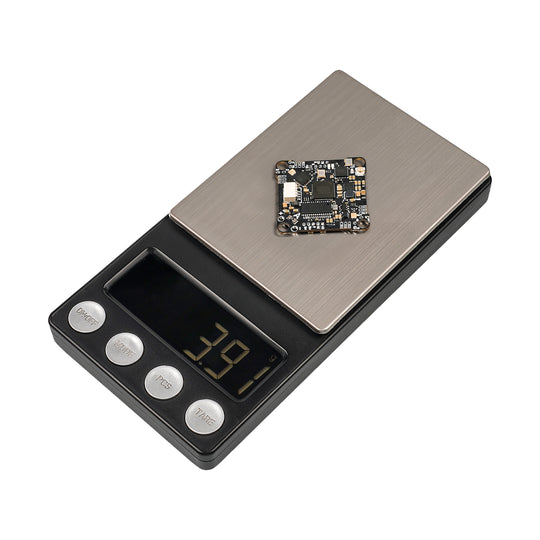

FC Specifications: Item: F4 1S 12A AIO FC Weight: 4.74g (without power cable and BT2.0 connector) CPU: STM32F411CEU6 (100 MHz) Six-Axis: MPU6000 (SPI connection) Firmware version: betaflight_4.2.0_STM32F411 OSD: Built-in BetaFlight OSD (STM32 controls the OSD chip via SPI in DMA mode) Receiver: Integrated Frsky SPI Receiver / Futaba Receiver / ELRS Receiver Motor pin connector: 1.25mm header pins Mounting hole size: 26 x 26mm (suitable for black pattern mounting hole) USB port: Type-C (V1.0 board)
1S 12A ESC Specifications: Built-in ESC with 12A continuous and 25A peak current Input voltage: 1S Lipo (V1.0 board) ESC firmware: Z_H_30_REV16_7.HEX Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
This new BLHeli_S firmware (named Z_H_30_REV16_7.HEX) is supported by BLHeli Configurator, BLHeliSuite and Bluejay Configurator for setup.
Package: 1x F4 1S 12A AIO FC 4 x Anti-vibration rubber dampers 4 x M2 x 10mm screws 4 x M2 x 10mm screws 8 x M2 nuts
