AG01 NANO CNC Hall Gimbals RadioMaster for Pocket Radio
Unleash unprecedented precision and control with the AG01-Nano Hall Effect gimbals! Known for its ability to elevate your RC experiences, RadioMaster has once again exceeded expectations. The new AG01 gimbal series now offers a Nano option for the popular Pocket controller.
Properties:
- Made from CNC aircraft aluminum for superior durability and stunning looks.
- Non-contact Hall sensors with precise centering for precise control.
- Four precision bearings for an unrivaled feel.
- Adjustable vertical movement angle (min. 38°, max. 54°).
- The gimbal AG01 NANO is specially designed for the smaller POCKET radio controller.
Specifications:
Item: AG01 NANO CNC Hall Effect Gimbal
Sensor Type: Non-Contact Hall Effect
Working Voltage: DC 3.3V
Linearity: Real Time (No Latency)
Adjustable Vertical Movement Range: 38°-54°
Self-Centering Adjustment: Yes
Mode Adjustment: Yes
Adjustable Force: Yes
Bearing: Four precision bearings
Temperature range: -20°C to 85°C

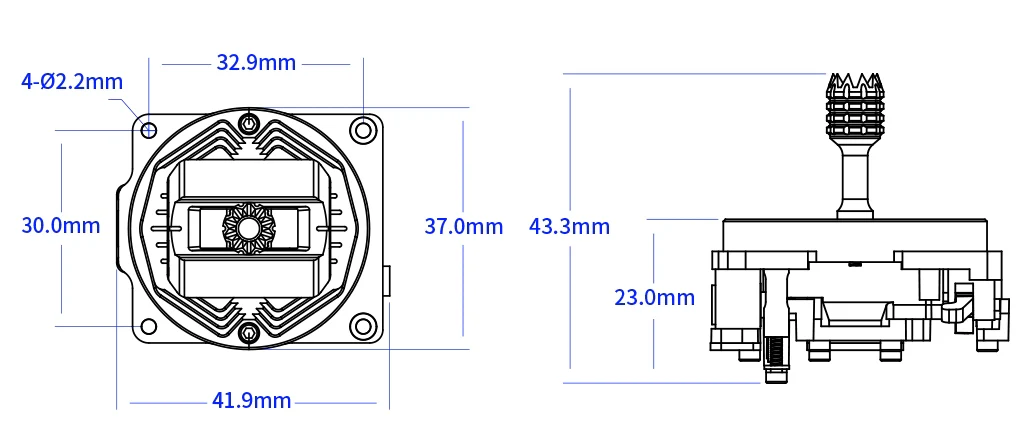

Size: 423743mm
Weight: 32g (±0.3g)
Package Contents:
- 2x AG01 NANO CNC Hall CNC Gimbal
- 2x L-shaped hexagonal screwdriver
- 4x Fixed tension spring
- 8x Screw PB2*6
- 2x Screw CM1.6*3
- 1x Manual
