VTX TBS Tracer Sixty9
VTX TBS Tracer Sixty9
Brand: TBS
sku: SKU:7062
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description
VTX TBS Tracer Sixty9
Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame - without any stacking necessity. Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Features: - Integrated video transmitter control with long range and (team-)race functions - Dedicated low-noise power supply for receiver and video transmitter - 20x20 mounting form factor - Plug&play connection and solder pads connectivity - 3 different mounting flavors, RF tin shields, and other accessories included - High power analog adjustable video transmitter (up to 1W with perfect cooling) - 5V regulator bulti-in, takes up to 6S
Specifications: CRSF: V3 ready Weight: 4.1g (board only) Antenna ports: 1x video transmitter, 1x R/C receiver Size: 24mm x 24mm Input voltage: 6V - 25V (2-6S) Requires: Firmware V4.62 and above VTX Table: VTX Table for Betaflight

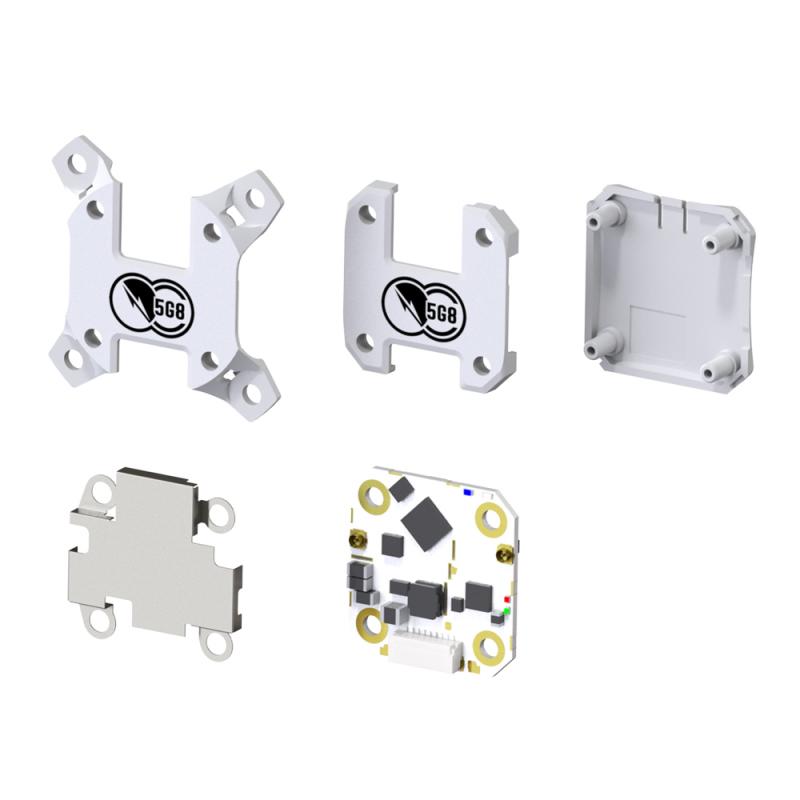

Package includes: 1x TBS Tracer Sixty9 1x TBS Tracer Immortal-T antenna 1x u.FL to SMA mount (for VTx) 1x 30x30 heatsink / case 1x 20x20 heatsink / case 1x optional tin-shield (for added low-noise tolerance) 1x JST-SH x 9 connector
