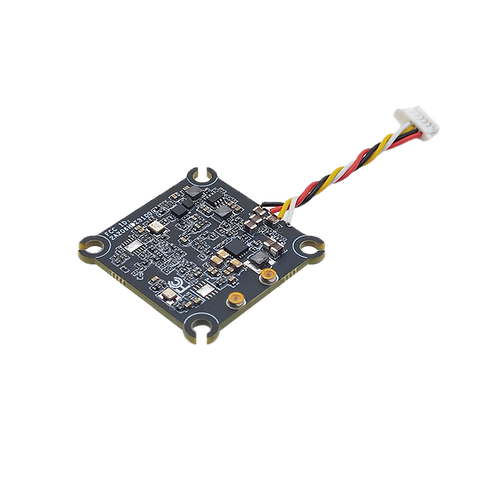

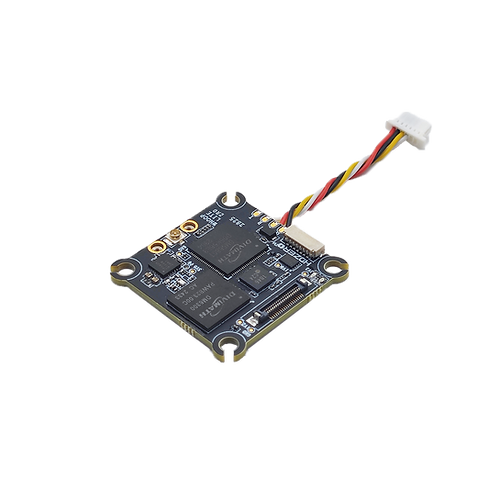

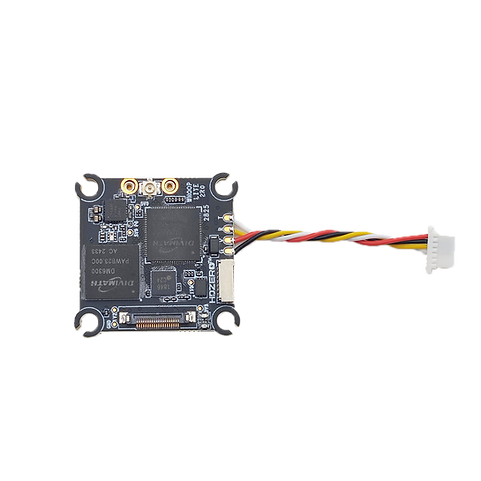

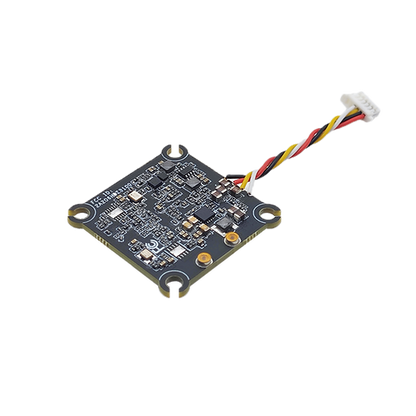

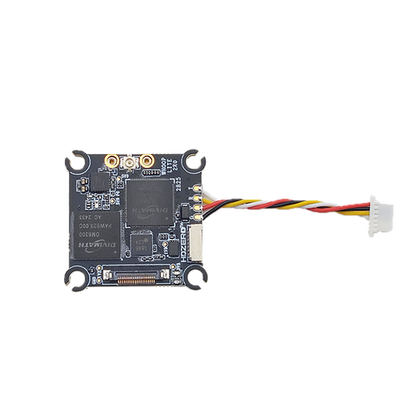

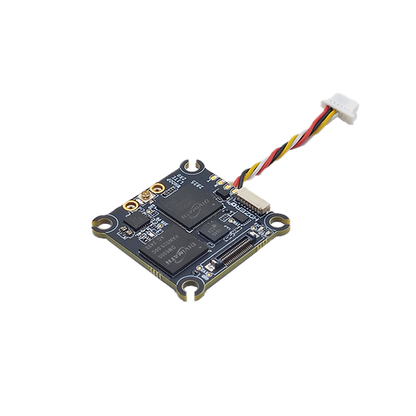

VTX HDZero Whoop V2
The HDZero Whoop V2 VTX is the upgraded version of the Whoop Lite, built for pilots who want the same ultra-low-latency HDZero performance with major improvements in durability, reliability, and installation. With a reinforced PCB, secure U.FL antenna mount, and a plug-and-play Betaflight harness, the Whoop V2 is the most robust HDZero whoop VTX to date.
Features: - Improved durability with a thicker, impact-resistant PCB. - Stronger antenna connection thanks to the brass U.FL retention bar. - Clean HD video up to 200 mW with ultra-low latency. - Supports all HDZero MIPI cameras (540p90 / 720p60 / 1080p30). - Easy installation with a pre-soldered wiring harness and Betaflight-standard plug. - Compact whoop size (31×31 mm, 25.5×25.5 mount) for 80 mm whoops to 4"" micros. - Lightweight build at only 5.4 g. - Wide voltage input (1S–3S, 3–12.6 V). - Smart control compatibility with MSP OSD and SmartAudio. - Secure mounting hardware included (M2 grommets + brass bar).
Specifications: Supported Cameras: All HDZero MIPI cams Video Resolution: 720p60 / 540p90 / 1080p30 RF Power Output: 25mW / 200mW Frequency Range: 5.725 – 5.850GHz RF Connector: Secured U.FL with brass bar Video Connector: MIPI Durability / PCB: Thicker PCB for impact resistance Wiring / Install: Pre-soldered wire harness Size: 31x31mm (29x29 inner) Mounting Pattern: 25.5x25.5 mm (M2) Weight: 5.4g (5.1 g w/o wires) Board Thickness: ~1.6 mm Power Input: 3 – 12.6 V (1S – 3S) Power Consumption: 5 – 6 W Control / OSD: MSP OSD / Smart Audio Recommended Use: 80 mm whoops – 4? micro drones Mounting Hardware: M2 grommets + brass bar included Antenna Included: Not included Alternative for Ultralight Builds: HDZero AIO (FC + VTX, AHD interface)
Package includes: 1x HDZero Whoop V2 VTX 5x Power/Uart Cable 2x Zip ties 4x Rubber Grommet (M3 to M2) 3x u.FL Antenna Retention Screws 1x Metal bar
