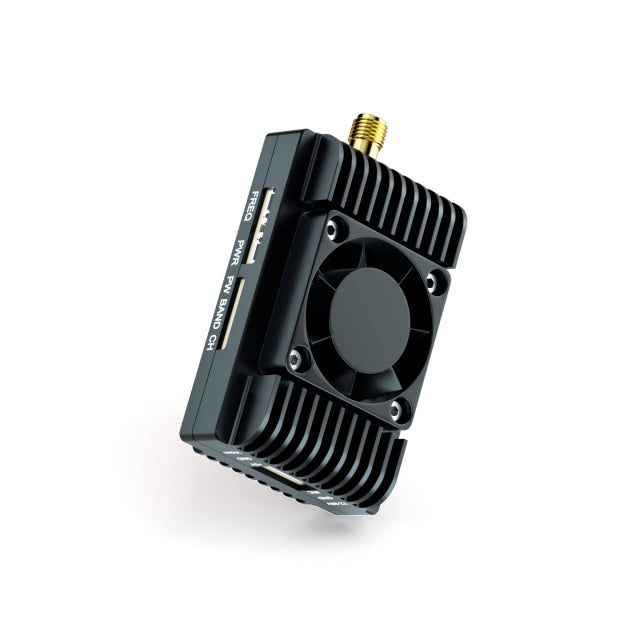

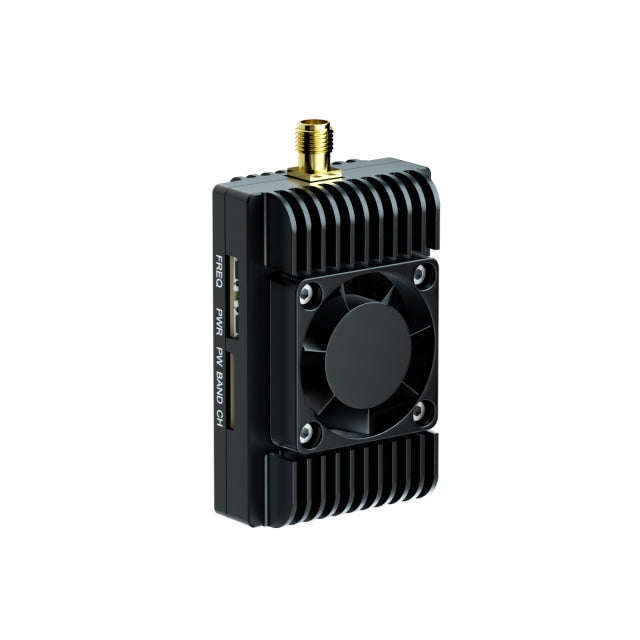

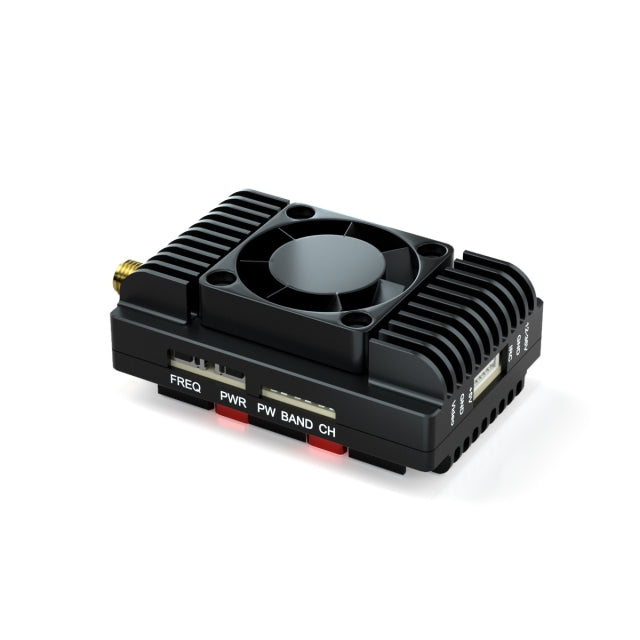

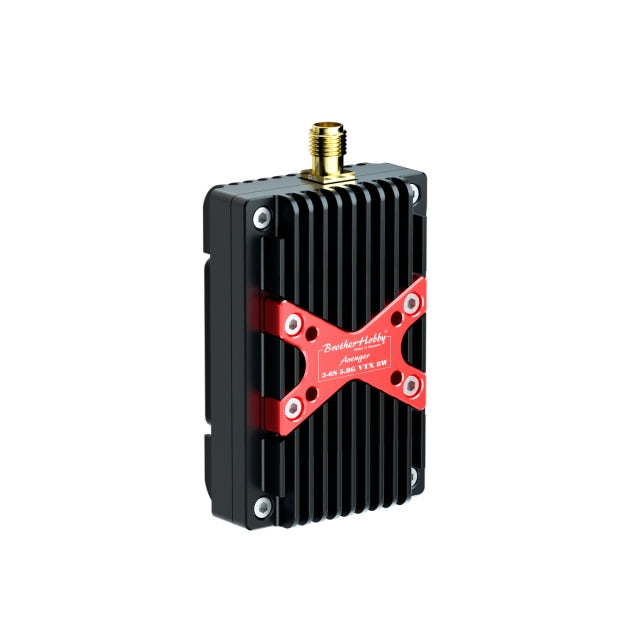

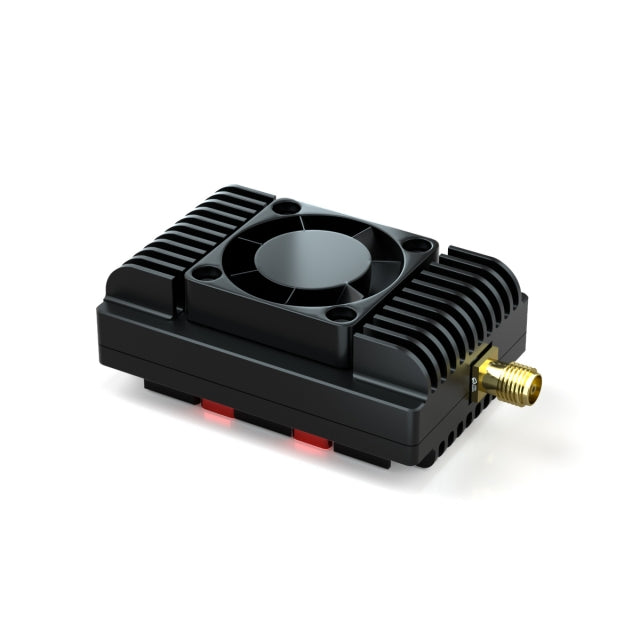

VTX Brotherhobby Avenger 3-6S 5.8G 8W
VTX Brotherhobby Avenger 3-6S 5.8G 8W
Brand: Brotherhobby
sku: SKU:6235
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description
VTX Brotherhobby Avenger 3-6S 5.8G VTX 8W
The Brotherhobby Avenger 3-6S 5.8G 8W VTX is a high-power video transmitter designed for long-range FPV applications. With five adjustable power levels up to 8W, it ensures stable and clear image transmission even at extreme distances. Featuring an advanced four-layer Rogers high-frequency PCB, enhanced heat dissipation design, and high signal stability, this VTX is perfect for freestyle, racing, and long-range FPV flights.
Specifications:
- Channels: 48CH - Power Levels: PIT / 0.6W / 1.6W / 5W / 8W (five adjustable levels) - Working Current: - Static: 0.33A - Max Transmission Power (8W): 1.9A - Output Voltage: DC 5V - Input Voltage: DC 12-36V - Communication Protocol: IRC Tramp - Video Format: NTSC / PAL - Video Input Impedance: 50? - Antenna Connector: SMA - Circuit Board Size: 55mm x 36.8mm - Circuit Board Weight: 9g (excluding antenna and power cord) - External Dimensions: 57.3mm x 38.6mm x 22.8mm - Total Weight: 66g
Package includes:
- 1 ? VTX Brotherhobby Avenger 3-6S 5.8G VTX 8W
