VRX CaddxFPV Ascent GT Pro
VRX CaddxFPV Ascent GT Pro
Brand: CaddxFPV
sku: SKU:WN02-FP008
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description

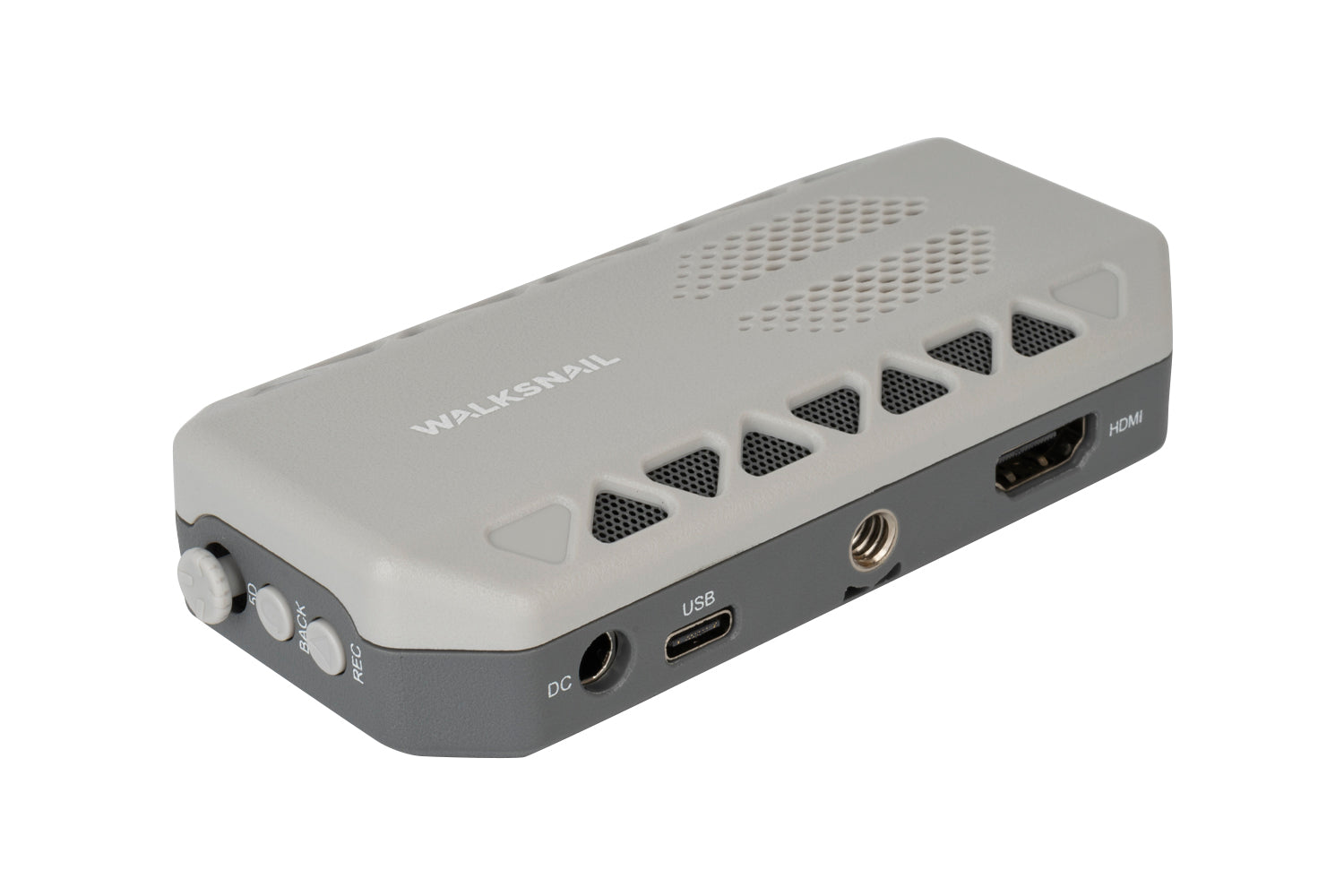

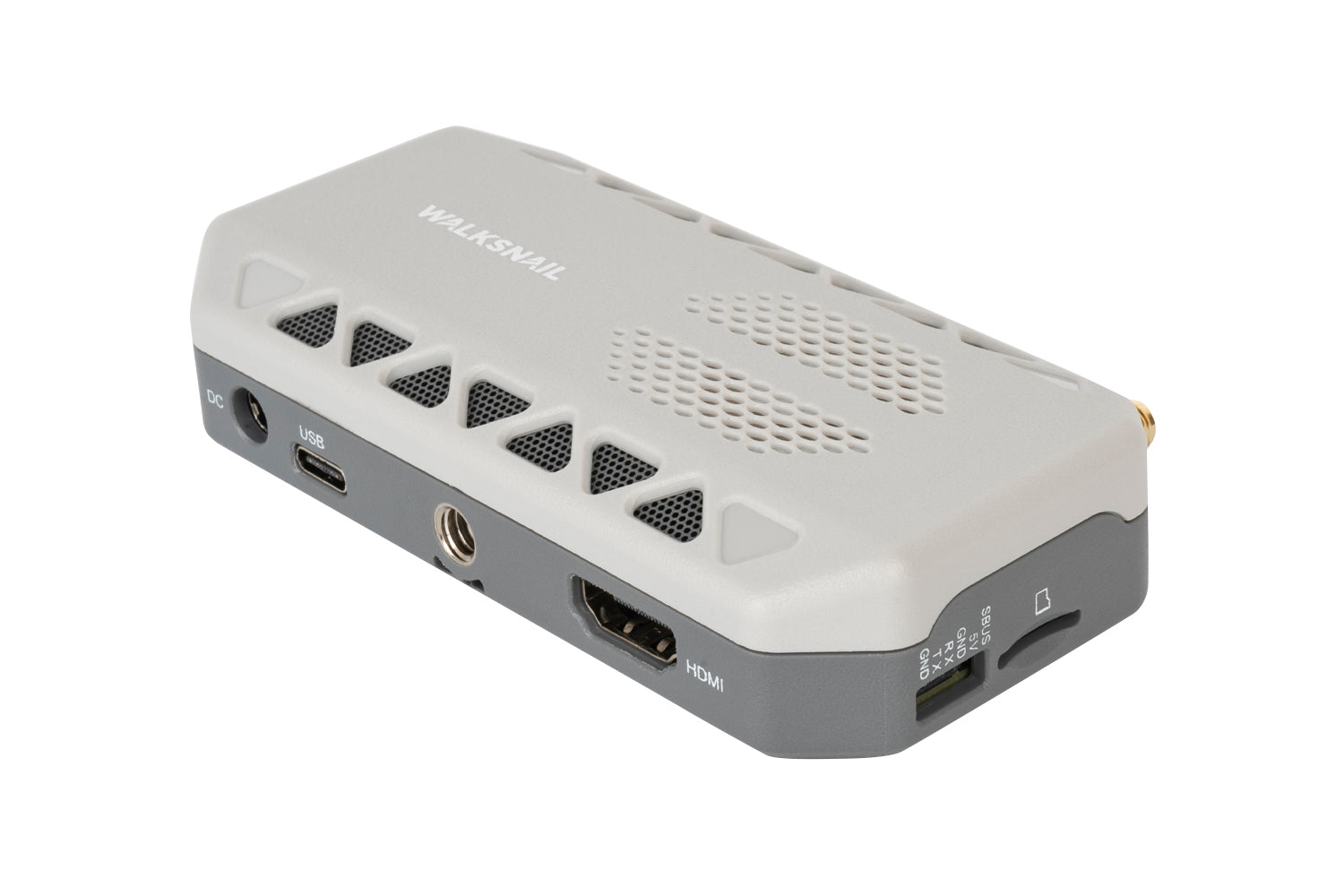

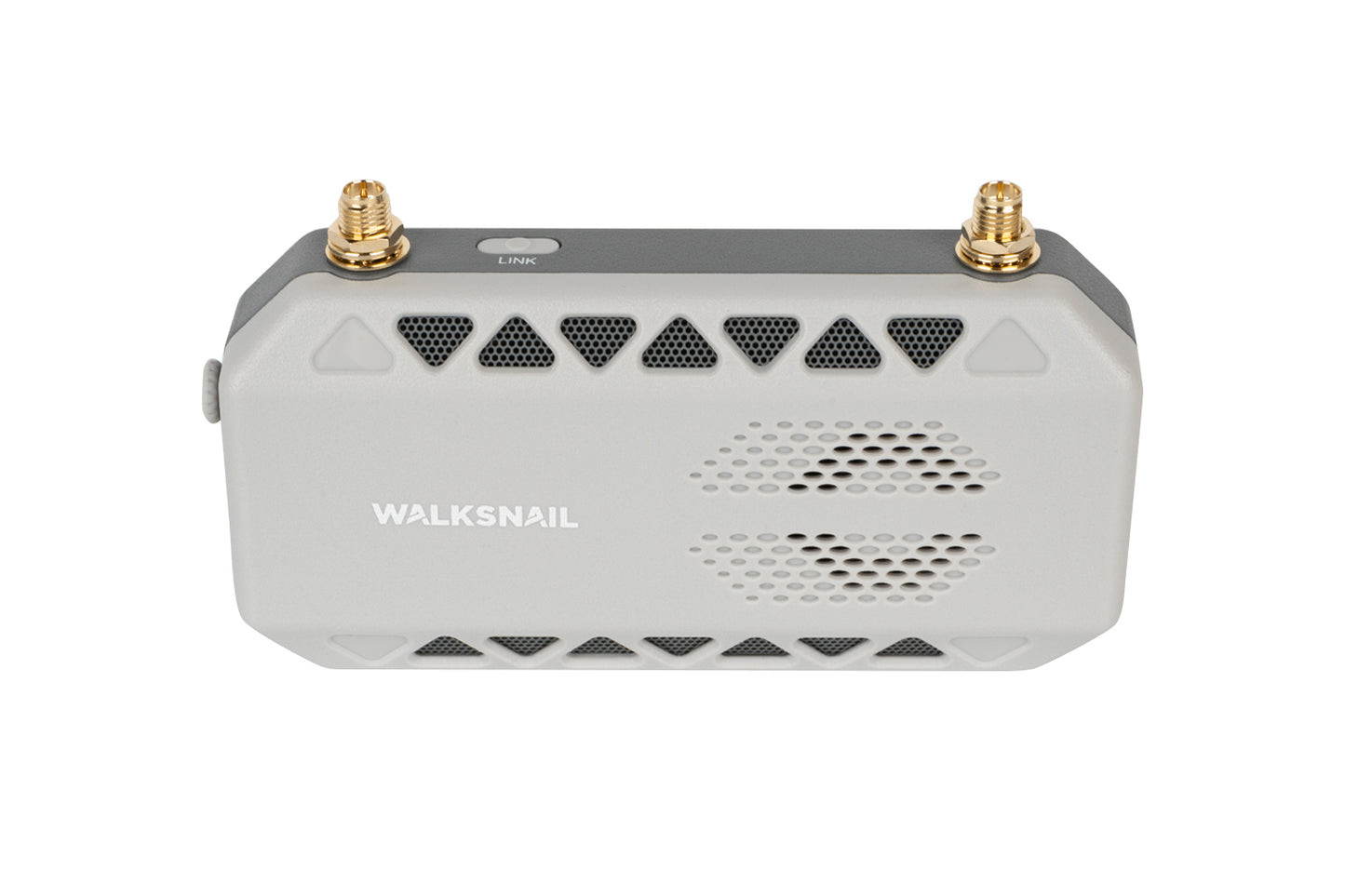

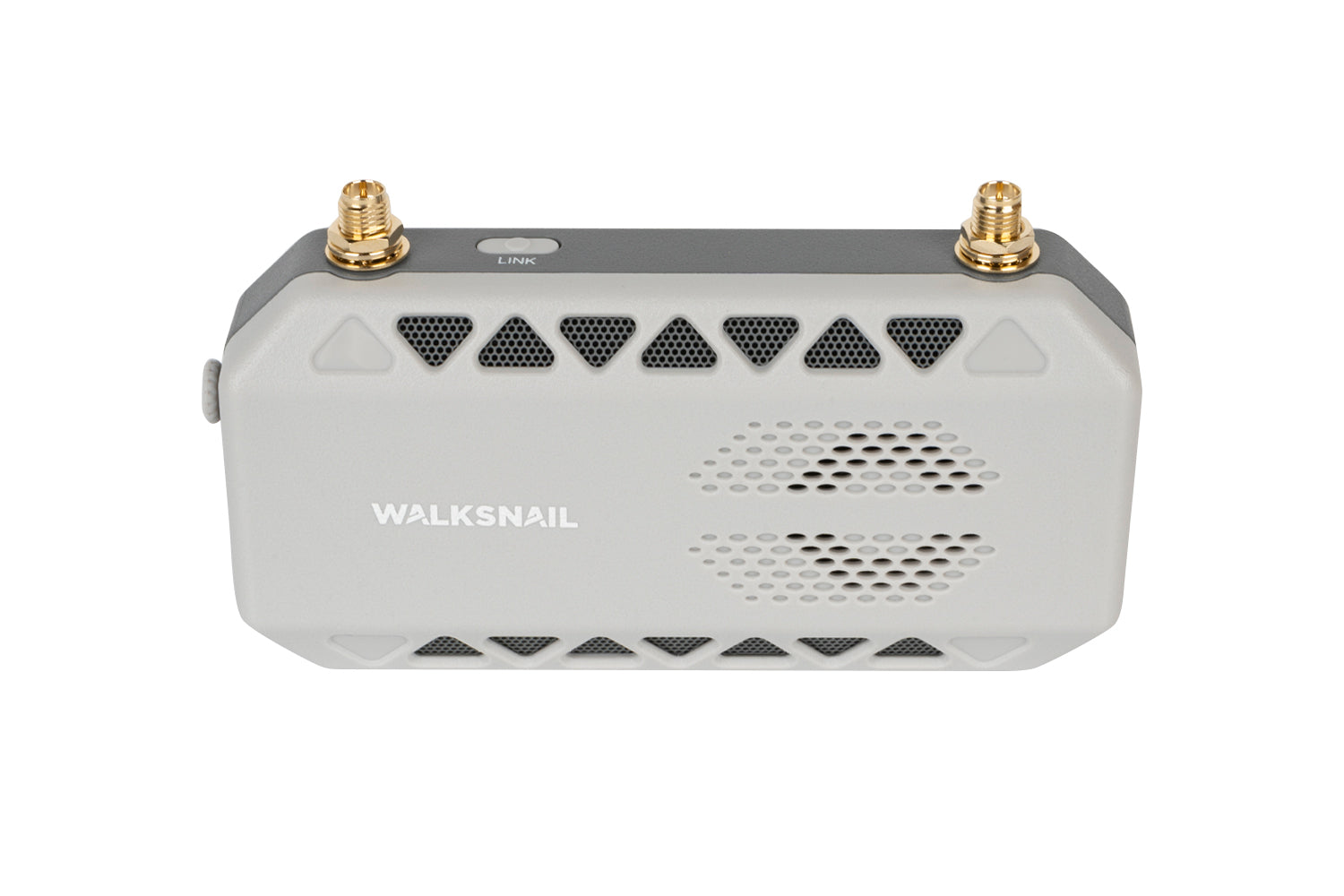

VRX CaddxFPV Ascent GT Pro
The VRX CaddxFPV Ascent GT Pro is a professional-grade ground video receiver for the Ascent HD system, delivering rock-solid signal stability, crisp 1080p HD output, and intelligent channel management across an ultra-wide 4.90–6.40 GHz band. Designed for pilots who demand reliability, clarity, and zero-lag responsiveness, it integrates advanced autohopping, DVR recording, and real-time telemetry into a compact, field-ready module.
Features: - Ultra-Wide 4.90–6.40 GHz Frequency Range — Ensures stable reception from all Ascent HD VTX units, even in crowded multi-pilot environments. - 42 Selectable Channels — Quickly switch between drones without signal clashes or delays. - 1080p/60fps & 720p/60fps HDMI Output — Clean, high-definition video feed for FPV goggles, monitors, or broadcasting setups. - Advanced Autohopping — Automatically identifies the cleanest frequency and adjusts bandwidth (2.5/5/10/20/40 MHz) for maximum stability. - Built-In DVR — Record live flights directly to a microSD card (up to 256GB) for playback or post-flight analysis. - Real-Time System Telemetry — Displays voltage, bitrate, signal strength, latency, SD card status, and more. - Low Battery Warnings — Alerts you if the receiver or transmitter is running low, preventing unexpected signal loss. - Intuitive Controls — Navigate settings with 5D joystick, link, back, and record buttons—no PC required. - LHCP RP-SMA Antennas Included — 2 dBi Red Bird antennas provide strong, stable circular-polarized reception. - Wide Voltage Support (7.4–25.2 V) — Easily integrates into any ground station or goggles setup. - Compatible With Ascent/Cine Goggles & Avatar HD Cameras — Fully optimized for the Walksnail ecosystem.
VRX Specifications: Communication Frequency: 4.90~6.40GHz Transmitter Power(EIRP): 5.8GHz:< 35dbm, FCC:<20dBm, CE<14dBm, SRRC:<20dBm Transmission Bandwidth: 2.5/5/10/20/40MHz I/O Interface: HDMI, MicroSD Card, DC5.5x2.1 mm HDMI Out: 1080P60/50fps, 720P60/50fpS Power Input: 7.4~25.2V Storage: microSD up to 256GB Channel: 42 Power Output: 4000mW Auto Frequency Hopping: support Auto Bandwidth: support System: Acsent HD system Weight: 117.9g Dimension: 114.3x64x24mm Antennas: LHCP RP-SMA (Red Bird, 2dBi)

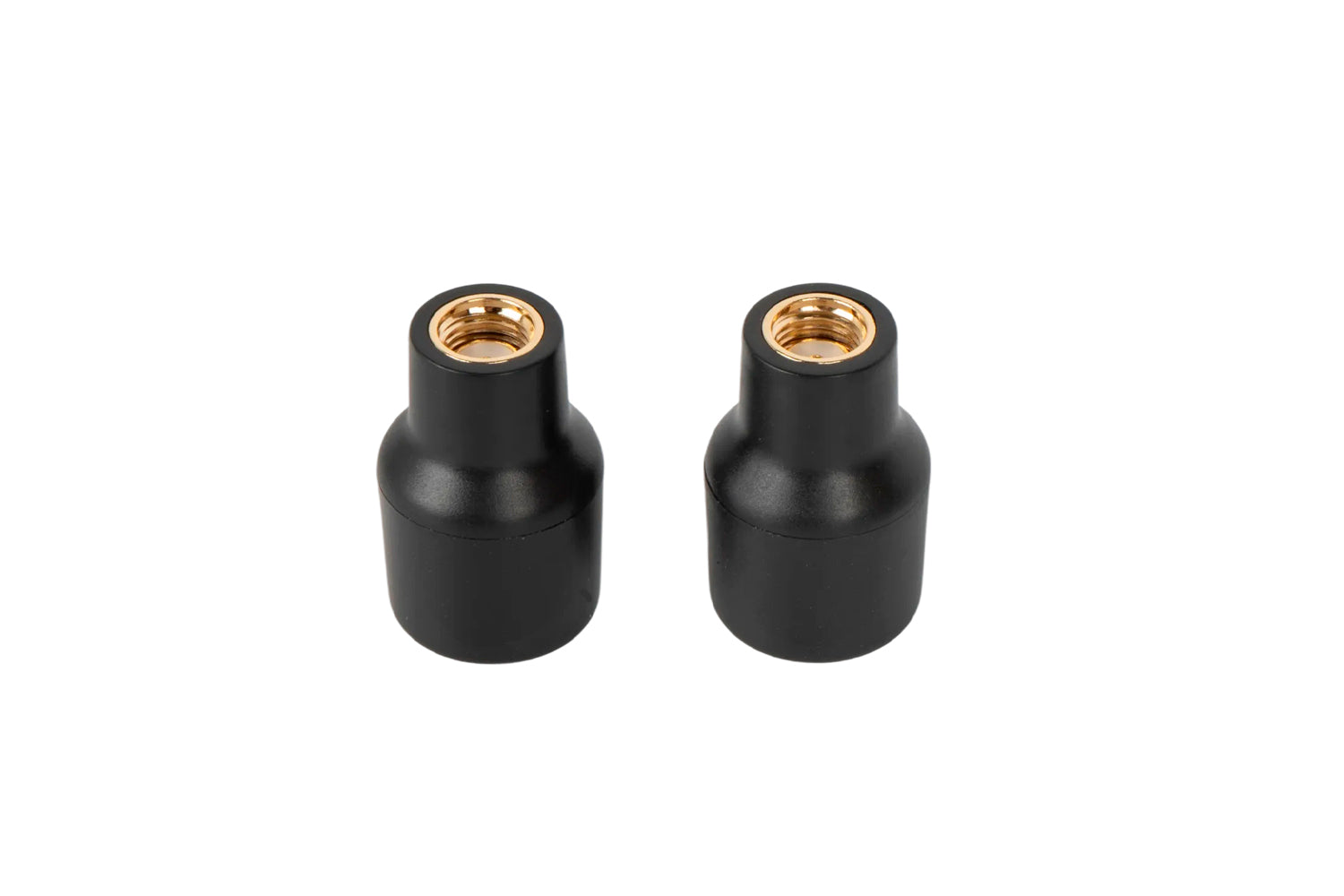

Antenna specifications: Model: Red bird Polarization: LHCP Bandwidth: 5.6GHz-6.0GHz Average Gain: 2dBi Radiation Efficiency: >97% VSWR: <1 .3 Cross-Polar Rejection: -15to-30dB Connector: RP - SMAx2 Dimension: 24.8x15.3mm Weight: 3.5g

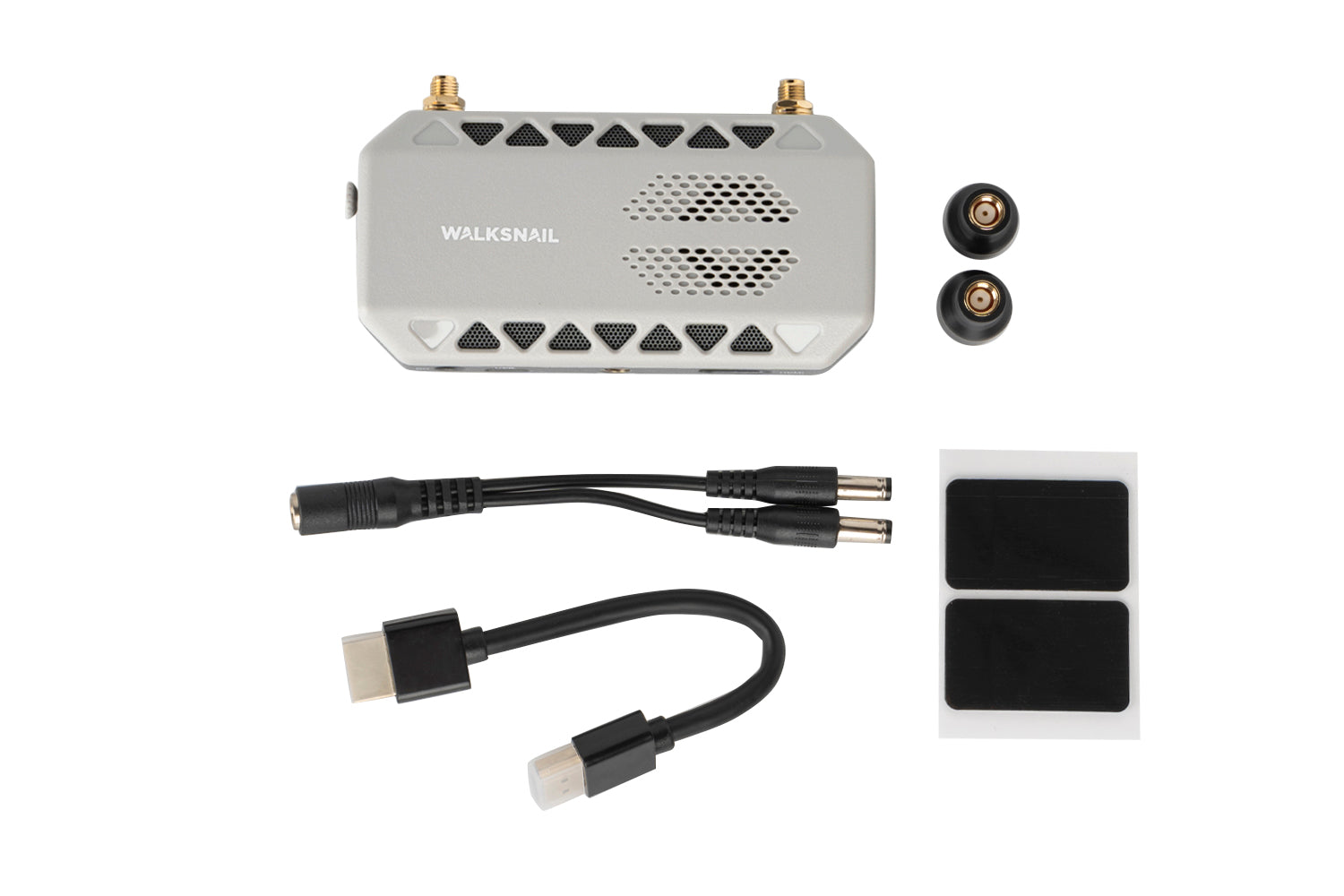

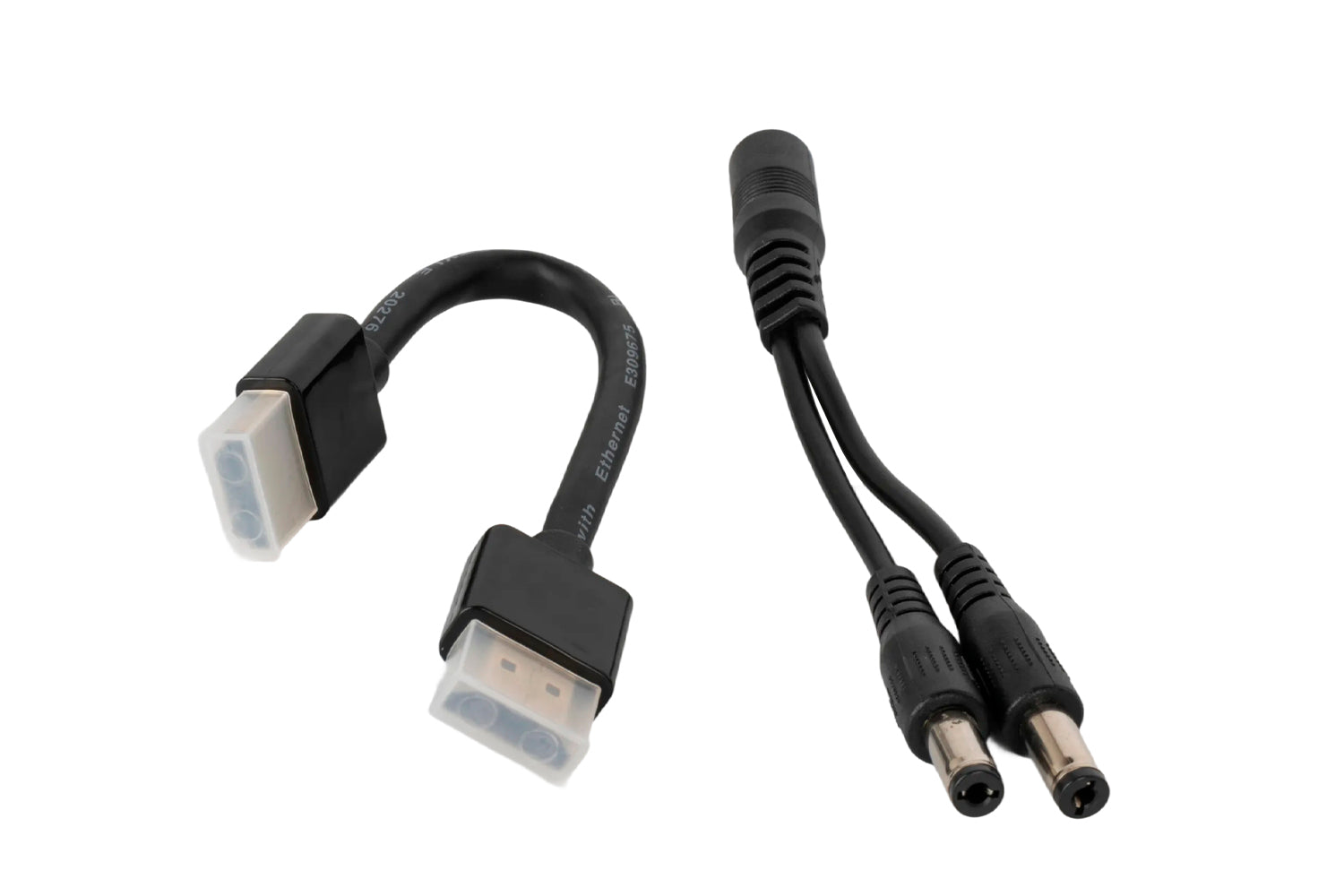

Package includes: 1x VRX CaddxFPV Walksnail Ascent GT Pro 2x LHCP Red Bird RP-SMA Antennas (2 dBi)
