Telemetry Radio 3DR 500mw 433Mhz
Telemetry Radio 3DR 500mw 433Mhz
Brand: 3DR
sku: SKU:7774
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description

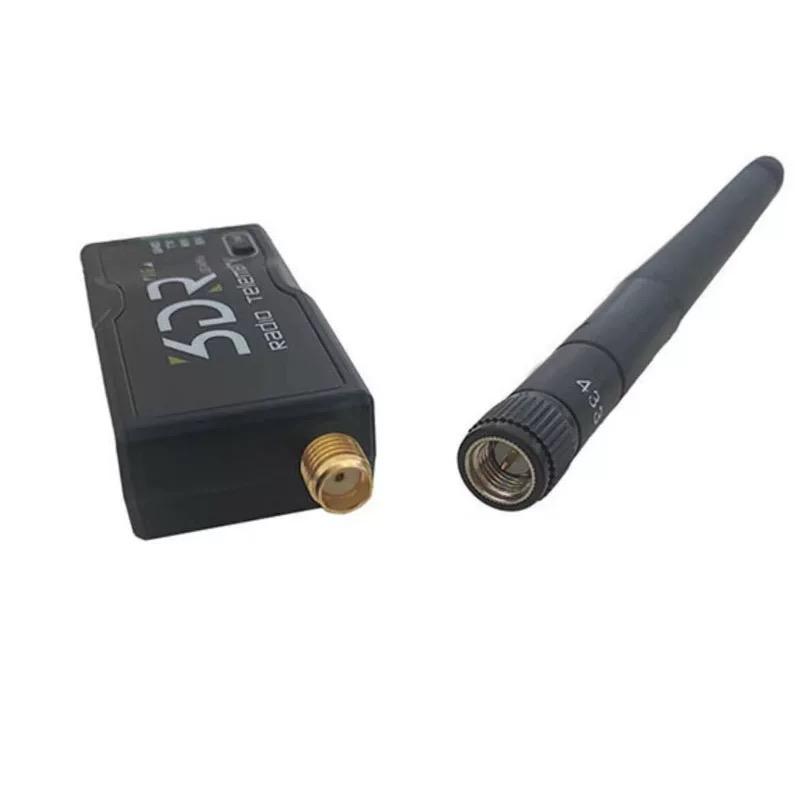

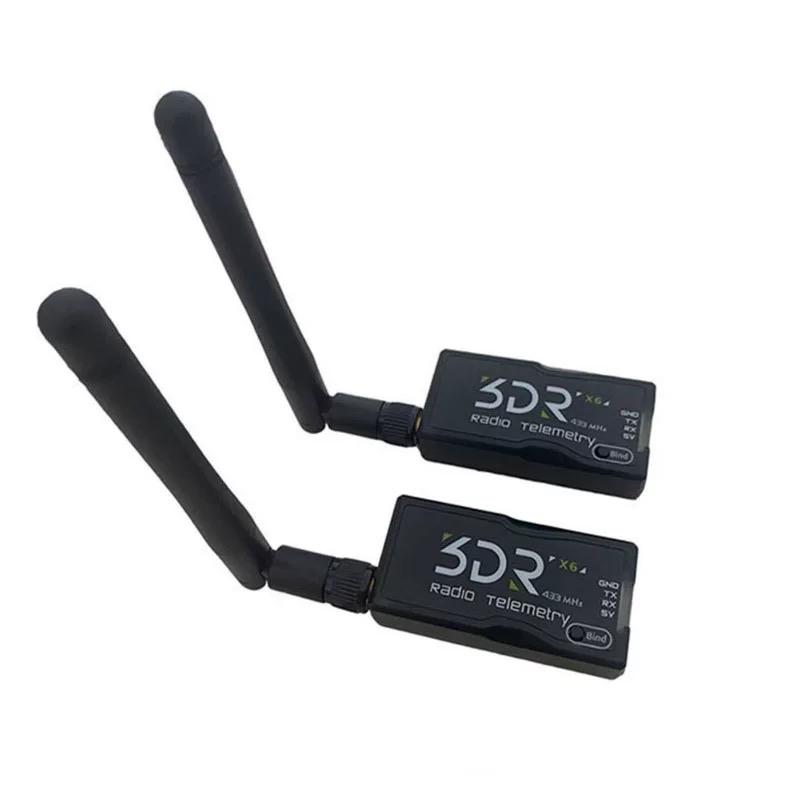

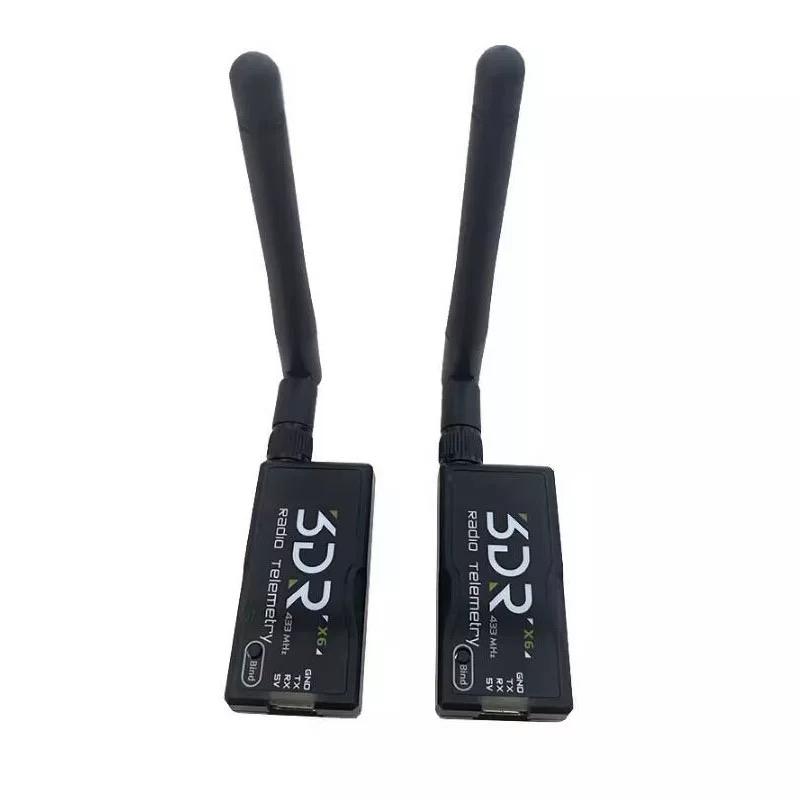

Telemetry Radio 3DR 500mw 433Mhz
The 3DR Telemetry Radio 500mW 433MHz is a reliable long-range data communication module designed for drones and ground control systems. It provides a stable link between air and ground units, ensuring real-time telemetry transmission with low latency. Compact, efficient, and easy to bind, it’s ideal for FPV setups, UAVs, and RC applications.
Features: - Provides a strong and stable signal connection between air and ground units. - Compact and lightweight design, easy to integrate into most drone systems. - Simple binding process for quick and secure pairing. - LED indicators clearly display connection and transmission status. - Designed for consistent performance even under variable environmental conditions.
Specifications: Model: 3DR Telemetry Radio Frequency: 433MHz Maximum RF Power: 500mW Baud Rate: 57600 Operating Voltage: 3.7V–6V DC Emission Current: 100mA @ 30 dBm Receive Current: 25mA Working Temperature: -10°C ~ +60°C Humidity: 10%–90% RH Dimensions (without antenna): 49x25x13mm Weight (each, with antenna): 22.5g Indicator status: Flashing red light: data transmission from air and groun unit Flashing green light: Waiting for connection Steady green light: Normal connection
Binding Process: 1. Power and green light flash 2. Press the binding button for 3 seconds. The red light will flash rapidly into binding mode 3. Power the other module within 10 seconds. A steady green light indicates successful binding.
Package Includes: 1x Air Unit Module 1x Ground Unit Module 2x Antennas 1x Connection Cable 1x User Manual
