Surface Radio Controller RadioMaster MT12 ELRS + ER3C-I
Surface Radio Controller RadioMaster MT12 ELRS + ER3C-I
Brand: RadioMaster
sku: SKU:HP0157.0067
In stock (6)Kan beschikbaarheid voor afhalen niet laden
- Description

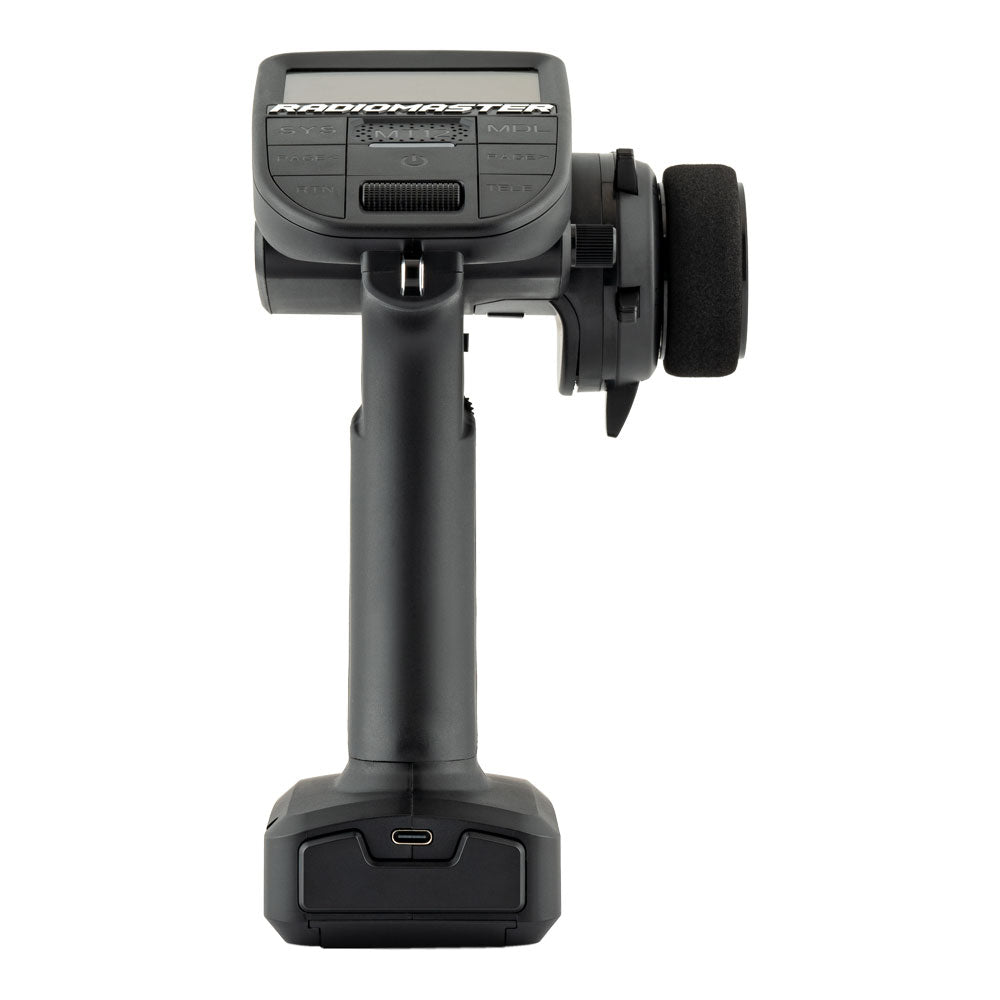

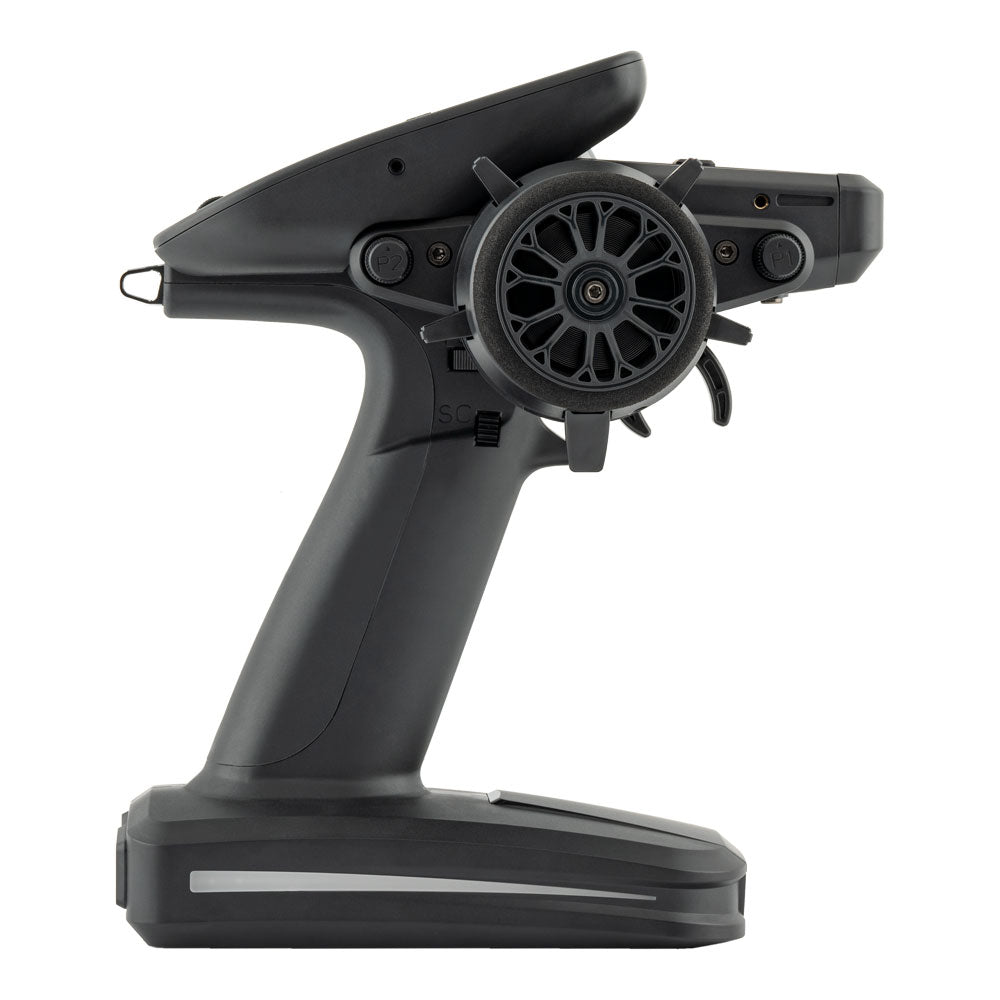

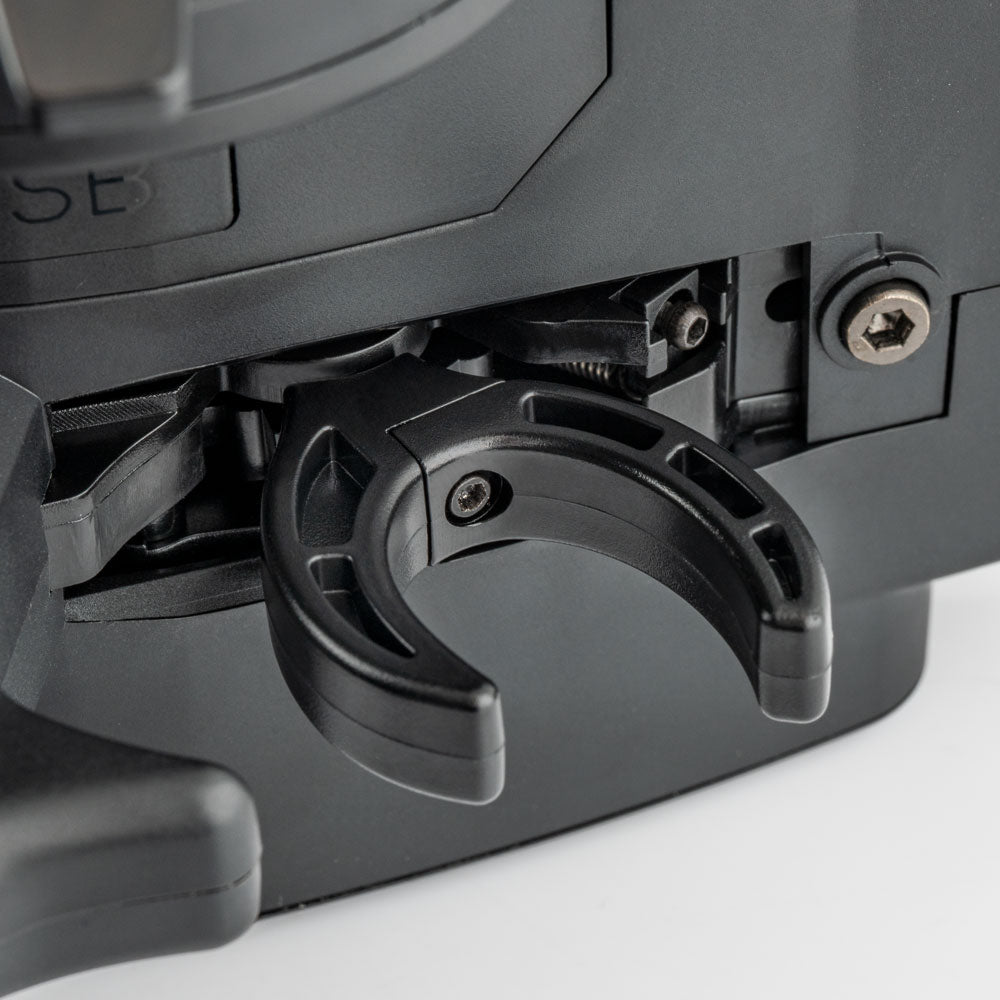

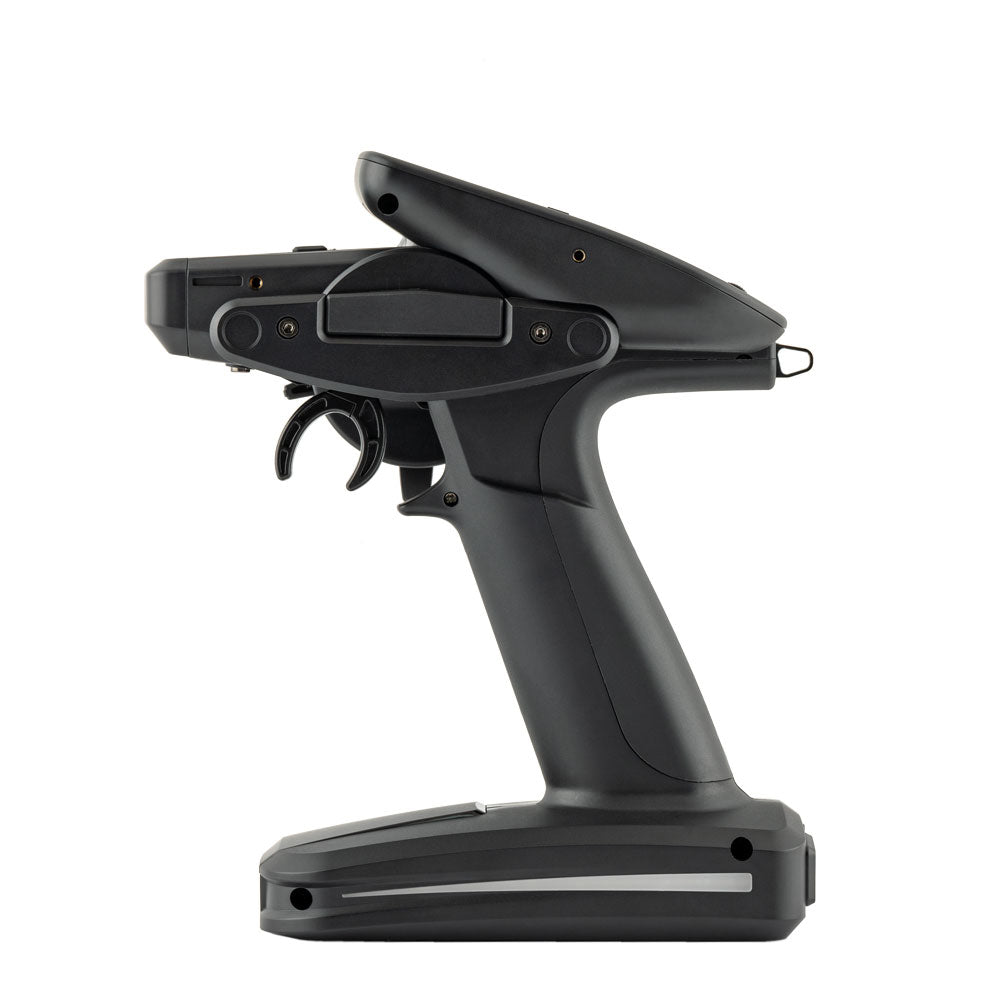

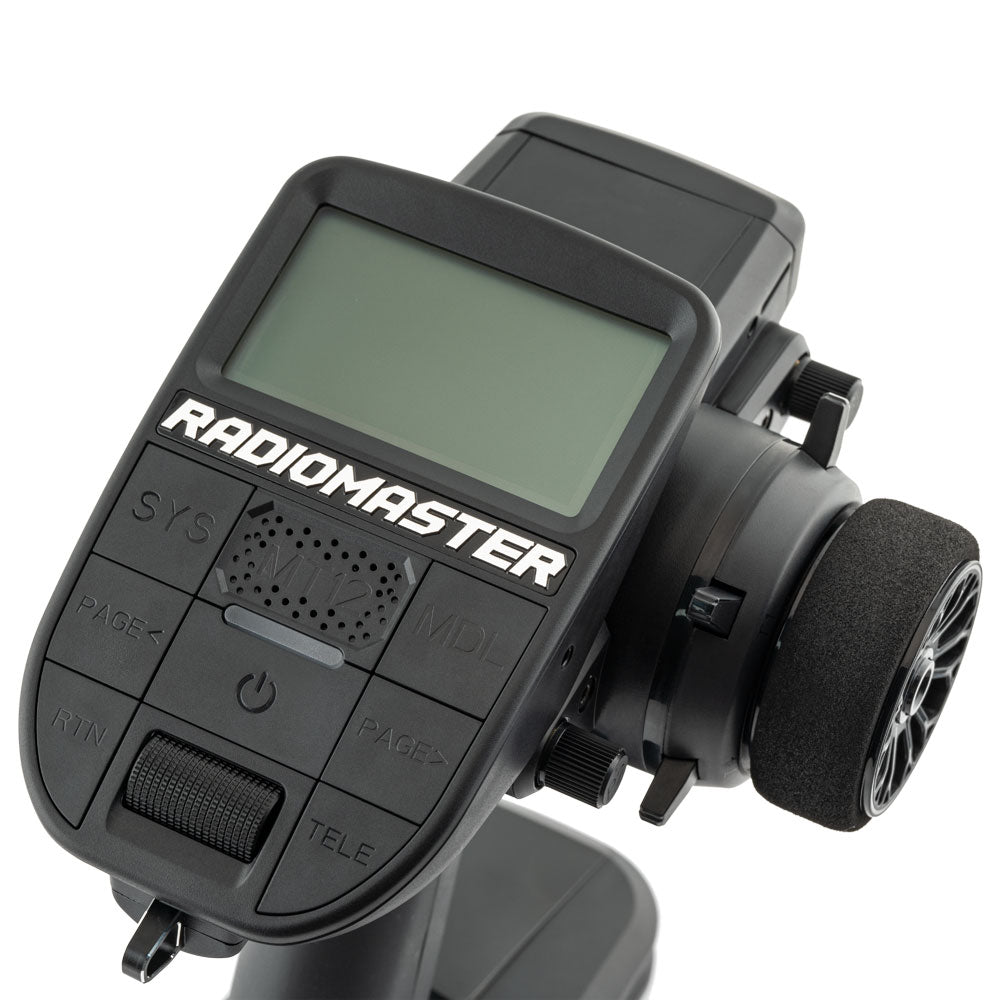

Surface Radio Controller RadioMaster MT12 ELRS + ER3C-I
The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.
Features:
- Available with Built-in ExpressLRS Backpack or 4in1 MPM RF modules - Featuring a powerful STM32F407VGT6 with 1MB Flash - Preinstalled EdgeTX firmware - QC3.0 fast charging supporting 2.0A MAX - Compact design with excellent ergonomics - Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included) - Standard Nano module compartment - RadioMaster standardized button layout - Rotatable antenna - Customizable base switches or 4 way joystick included
Specifications:
- Physical dimensions: 177.8*118.4*207.8mm - Weight: 480 grams - Operating frequency: 2.400GHz-2.480GHz - Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz - Supported protocols: Module dependent - Operational current: 160mA for 4in1 / 320mA for ELRS - Operational voltage: DC 6.6-8.4V - Operating system: EdgeTX - Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only) - Display: 128*64 Monochrome LCD - Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included) - Charging: Built in USB-C Charging - Firmware Upgrade method: Via USB or SD card - Wheel and Trigger sensor: Hall-effect - Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)
Specifications ER3C-i:
- Power supply: DC 4.5 - 8.4V - Antenna type: Built-in high-sensitivity ceramic antenna - Wireless protocol: ExpressLRS 3.3.0 pre-installed - Output channel: 3CH PWM - Telemetry power: 10mW - Battery voltage detection range: DC 4.0 - 35V - Weight: 4.2 grams - Dimensions: 26.1*18.5*13.0 mm - Firmware: Device Category: RadioMaster 2.4Ghz / Device: RadioMaster ER3C-i
Package includes:

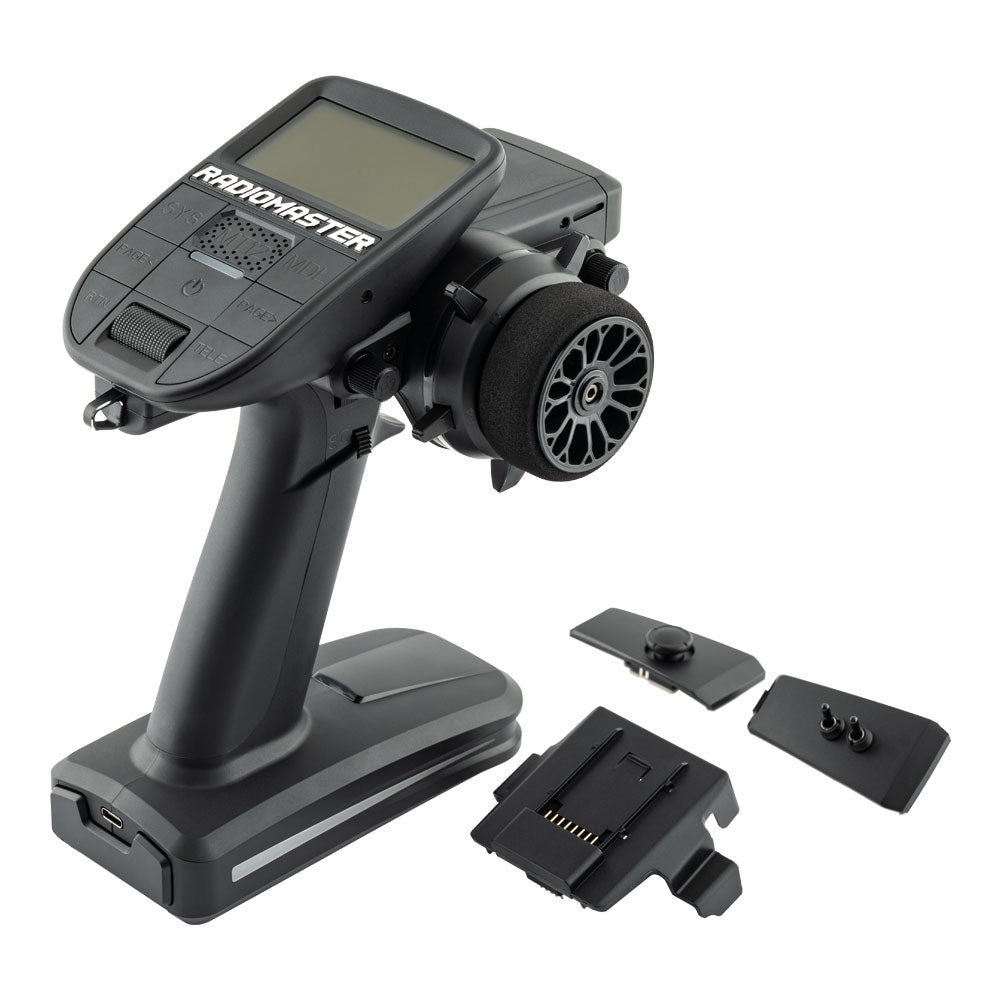

- 1 x MT12 Surface Radio ExpressLRS Version - 1 x ER3C-i 2.4GHz ELRS PWM Receiver - 1 x Dual Switch Expansion module - 1 x 4 Way Joystick Expansion module - 1 x Nano Adapter - 1 x USB-C Cable - 1 x Leather Lanyard - 1 x Custom RadioMaster signature carry case - 1 x 18650 Battery Tray - 1 x Screen Protector - 1 x Stickers - 1 x Manual
