Stack TBS Lucid Freestyle 6S 60A
Stack TBS Lucid Freestyle 6S 60A
Brand: TBS
sku: SKU:7570
In stock (9)Kan beschikbaarheid voor afhalen niet laden
- Description
Stack TBS Lucid Freestyle 6S 60A
The TBS Lucid Freestyle Stack 6S 60A is a compact, high-performance flight stack tailored for freestyle and racing drones, blending advanced gyro control with a robust 6S-capable ESC in a lightweight design.

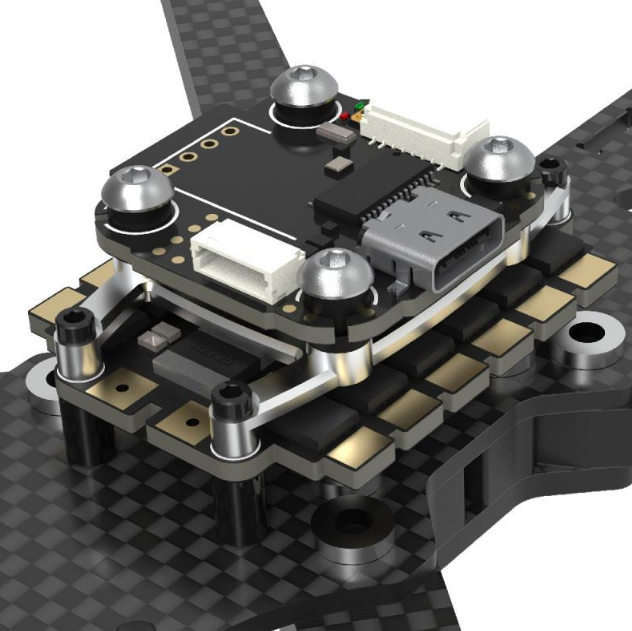

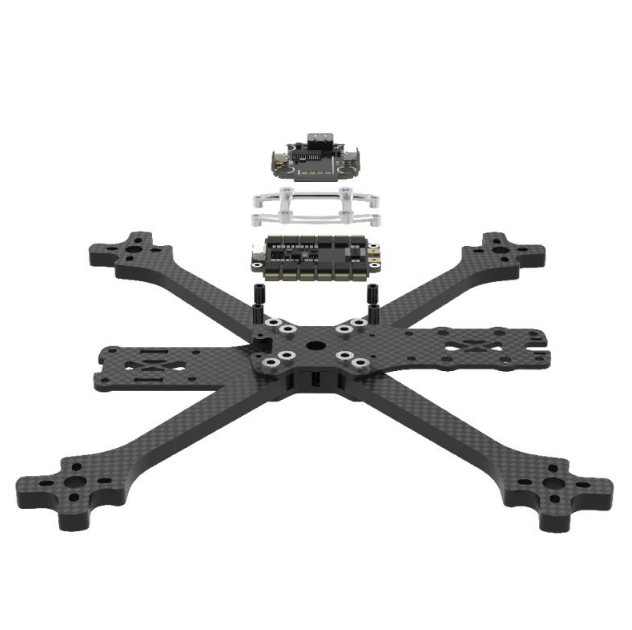

Features: - “Gorilla” mounting system ensures clean, sturdy assembly without drilling through the ESC — adaptable to 20x20 mm or 30.5x30.5 mm frames. - Supports a broad range of setups—from micro to larger drones using 3?–8? propellers—across both analog and digital video platforms. - Built for both seasoned FPV racers and newcomers—with firmware support for Betaflight and INAV, allowing flexible flight setup.

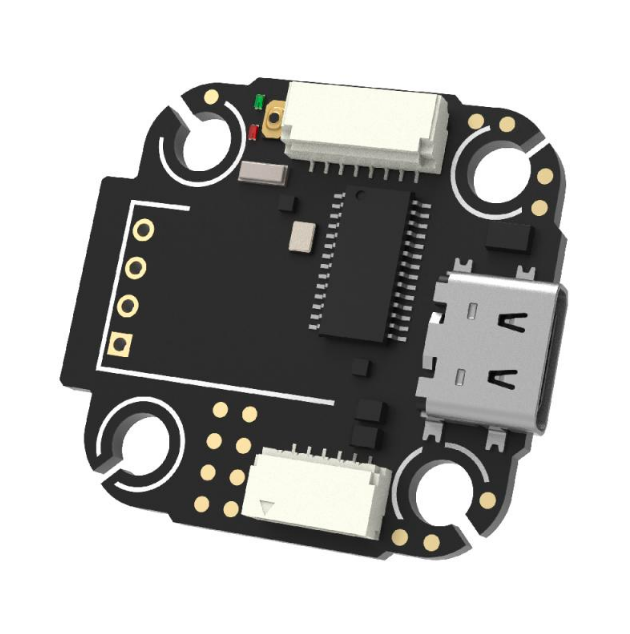

FC Specifications: MCU: AT32F435RMT7, 288MHz Gyro: ICM-42688P Motors: 4 motors, with telemetry and current sensor BEC: 9V 2.5A; 5V 2A OSD: AT7456E Blackbox: 8M UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8) Input: 3S-6S Size: 31x29mm Mounting:20x20mm Weight:4.51g

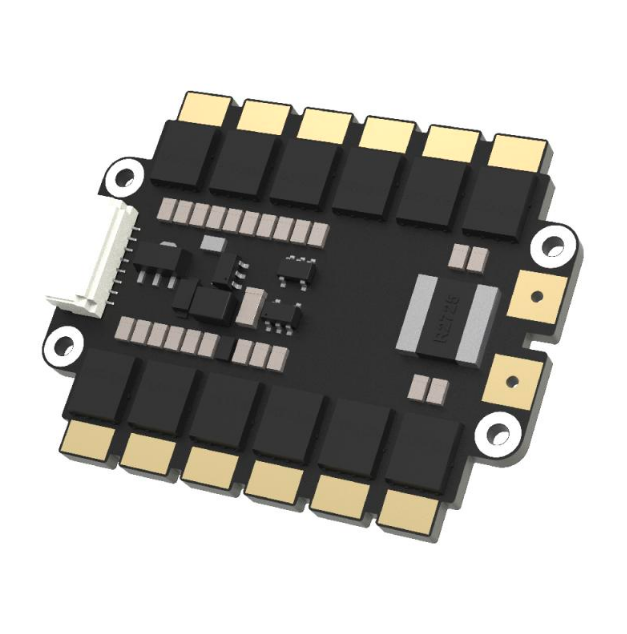

ESC Specifications: ESC software: AlkaMotors32 (AM32) ESC target: tbslu6s4in1 Rated current: 60A x 4, 300 seconds Peak Current: 70A x 4, 60 seconds Propellers: Up to 9", over 7" requires good airflow Input: 3-6S Lipo Protocol: Bi-directional Dshot 300/600, KISS ESC Telemetry ESC Current port: Yes BEC: No Size: 34x44mm Mounting: Gorilla-mount (39.5x16.0mm) or brackets for 20x20 mm, 30.5x30.5 mm Weight: 13.81g, 19g incl. brackets
Package includes: 1x FC TBS Lucid Freestyle 1x ESC TBS Lucid 6S 60A AM32 4-in-1 Mounting brackets for Gorilla mounting, enabling compatibility with both 20x20 mm and 30.5x30.5 mm stacks
