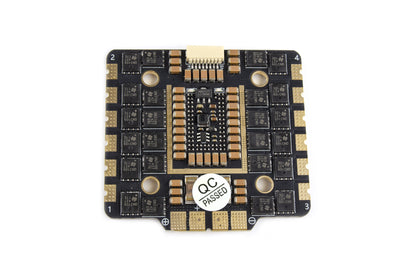

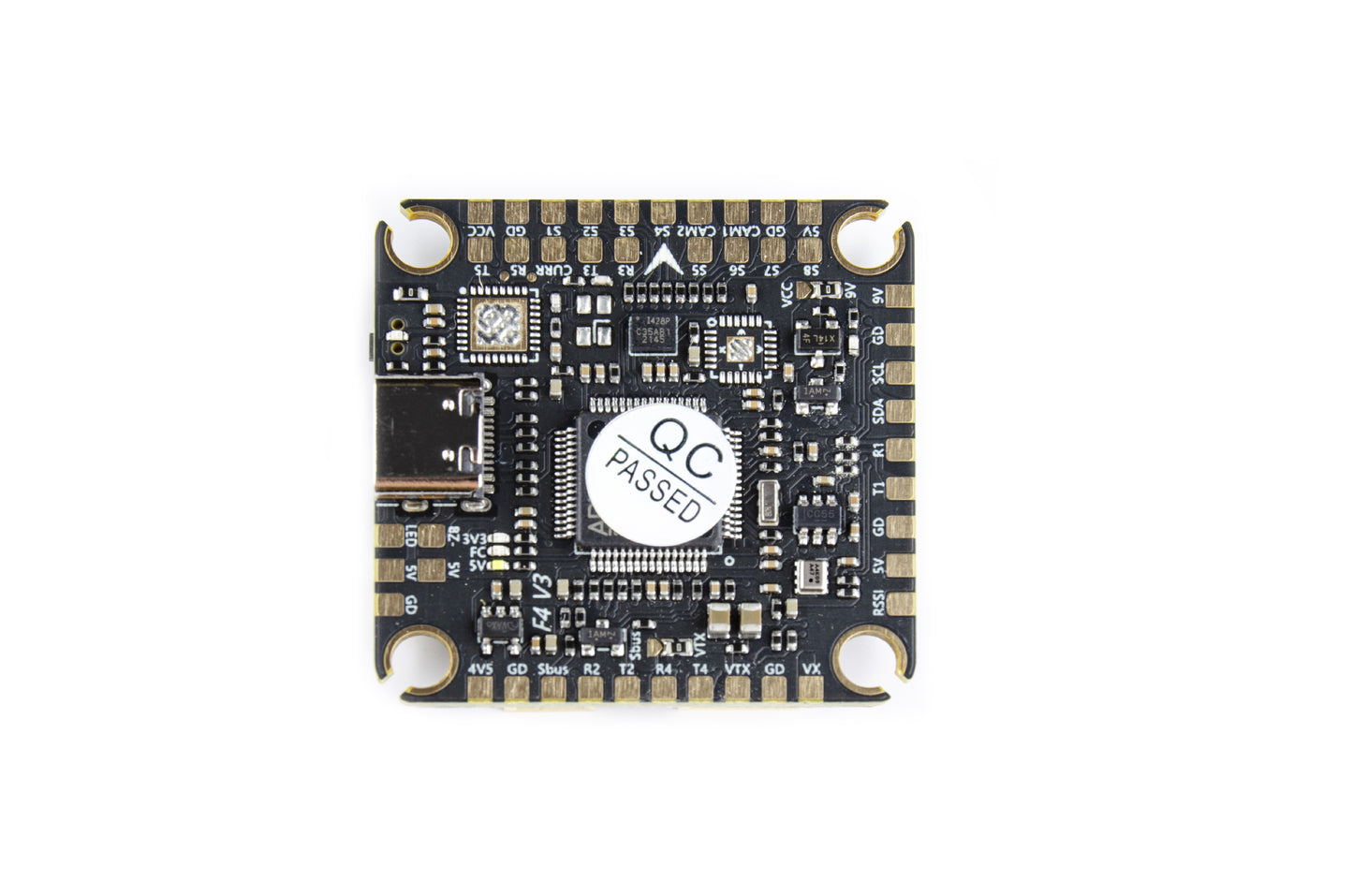

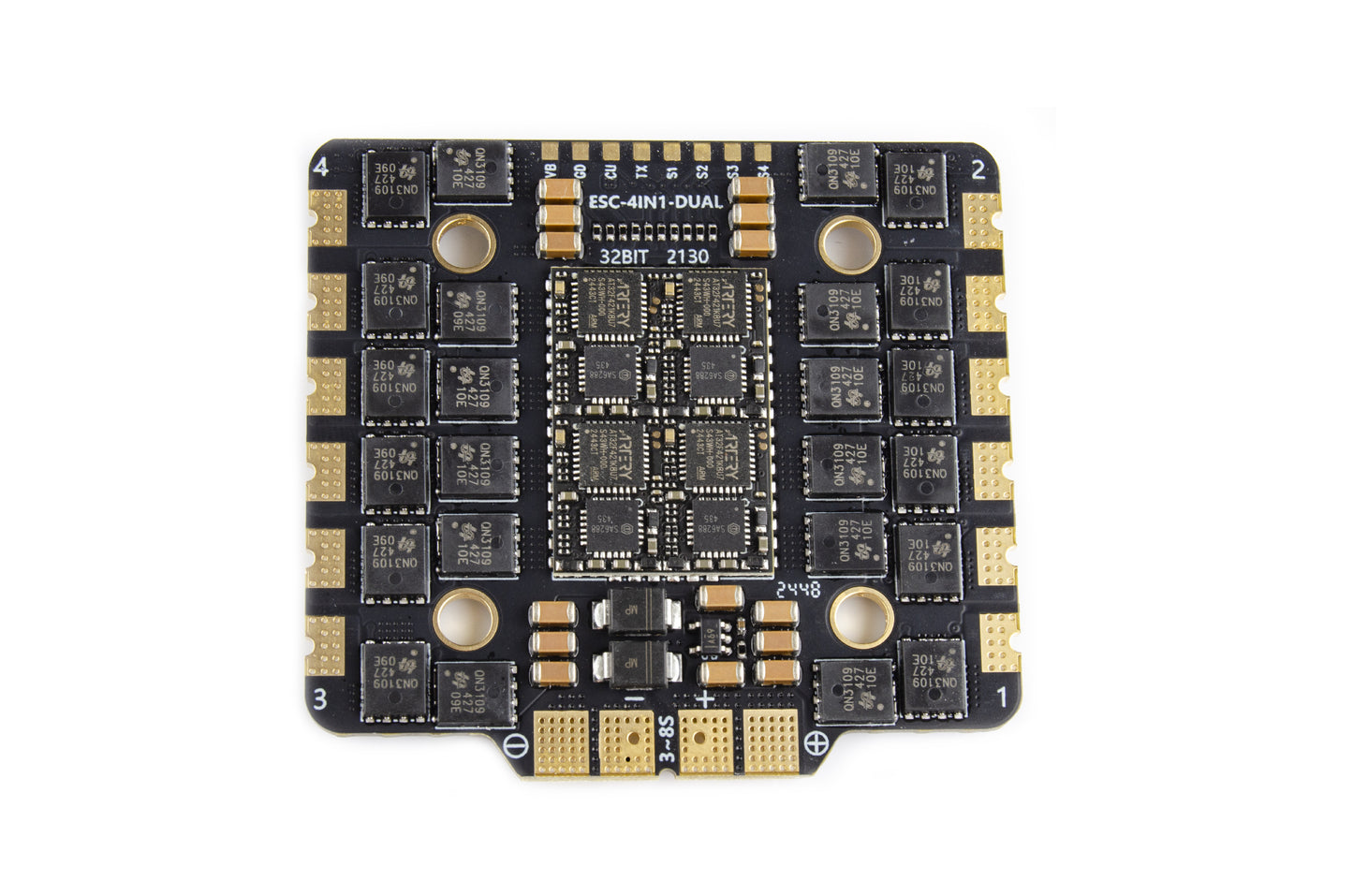

    Stack Pilotix F405 V3 3080 AM32 80A

    Stack Pilotix F405 V3 3080 AM32 80A

    Brand: Pilotix

    €148,83
    €148,83
    -% Uitverkocht

    sku: 6288

    In stock (3448)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Alle details bekijken
    • Description

    Stack Pilotix F405 V3 3080 80A AM32

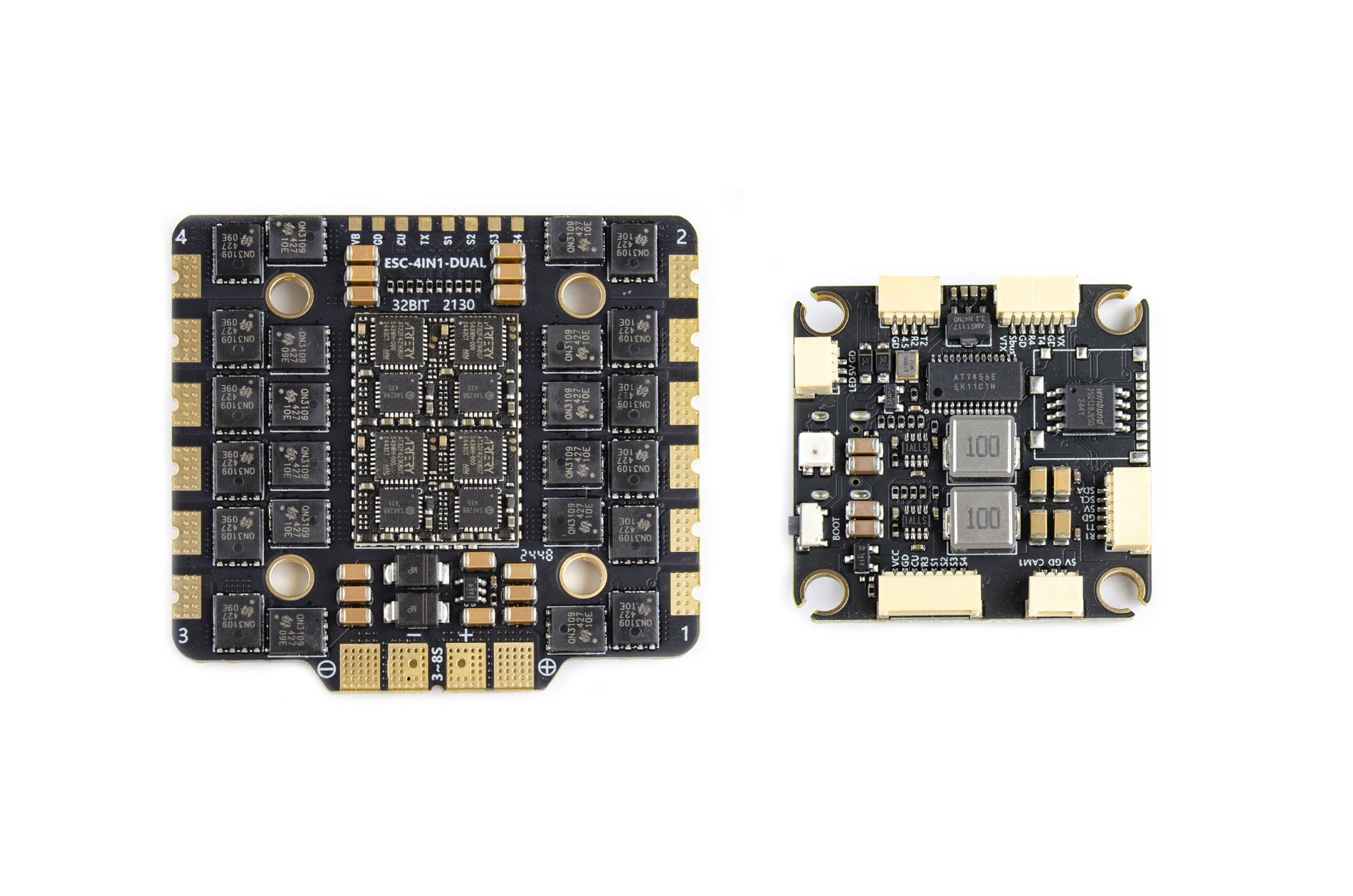

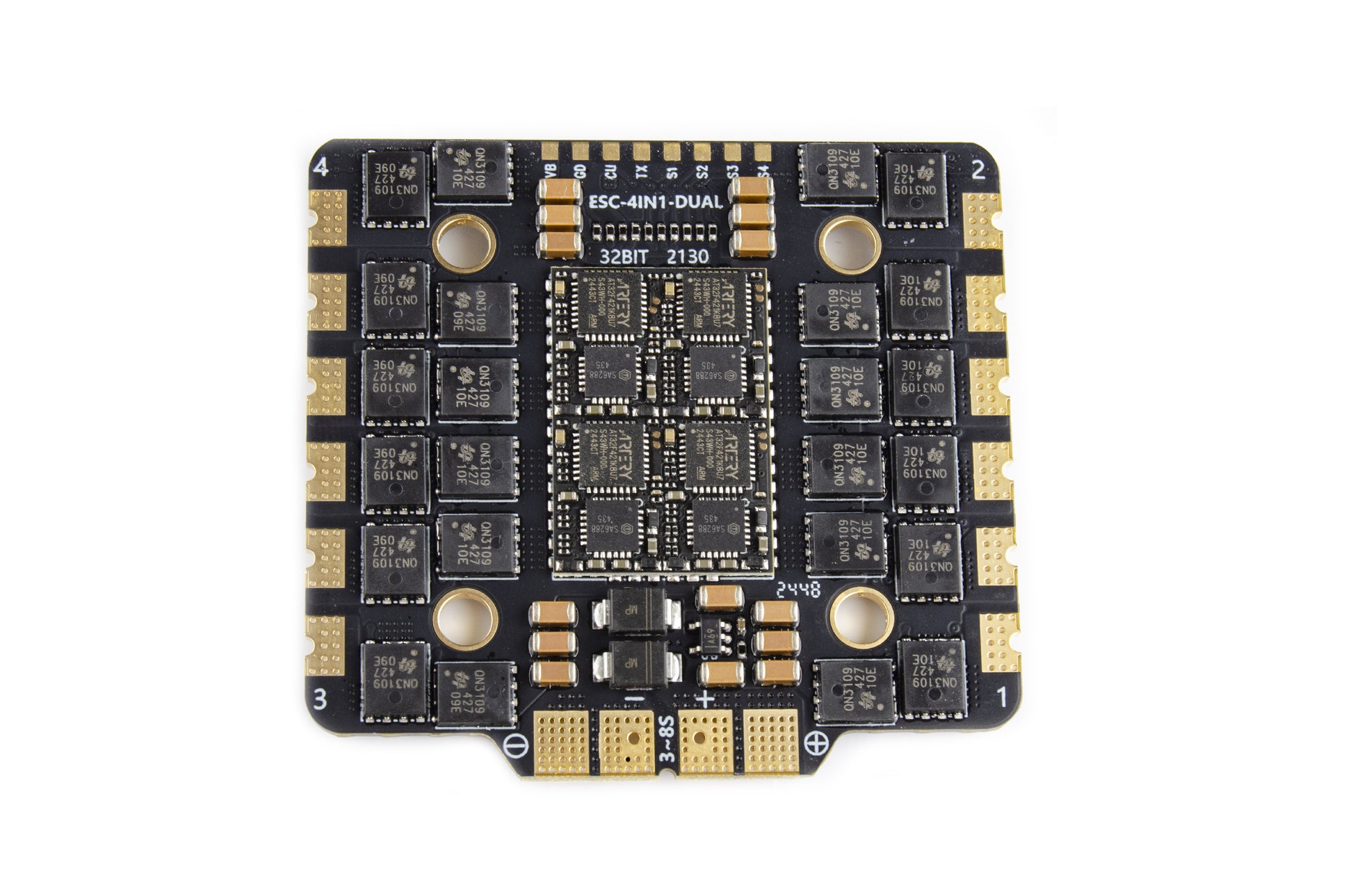

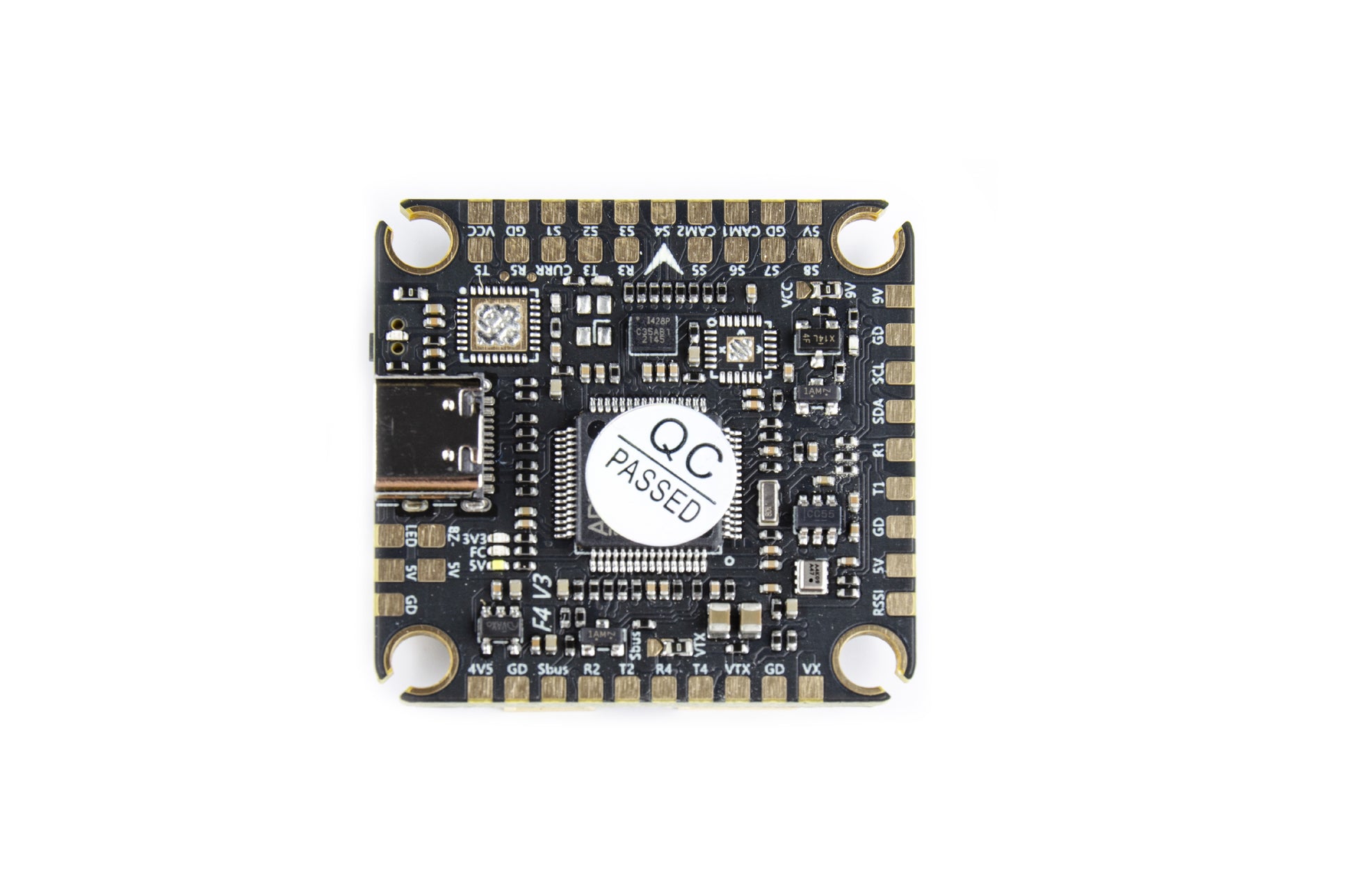

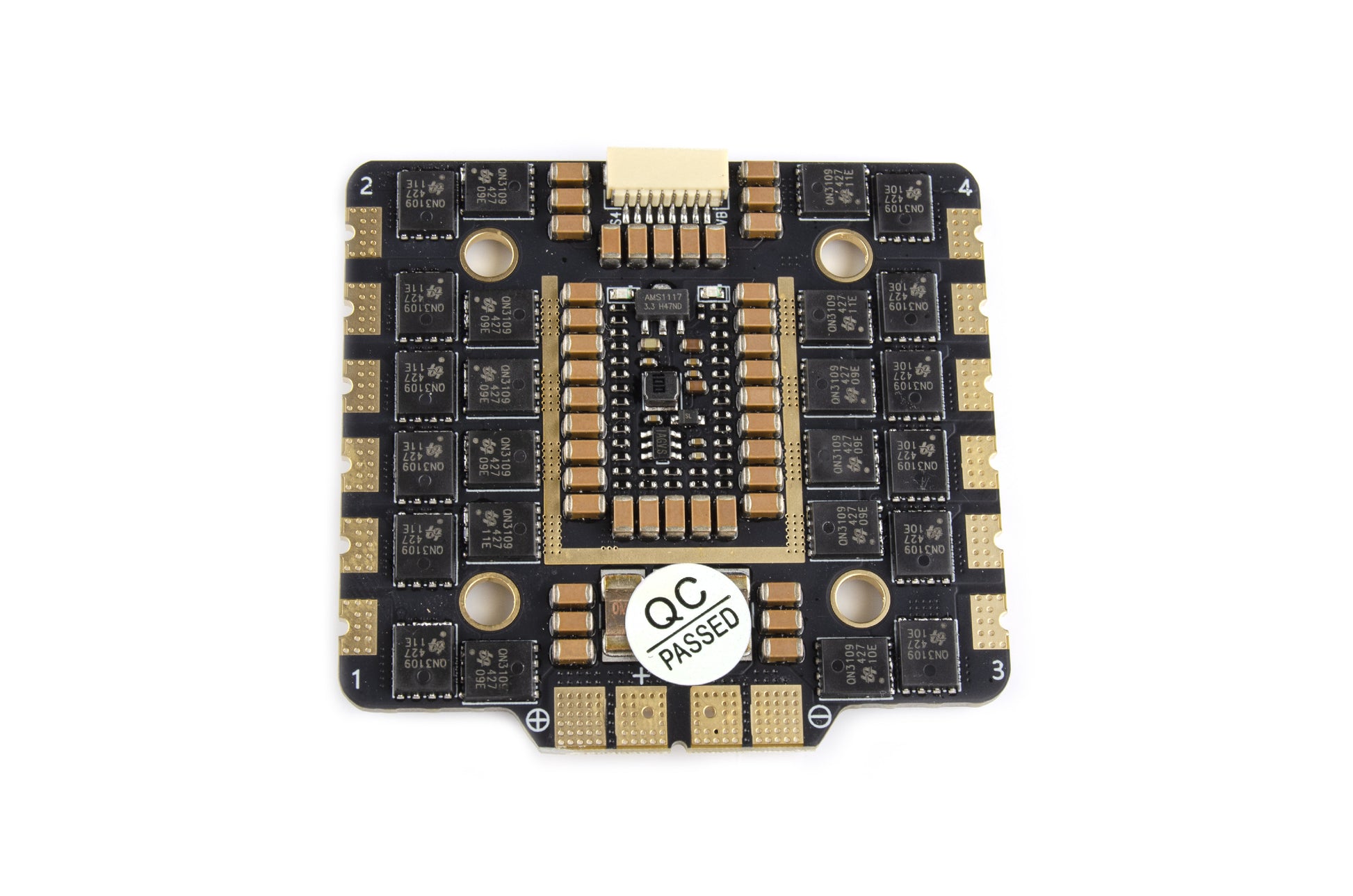

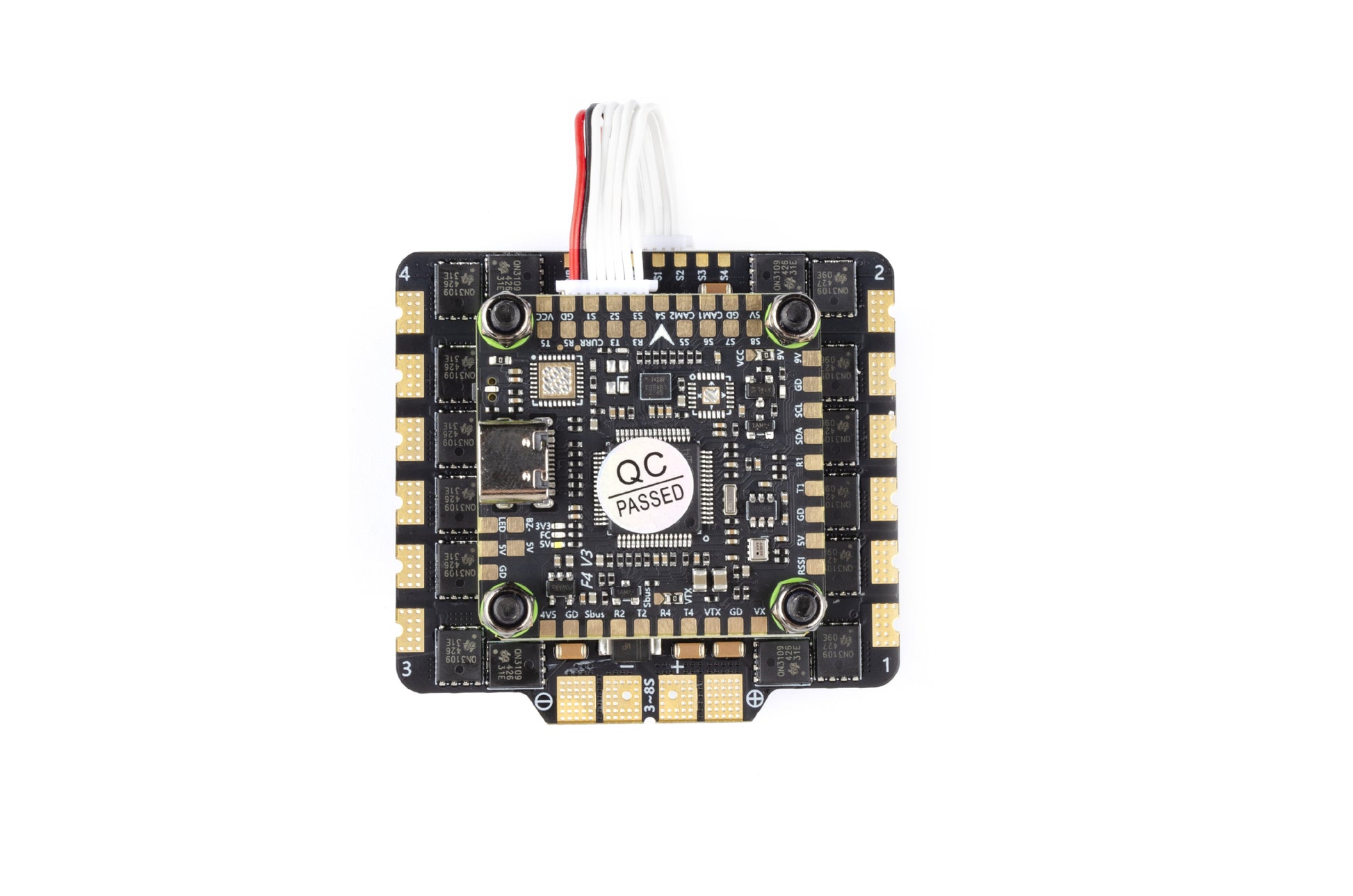

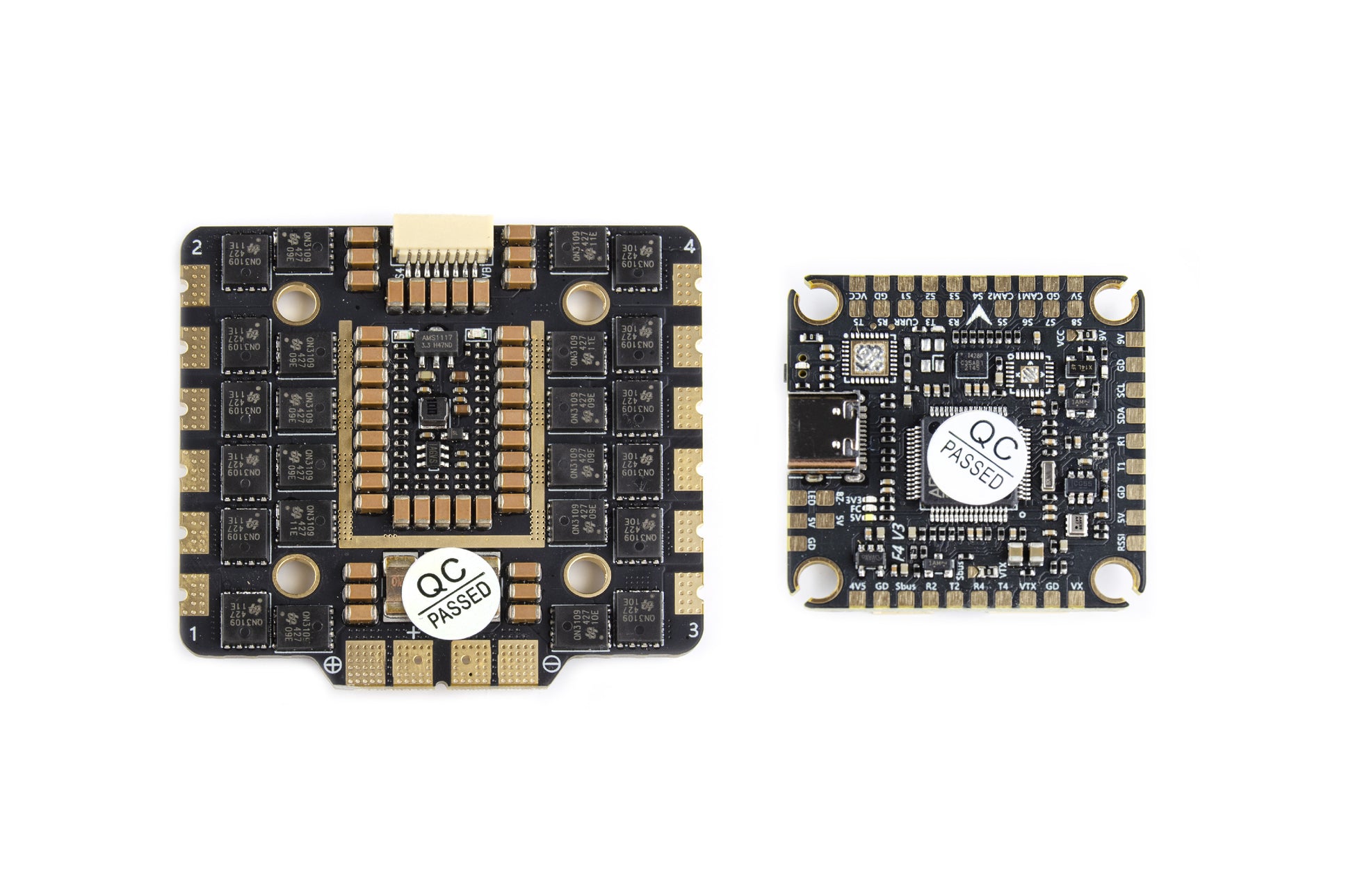

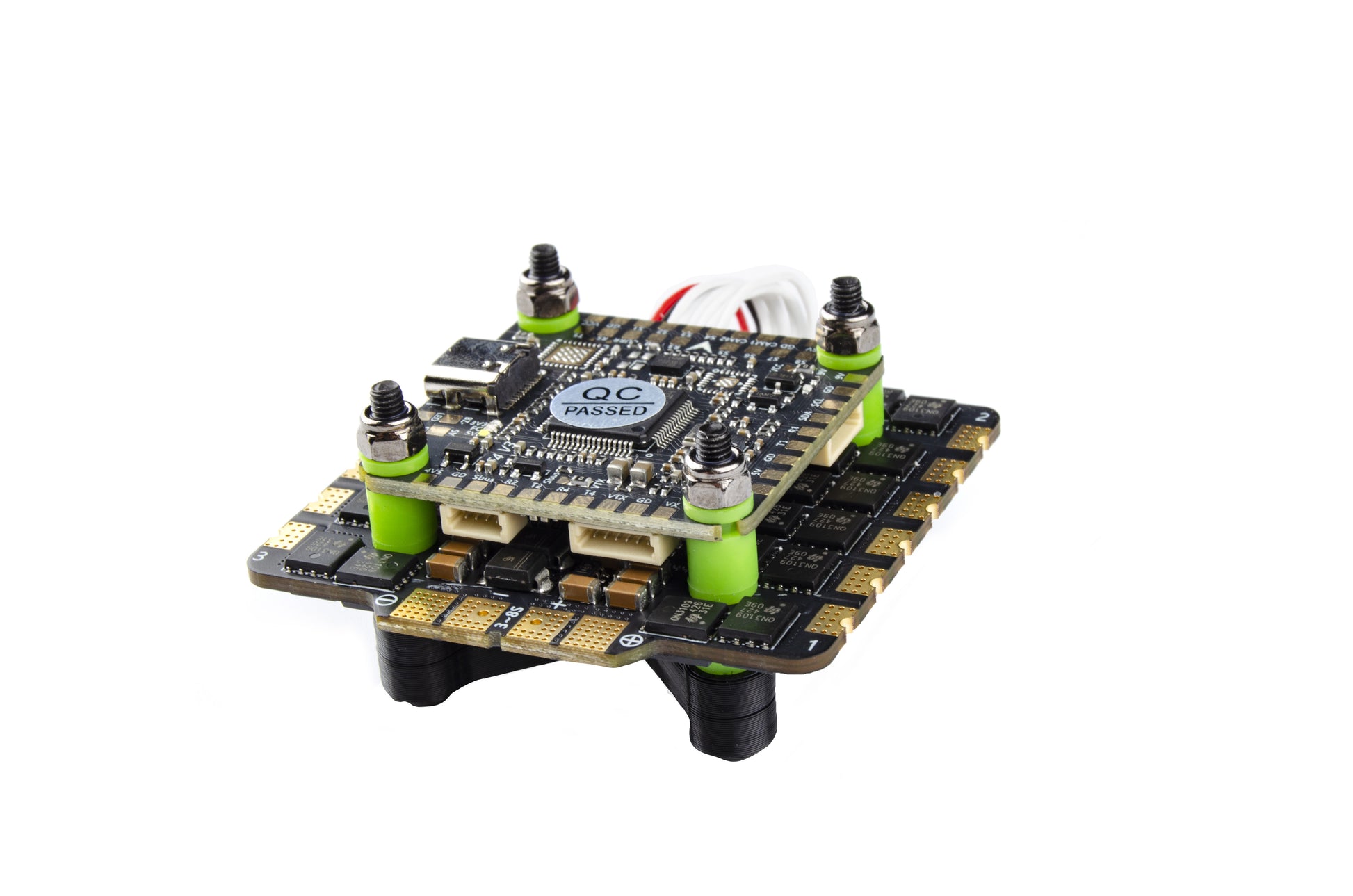

    The Pilotix 6288 Stack (F405 V3 Flight Controller + 80A ESC) is a high-performance flight control and power management system designed for demanding drone applications. Featuring the STM32F405 processor and ICM42688 gyroscope, this stack provides precise control, fast response, and advanced stabilization.

    Specifications: - Processor: STM32F405RGT6 - Gyroscope: ICM42688 - Barometer: SPL06B - Black Box Storage: 16MB - Motor Output: 8 Channels - Universal Serial Ports: 5 Channels - Output Power Supply: 5V/2.5A, 9V/2A - OSD: Supported - Weight: 9.6g - External Dimensions: 36mm x 36mm - Mounting Hole Spacing: 30.5mm x 30.5mm - Firmware: Pilotix F405V3 - Continuous Current: 80A - Burst Peak Current: 100A - Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot - Telemetry: Supported - Current Meter: Supported - Input Voltage: 3-8S LiPo - Firmware: AM32_AT32PB4_540_F421_2.12.hex - Operating Temperature: -20°C to +55°C - Operating Humidity: 20% - 95% - Storage Temperature: -20°C to +70°C - Mounting Hole: M3, 30.5mm x 30.5mm - Weight: 33g - Dimensions: 55mm x 52mm
    Download Documentation

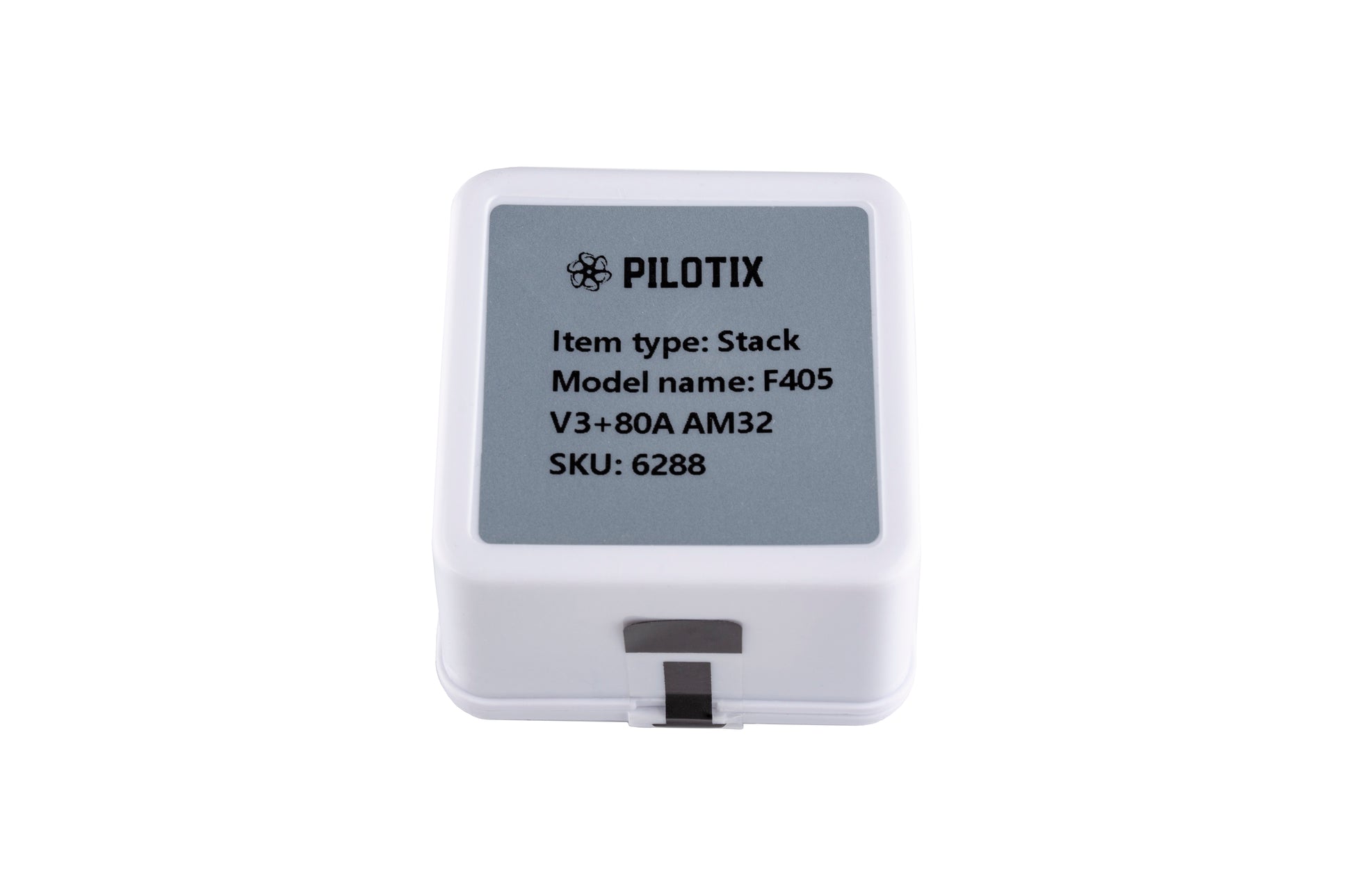

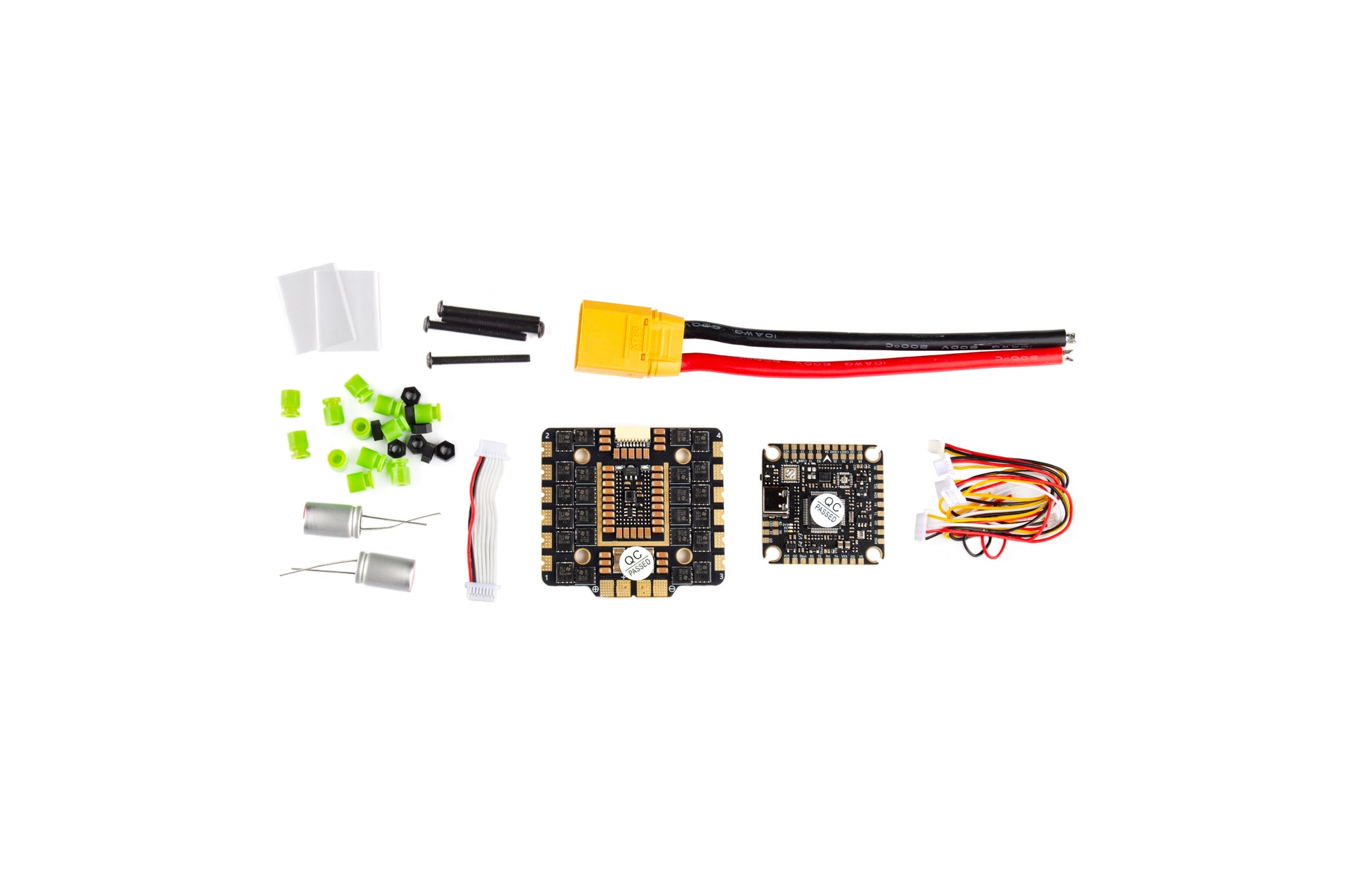

    Package includes: - 1 ? Stack Pilotix F405 V3 3080 80A AM32
