    Stack FLYWOO GOKU HEX GN405 HD 20A V3 ELRS

    Stack FLYWOO GOKU HEX GN405 HD 20A V3 ELRS

    Brand: FLYWOO

    €85,67
    €85,67
    -% Uitverkocht

    sku: FW19003950

    Limited Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Alle details bekijken
    • Description

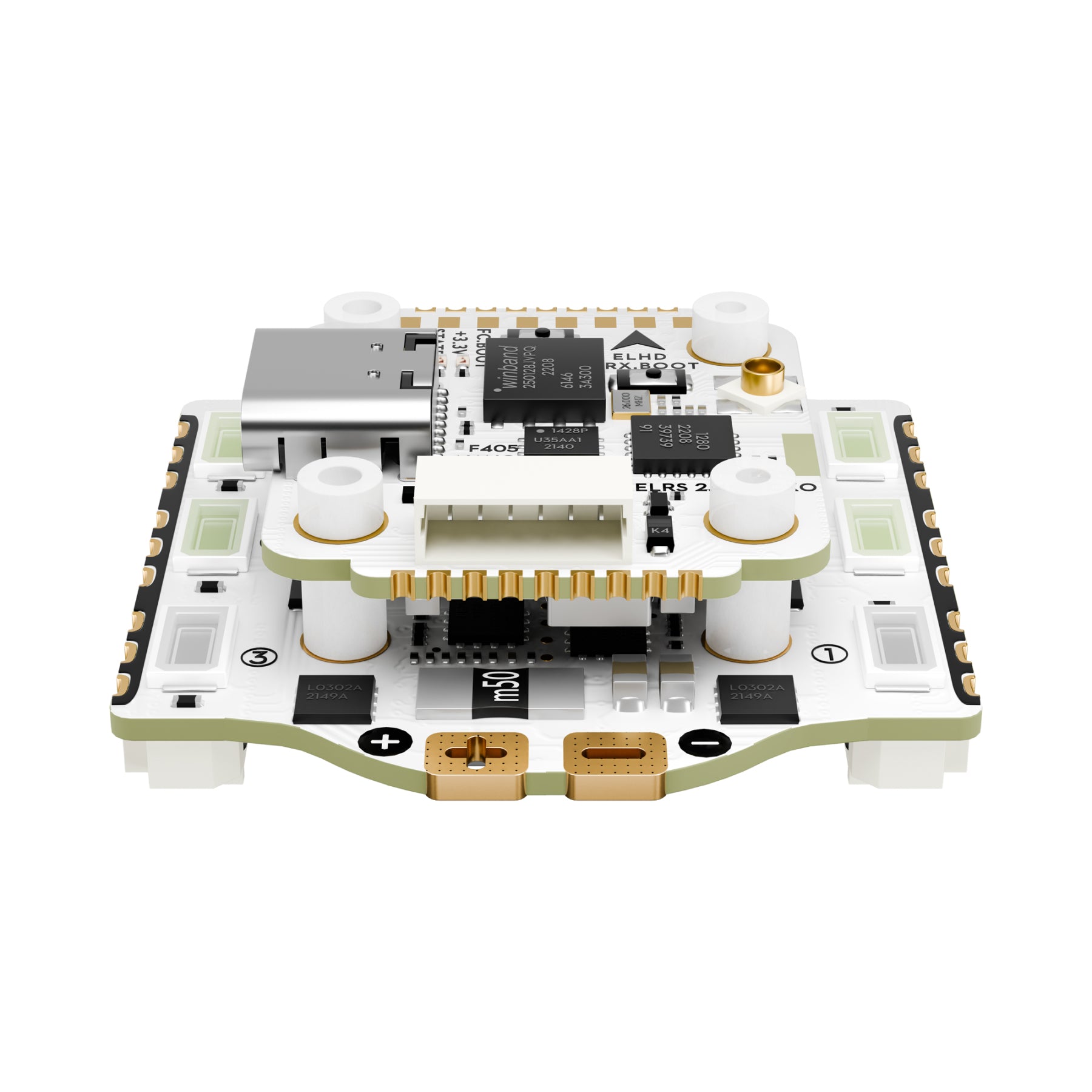

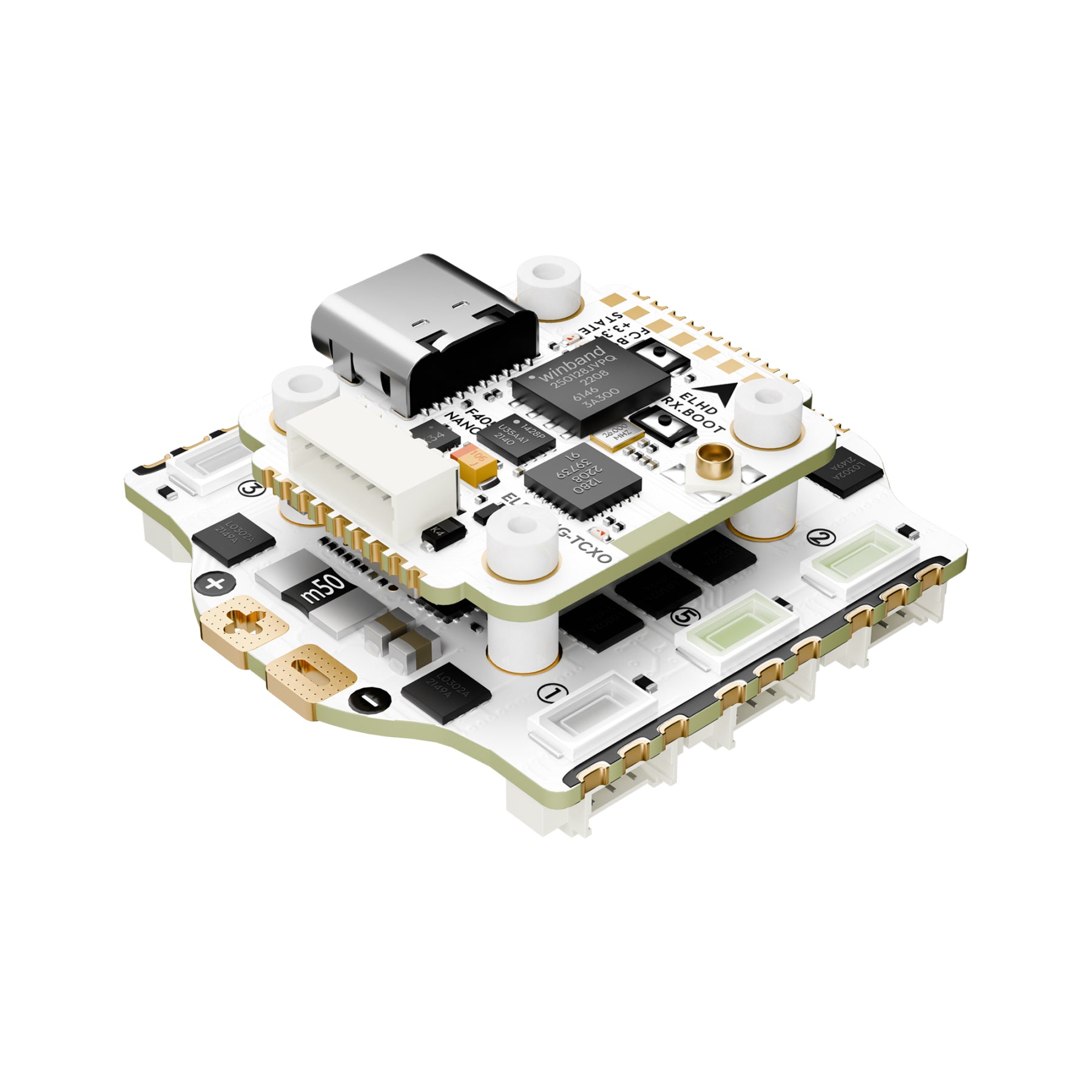

    Stack FLYWOO GOKU HEX GN405 HD 20A Stack V3 ELRS

    The FLYWOO GOKU HEX GN405 HD 20A Stack V3 is a compact and high-efficiency solution engineered for micro hexacopter builds. This stack pairs a robust STM32F405-based flight controller with built-in ELRS receiver and a 6-in-1 20A ESC, enabling seamless performance for advanced 2–4S setups. Featuring the precision ICM-42688P gyro, 16MB black box, and up to 6 UARTs, it supports demanding FPV configurations with reliable stability. Its plug-and-play architecture and 16×16 mm mounting format make it ideal for tight builds requiring multiple motor outputs without compromising power, control, or responsiveness.

    Flight Controller:

    MCU: STM32F405 BGA Gyro: ICM-42688P (SPI) OSD: No Barometer: DP310 Black Box: 16MB USB: Type-C UARTs: 1 / 2 / 3 / 4 / 5 / 6 Input Voltage: 7.4V – 24V (2–6S LiPo) BEC Output: 5V 2A / 3.3V 0.5A Dimensions: 25 × 23 × 8 mm Mounting Holes: M2 16×16 mm Weight: 3 g

    ESC:

    ESC MCU: BB21F16G Continuous Current: 20A Input Voltage: 2–4S LiPo Supported Protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600 Power LED: No Dimensions: 33 × 35 mm Mounting Holes: M3 16×16 mm Weight: 6.4 g

    Package Includes:

    1 × Stack FLYWOO GOKU HEX GN405 HD 20A Stack V3 ELRS
