Stack FLYWOO GOKU GN405 Nano HD 35A V3 ELRS
Stack FLYWOO GOKU GN405 Nano HD 35A V3 ELRS
Brand: FLYWOO
sku: SKU:FW19003949
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description

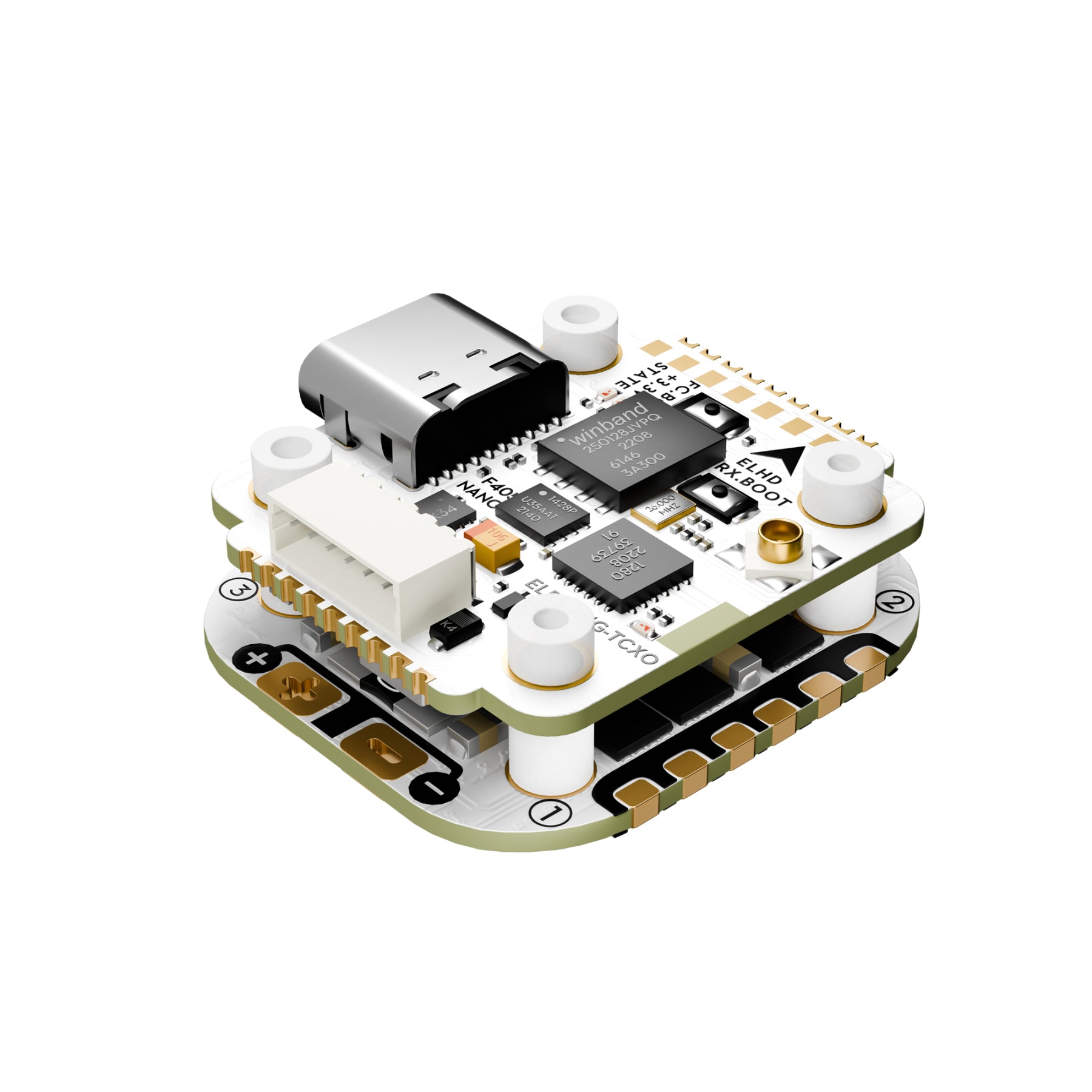

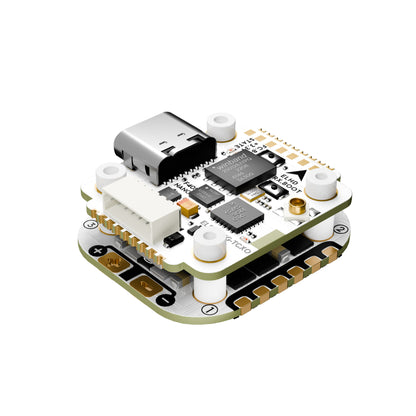

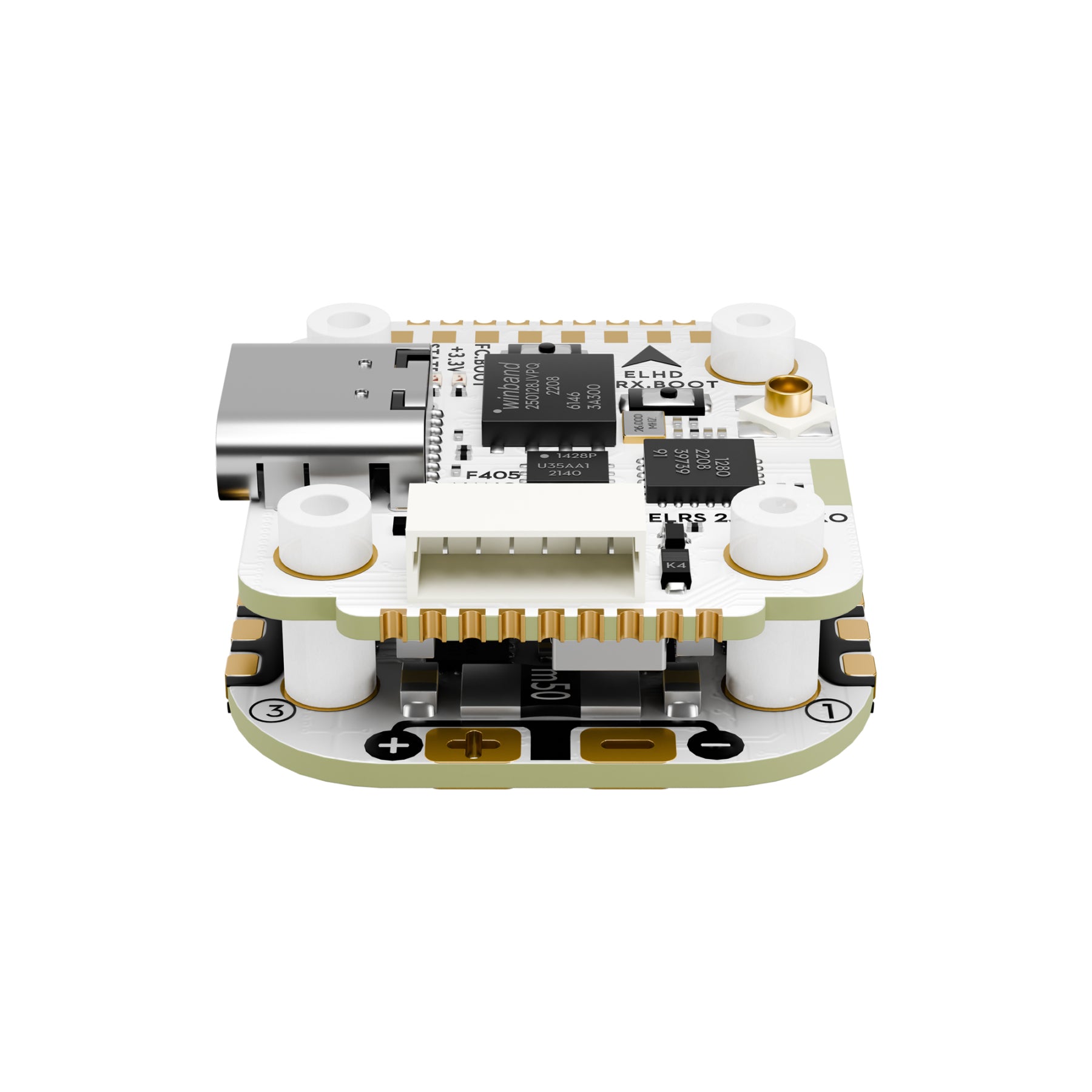

Stack FLYWOO GOKU GN405 Nano HD 35A Stack V3 w/ELRS
The FLYWOO GOKU GN405 Nano HD 35A Stack V3 is a high-performance, ultra-compact solution designed for powerful micro FPV drones. It integrates a feature-rich STM32F405-based flight controller with ELRS 2.4GHz receiver and a durable 35A 4-in-1 ESC, offering exceptional control and responsiveness. Equipped with an advanced ICM-42688P gyro, built-in black box, and 6 full UARTs, this stack is ideal for 2–6S LiPo builds that demand high current handling and stable flight. With plug-and-play convenience, durable components, and a compact 16x16 mm mounting format, it’s the perfect choice for serious pilots seeking reliability and performance in small builds.

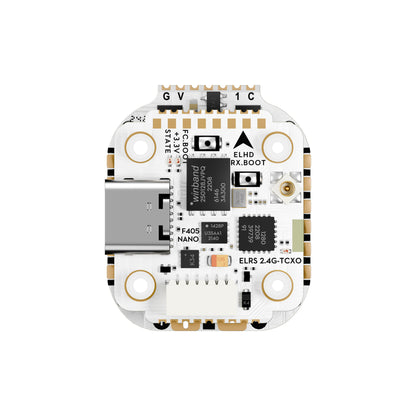

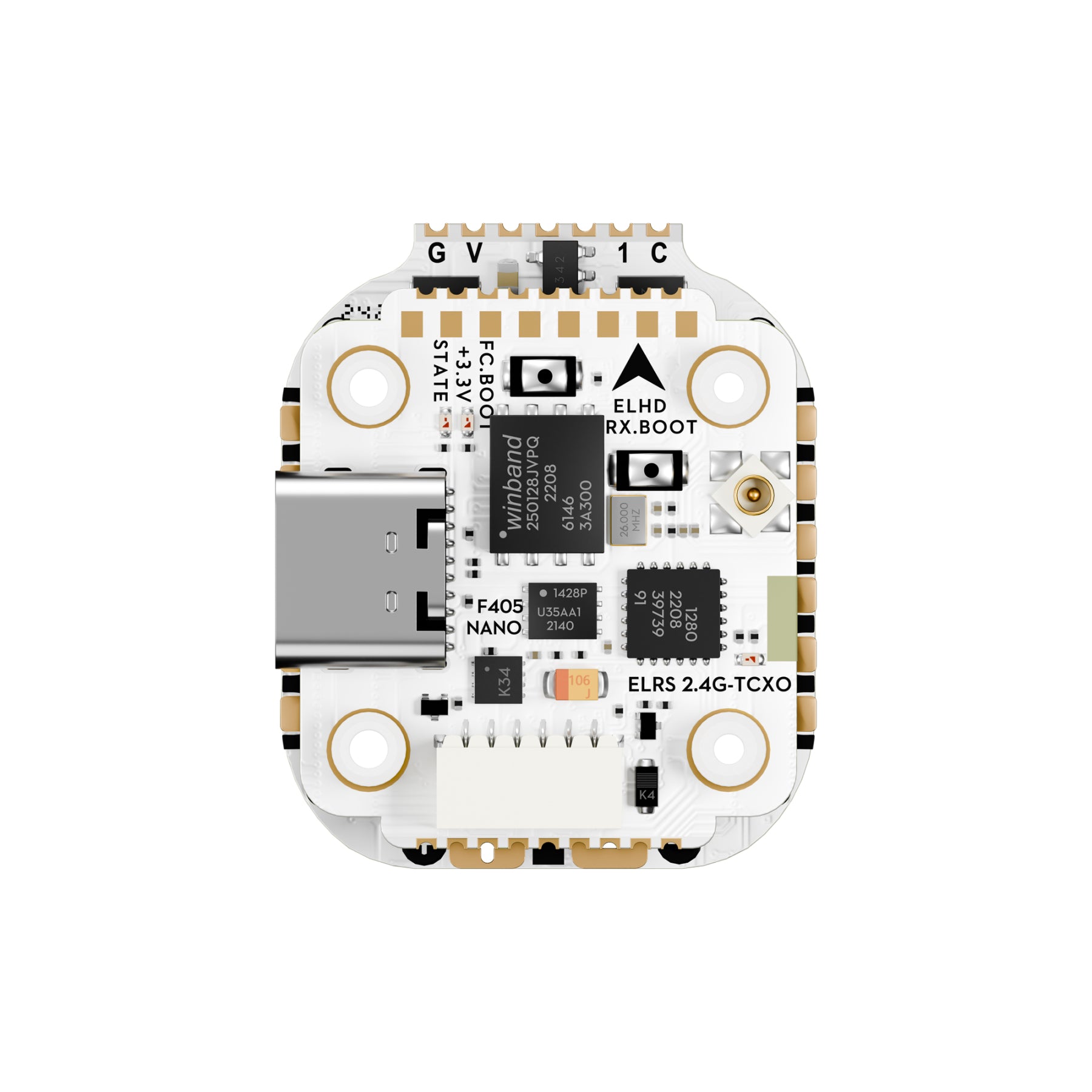

Flight Controller:

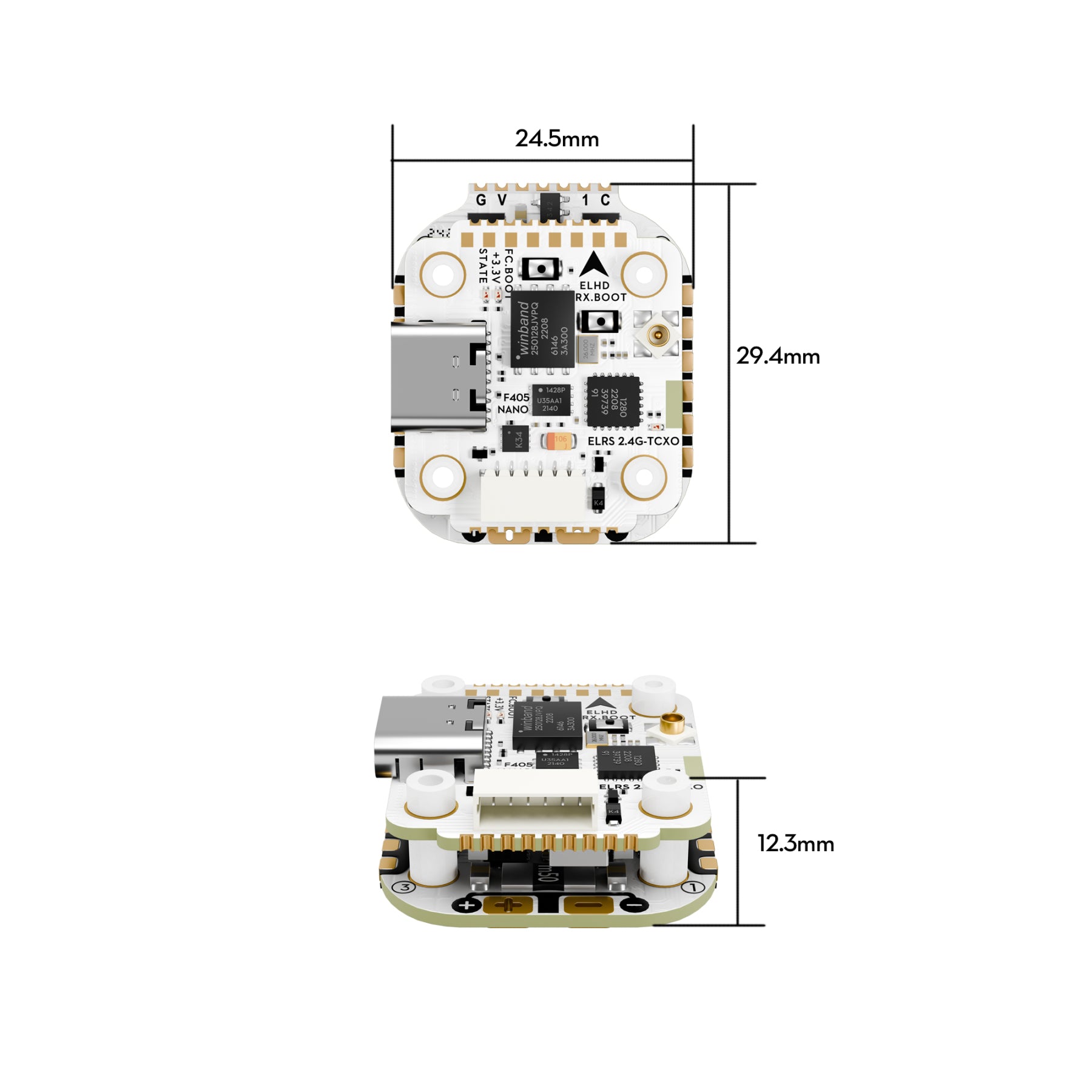

MCU: STM32F405 BGA Gyro: ICM-42688P (SPI) Barometer: DP310 OSD: No Black Box: 16MB USB: Type-C UARTs: 1 / 2 / 3 / 4 / 5 / 6 BEC: 5V 2A / 3.3V 0.5A Voltage Input: 7.4V – 24V (2–6S LiPo) Size: 25 × 23 × 8 mm Mounting: M2 16×16 mm Weight: ~3 g
ESC:
ESC MCU: BB21F16G Continuous Current: 35A Input Voltage: 2–4S LiPo Protocols Supported: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 Power LED: No Size: 27 × 33 mm Mounting: M3 16×16 mm Weight: ~3.6 g
Package Includes:
1 × Stack FLYWOO GOKU GN405 Nano HD 35A Stack V3 w/ELRS
