Stack FLYWOO GOKU F722 Pro Mini V2 45A 32Bit 128K AM32 20x20
Stack FLYWOO GOKU F722 Pro Mini V2 45A 32Bit 128K AM32 20x20
Brand: FLYWOO
sku: SKU:FW19002978
Only (3) left in stock - order soonKan beschikbaarheid voor afhalen niet laden
- Description
Stack FLYWOO GOKU F722 Pro Mini V2 45A 32Bit 128K Stack (20x20) (AM32)

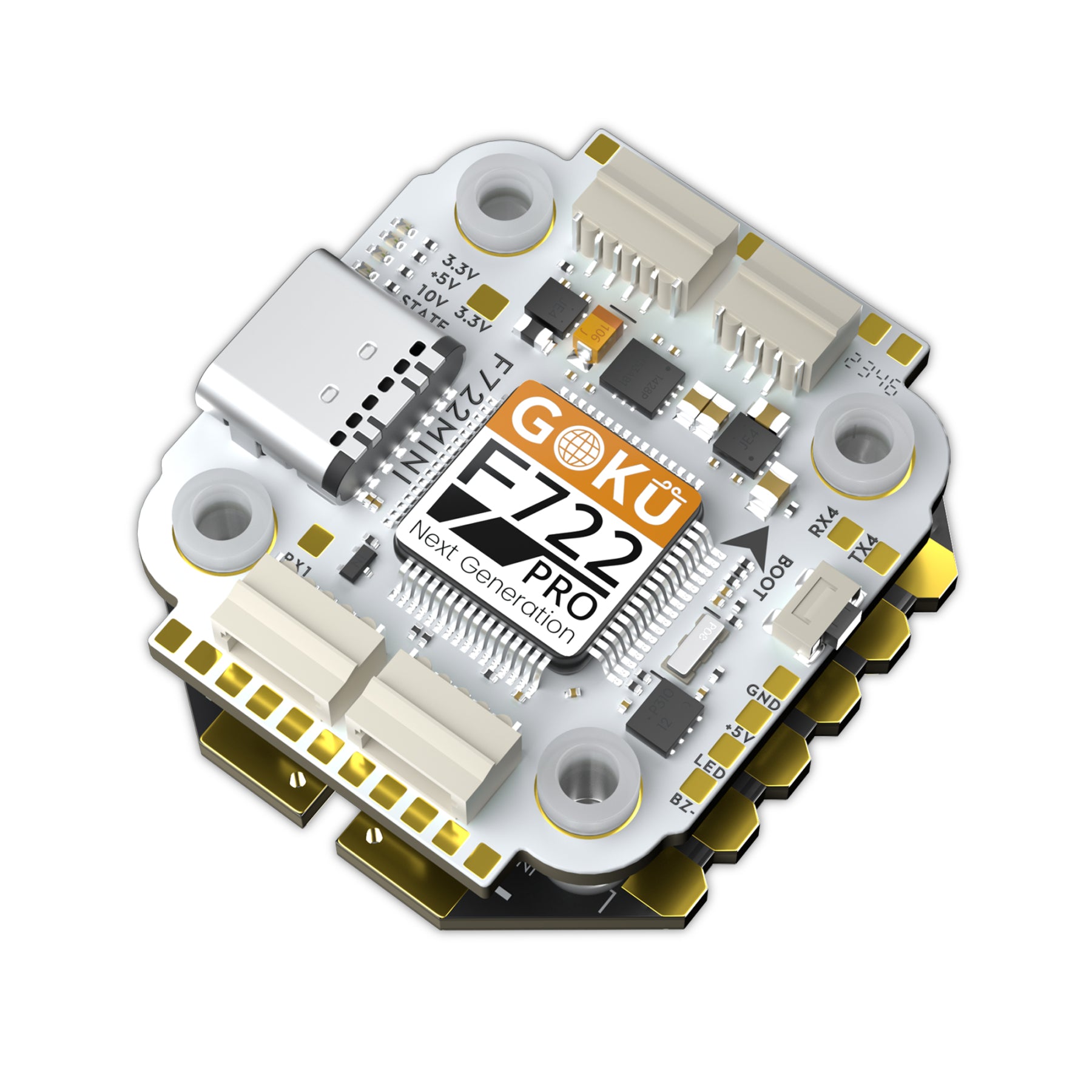

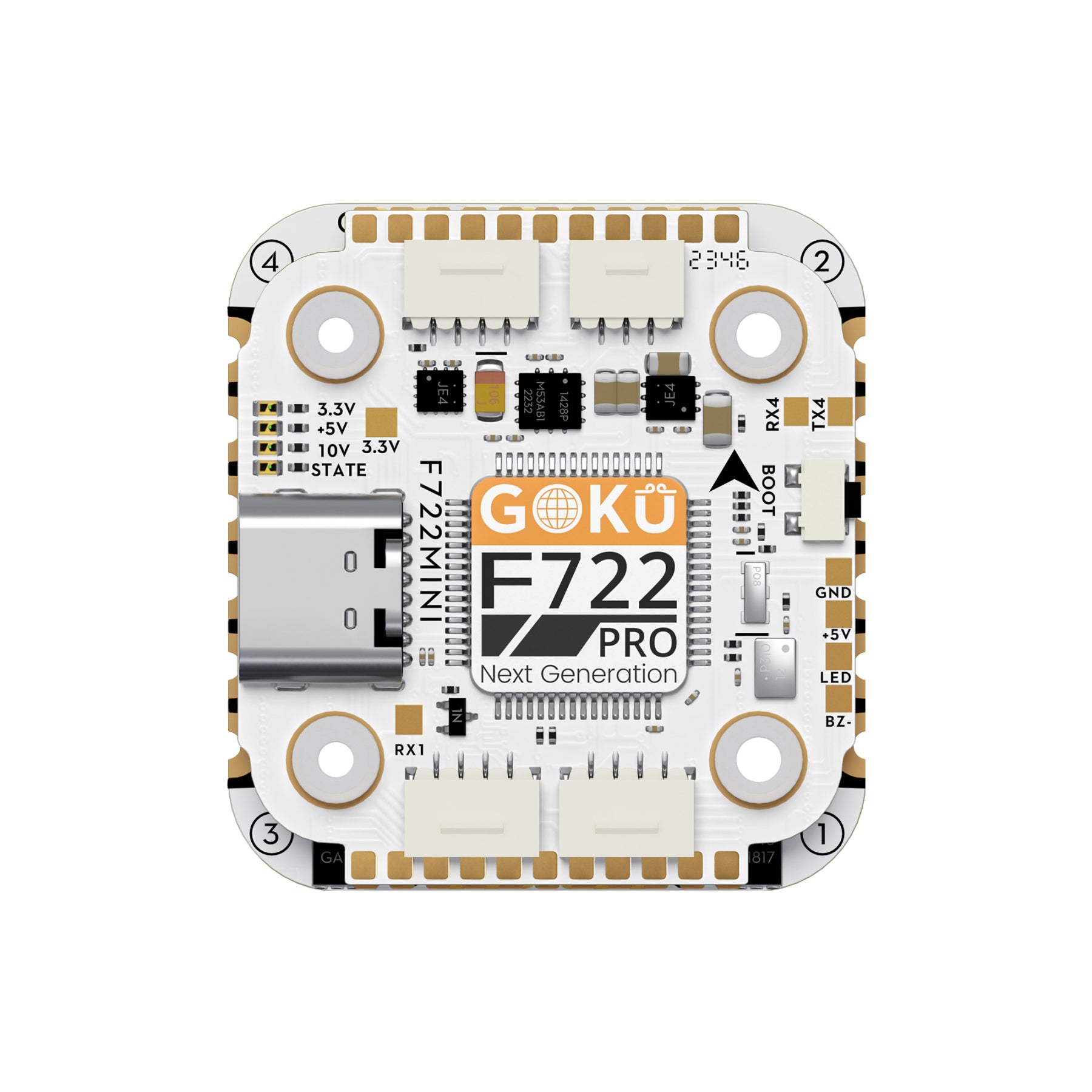

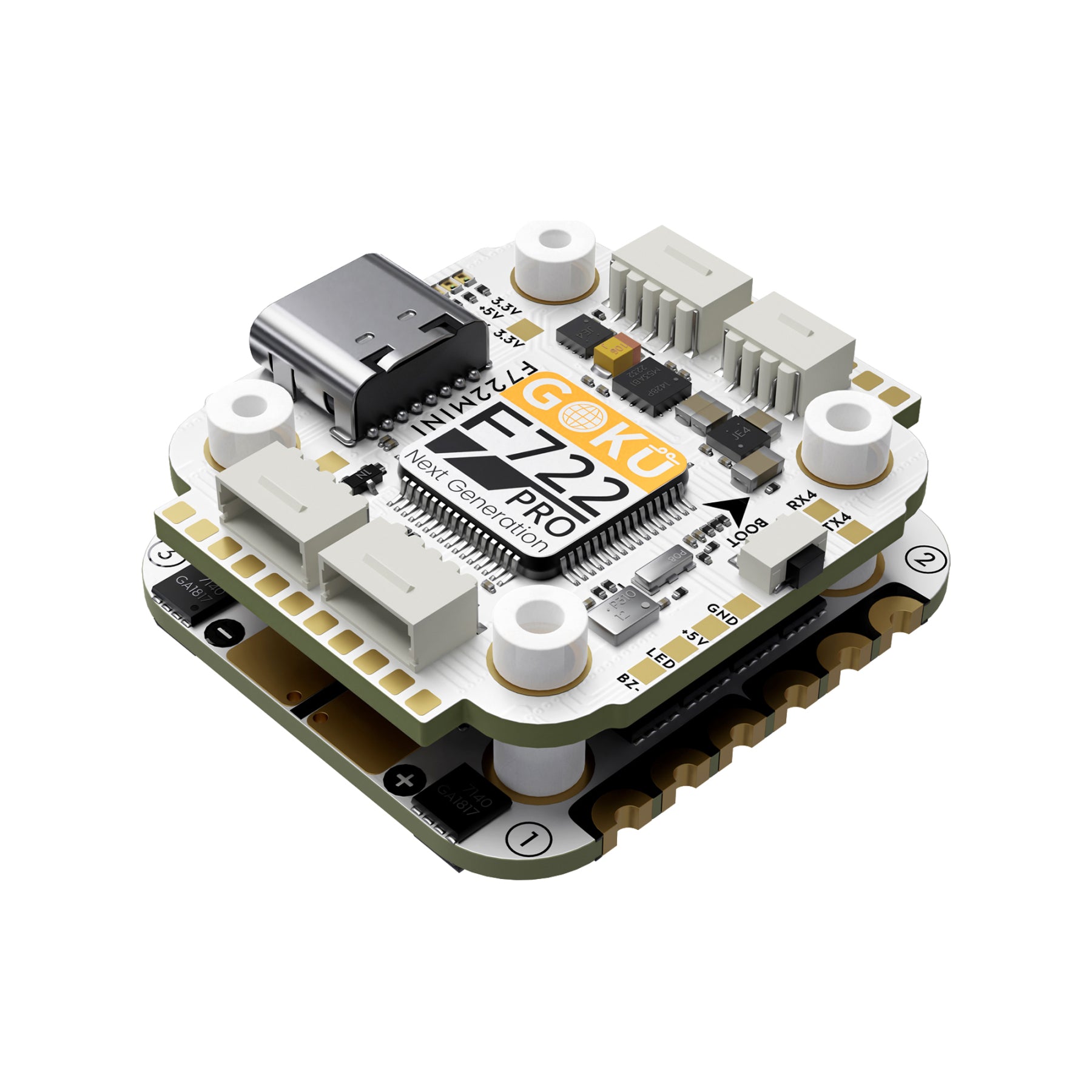

The FLYWOO GOKU F722 Pro Mini V2 Stack is a high-performance 20x20 flight controller and ESC combo tailored for advanced FPV pilots. The FC is built around the powerful STM32F722 MCU, featuring ICM42688 gyro, barometer, OSD, and a 16MB black box for enhanced flight data logging. Paired with the GOKU G45M 4-in-1 ESC supporting AM32 firmware, 128KHz PWM frequency, and a continuous current of 45A, it ensures smooth, responsive flight and precise control. Designed for compatibility with 2–6S LiPo, this stack is perfect for freestyle or long-range builds, offering plug-and-play support for DJI O3 and other peripherals.
Flight Controller:

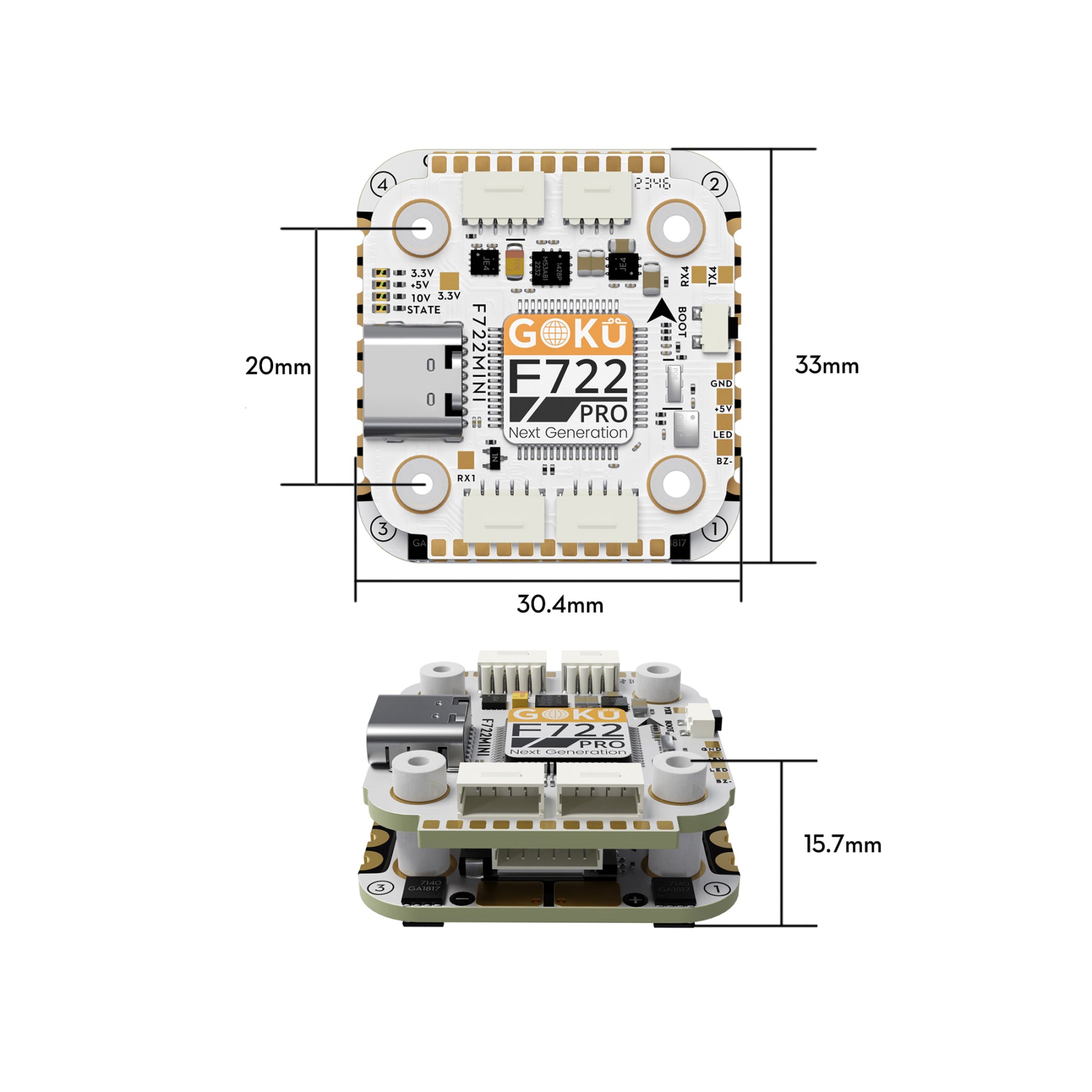

Firmware (BF): FLYWOO F722PROV2 Firmware (INAV): FLYWOO F722PRO MCU: STM32F722 Gyroscope: ICM42688 OSD: AT7456E Barometer: DPS310 / SPL06 Black Box: 16MB UARTs: 1 / 2 / 3 / 4 / 5 / 6 Input Voltage: 7.4V – 26V (2–6S LiPo) BEC: 10V 2A / 5V 2A Size: 32 × 29 × 20 mm Mounting Holes: M2 20×20 mm Weight: 9.9 g
ESC:
Name: GOKU G45M 4-in-1 Firmware: GOKU_F4A32_PRO Supported: AM32 Supported Protocols: DShot300 / DShot600 / DShot1200 PWM Frequency: 24K – 128KHz Input Voltage: 2–6S LiPo Continuous Current: 45A
Package Includes:
1 × GOKU F722 PRO Mini V2 Flight Controller 1 × GOKU G45M 32bit 4in1 ESC 1 × FC & ESC Connection Cable 1 × Buzzer Connection Cable 1 × GPS Connection Cable 1 × DJI O3 Connection Cable 1 × Receiver Connection Cable 5 × M3 Shock-Absorbing Balls 5 × M2 Shock-Absorbing Balls 1 × Camera Connection Cable
