Signal Converter MATEKSYS CRSF-PWM-C
Signal Converter MATEKSYS CRSF-PWM-C
Brand: MATEKSYS
sku: SKU:7635
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description

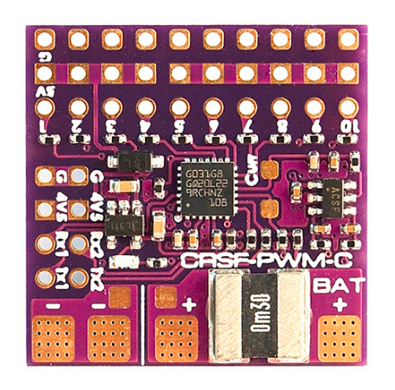

Signal Converter MATEKSYS CRSF-PWM-C
The MATEKSYS CRSF-PWM-C is a versatile converter that transforms CRSF signals into up to ten PWM outputs, making it ideal for fixed-wing aircraft, long-range drones, and servo-based setups requiring reliable Crossfire or ExpressLRS integration.
Features: - Designed exclusively for CRSF protocol receivers, compatible across all frequency bands - Provides ten PWM outputs with configurable frequency for different servo types - Dual UART ports for receiver connection, GPS, and configuration - Integrated telemetry support including voltage, current, capacity, and GPS data - Built-in current and voltage sensing for accurate monitoring - Automatic failsafe value detection and upgradeable firmware - Compact and lightweight module with simple integration

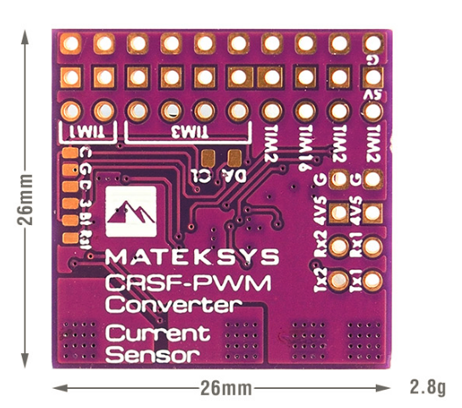

Specifications: PWM Outputs: 10 channels, frequency adjustable (50–400Hz) Telemetry IDs: RxBt, Curr, Capa, Bat %, GPS, GSpd, Hdg, Alt, Sats Voltage Sense: up to 36V (built-in 1K:10K divider) Current Sensor: 90A continuous, 220A peak, scale 150 default Input Power: 4–9V via 5V pad; 0–36V via BAT+ pad (no 5V regulator built-in, requires external 5V source for servos) Dimensions: 26x26mm Weight: 2.8g
Package includes: 1x MATEKSYS CRSF-PWM-C Converter 1x Low ESR Capacitor 1x Dupont 2.54-pin header
