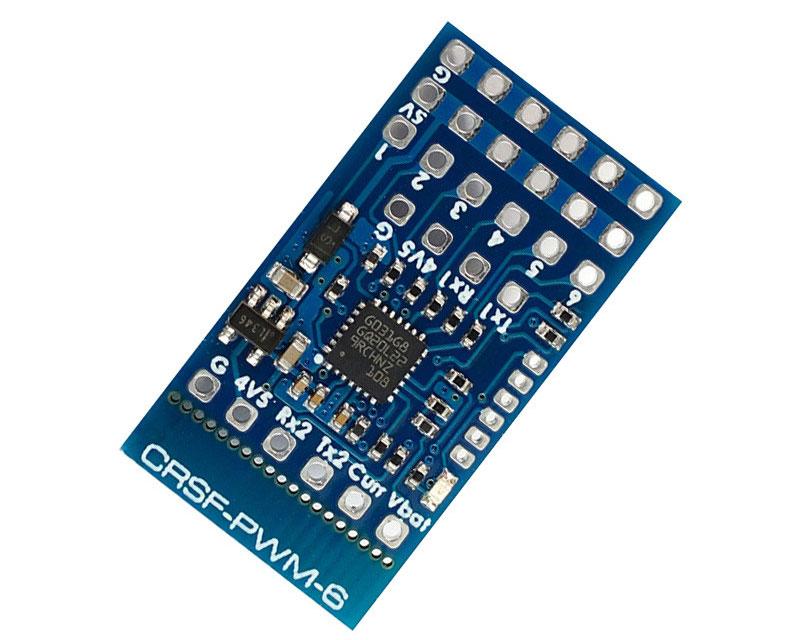

    PWM Signal Converter MATEKSYS CRSF-PWM-6

    The MATEKSYS CRSF-PWM-6 is a compact board that converts CRSF (Crossfire) signals to PWM outputs, ideal for fixed-wing models or gear requiring servo-ready signals from modern long-range receivers.

    Features: - Designed exclusively for CRSF protocol receivers (e.g., Crossfire, ExpressLRS). - Delivers six PWM outputs with adjustable frequency to suit a variety of servos. - Includes dual UART ports for connecting a receiver and GPS or firmware updates. - Integrates battery voltage sensing and supports external current sensor telemetry. - Automatically sets failsafe values on first signal reception and supports firmware upgrades.

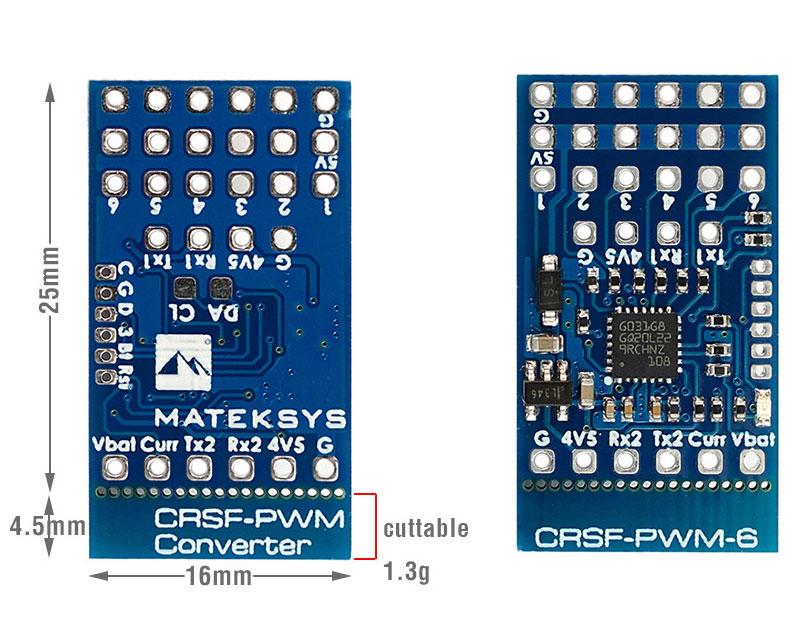

    Specifications: Supports CRSF receivers across various RF bands (868 MHz, 915 MHz, 2.4 GHz) Input voltage: 5V Input protocol: CRSF (ELRS and Crossfire receivers) Output protocol: 6x PWM PWM Frequency: 50/100/160/330/400Hz (50Hz default) UART: 2x (receiver and GPS/Settings) Telemetry: Current, Voltage, Capacity, GPS coordinates, GPS speed, Altitude, Number of satellites Battery sensor: 36V Max Current sensor: 0-3.3V Dimensions: 25x16mm Weight: 1.3 g

    Package includes: 1x MATEKSYS CRSF-PWM-6 Converter module 1x Dupont 2.54-pin header connector
