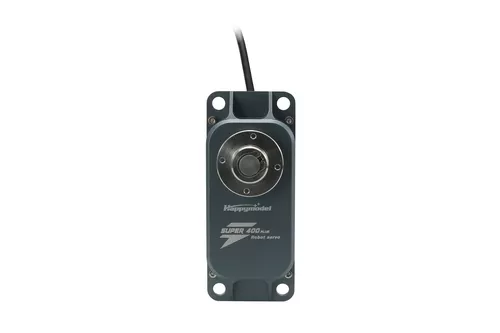

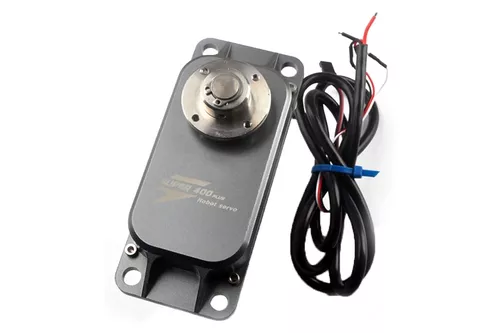

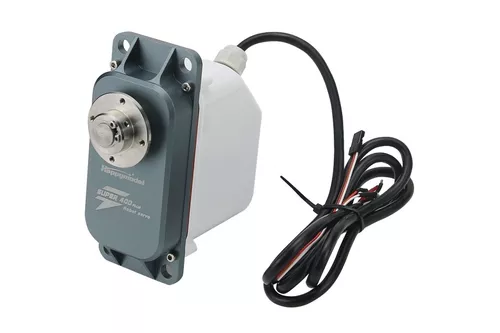

Servo Happymodel Super 400 Plus High Torque 400kg Metal Servo 12V-24V
Servo Happymodel Super 400 Plus High Torque 400kg Metal Servo 12V-24V
Brand: Happymodel
sku: SKU:2D30016
Out of stockKan beschikbaarheid voor afhalen niet laden
- Description
Servo Happymodel Super 400 Plus High Torque 400kg Metal Servo 12V-24V
HappyModel Super 400 Plus is a rugged, high-torque digital servo engineered for demanding applications. It operates from 12–24 V, delivers up to 400 kg·cm torque, and features a no-load speed of ~0.37 s per 60° (at 24 V). With fully adjustable ±30° to ±150° motion range, PWM support (800–2200 µs, 50–400 Hz), and robust metal construction weighing approximately 765 g, it’s ideal for industrial robotics, automation, and heavy-duty RC projects.
Features: - The high voltage (HV) compatibility allows you to power this servo using 12 V or 24 V systems—ideal for stronger performance (speed & torque at 24 V). - Its adjustable motion range (up to ±150°) makes it flexible for tailored robotic or mechanical setups. - Built with metal gears and robust internals, it is designed to withstand demanding industrial loads.
Specification: Input Voltage: 24V (powered by battery is recommended) No Load Speed: 24v, about 0.75s/60° Maximum Load: 400kg.cm Typical Load: 140kg.cm No Load Current: <0.15A Stall Current: <14A Input Signal: PWM: 800us~2200us, 50~400Hz Operation Rang: Adjustable: +30° ~ +150° Weight: 132 × 55 × 116 mm Net Weight: 765g
Package Include: 1x Servo Happymodel Super 400 Plus High Torque 400kg Metal Servo 12V-24V
