7-Inch Long Range Analog FPV DIY Build Kit
Built to go further. Built by you.

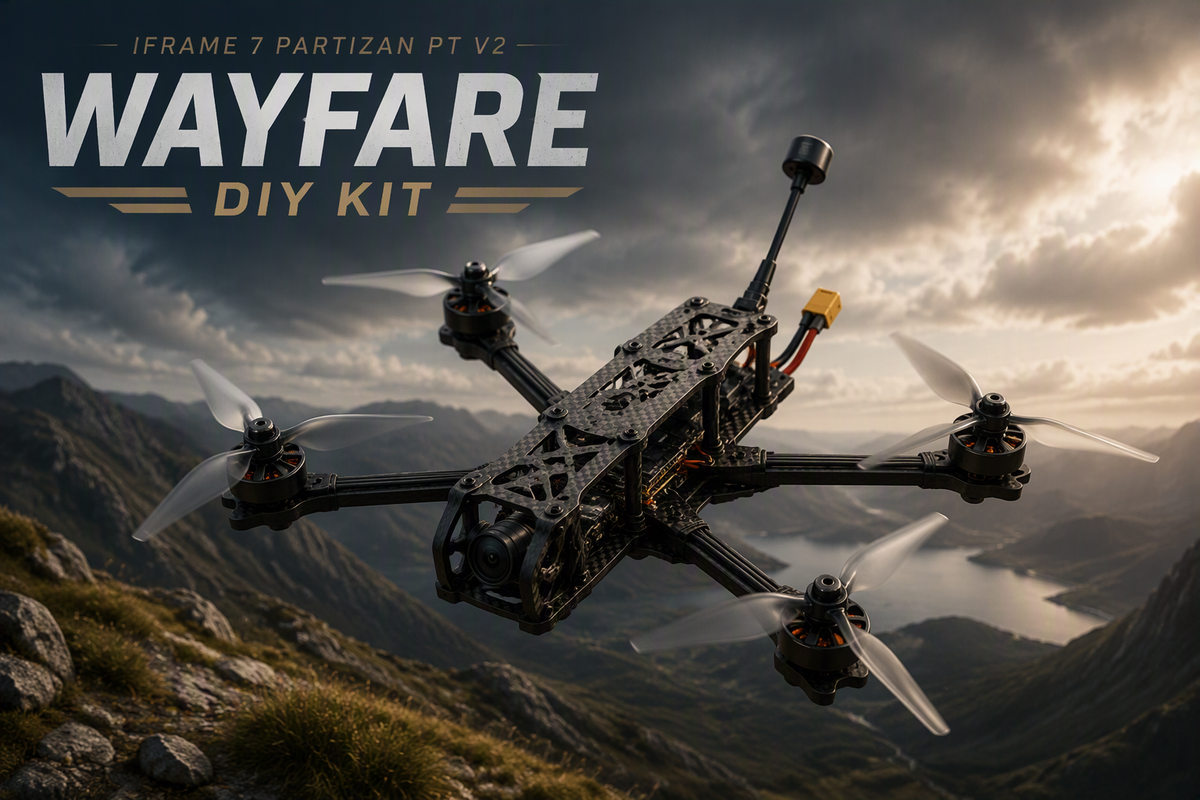

The iFrame Partizan PT7 V2 "Wayfarer" is a complete 7-inch long-range FPV DIY build kit designed around the rugged Partizan PT7 V2 carbon frame. Instead of supplying a generic collection of parts, the Wayfarer combines carefully matched components into one defined 6S analog FPV platform for pilots who want to build, configure and maintain their own long-range aircraft.
At its core is the Partizan PT7 V2, a 320 mm wheelbase carbon frame designed specifically for 7-inch propellers and 2807 motors. Its 6 mm arms provide a substantial foundation for the electronics and long-range equipment used throughout the Wayfarer build.
Power comes from four GEPRC EM2807 1350KV motors, developed for 7 to 8-inch long-range FPV applications. They are designed for 6S LiPo operation and support 6 to 8-inch propellers, making them a natural match for the PT7 V2 platform.
The Wayfarer Configuration
Partizan PT7 V2 7-Inch Carbon Frame
The foundation of the Wayfarer. The PT7 V2 features a 320 mm wheelbase, 6 mm arms, 19 mm camera mounting and 30.5/20 mm electronics mounting options. The bare frame weighs 226 g and is specifically intended for 7-inch builds.
4x GEPRC EM2807 1350KV Motors
The Wayfarer uses four GEPRC EM2807 motors developed for 7 to 8-inch long-range FPV drones. Each motor is rated for 6S LiPo operation, with a stated maximum power of 1080W and 47A peak current.
HQProp 7x4x3 3-Blade Propellers
A set of 7-inch HQProp 7x4x3 tri-blade propellers, supplied in matching CW and CCW directions.
Pilotix F405 V3 + 60A BLS Stack
Flight control is handled by the Pilotix F405 V3, combining an STM32F405RGT6 processor, ICM42688 gyro, BMP280 barometer and 16MB BlackBox with a 60A 4-in-1 ESC. The ESC supports 3-6S LiPo power and provides 60A continuous current per channel.
Caddx Ratel Pro Analog FPV Camera
For the pilot's view, the Wayfarer uses the Caddx Ratel Pro. This 19 x 19 mm analog FPV camera combines a 1/1.8-inch sensor with 1500TVL resolution, Super WDR, switchable PAL/NTSC and switchable 4:3/16:9 output.
Pilotix R3000 4.9-6.2GHz 3W VTX
The video system is built around the powerful Pilotix R3000 analog VTX. It provides selectable PIT / 25mW / 1W / 2W / 3W output, TBS SmartAudio control, NTSC/PAL compatibility and an MMCX antenna interface.
Foxeer Lollipop 4 RHCP 160mm
The video system is paired with a Foxeer Lollipop 4 RHCP antenna. This version features a 160 mm length, SMA connection, 2.6dBi stated gain and a 5.5 to 6.0GHz specified bandwidth.
Pilotix ELRS 2.4GHz Nano Receiver
Control is provided through ExpressLRS 2.4GHz using the compact Pilotix Nano receiver. It uses an ESP8285 MCU and SX1281 RF chip, provides 20dBm telemetry power and weighs only 0.6 g without the antenna.
Walksnail WS-M181 GPS + Compass
Navigation data comes from the compact WS-M181 GNSS module, featuring a u-blox M10 chipset and integrated QMC5883 compass. It supports GPS, GLONASS, BeiDou, Galileo, SBAS and QZSS satellite systems.
GEPRC Super Buzzer
A dedicated GEPRC Super Buzzer adds a useful recovery aid to the build. It contains its own battery and LED and can produce a 100dB audible alert following loss of main power.
What's Included
The Wayfarer 7-inch FPV DIY Build Kit includes:
- 1x Partizan PT7 V2 carbon frame
- 4x GEPRC EM2807 1350KV motors
- 1x HQProp 7x4x3 3-blade propeller set
- 1x Pilotix F405 V3 ICM42688 + 60A BLS ESC stack
- 1x Caddx Ratel Pro analog FPV camera
- 1x Pilotix R3000 4.9-6.2GHz 3W VTX
- 1x Foxeer Lollipop 4 RHCP SMA 160mm antenna
- 1x Pilotix ELRS 2.4GHz Nano receiver with T-antenna
- 1x Walksnail WS-M181 GPS module
- 1x GEPRC Super Buzzer
DIY by Design
The Wayfarer is supplied as a build kit, not as a ready-to-fly FPV drone.
Assembly involves installing the frame components and electronics, soldering the electrical system and configuring the flight controller, receiver, video system and GPS. This makes the Wayfarer particularly suitable for FPV pilots who want to know exactly what is inside their aircraft and retain the ability to repair, modify and upgrade the platform themselves.
A 6S flight battery, radio transmitter, FPV goggles/receiver and battery charger are not part of the listed kit contents.
